Yellow PTO Switch TCA21027 Fits John Deere TG1860 TG1860G

Yellow PTO Switch TCA21027 Fits John Deere TG1860 TG1860G

$27.00 CAD
$27.00 CAD
Sale Sold out
Shipping calculated at checkout.

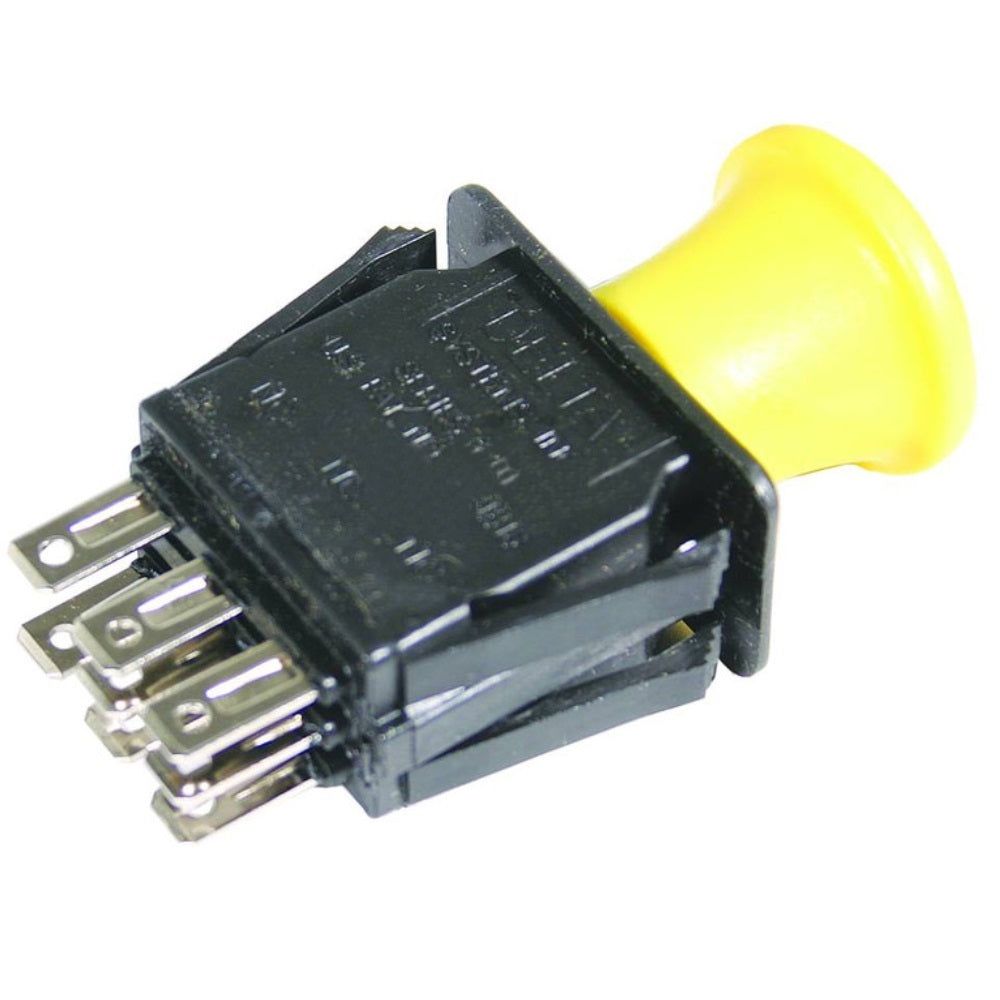

One New Aftermarket Replacement Yellow PTO Switch for John Deere (JD) TG1860 / TG1860G Mowers

This push/pull PTO switch engages and disengages the blade clutch on compatible John Deere (JD) riding mowers and zero-turn mowers. The yellow smooth-knob snap-mount design installs without tools directly into the dash panel, replacing a faulty or worn OEM switch. This is a cross-brand interchange switch also compatible with Exmark, Toro, Bobcat, Grasshopper, Ariens, Scag, and EverRide equipment listed below.

Specifications

  • Knob Color: Yellow
  • Knob Type: Push / Pull, Smooth (no grooves)
  • Mount Type: Snap Mount
  • Number of Positions: 2
  • Number of Terminals: 8
  • Ignition Type: PTO

Compatible Models

John Deere: TG1860, TG1860G

Exmark: Turf Tracer Floating Deck Walk-Behinds (Serial No. 190,000 and higher, without ECS, 52" and 60" deck); Lazer Z (Serial No. 102,000-370,000, 52", 60", and 72" deck); Lazer XP (Serial No. 260,000-540,000, 60" and 72" deck)

Grasshopper: 320 Series Zero-Turns, 2002-2008, with 52", 61", and 72" deck

Toro: 74269 with 72" deck; Z 500 Z Master with 60" and 72" deck

Bobcat: 61" Zero-Turn 200 Series (942200-942299) Rider Drive Units; 930022, 930023, 922010, 934010A Gear Drives; 930000-936406A Power Units and Hydro Drives

Ariens / EverRide / Scag / EXmark: See additional models in models list. Verify fitment by model and serial number before ordering.

Replaces Part Number(s):

TCA21027, AM119139, GY20939, 103-5221, 1-633673, 633673, 136574, 00136574, 183925, 4172503, 481635

Aftermarket Interchange Numbers

TCA17834, TCA22710, AM131966, 6201-342, ELT20-0248

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

Lazer XP, Dominator 88, Jaguar 685, D170, STC48V, Warrior, Dominator 78, La130, 930000-936406A, 74269, Mega 218, La150, 930023, Tiger Cat 2, Jaguar 690, X130R, Dominator 108, La155, Dominator 98, D160, STC61V, X165, 200 942200-942299, 922010, La140, STCII-48V, Lazer Z, STC52V, Turf Tracer, Z 500's Z Master, La165, La145, Medion 310, Mega 208, La175, STCII-61V, Mega 204, 320, X155R, 930022, Tiger Cat, 934010A, Medion 340, X140, STCII-52V

Additional Information:

Smooth Knob (not with Grooves). Number of Positions: 2 Number of Terminals: 8 Ignition Type: PTO Knob Type: Push / Pull Mount Type: Snap Mount

Reference Numbers:

481635, 00136574, 136574, 103-5221, 1-633673, 183925, 4172503, 103-5221, 1-633673, 633673, AM119139, GY20939, 136574

Product Sub Group:

Switches
