Yard Man Riding Lawn Mower Hex Flange Nut Replacement Tractor Blade Spindle Nut

Name: Yard Man Riding Lawn Mower Hex Flange Nut Replacement Tractor Blade Spindle Nut
SKU: LAB50-0017_12
Price: 13.0 USD
Availability: InStock

Yard Man Riding Lawn Mower Hex Flange Nut Replacement Tractor Blade Spindle Nut

$13.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Hex Flange Spindle Blade Nut for Yard Man, MTD, Cub Cadet, Troy-Bilt, Toro and More

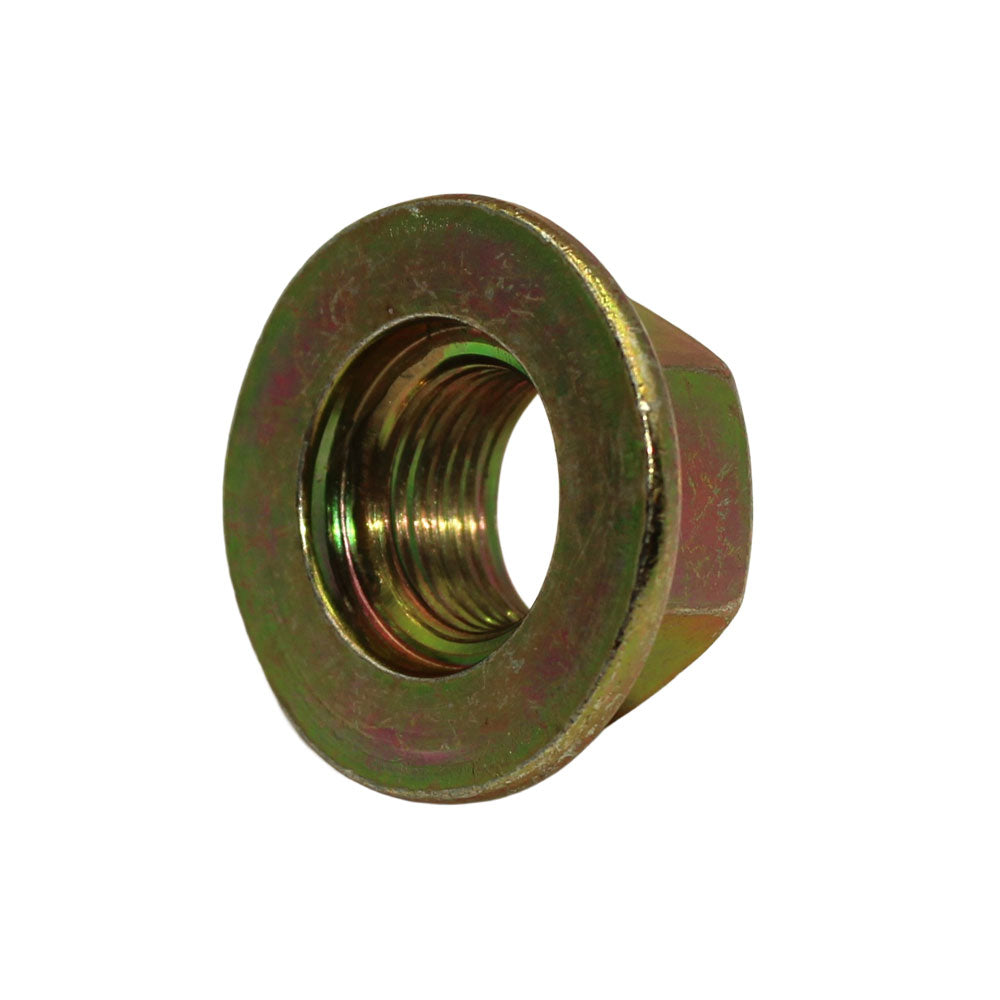

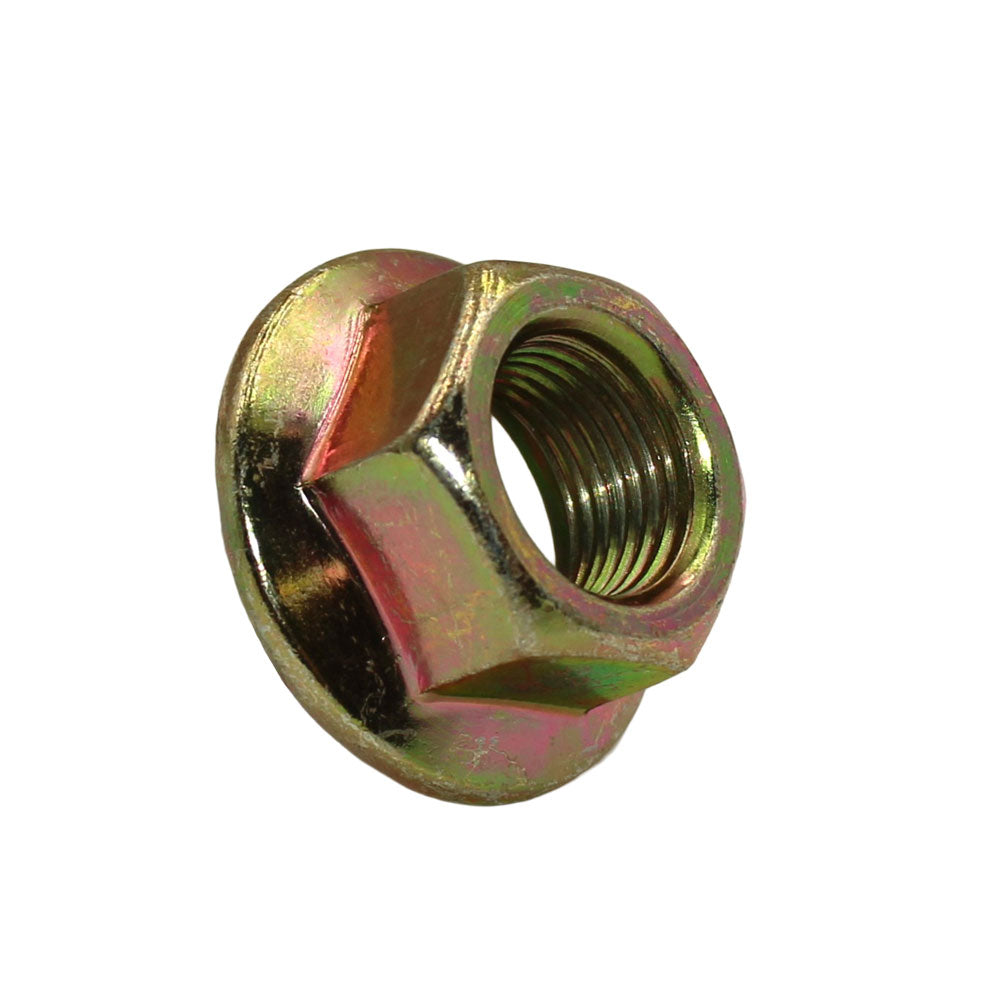

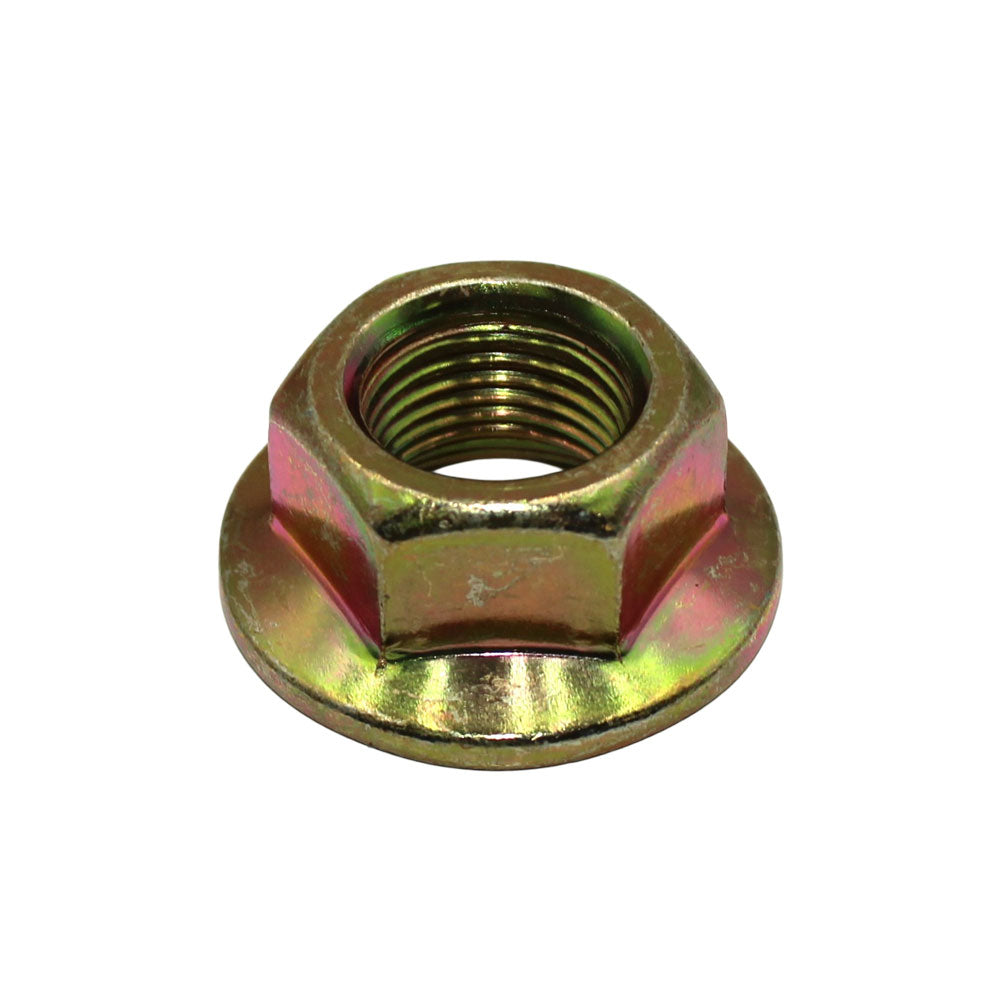

This hex flange spindle blade nut secures the cutting blade or pulley to the deck spindle assembly (also known as a jackshaft nut) on a wide range of MTD-family riding mowers and lawn tractors. The flanged design provides a secure, self-locking grip on 5/8"-18 threaded spindle shafts and can be used on either the blade side or the pulley side of the spindle assembly.

Specifications

Diameter: 5/8"
Thread: 5/8"-18
Type: Hex Flange Nut (Spindle / Jackshaft Nut)
Usable on blade side or pulley side of spindle assembly
Fits Spindle Assemblies: B1MT51, B1MT53, B1MT54, B1MT55, B1MT202

Compatible Models

Yard Man: SV600-3225, 13AX614G701, 13AX935T001, 13CX614G401, 13AL608G731, 13AD624G401, 13A2785S001

MTD: 600 Series, 800 Series Riders

Troy-Bilt: KT725-3012, KT735-3013, KT740-3011, SV530-3222, 13AM77KS011, 13CC26JD011, 13WV78KS011, 17ARCACK011, 17ARCACP011, 17ARCACS011, 17ARCACT011, 21R707-0039-G1, 31R707-0001-G1, R809K, RZT42, RZT50, T609, T809H, U609H, V809H, X609G, Y609H, Y809P, Z809H, Z809K

Murray: 13AM775S058, 13BC761F058, 13BC76LF058, 13BM772S058, 13B326JC758, 17ADCACT058, 21R807-0023-G1, 31R707-0013-G1, 40R877-0007-G1

Cub Cadet: LT1040, LT1042, LT1046, LGT1050, LGT1054, LGTX1050, RZT42, RZT50, RZT54

Toro / Wheelhorse: Compatible models using 112-0330

Husqvarna: 13W2775S031, 4P90JUB

Huskee / White / Craftsman / Bolens: Compatible MTD-platform models

Replaces Part Number(s):

712-0417, 712-0417A, 712-0417AP, 7120417, GW-7120417A, 912-0417A, 753-05549, 112-0330, 1120330, Diameter: 5/8" Spindle Blade Nut, 5/8" Diameter

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

13W2775S031, 13AT604G701, 13WV78KS011, 13B326JC758, 13BC761F058, 13AD624G401, 21R707-0039-G1, SV530-3222, 17ARCACS011, 13BM772S058, 13AM775S058, 40R877-0007-G1, 17ADCACT058, 13AX935T001, 31R707-0001-G1, 21R807-0023-G1, 13A2785S001, lawn equipment for precision work, 13AX614G701, 13BC76LF058, SV600-3225, 4P90JUB, 31R707-0013-G1, 17ARCACP011, 13AL608G731, 600 and 800 series, 13AT604G755, mowers for cutting grass, 17ARCACT011, KT735-3013, 13AM77KS011, 17ARCACK011, KT725-3012, 13CX614G401, 13CC26JD011, KT740-3011

Additional Information:

Diameter: 5/8" Thread Length: 5/8-18" Spindle Assembly / Jackshaft Nut Can be used on Blade or Pulley Side

Reference Numbers:

5/8" Diameter, GW-7120417A, 712-0417A, 753-05549, 7120417, 712-0417, 712-0417A, 712-0417AP, 753-05549, 912-0417A, GW-7120417A, Diameter 5/8" Spindle Blade Nut, Diameter: 5/8" Spindle Blade Nut, 112-0330, 1120330
