WN-72162168 Air Conditioner, Compressor, Fits Allis Chalmers 9130 9150 9170 9190 9630 9650 9670 9690
WN-72162168 Air Conditioner, Compressor, Fits Allis Chalmers 9130 9150 9170 9190 9630 9650 9670 9690
Regular price
$298.00 CAD
Regular price
Sale price
$298.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

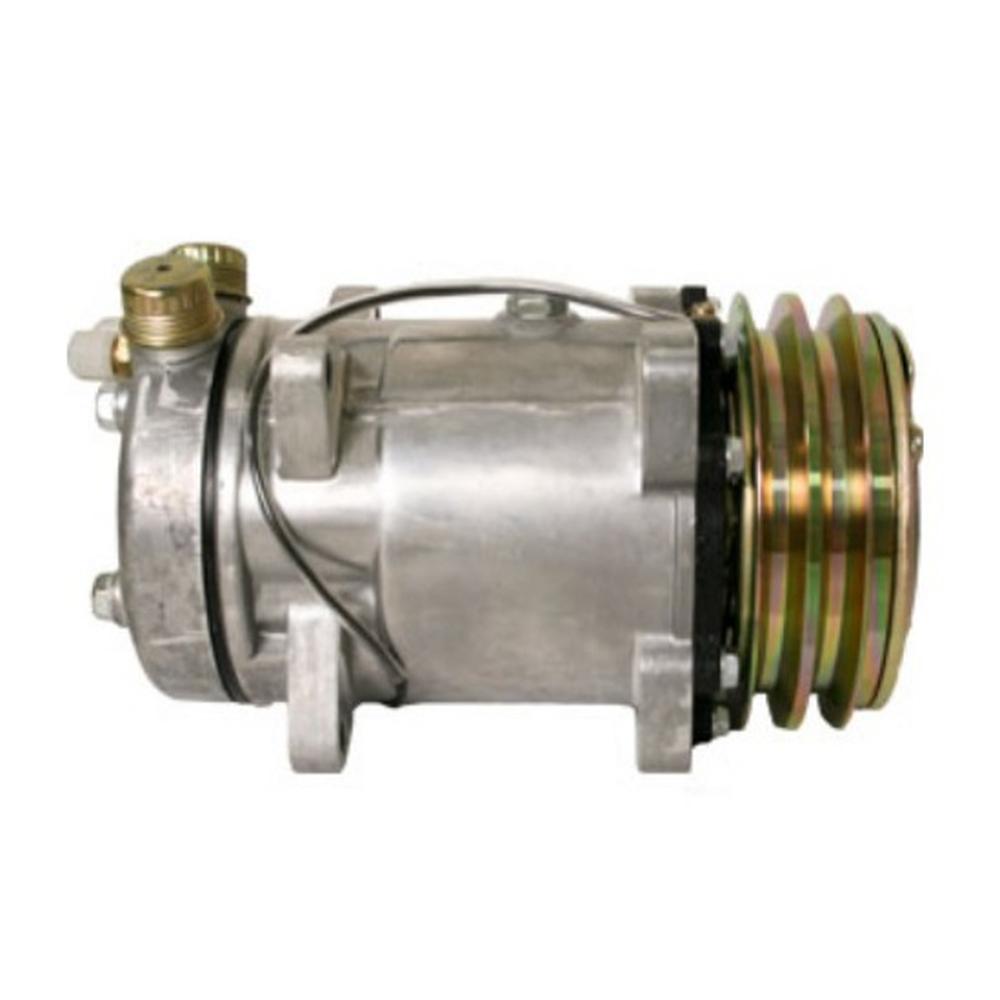

One New Aftermarket Air Conditioner, Compressor, New
Fits Steiger Models:
-BC
-CA
Tech Info:
-Sanden style, with Clutch, 5-1/4" Pulley, 2A Pulley Grooves
Additional Info:
-125 WORKHORSE, 145 WORKHORSE, 170 WORKHORSE, 195 WORKHORSE, 2-105 S/N 299004-, 2-135 S/N 400418-
-9630 S/N -921000, 9650 S/N -941000, 9670 S/N -961000, 9690 S/N -981000
-The following steps must be performed prior to compressor installation for warranty to be considered on all A/C compressors. Failure to do so will void all warranty. 1.The system (condenser, evaporator, lines, etc.) needs to be flushed with an approved liquid? 2.A new receiver-drier or accumulator needs to be put on.3.The expansion valves or office tubes needs to be inspected - cleaned - replaced. 4.Inspect the lines.5.The condenser and evaporator needs to be checked/cleaned of debris. 6.Properly vacuum system down. 7. Use the recommended type and amount of oil needed. 8.Install the proper Freon level. 9. Hand turn the compressor after filing with Freon. 10.Check the voltage to the compressor. 11.Check the system for leaks. 12.The proper documentation/shop work order of the above steps needs to accompany the compressor for warranty.
-BC SERIES I/II Late Series II w/o Service Ports,CA-INDUSTRIAL SERIES Late Style O-ring Style w/o Service Ports)
Replaces Part Number(s): WN-72162168
