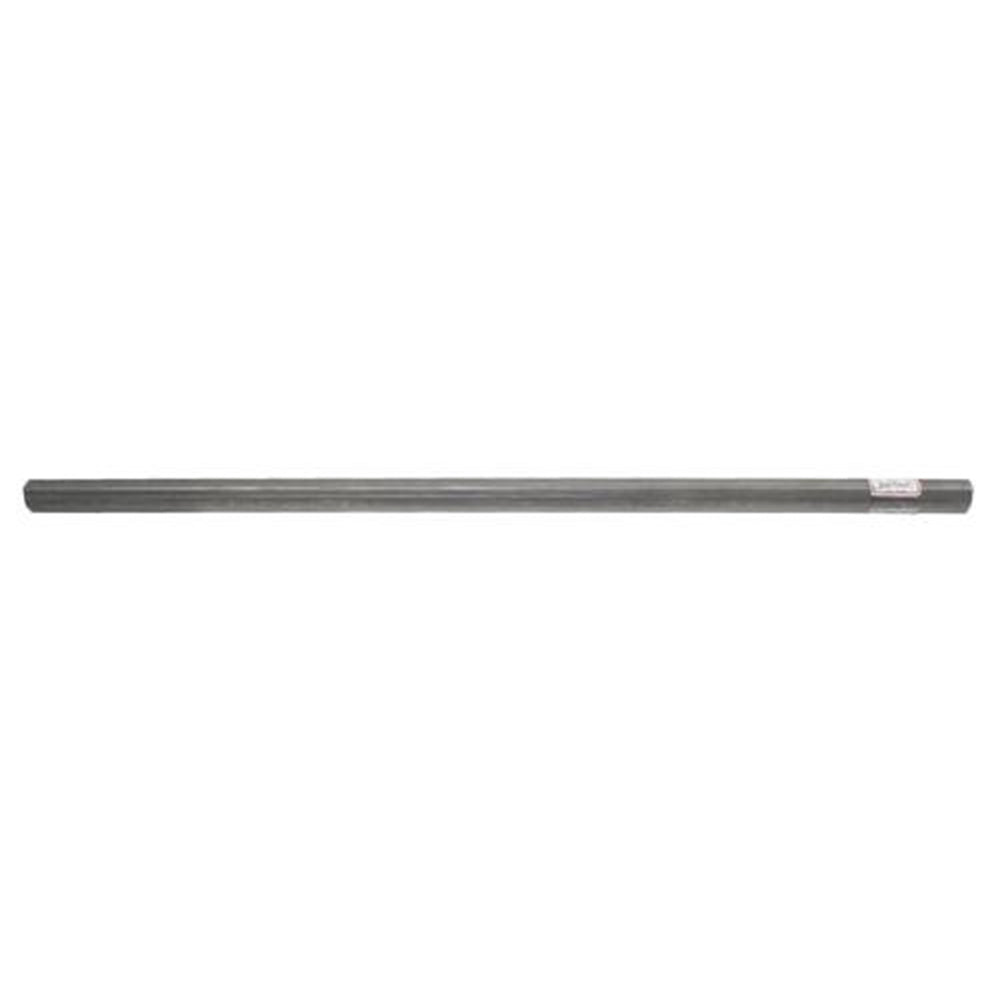

Weasler 59-1/16" x 36 MM Tri-lobe Inner Profile Tubing 4 Series 400-6436 Farmer
Weasler 59-1/16" x 36 MM Tri-lobe Inner Profile Tubing 4 Series 400-6436 Farmer
Couldn't load pickup availability
One New Aftermarket Replacement Tri-lobe Inner Profile Tubing for Bondioli & Pavesi 4 Series PTO Drivelines

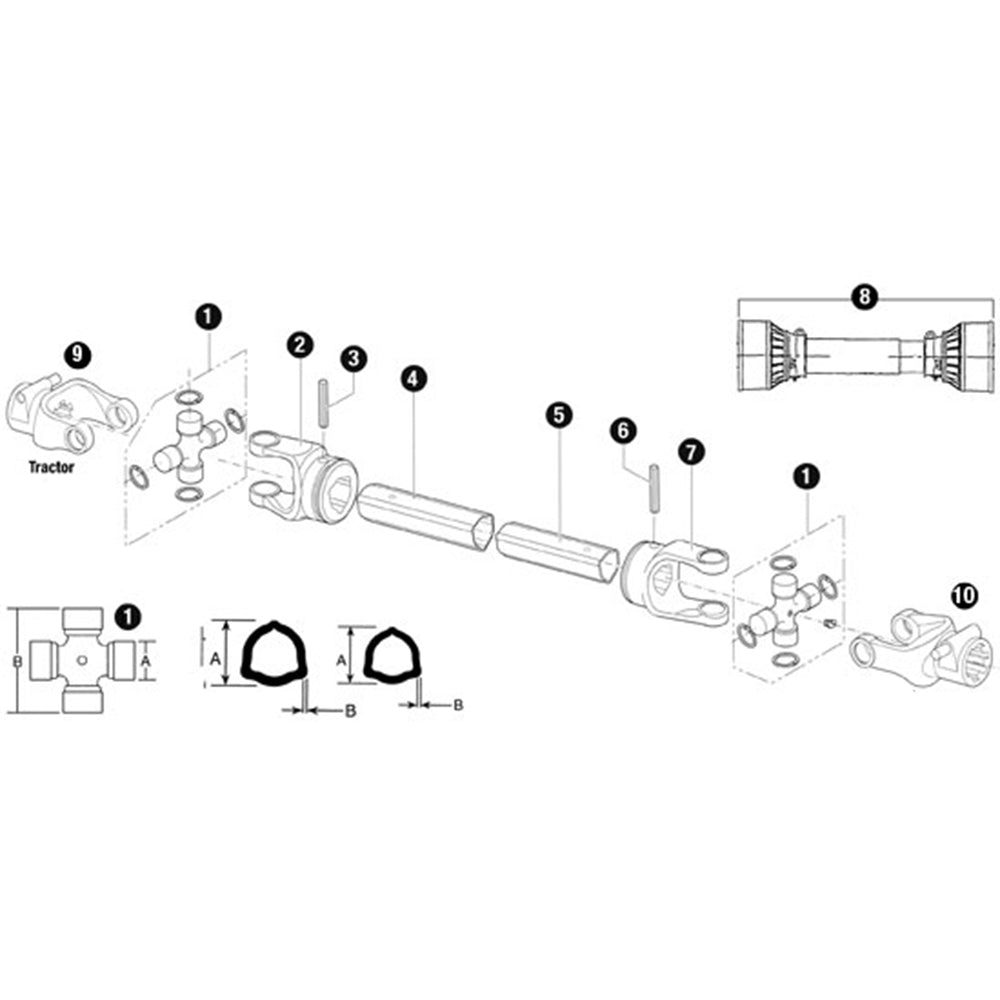

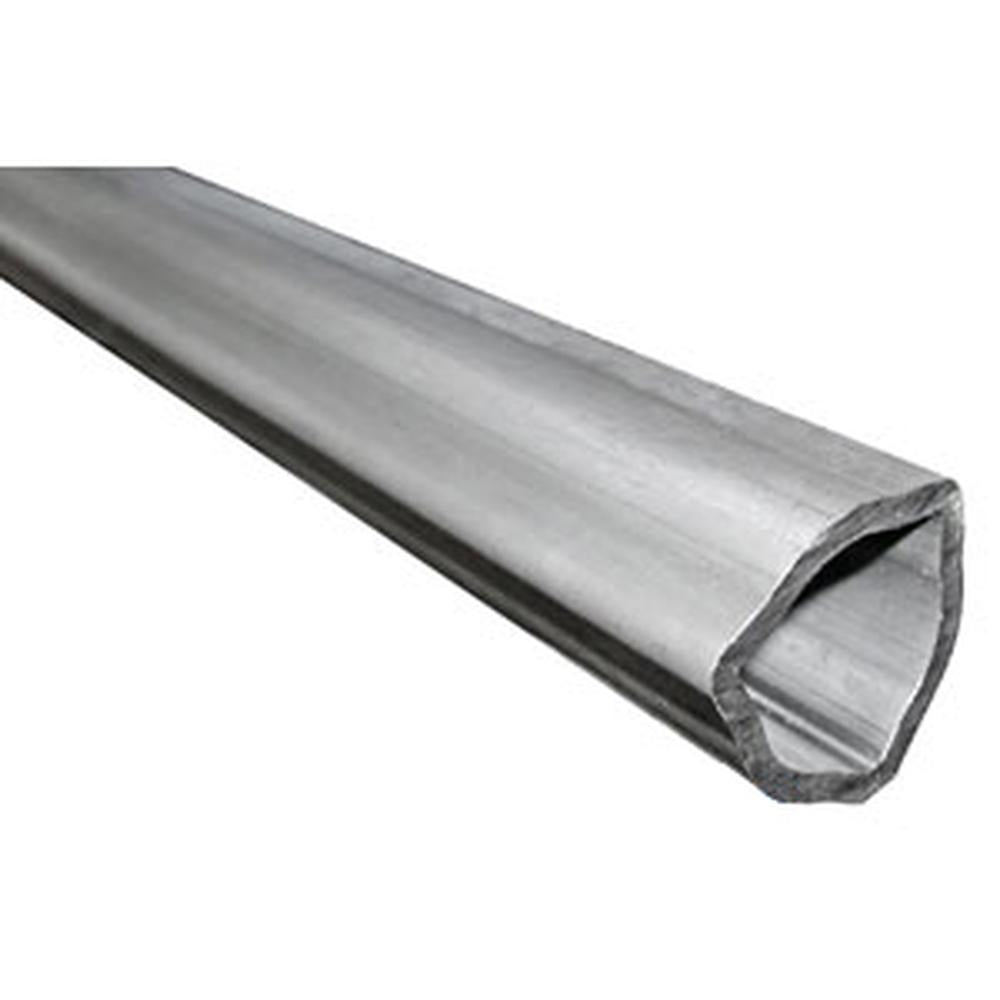

This 59-1/16" x 36 MM tri-lobe (Italian-style bell-shaped) inner profile tubing is a replacement component for Bondioli & Pavesi (B&P) Series 4 metric PTO driveline assemblies. The inner tube slides telescopically inside the outer profile tube, allowing the PTO shaft to extend and compress during operation. It is sold as a single length that can be cut to the required finished shaft length.
Specifications
- Length: 59-1/16 in (approximately 5 ft)
- Profile Diameter: 36 MM
- Profile Shape: Tri-lobe (Italian/Bondioli & Pavesi style)
- Series: 4 (Size 4)
- U-Joint Cap Size: 27.0 MM / 1-1/16" (1.063")
- Cap to Cap: 74.6 MM / 2-15/16" (2.937")
- Material: Steel
Compatible Models
Bondioli & Pavesi: Series 4 / Size 4 metric PTO drivelines
Note: Tri-lobe profile tubing is the Italian-style metric driveline format. Verify your existing tubing profile shape before ordering - this tube is NOT compatible with German-style (Walterscheid) lemon or star profile drivelines, or with North American square/hex/splined profile drivelines.
Replaces Part Number(s):
400-6436, 400 6436, 4006436
Aftermarket Interchange Numbers
12507, 2660400-6436, 274238, 33052, 343-1404, 4-04M1.5, 40241322, 7-05-07, 971-4006436, 9714006436, BT36-4, BT364, BYQ7-23-1-138, BYQ7231138, PM400-6436, DRF30-0089
New aftermarket replacement part - not remanufactured, not used.
