Warning Light Flasher AR78825 Fits John Deere Models

Name: Warning Light Flasher AR78825 Fits John Deere Models
SKU: zbox_1089556
Price: 71.0 USD
Availability: InStock

Warning Light Flasher AR78825 Fits John Deere Models

$71.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Red LED Warning/Tail Light AR78825 Fits John Deere (Fits JD) Tractors and Agricultural Equipment

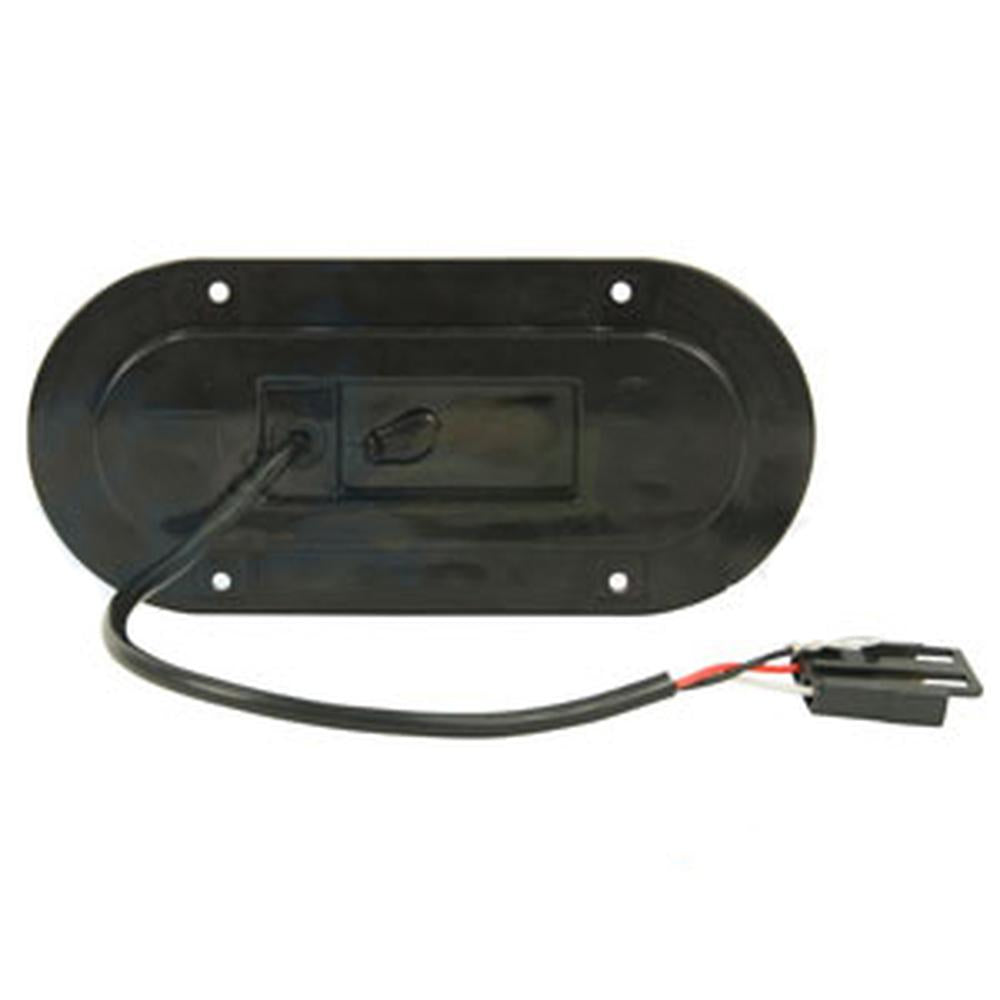

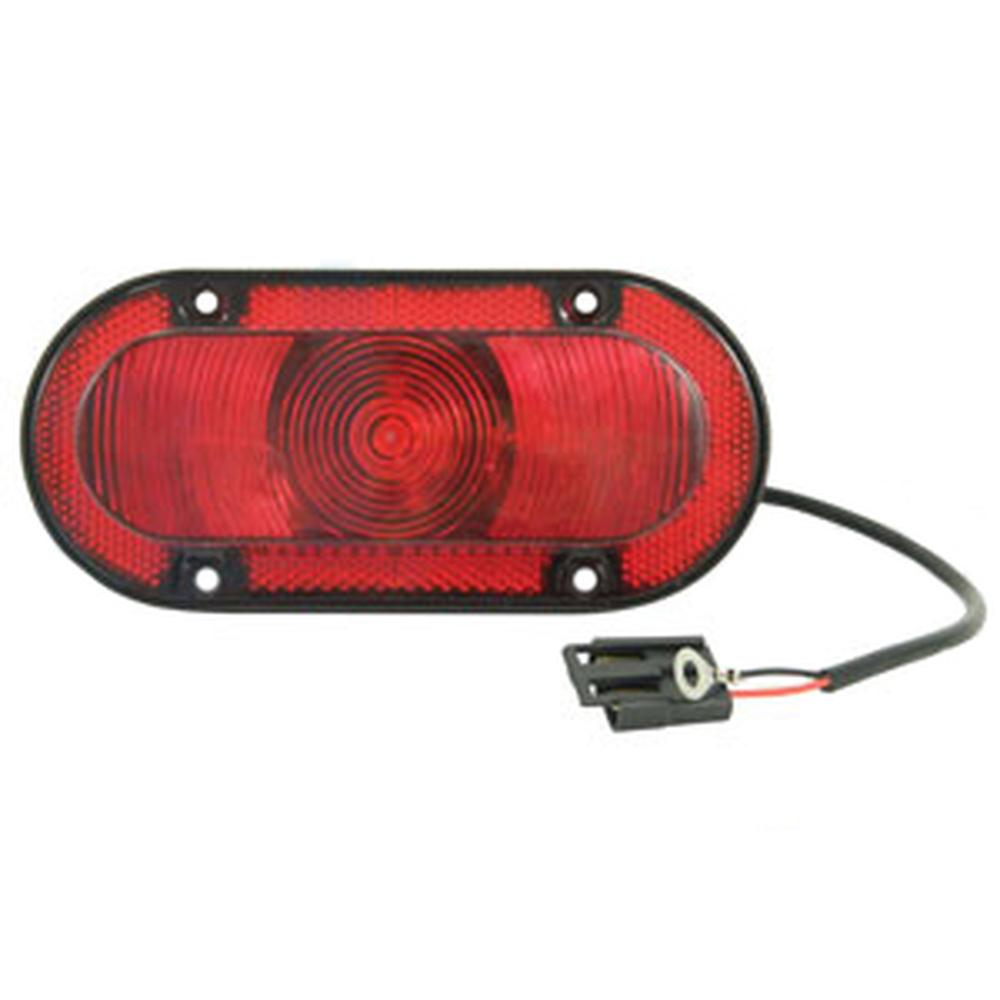

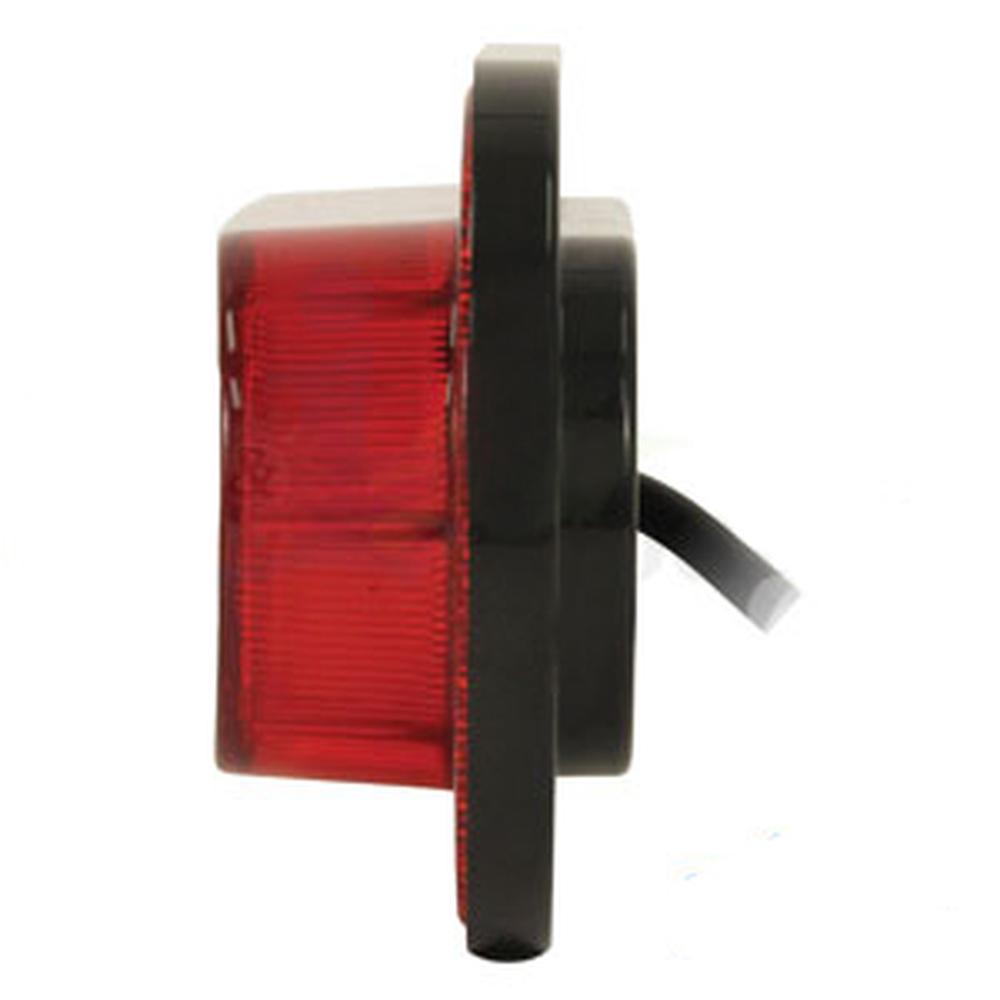

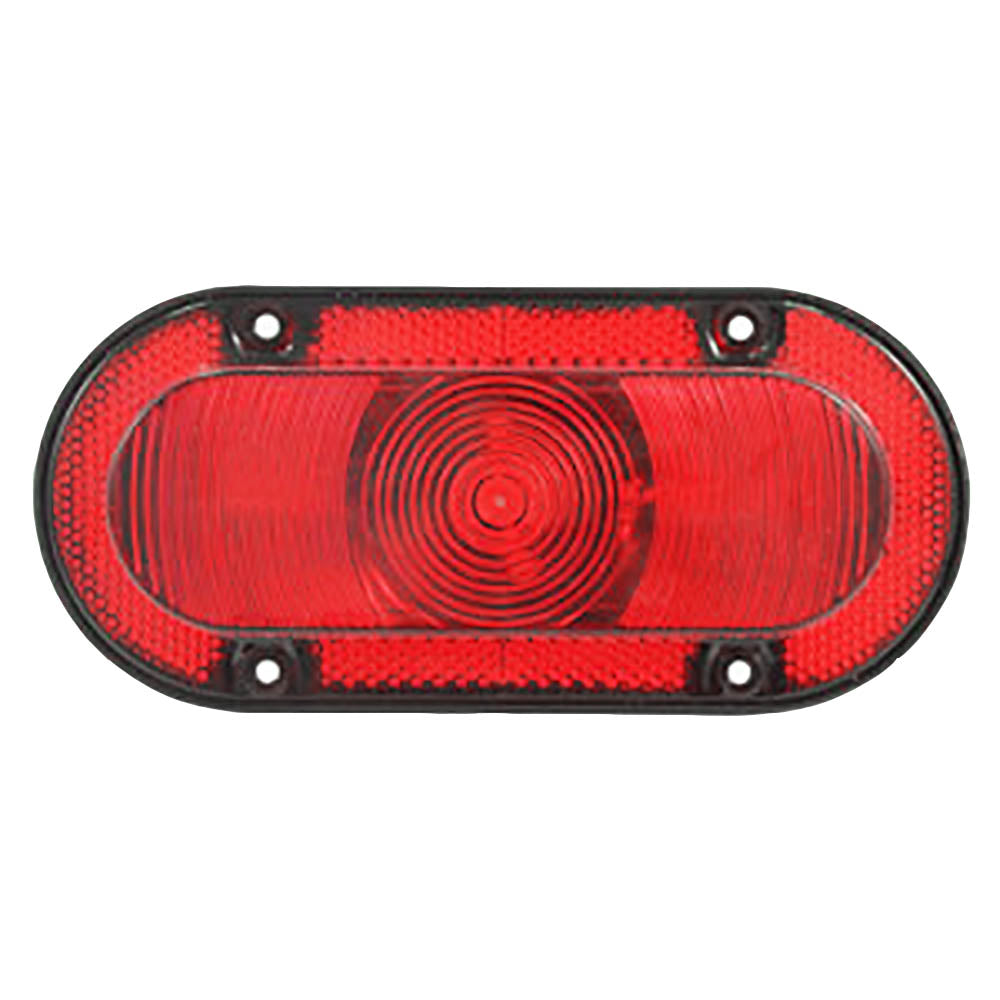

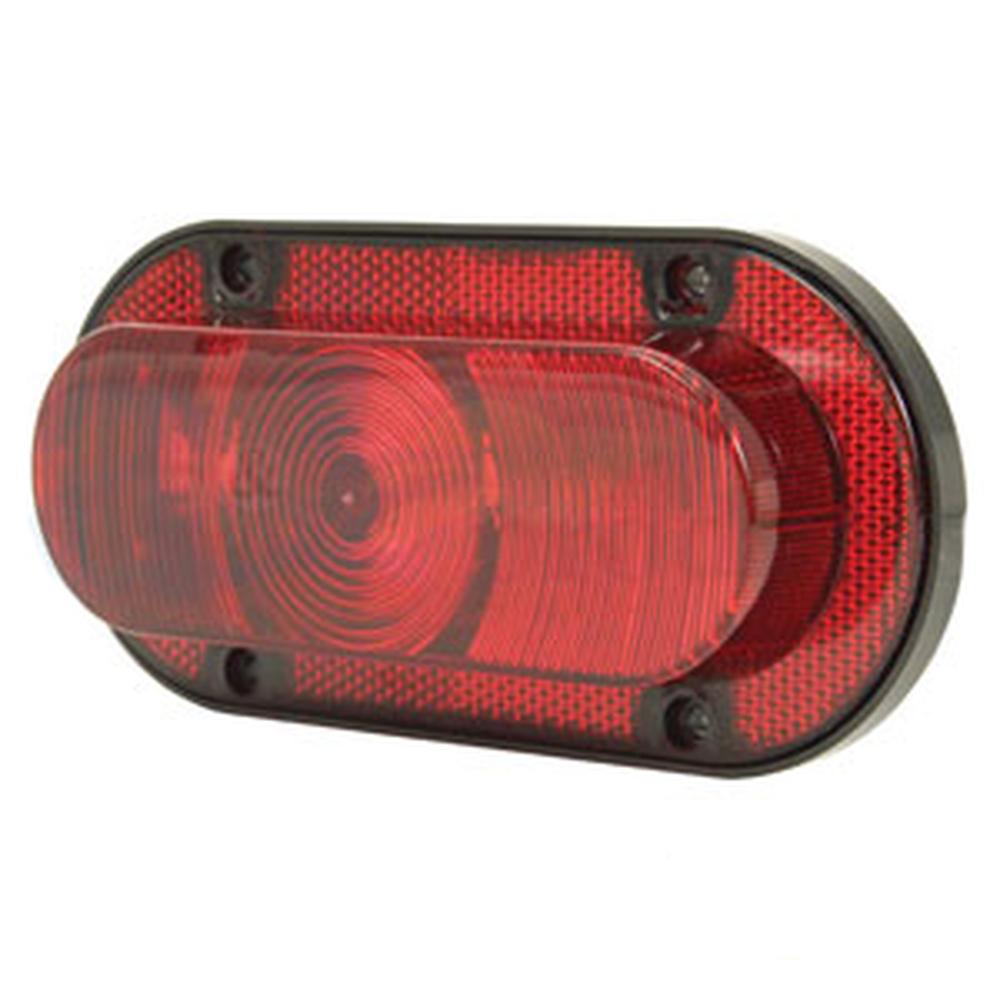

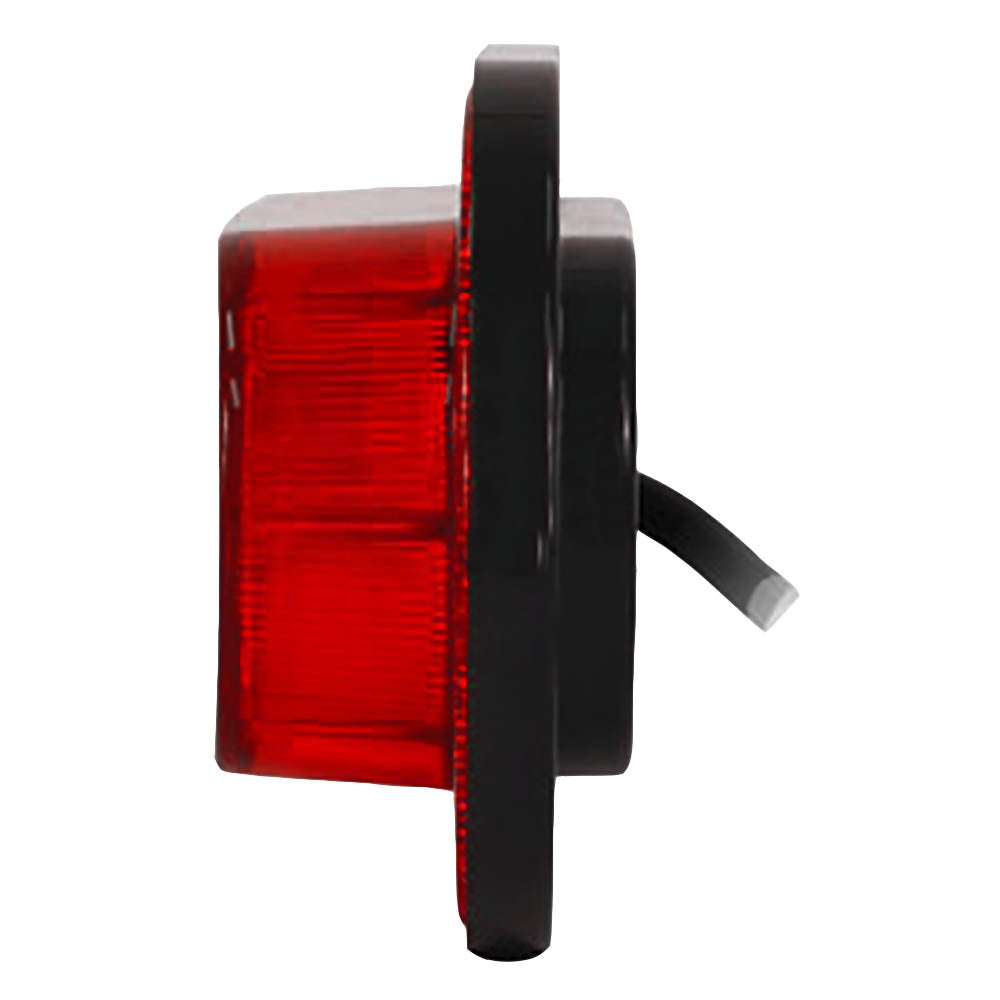

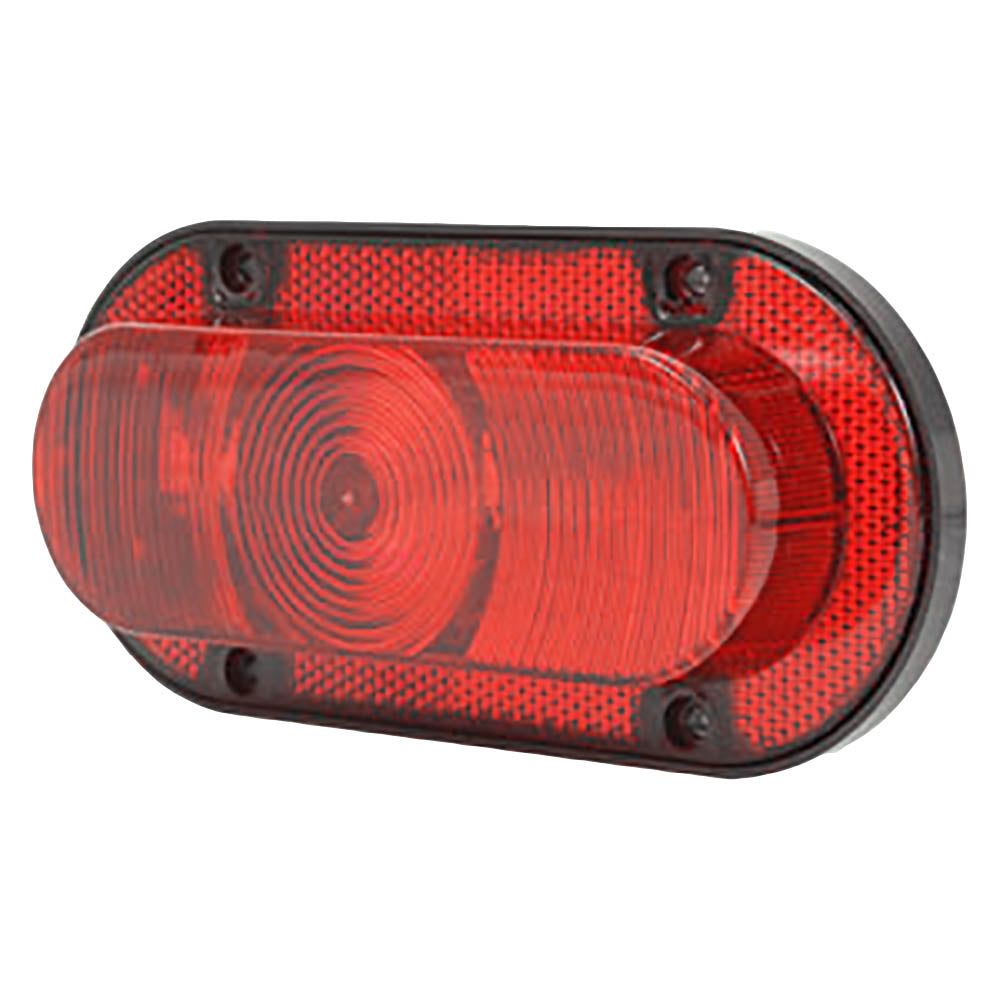

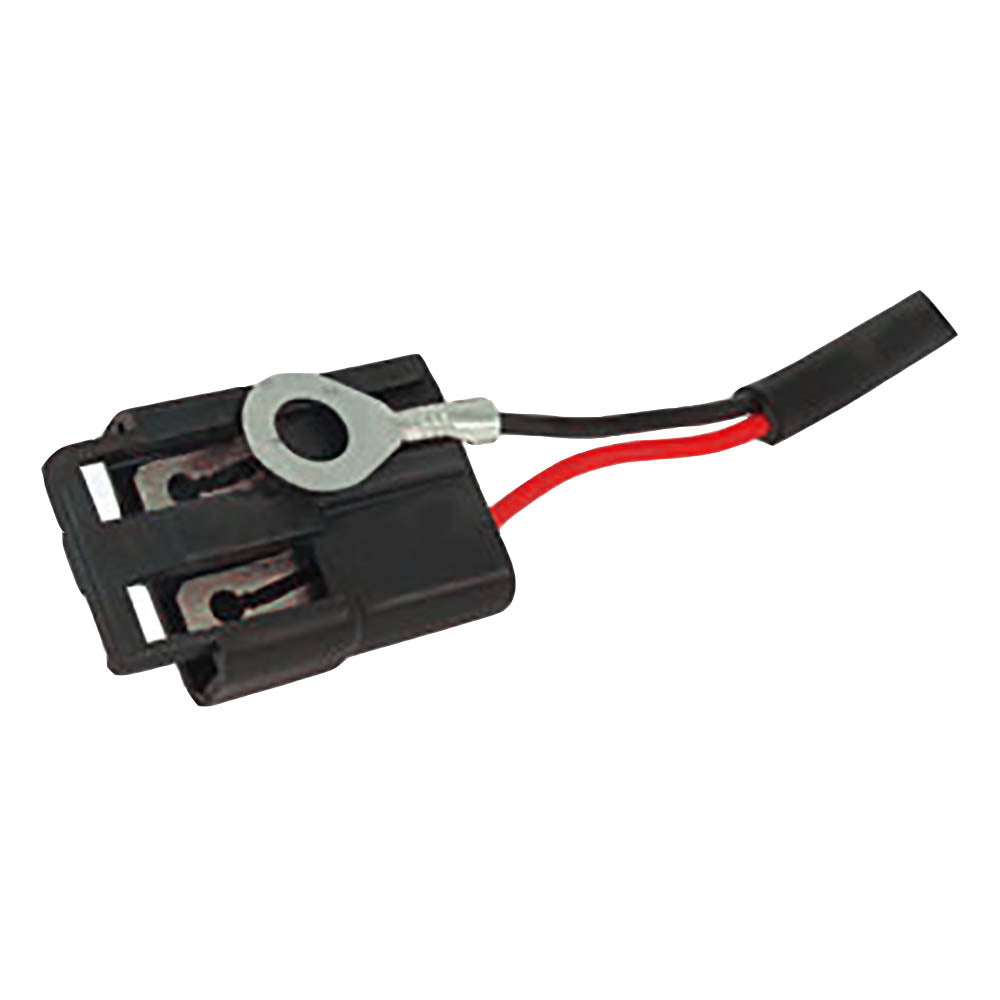

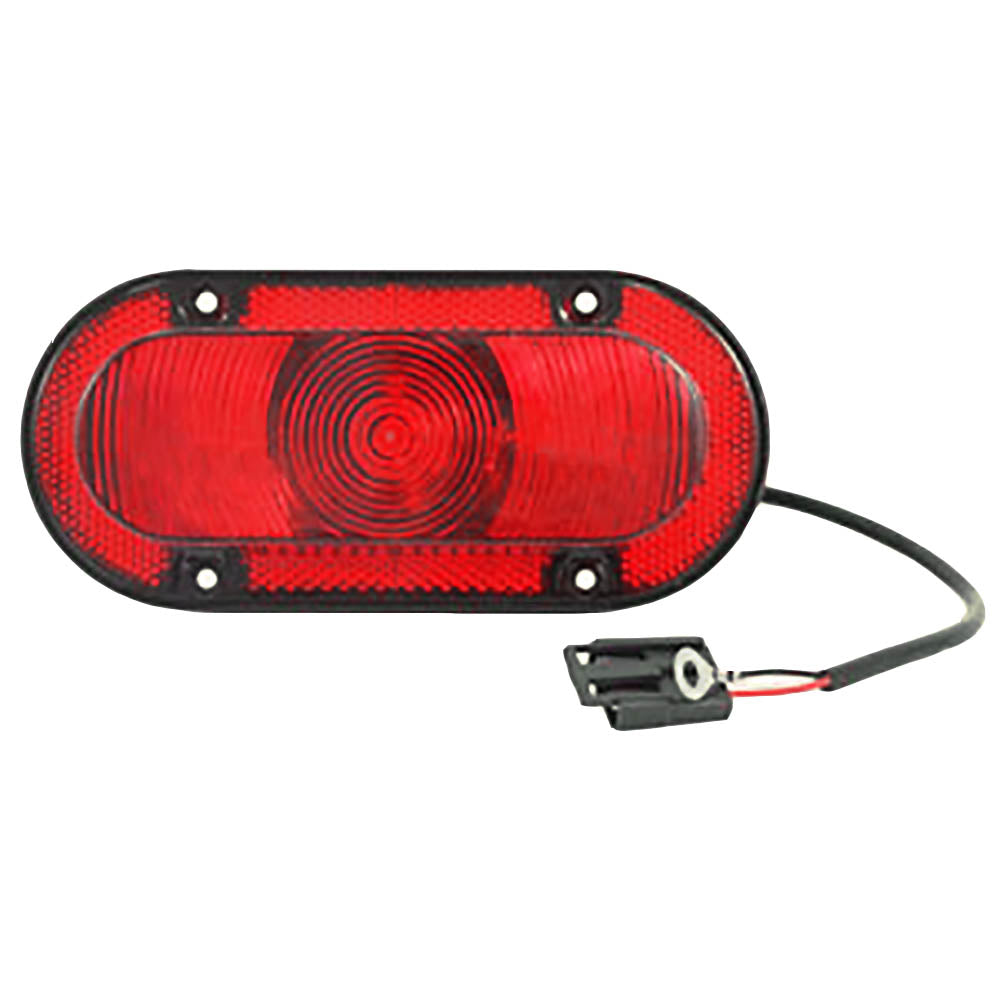

This oval red LED warning and tail light is a direct aftermarket replacement Fits John Deere (Fits JD) tractors, combines, cotton pickers, cotton strippers, forage harvesters, and sprayers. Mounted at the cab rear or fender rear, it provides high-visibility rear warning and tail light function. The light operates on 6-30 volt systems and features three 3-watt LED elements for reliable, long-lasting performance. The black ground wire eyelet must be grounded properly for the light to function; it can be connected to existing light mounting screws with an internal tooth lock washer and nut, or to the fender panel with a self-tapping screw (hardware not included).

Specifications

Shape: Oval
Overall Length: 7.900 in.
Height (Top to Bottom): 3.600 in.
Mounting: 4 holes, 4 in. apart side to side and 3 in. apart top to bottom
LED Elements: (3) 3-Watt LEDs
Voltage Range: 6-30 Volt systems
Lens Color: Red Polycarbonate

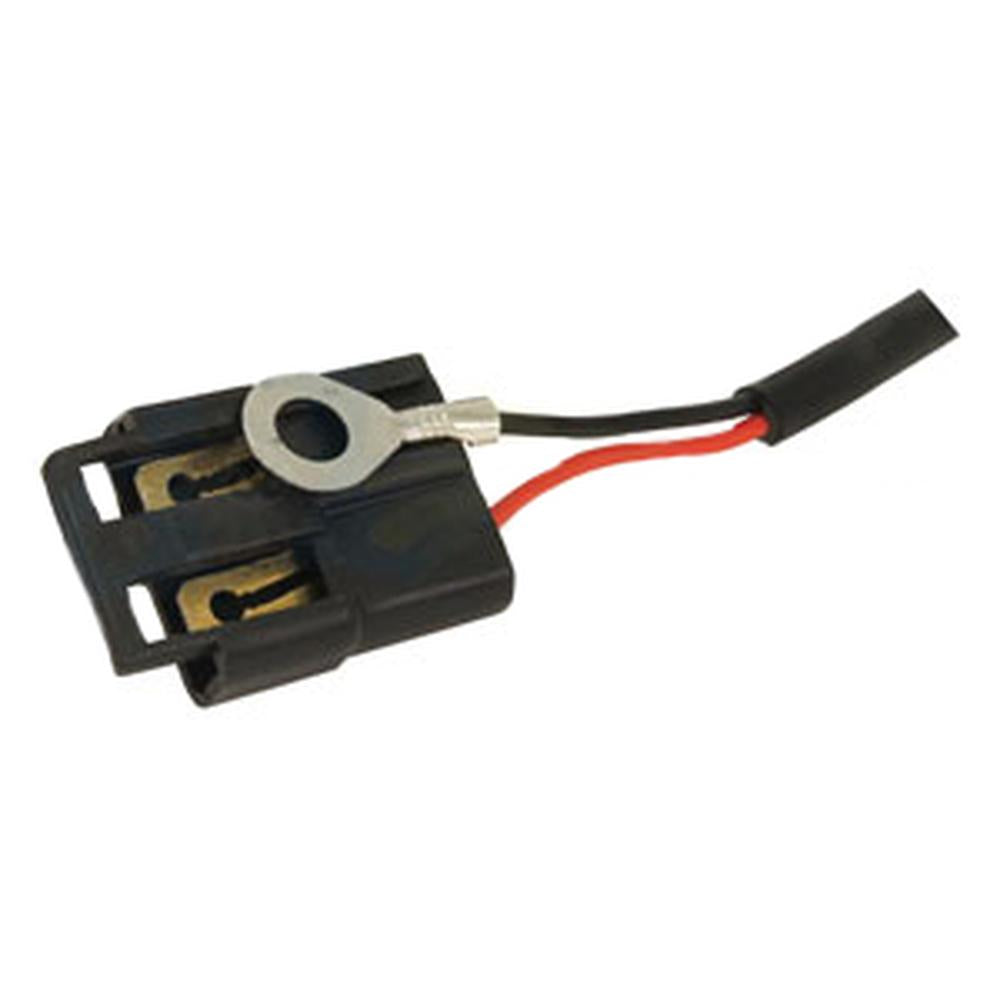

Wiring: Black = Ground, Red = High Beam, Yellow = Low Beam
Note: Black ground wire must be properly grounded for light to function

Compatible Models

Fits John Deere Tractors (30 Series): 3020, 4020, 4030, 4230, 4240, 4320, 4430, 4440, 4520, 4620, 4630, 4640, 5020, 6030, 7020, 7520, 8430, 8440, 8450, 8630, 8640, 8650, 8850

Fits John Deere Tractors (40 Series): 2140 (SN 430000 and up), 2350, 2355, 2510, 2550, 2555, 2750, 2755, 2855N, 2940, 2950, 2955, 3040, 3055, 3140, 3150, 3155, 3255, 4050, 4055, 4250, 4255, 4350, 4450, 4455, 4550, 4555, 4640, 4650, 4755, 4760, 4840, 4850, 4955, 4960

Fits John Deere Tractors (50 Series): 2350, 2550, 2750, 2950, 5310, 5410, 5460, 5510, 5720, 5730, 5820, 5830

Fits John Deere Other: 100, 120, 140, 160, 185, 484, 500B, 2510, 4000, 6000 HI-CYCLE, 6100, 6500, 9130, 9150, 9170, 9190, 9900, 9910, 9920, 9930, 9940, 9950, 9960, 9965, 9970, 6600

Fits John Deere Row-Crop and Specialty: 2-70, 2-75, 2-78, 2-85, 2-88, 2-105, 2-110, 2-115, 2-135, 2-150, 2-155, 2-180, 2-180 SERIES II, 4-270, 7440, 7445

Also Fits: White, White Oliver, and Fits Allis Chalmers tractors (see AGCO cross-reference numbers below)

Replaces Part Number(s):

AR78825, AR45099, RE39223, AR44989, 30-3153347, 72160473

Aftermarket Interchange Numbers

Also replaces Grote 455. Cross-references to AGCO/White: 30-3153347, 72160473.

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

5020, 5720, 2-70, 4250, 4000, 8440, 7440, 4760, 6100, 5210, 100, 4560, 2940, 7445, 2350, 9940, 5730, 2955, 4650, 4320, 9900, 9965, 2-150, 9930, 4955, 9950, 484, 9910, 2555, 5310, 5410, 2-105, 2510, 8630, 4840, 7020, 4-270, 9130, 6500, 3255, 2-155, 4755, 9150, 185, 2855N, 8450, 500B, 5830, 6600, 5820, 4230, 4455, 2-180, 4020, 4050, 2550, 8430, 4255, 4430, 2950, 8650, 2-115, 2755, 4850, 2-180 SERIES II, 4240, 8850, 4030, 2750, 2-85, 3140, 3055, 4555, 6000 HI-CYCLE, 2355, 5460, 3155, 4040, 4055, 9920, 140, 9970, 4640, 2140, 160, 2-110, 9960, 4520, 6030, 2-75, 120, 3040, 5440, 2-135, 2-78, 8640, 3150, 4960, 7520, 5510, 9190, 4450, 9170, 4620, 4630, 4440, 3020, 2-88

Additional Information:

Oval 4 Mounting Holes 4" Apart Side to Side & 3" Apart Top to Bottom 7.900" Overall Length 3.600" Top to Bottom (3) 3 Watt Led Lights 6 - 30 Volt Systems Black Wire Is Ground, Red Wire Is High Beam, Yellow Wire Is Low Beam Note: the Black Wire Must Be Grounded Properly for the Light to Function.
