1844396 Guide Fits Caterpillar 8P5374 589 D10N D10R D10T 58L 59L 59N
1844396 Guide Fits Caterpillar 8P5374 589 D10N D10R D10T 58L 59L 59N
Regular price
$78.00 CAD
Regular price
Sale price
$78.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

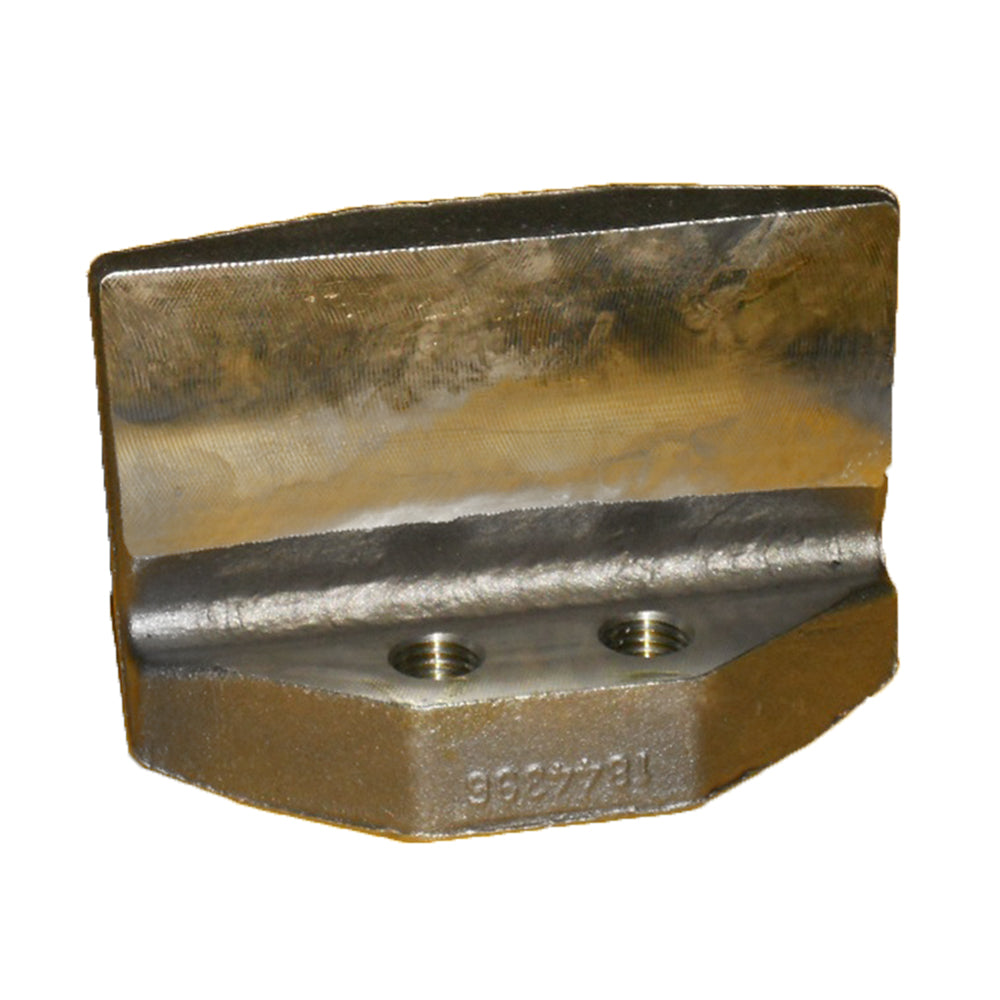

One New Aftermarket Replacement Bogie Track Guide Fits Caterpillar (Fits CAT) Track-Type Tractors and Pipelayers
This bogie track guide is an undercarriage component used on Fits Caterpillar high-drive track-type tractors and the 589 pipelayer. The guide keeps the track properly aligned within the bogie suspension system, reducing wear on undercarriage components and protecting the track assembly during operation in demanding conditions. Manufactured from boron steel for superior hardness and wear resistance.
Specifications
- Material: Boron Steel
- Length: 454.7 mm
- Height: 82.6 mm
- Undercarriage Width: 165.1 mm
- Weight: 14.6 lbs (approx.)
Compatible Models
Fits Caterpillar Track-Type Tractors: D10N, D10R, D10T, D10T2
Fits Caterpillar Pipelayers: 589, 58L, 59L, 59N
Replaces Part Number(s):
1844396, 8P5374
Aftermarket Interchange Numbers
1844396-A, 8P5374-A, UNU20-0030
New aftermarket replacement part - not remanufactured, not used.
