UC206-18 Bearing for Universal Products
UC206-18 Bearing for Universal Products
Couldn't load pickup availability

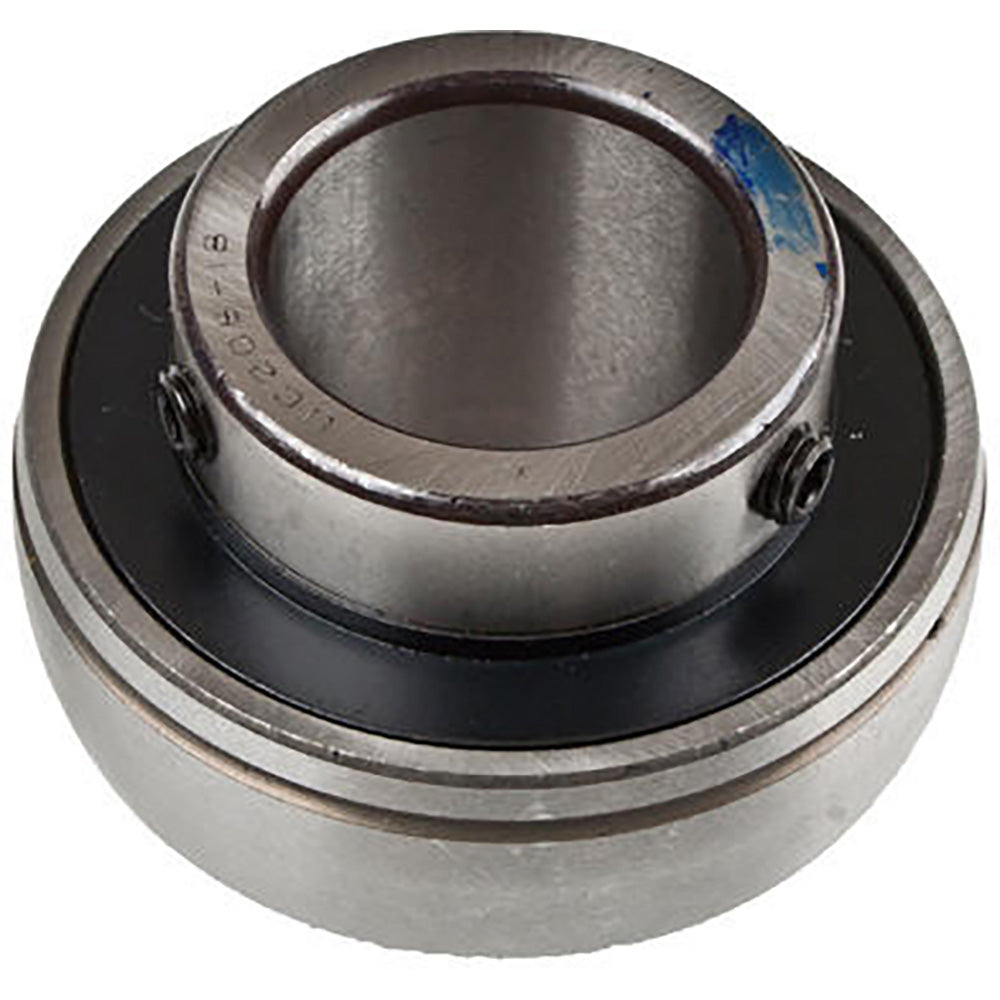

One New Aftermarket Replacement UC206-18 Insert Ball Bearing - 1-1/8" Bore
The UC206-18 is a radial insert ball bearing (also known as a wide inner ring insert bearing) with a 1-1/8" bore. It features set-screw locking on the extended inner ring to secure the bearing onto a shaft, a self-aligning spherical outer ring, and a single lip seal with factory pre-lubrication. The UC206-18 is part of the UC200 Series and serves as the insert for pillow block, 2-bolt flange, 3-bolt flange, 4-bolt flange, and take-up unit housings. It is widely used in agricultural equipment, construction equipment, conveyor systems, forestry machinery, and other industrial applications.
Specifications
- Bearing Type: Radial Insert Ball Bearing (UC200 Series)
- Bore (Inner Diameter): 1-1/8" (28.575 mm)
- Outer Diameter: 62 mm
- Overall Width (B): 38.1 mm
- Outer Ring Width (C): 19 mm
- Locking Method: Set screw (two set screws on extended inner ring)
- Sealing: Single lip seal, pre-lubricated with grease, relubricatable
- Self-aligning spherical outer ring
Compatible Housing Units
This insert bearing fits the following housing types (sold separately): Pillow Block (P206 housing, UCP206-18), 2-Bolt Flange, 3-Bolt Flange, 4-Bolt Flange, and Take-Up Units. Suitable for use in agricultural machinery, construction equipment, conveyor systems, forestry equipment, and general industrial drive applications requiring a 1-1/8" shaft bore.
Replaces Part Number(s):
UC206-18
Aftermarket Interchange Numbers
VS-218, INS-SC-102, GY1102KRRB, YW250-1-1/8, UG218NL, UC206-102D1, YAR206-102, UC206.18
New aftermarket replacement part - not remanufactured, not used.
