TLH05 Fits CAT II Hydraulic Top Link Cylinder Fits Kubota Tractor Models
TLH05 Fits CAT II Hydraulic Top Link Cylinder Fits Kubota Tractor Models
Holiday Return Policy
Items purchased between November 1, 2024 and December 31, 2024 are eligible for returns until January 31, 2025. Standard return conditions apply. View our full return policy .
Couldn't load pickup availability

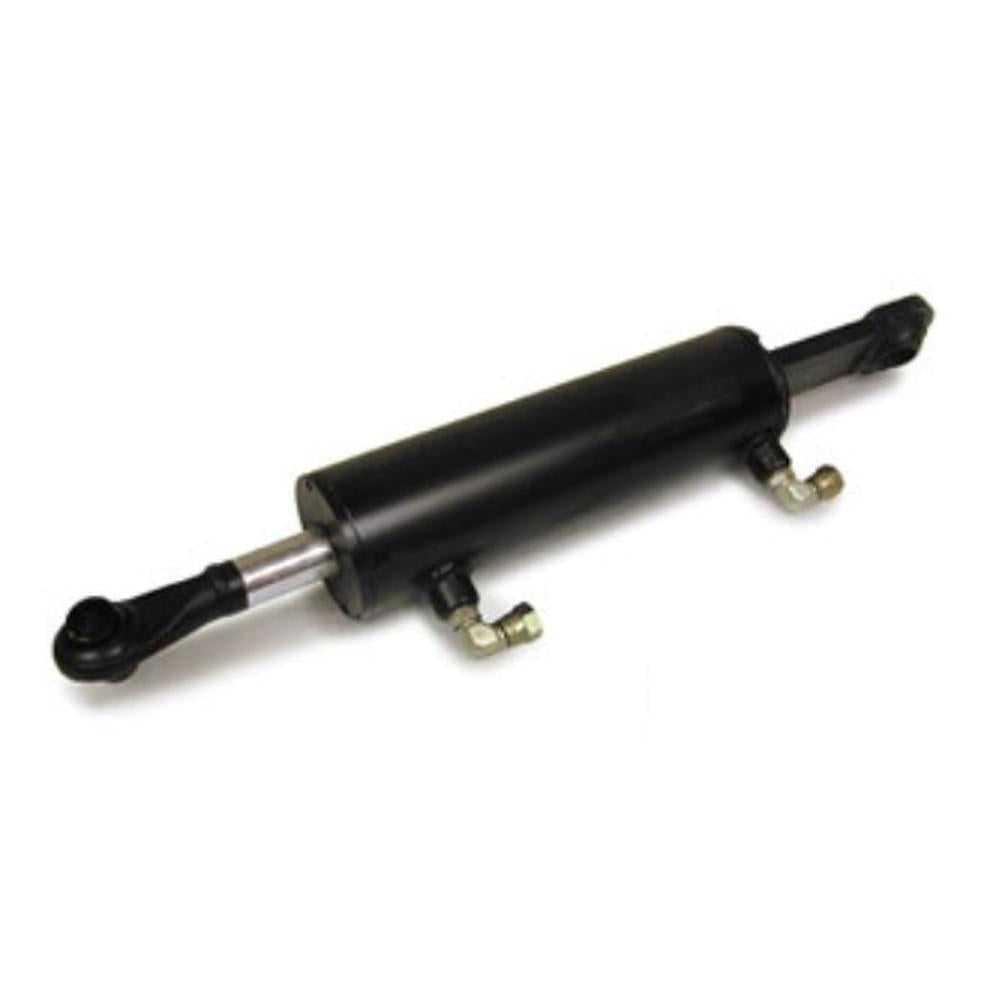

One New Aftermarket Replacement Hydraulic Top Link Cylinder (Fits CAT. II, with 3" Bore) that fits several models for the following Tractors: Fits Ford/New Holland, Fits John Deere, Fits Kubota, and Fits Massey Ferguson, plus more.
All ports 0.563"-18 Orb with Two Adapters 0.563"-18 ORBM x 0.250 NPTM 90 Degree Swivel.
Stroke Length: 8"

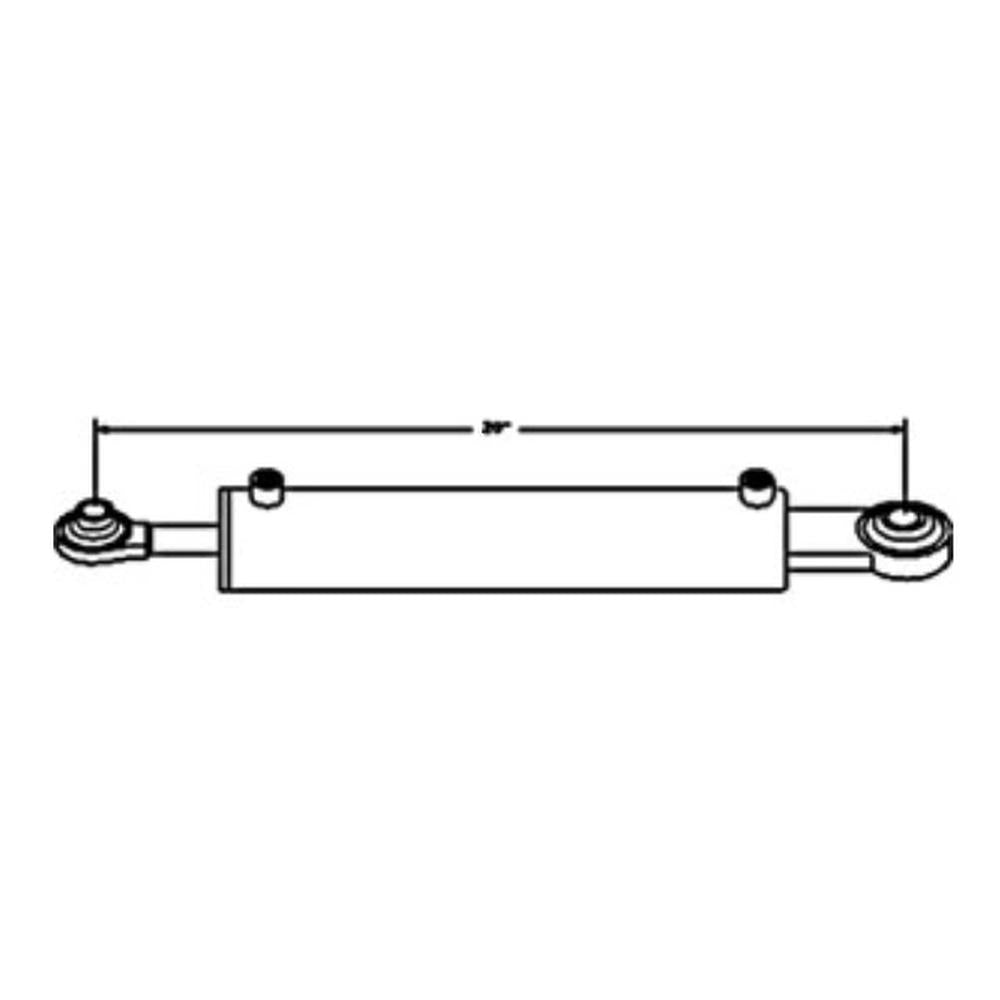

Closed Length: 26"
Barrel Length: 12.438"
Rod End Ball ID: 1"
Rod End Ball Width: 1.750"
Base to Ball Center Length: 5.500"
PSI: 1450.377
Base End Width: 2"
Please check the Dimensions of your Fits CAT before purchasing.
Replaces Part Number: TLH05
