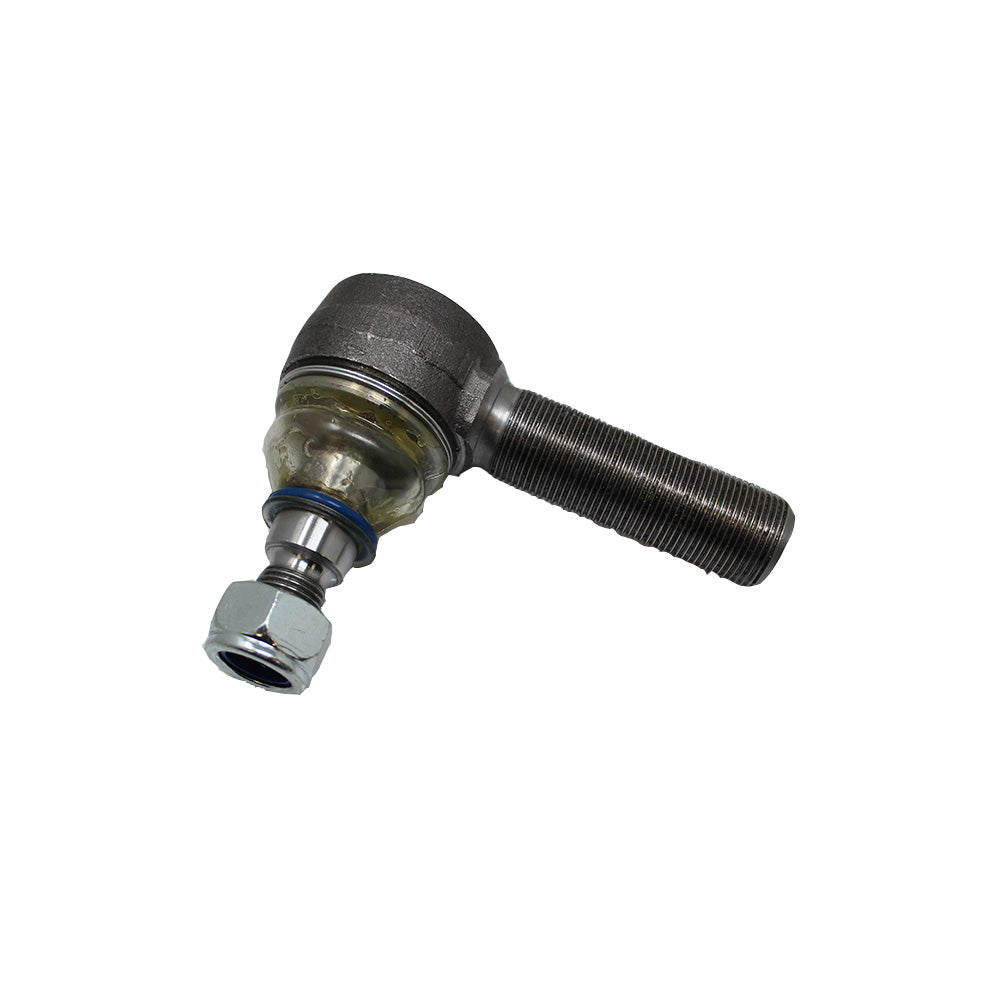

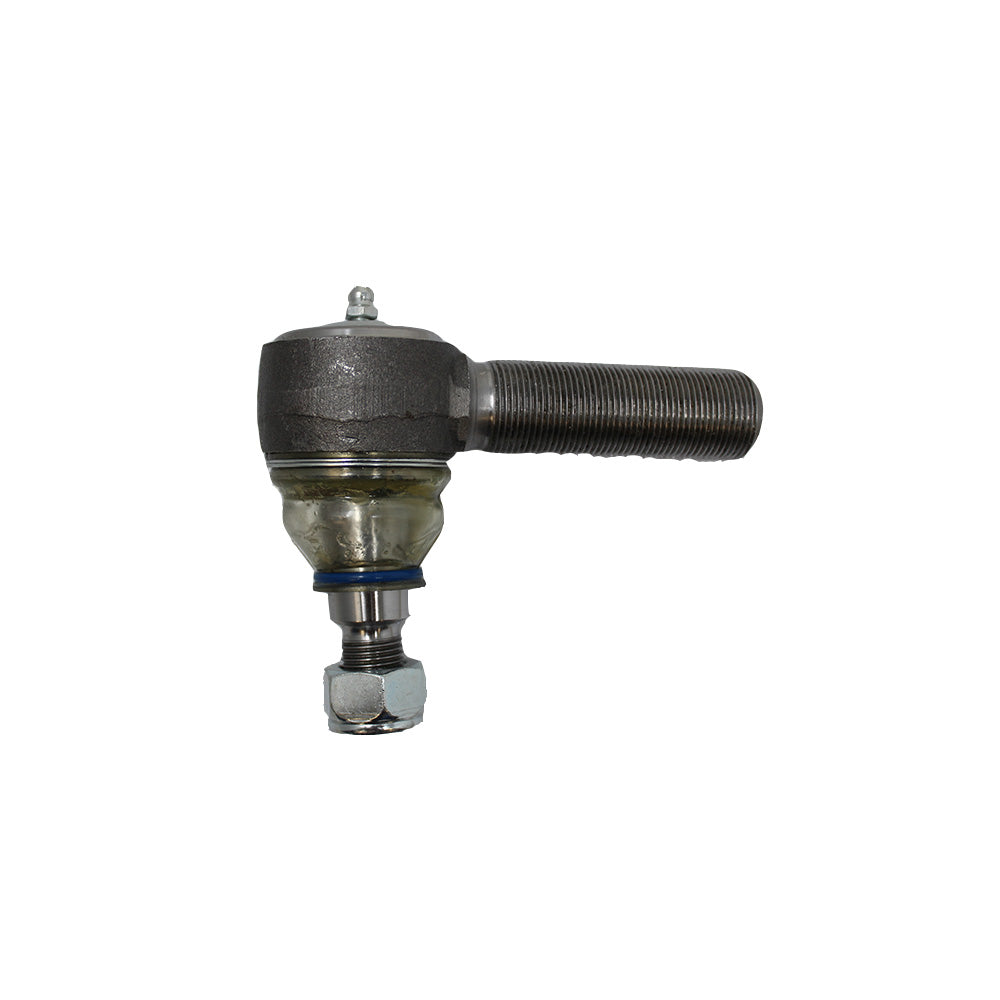

Tie Rod - Right Hand Fits John Deere 4600 3520 4720 4520 4700 4500 4400 3120
Tie Rod - Right Hand Fits John Deere 4600 3520 4720 4520 4700 4500 4400 3120
Couldn't load pickup availability
One New Aftermarket Replacement Right Hand Tie Rod End Fits John Deere (Fits JD) Compact Tractors
This right hand (RH) tie rod end is a steering system component Fits John Deere compact utility tractors equipped with MFWD front axles using metric threads. It connects the steering linkage to maintain proper front wheel alignment and consistent directional control. Important: This part uses metric threads (M24 x 1.5). Early serial number machines were built with standard SAE threads -- verify your machine's thread type before ordering. Specific axle and serial number restrictions apply to certain models (see below).
Specifications
- Thread: M24 x 1.5 (Metric) -- Right Hand Thread
- Length of Ball Joint (End to Center): 3.87"
- Bottom of Taper: 0.880"
- Top of Taper: 0.768"
Serial Number and Axle Restrictions
- 4120, 4320, 4520, 4720: ASN 470001 and above
- 4300, 4400: Axle marked S20BZ107-1
- 4700: Axle marked S20BZ108-1 or S20BZ112-1
- 3120, 3203: MFWD only
- Early S/N machines: Standard SAE threads -- use SAE version instead
Compatible Models
Fits John Deere (Fits JD) Compact Utility Tractors: 110, 3033R, 3038R, 3039R, 3045R, 3046R, 3120, 3203, 3320, 3520, 3720, 4044M, 4044R, 4049M, 4049R, 4052M, 4052R, 4066M, 4066R, 4105, 4120, 4200, 4210, 4300, 4310, 4320, 4400, 4410, 4500, 4520, 4600, 4610, 4700, 4710, 4720
Replaces Part Number(s):
LVA14959, LVA14959-A
Aftermarket Interchange Numbers
FRT40-0090, FRT40-0090-A, 1404-1096, AMLVA14959
New aftermarket replacement part - not remanufactured, not used.
