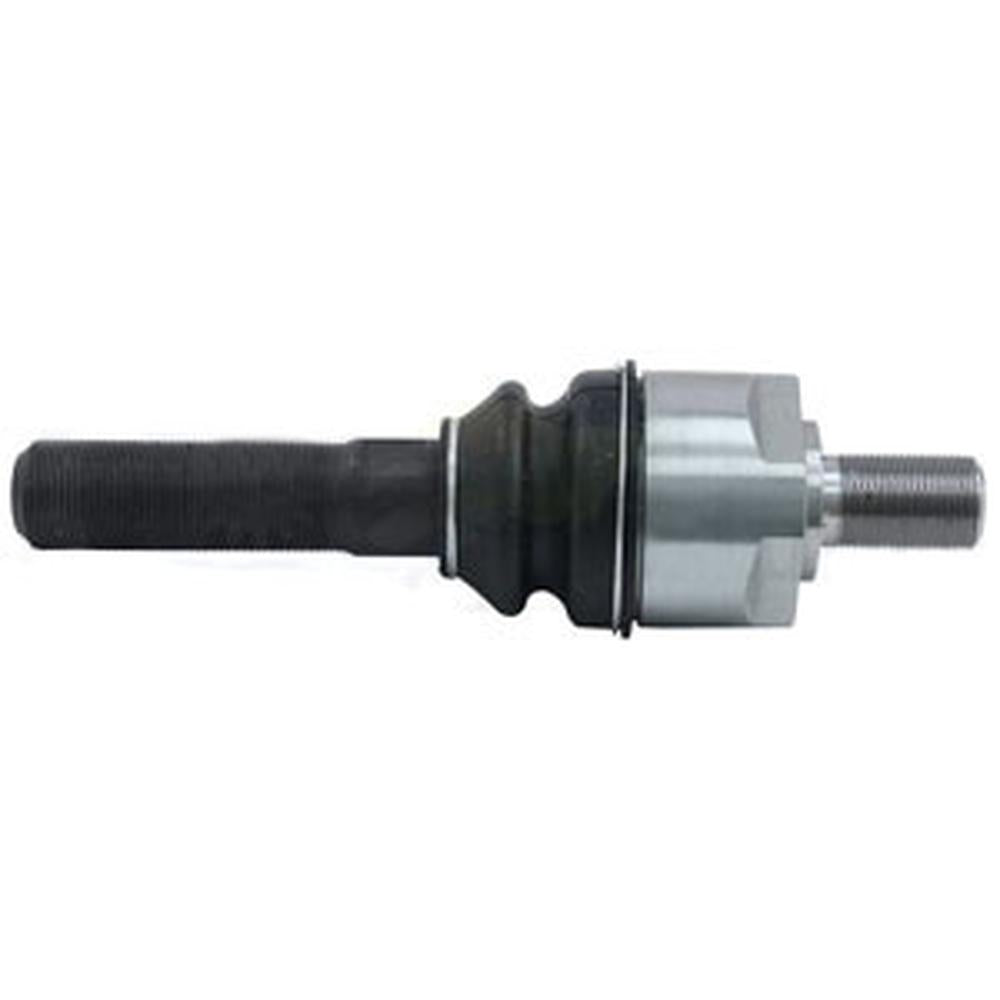

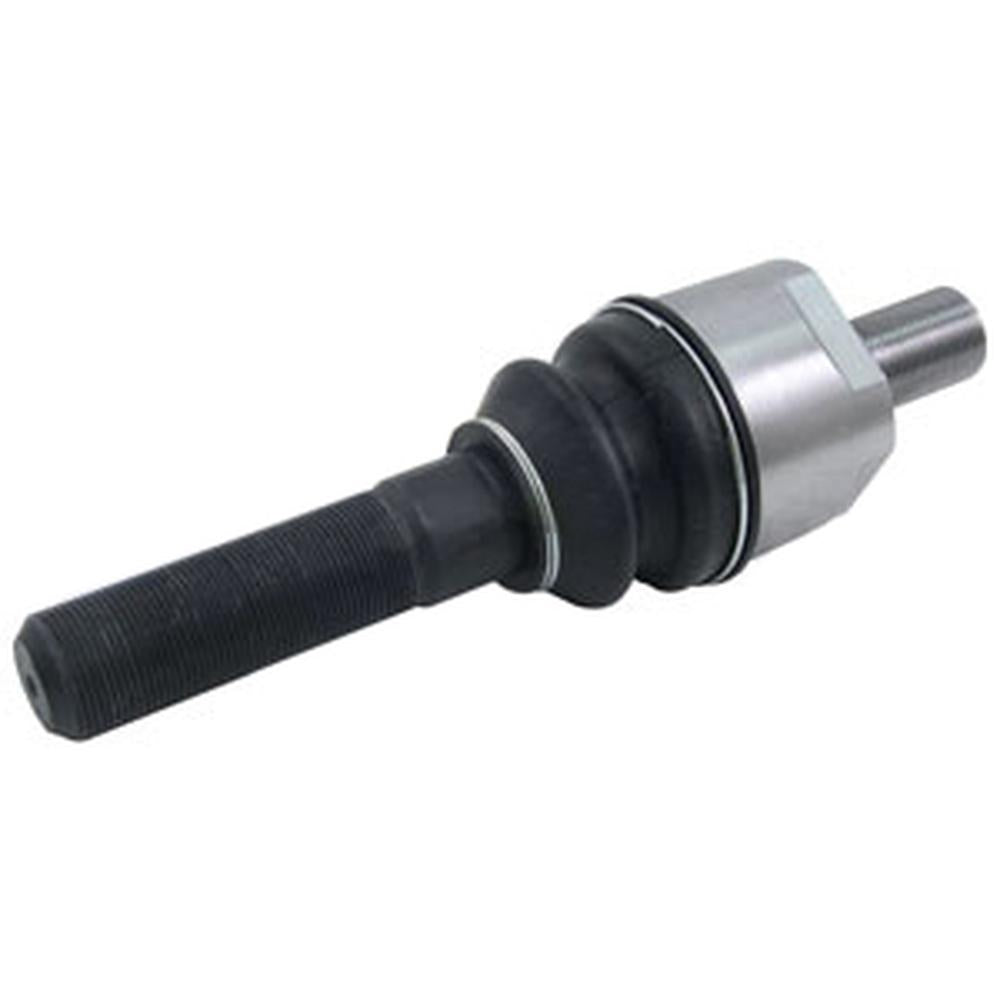

Tie Rod A52166 Thread Pitch: 1.5 Large Thread Size: 27.9mm

Tie Rod A52166 Thread Pitch: 1.5 Large Thread Size: 27.9mm

$341.00 CAD
$341.00 CAD
Sale Sold out
Shipping calculated at checkout.

One New Aftermarket Replacement MFWD Tie Rod for Case / Case IH Tractors

This MFWD tie rod is a steering component for Case and Case IH tractors equipped with a ZF mechanical front-wheel-drive (MFWD) axle. It connects the steering linkage to the front axle assembly, maintaining precise directional control. This part is for MFWD-equipped tractors only -- verify your tractor has a ZF MFWD front axle before ordering.

Specifications

  • Overall Length (A): 9.00 in.
  • Small Thread (B): M24 x 1.5 Right Hand Thread
  • Large Thread (C): M28 x 1.5 Right Hand Thread
  • Weight: 4.2 lbs.
  • Axle Type: ZF MFWD

Compatible Models

Case / Case IH (MFWD-equipped, ZF front axle): 1896 (BSN 17895962), 2096 (BSN 17895962), 2294, 3294, 3394, 3594

Replaces Part Number(s):

A52166, AL68253, AL68253-A

Aftermarket Interchange Numbers

Also interchanges with John Deere AL68253, AL110918; Allis Chalmers 72162933

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

1896, 2096, 2294, 3294, 3394, 3594

Reference Numbers:

A52166, AL68253, AL68253-A
