Tie Rod 186235M91 Fits Massey Ferguson 50 65 765
Tie Rod 186235M91 Fits Massey Ferguson 50 65 765
Couldn't load pickup availability

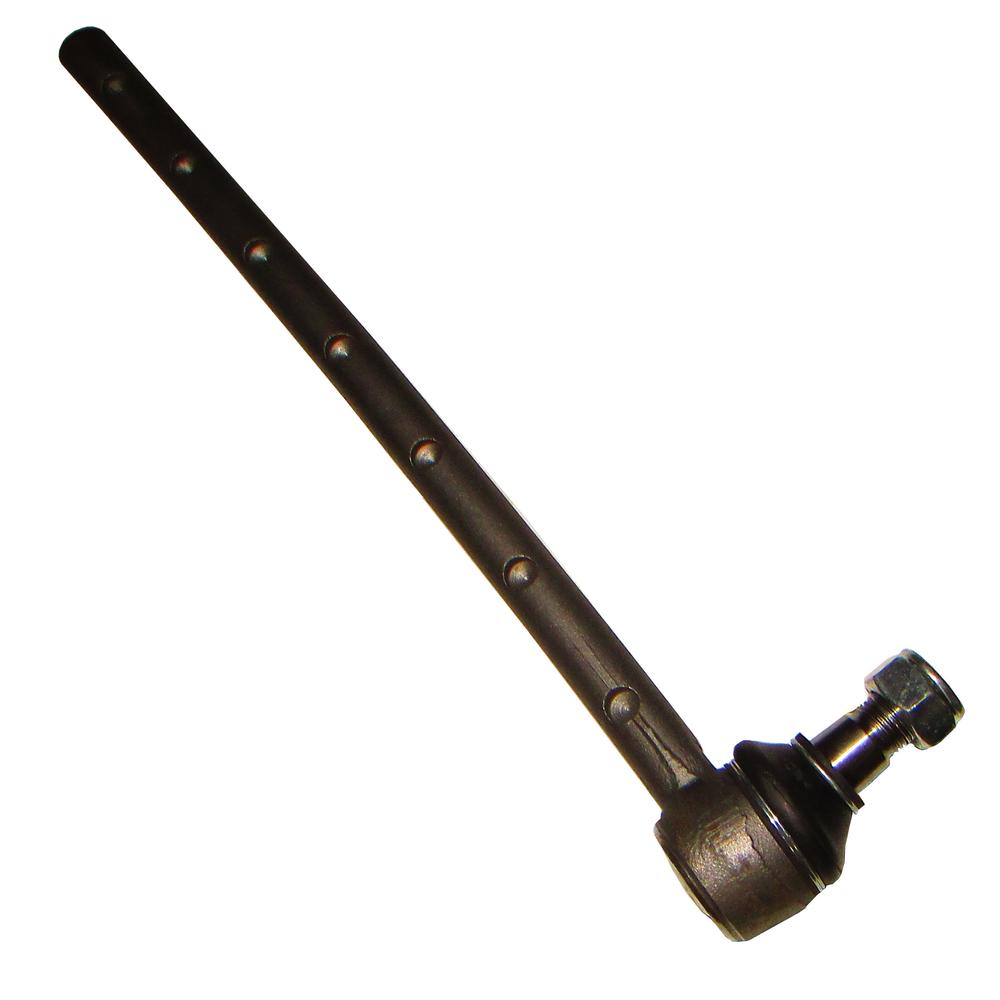

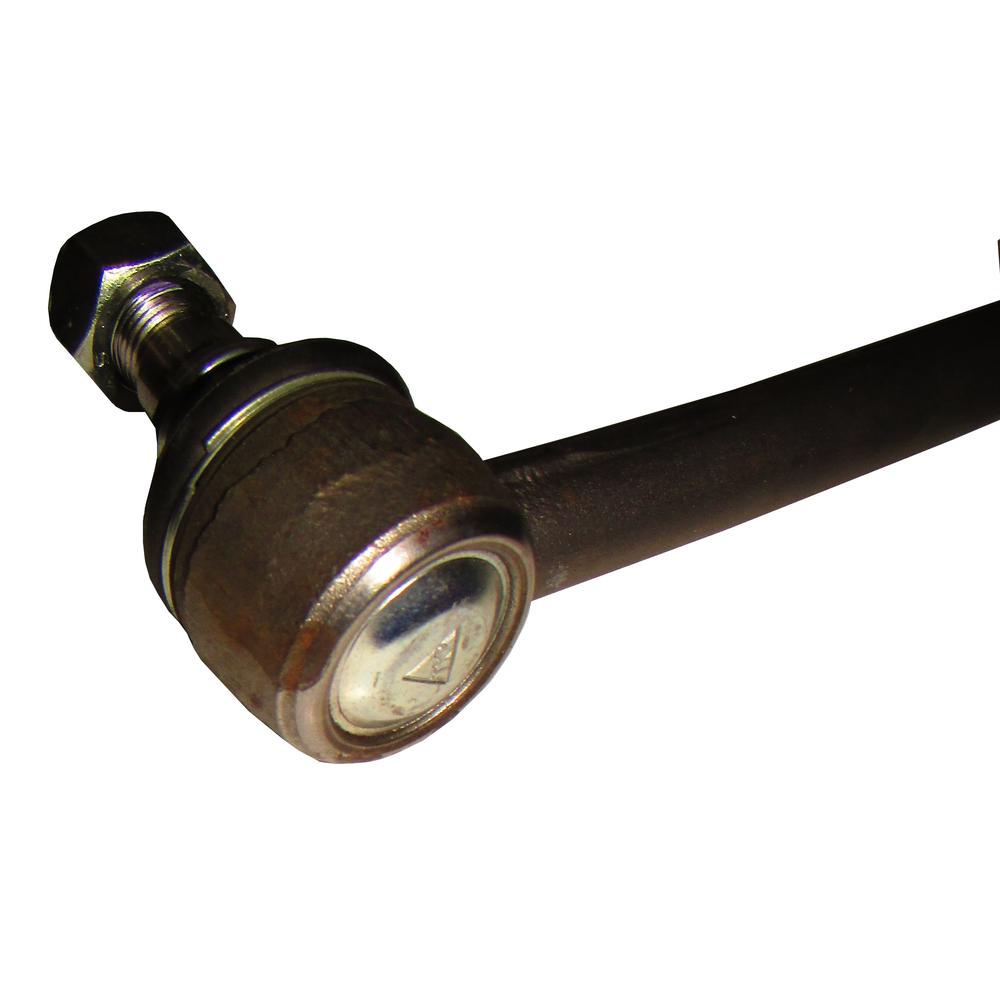

One New Aftermarket Replacement Tie Rod End (Left Hand Outer) Fits Massey Ferguson Tractors
This left-hand (LH) outer tie rod end is a direct-fit replacement for the front axle steering system on Fits Massey Ferguson 50, 65, and 765 models. The tie rod end connects the steering linkage to the front spindle, maintaining proper front-end alignment, consistent steering response, and even tire wear. This part carries a 16-inch overall length with a 3/4-inch diameter shaft and M16x1.50 right-hand male thread, angling upward 10 degrees -- matching the original Fits Massey Ferguson design exactly.
Specifications
- Side: Left Hand (LH) Outer
- Overall Length: 16.00 in.
- Center to End: 14-11/16 in. (7-5/16 in. stud center to rod end)
- Shaft Diameter: 3/4 in. (0.737 in.)
- Thread: M16x1.50 Right Hand
- Notches/Holes: 7
- Angle: Upward 10 degrees
Compatible Models
Fits Massey Ferguson Tractors: 50 (s/n 528163 and earlier), 65 Gas (s/n 671680 and earlier), 65 Diesel (s/n 667918 and earlier)
Fits Massey Ferguson Construction & Industrial / Backhoe Loader: 765
Fits Massey Harris Tractors: MH50 (s/n 528163 and earlier)
Replaces Part Number(s):
186235M91, 182507M91, 186235M1-LH16, 186235V91-LH16, AM186235M91-LH16, HM186235-LH16, HM186235, VPJ3010-LH16, 102507-LH16
New aftermarket replacement part - not remanufactured, not used.
