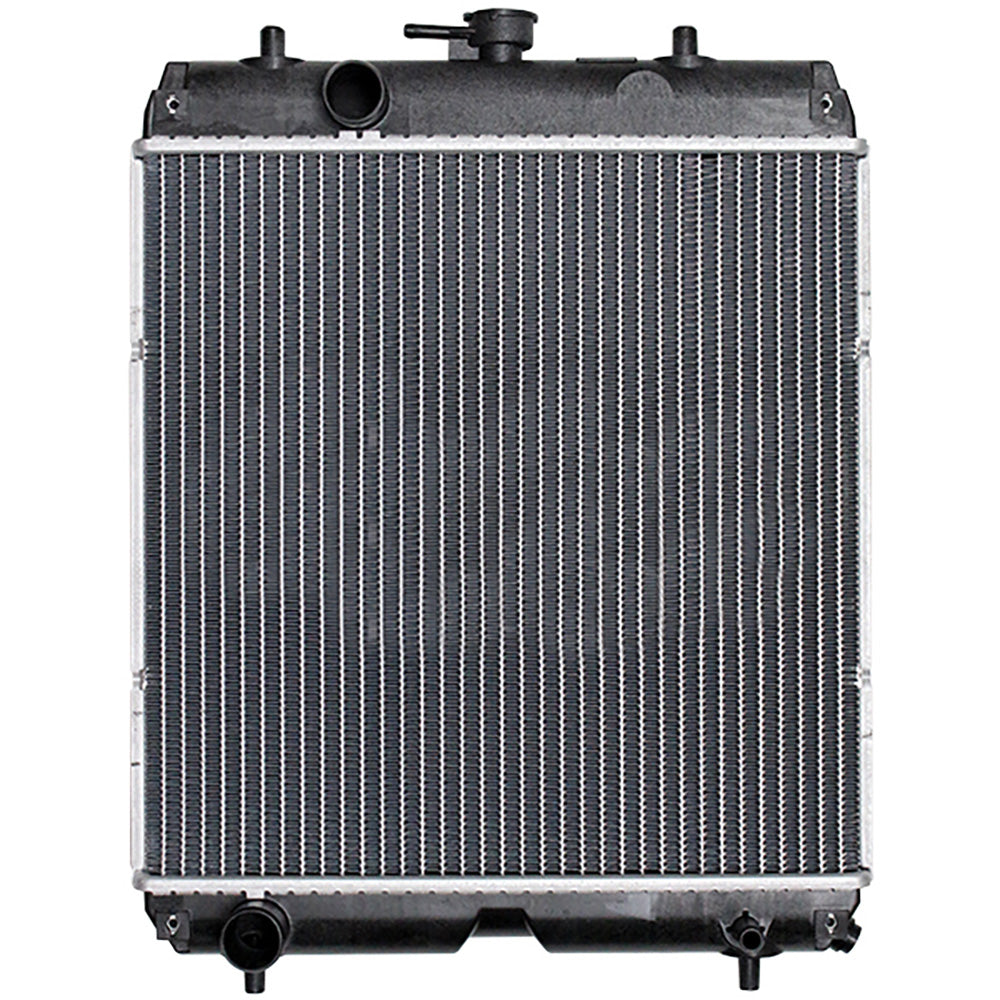

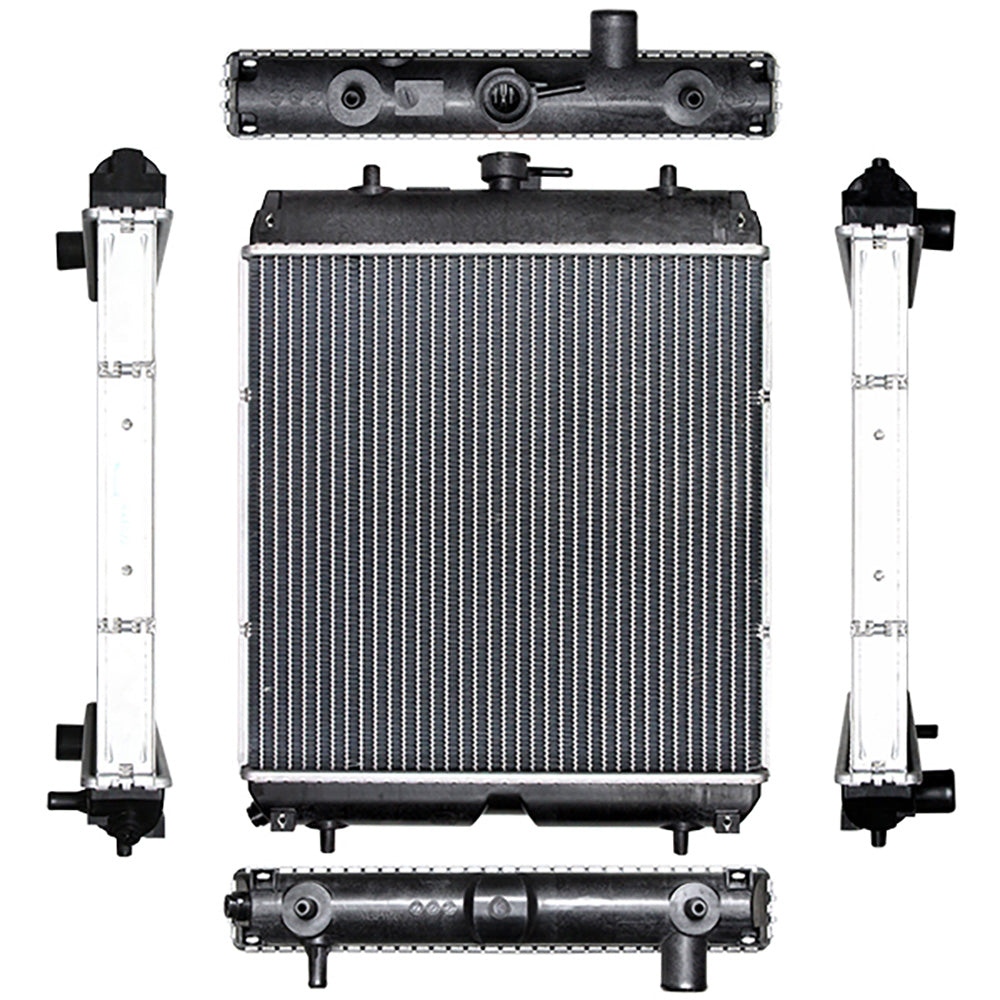

TC620-16000 Radiator - 15-3/4" x 15-3/4" x 1-5/8" Fits Kubota L Series Tractors

Name: TC620-16000 Radiator - 15-3/4" x 15-3/4" x 1-5/8" Fits Kubota L Series Tractors
SKU: TC62016000
Price: 591.0 USD
Availability: InStock

TC620-16000 Radiator - 15-3/4" x 15-3/4" x 1-5/8" Fits Kubota L Series Tractors

$591.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One Aftermarket Replacement Radiator - 15-3/4" x 15-3/4" x 1-5/8"

Fits Kubota L Series Tractors - 4WD

Please Verify fit before ordering

Specs:
1/2" Connection on Bottom Passenger Side,
Construction: PTR,
Core Height: 15 3/4",
Core Width: 15 3/4",
Depth: 1 5/8",
Fill Neck: 32mm x 16mm,
Fins Per Inch: 12,
Mounting Points: Top - 9 1/4" Centers, Bottom - 11" Centers,
Inlet: 1 3/8",
Outlet: 1 3/8",
Oil Cooler: No,
Overall Dimensions: 21 7/8" x 16 3/8",
Rows: 2

Replaces Part Number(s): TC62016000, TC620-16000

Models This Part Fits:

L3301H, L901DT, L3901F, L3901H, L3301F, L3301DT

Additional Information:

1/2" Connection on Bottom Passenger Side Construction: PTR Core Height: 15 3/4" Core Width: 15 3/4" Depth: 1 5/8" Fill Neck: 32mm x 16mm Fins Per Inch: 12 Mounting Points: Top - 9 1/4" Centers, Bottom - 11" Centers Inlet: 1 3/8" Outlet: 1 3/8" Oil Cooler: No Overall Dimensions: 21 7/8" x 16 3/8" Rows: 2 *Please verify fit before ordering
