T144757 Pin Bucket to H-link Fits John Deere 590D, 595D, 160LC, 160CLC
T144757 Pin Bucket to H-link Fits John Deere 590D, 595D, 160LC, 160CLC
Regular price
$651.00 CAD
Regular price
Sale price
$651.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

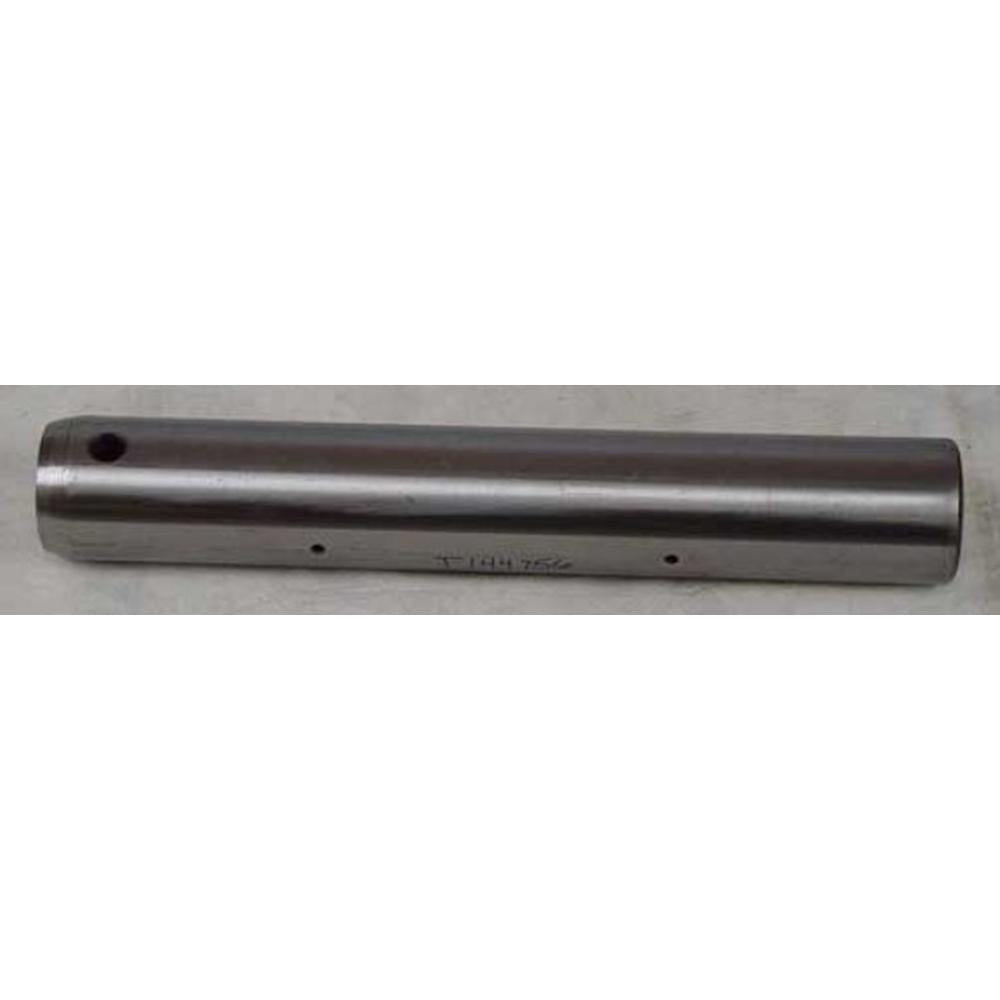

One New Aftermarket Replacement Pin - Bucket to H-Link Fits John Deere Excavators
This aftermarket replacement bucket-to-H-link pin connects the excavator bucket to the H-link assembly on Fits John Deere crawler excavators. It is a drilled pin constructed from high-quality steel with a heat-treated and plated finish for enhanced wear and corrosion resistance.
Specifications
- Length: 471 mm (18.54 in)
- Pin Diameter: 80 mm (3.15 in)
- Hole Size: 8.90 mm (0.35 in)
- Side Hole Diameter: 6.55 mm (1/4 in), located 142 mm (5.59 in) from end
- Weight: approximately 39.5 lb
- Material: High-quality general steel, heat-treated and plated finish
Compatible Models
Fits John Deere Crawler / Excavator: 160LC, 160CLC, 200LC, 200CLC, 590D, 595D, 690DLC, 690ELC
Replaces Part Number(s):
T144757, T144757-A
New aftermarket replacement part - not remanufactured, not used.
