T122628 New Pin Fits John Deere Crawler Dozer 450G 450H 50H 650H 450J 550J 650J
T122628 New Pin Fits John Deere Crawler Dozer 450G 450H 50H 650H 450J 550J 650J
Regular price
$234.00 CAD
Regular price
Sale price
$234.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

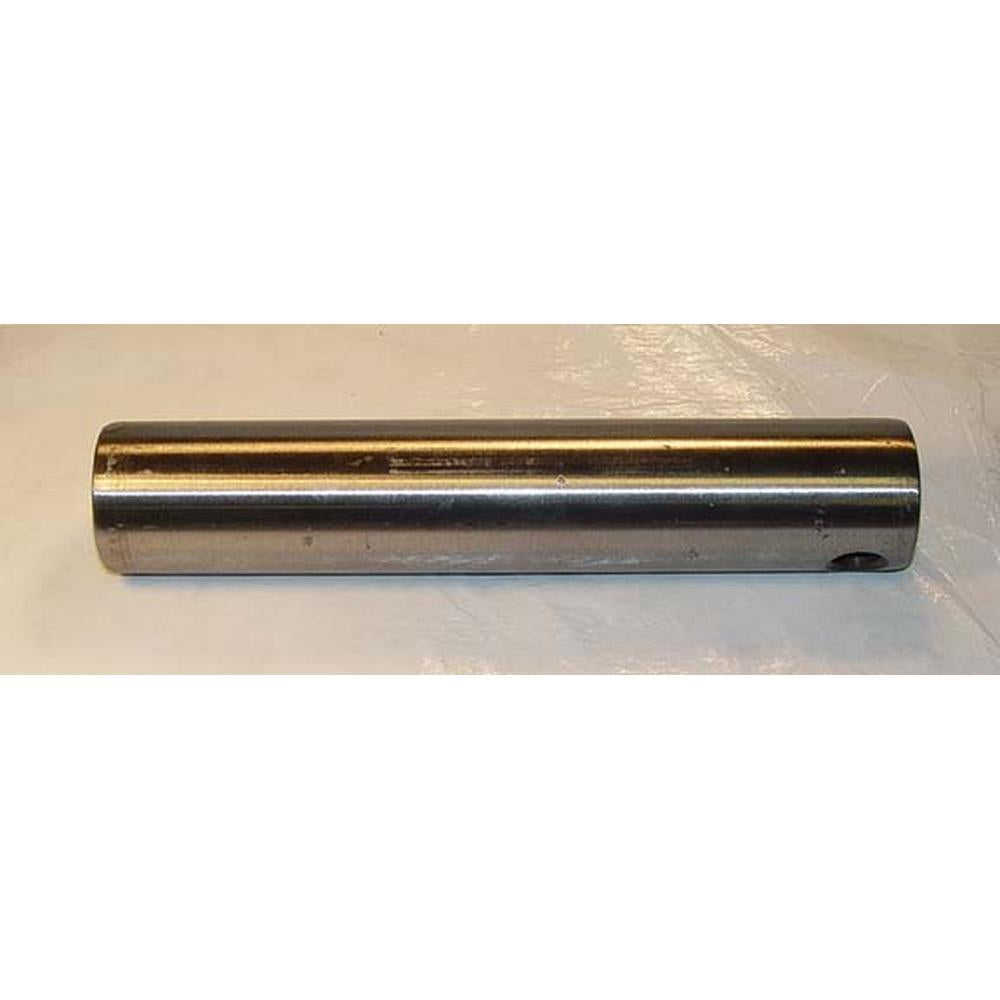

One New Aftermarket Replacement Rear C-Frame Pin Fits John Deere (Fits JD) Crawler Dozers
This drilled pin fastener secures the rear C-frame blade assembly on Fits John Deere crawler dozers. The pin is a precision-fit structural component used in the dozer blade mounting system. Two pins are typically required per machine. Replaces OEM part number T122628.
Specifications
- Pin Diameter: 1.95 in (49.50 mm)
- Length: 10.25 in (232.32 mm)
- Drilled pin fastener design
- End hole: 20 mm
- Hole size: 17.04 mm
- Heat treated and plated finish for wear and corrosion resistance
- Quantity needed per machine: 2
Compatible Models
Fits John Deere Crawler Dozers: 450G, 450H, 450J, 550H, 550J, 650H, 650J
Replaces Part Number(s):
T122628
New aftermarket replacement part - not remanufactured, not used.
