T105536 Pin Fits John Deere Dozer 450 450B 450C 450D 450E 550 550B
T105536 Pin Fits John Deere Dozer 450 450B 450C 450D 450E 550 550B
Regular price
$155.00 CAD
Regular price
Sale price
$155.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

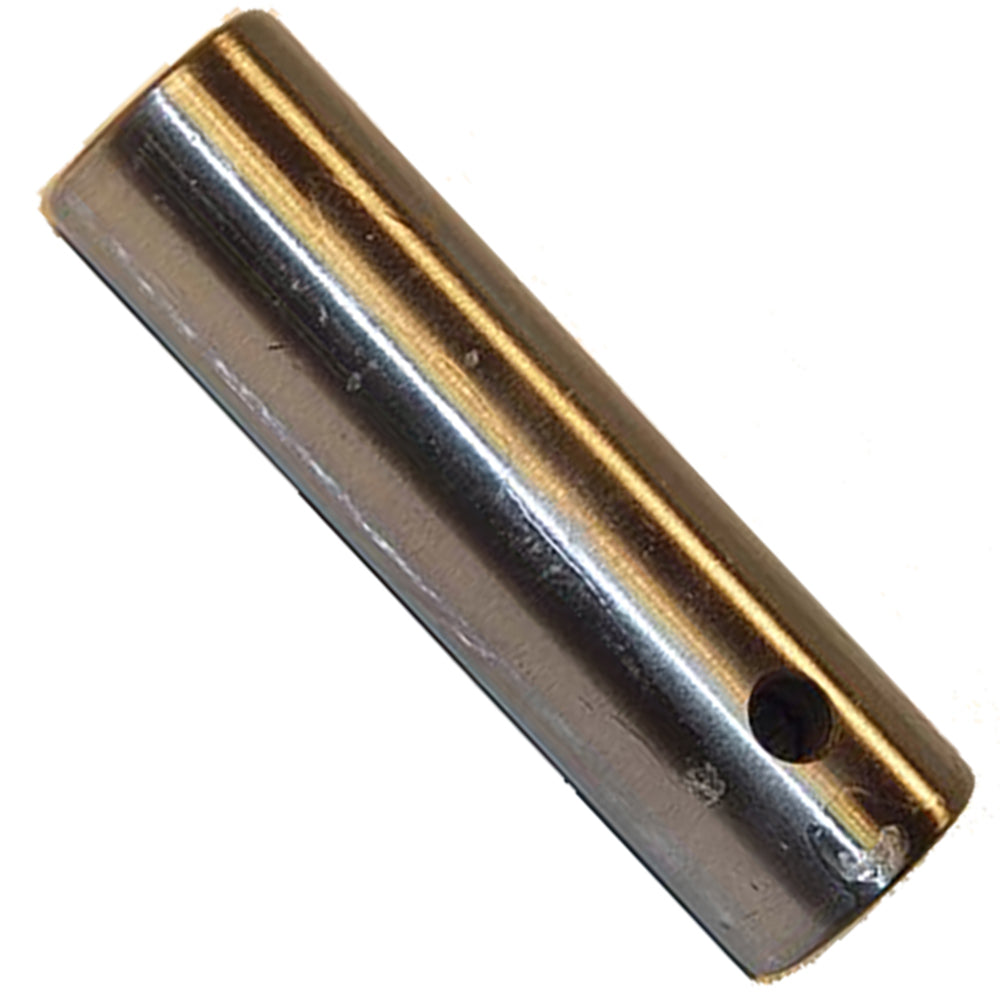

One New Aftermarket Replacement Tilt Cylinder Rod End Pin Fits John Deere (Fits JD) Crawler Dozers
This aftermarket replacement pin serves as the tilt cylinder rod end pin on the blade assembly of Fits John Deere (Fits JD) 450-series and 550-series crawler dozers. It secures the pivot connection between the hydraulic tilt cylinder rod and the blade frame, enabling smooth and reliable blade articulation. Designed for use on machines equipped with the 6405 blade.
Specifications
- Diameter: 1-1/4 in. (31.75 mm)
- Length: 4.375 in. (111.13 mm)
- Weight: 1 lb.
- Position: Tilt Cylinder Rod End
Compatible Models
Fits John Deere Crawler Dozers (with 6405 Blade): 450, 450B, 450C, 450D, 450E, 550, 550B
Replaces Part Number(s):
T105536, T105536-A
New aftermarket replacement part - not remanufactured, not used.
