Switch PTO TCA21027 Fits John Deere TG1860 TG1860G

One New Aftermarket Replacement PTO Push/Pull Switch for John Deere TG1860 / TG1860G

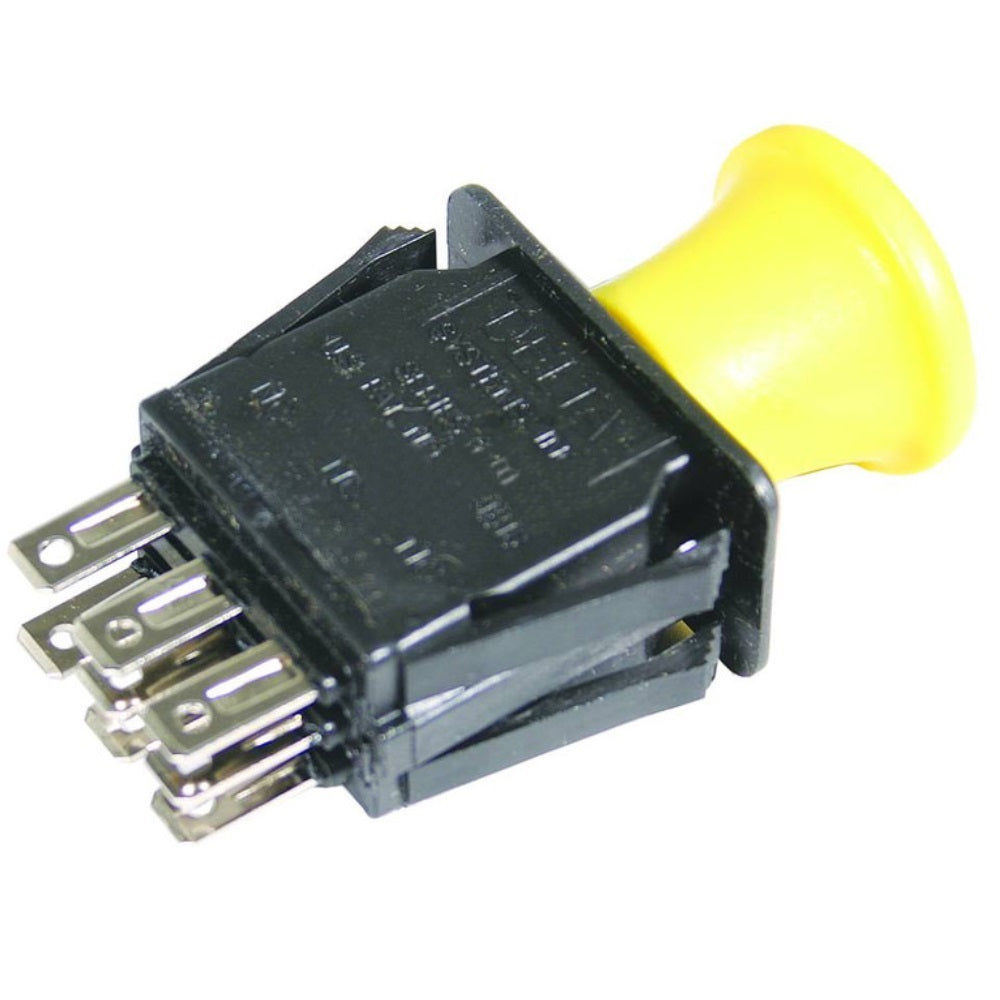

This 8-terminal PTO push/pull switch is a direct-fit replacement for the electrical assembly on John Deere TG1860 and TG1860G mowers. The snap-mount, smooth-knob design engages and disengages the blade clutch with a simple push or pull action. This switch is a widely cross-referenced part also compatible with Ariens, Bobcat, EverRide, Exmark, Grasshopper, Scag, and Toro equipment -- see Compatible Models below.

Specifications

• Number of Positions: 2

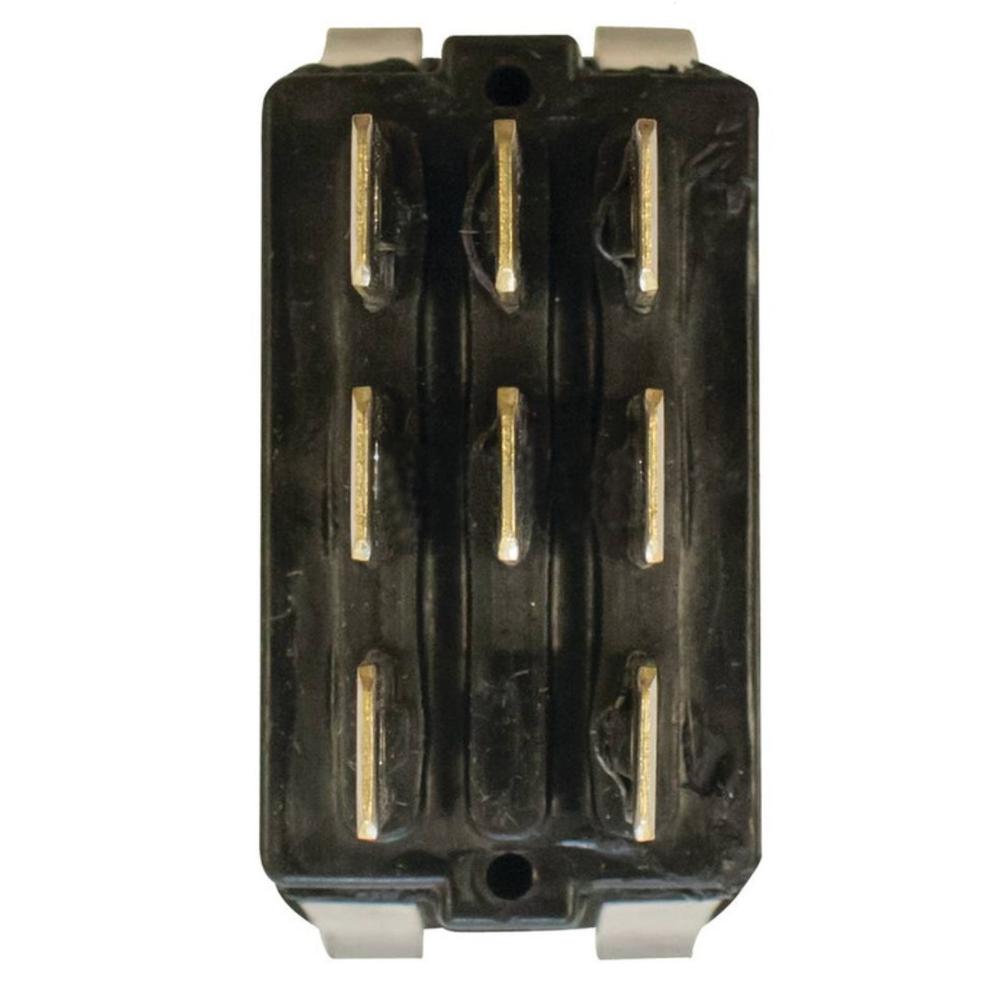

• Number of Terminals: 8
• Ignition Type: PTO
• Knob Type: Push / Pull (smooth, without grooves)
• Mount Type: Snap Mount

Compatible Models

John Deere: TG1860, TG1860G

Bobcat: 61" Zero-Turn 200 Series (942200-942299) Rider Drive Units; 930022, 930023, 922010, 934010A Gear Drives; 930000-936406A Power Units and Hydro Drives

EverRide: Warrior

Exmark: Turf Tracer floating deck walk-behinds (Serial No. 190,000 and higher, without ECS, 52" and 60" deck); Lazer Z (Serial No. 102,000-370,000, 52", 60", and 72" deck); Lazer XP (Serial No. 260,000-540,000, 60" and 72" deck)

Grasshopper: 320 Series zero-turns (2002-2008, 52", 61", and 72" deck)

Toro: 74269 (72" deck); Z 500's Z Master (60" and 72" deck)

Scag: Tiger Cat, Tiger Cat 2, STC48V, STC52V, STC61V, STCII-48V, STCII-52V, STCII-61V

Ariens: Zoom models; see cross-reference numbers for confirmation

Note: For Exmark models, verify Serial No. restrictions before ordering. Check your machine model and serial number prior to purchase to confirm fitment.

Replaces Part Number(s):

TCA21027, AM131966, TCA17834, TCA22710, AM119139, GY20939, 4172503, 481635, 103-5221, 1-633673, 633673, 183925, 136574, 00136574

Aftermarket Interchange Numbers

B1EM48, 33-002, 6201-342, 00522100, 01545600, ELT20-0248

New aftermarket replacement part - not remanufactured, not used.
