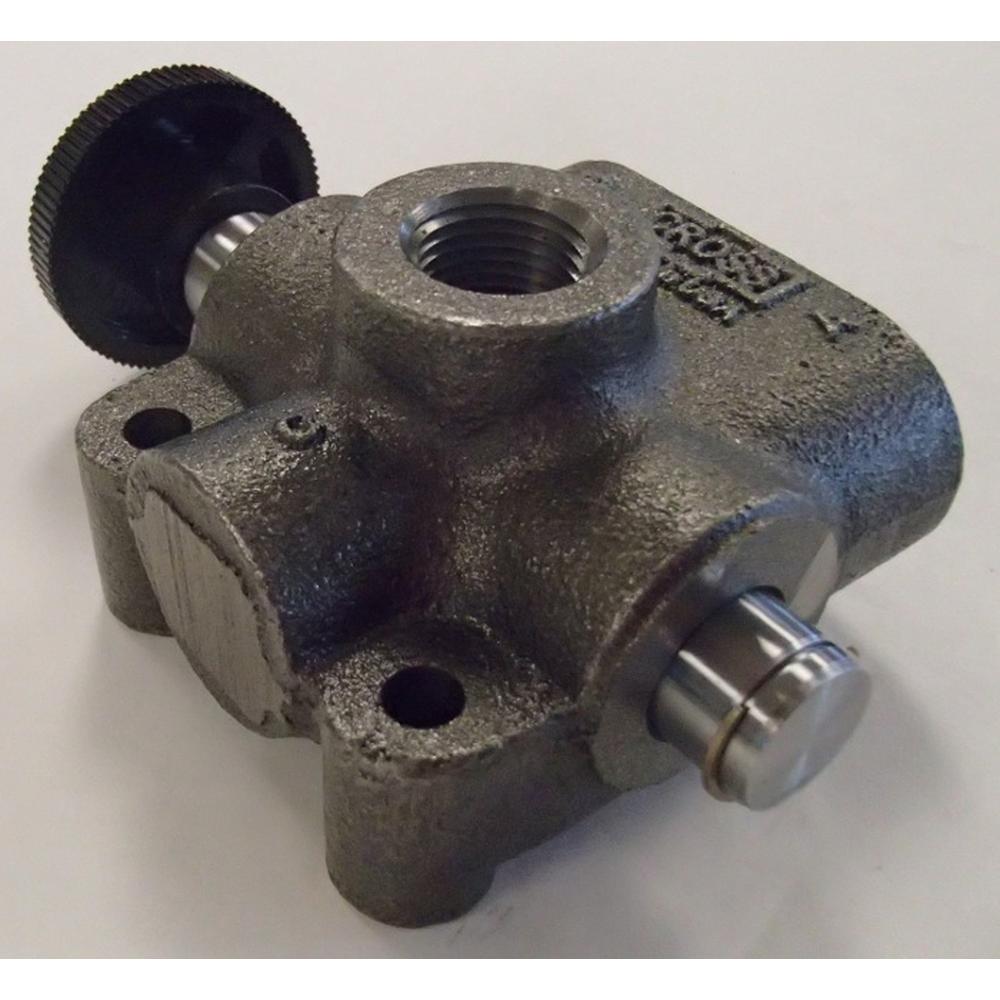

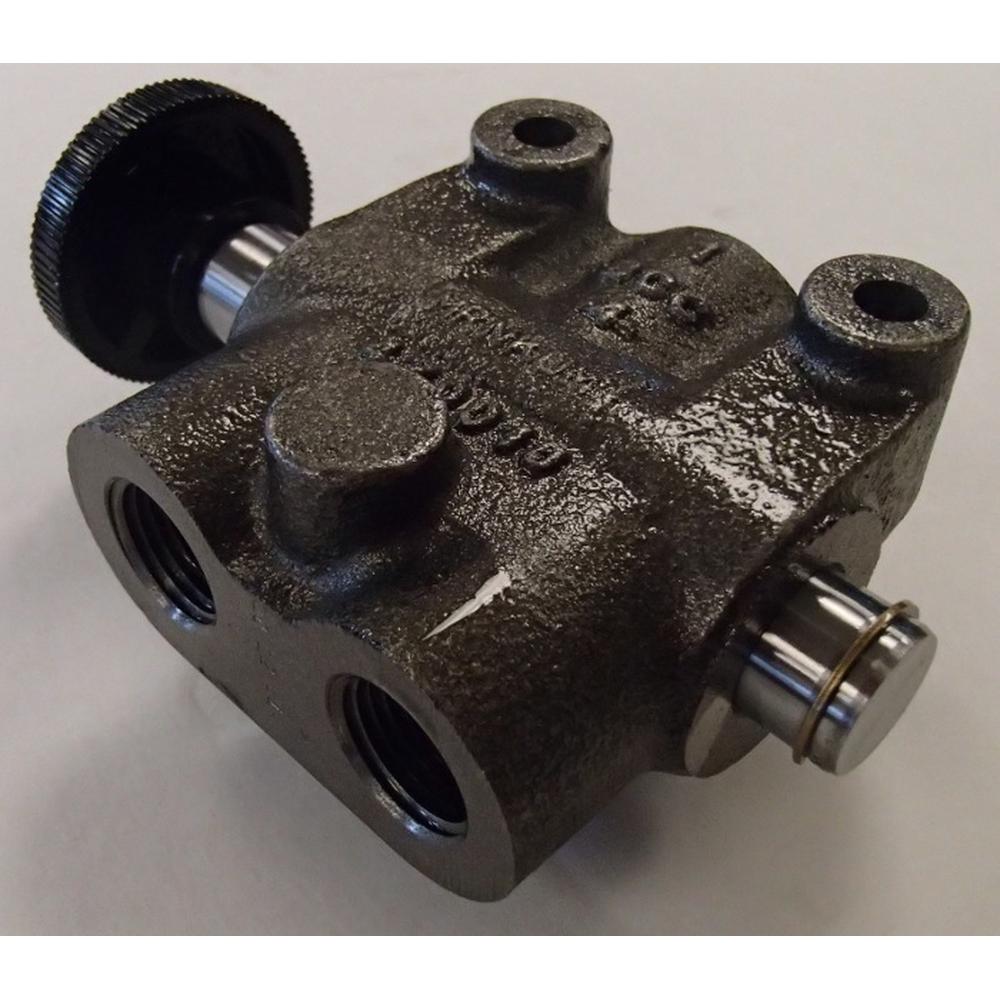

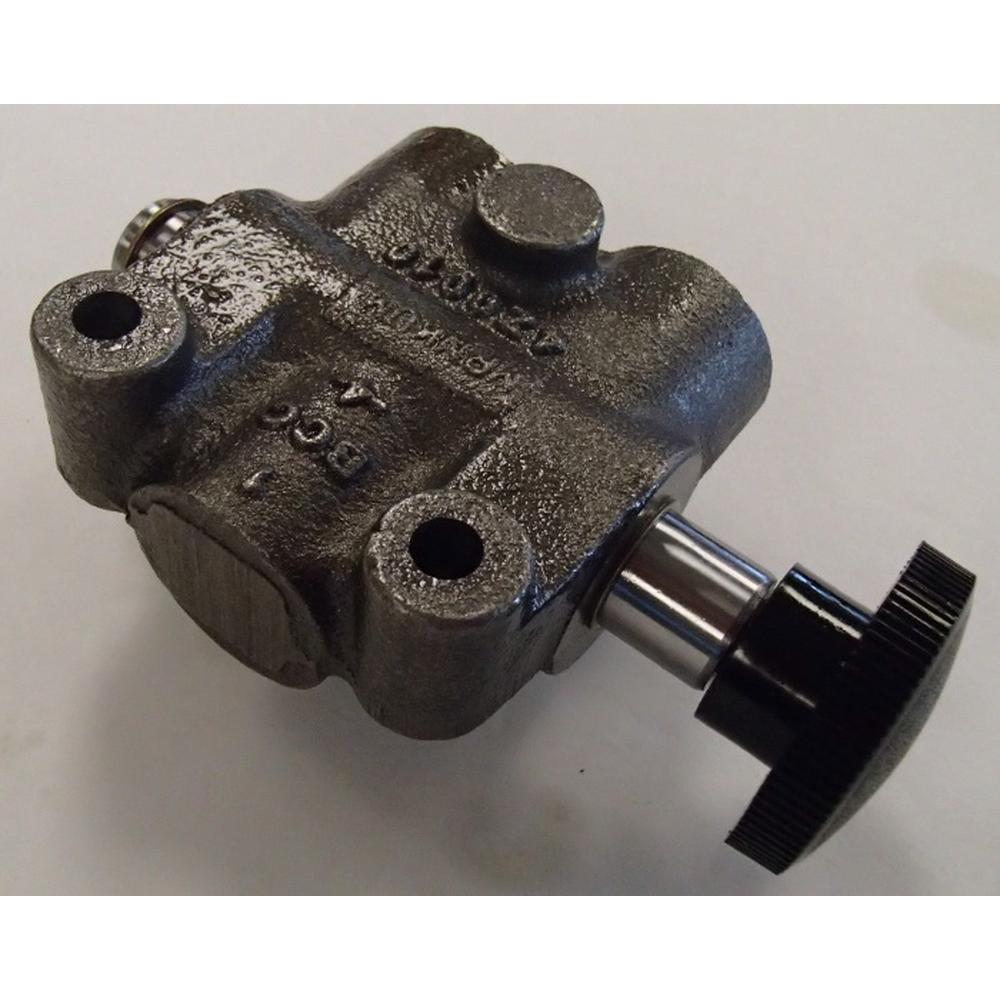

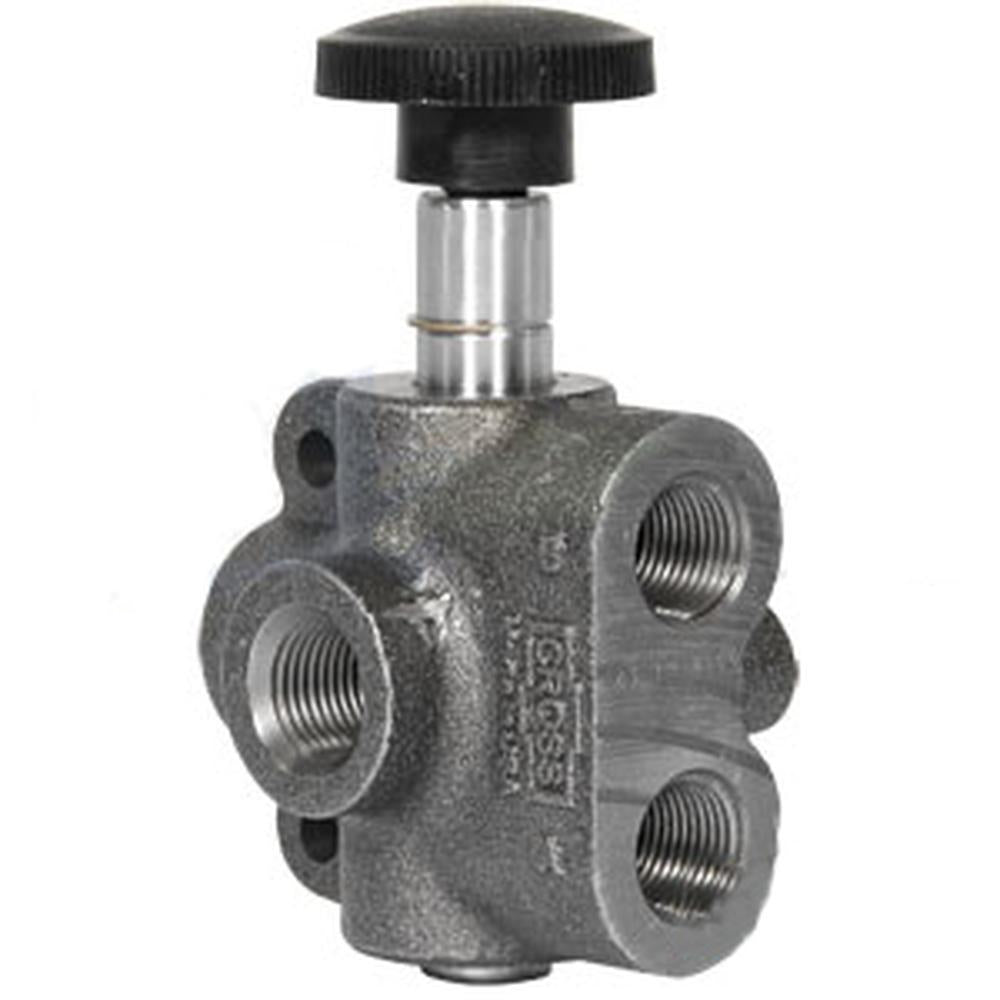

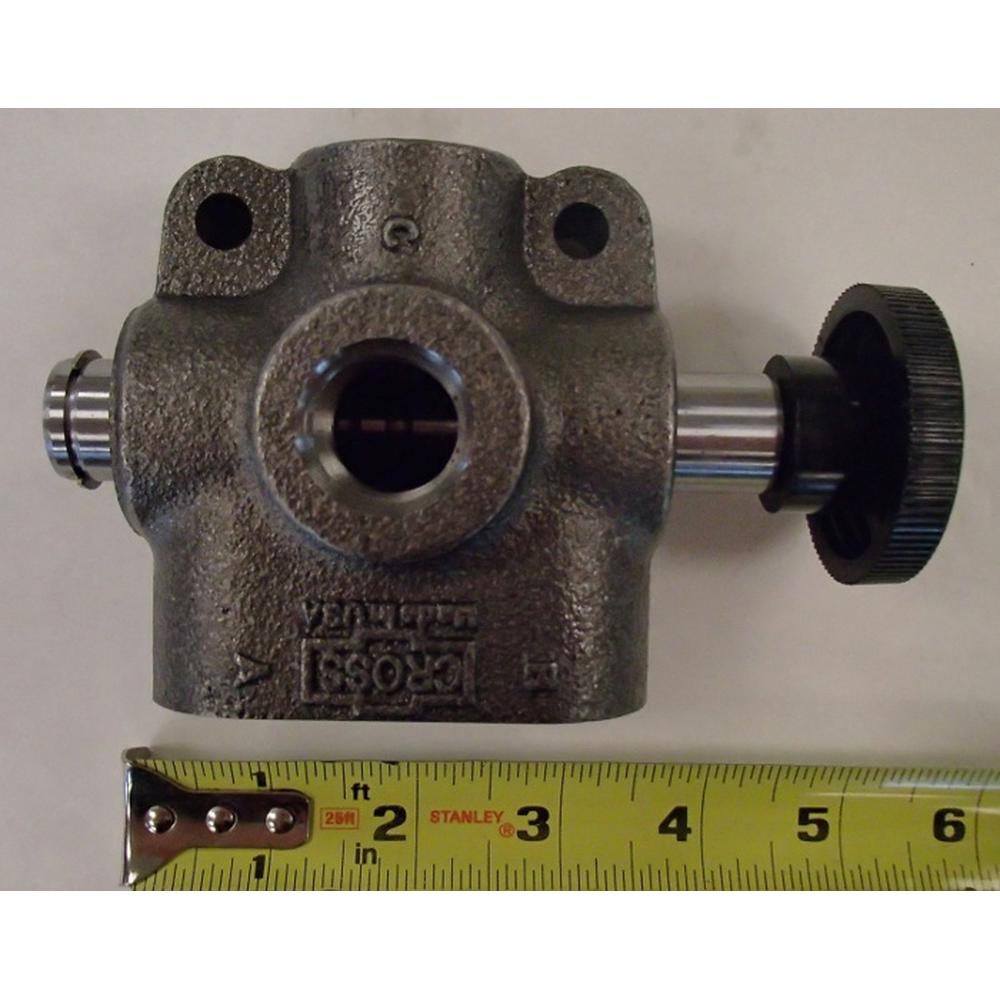

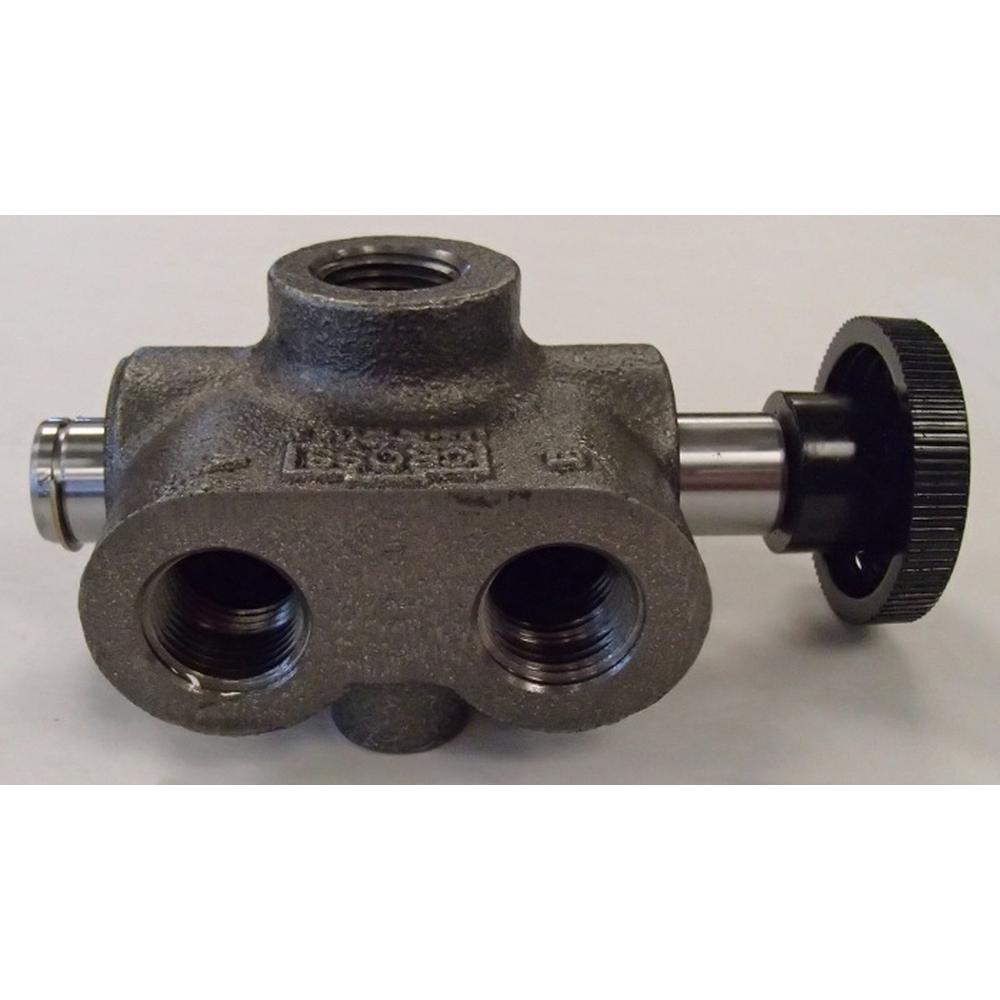

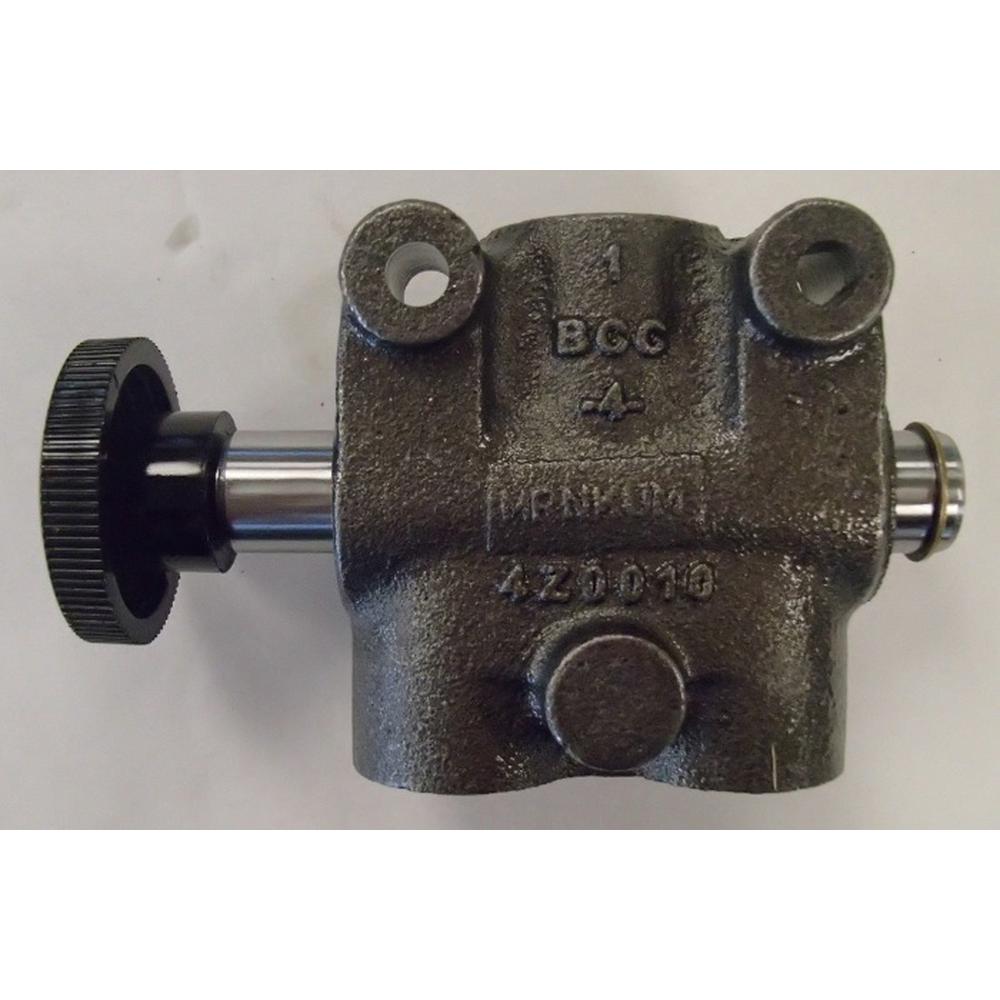

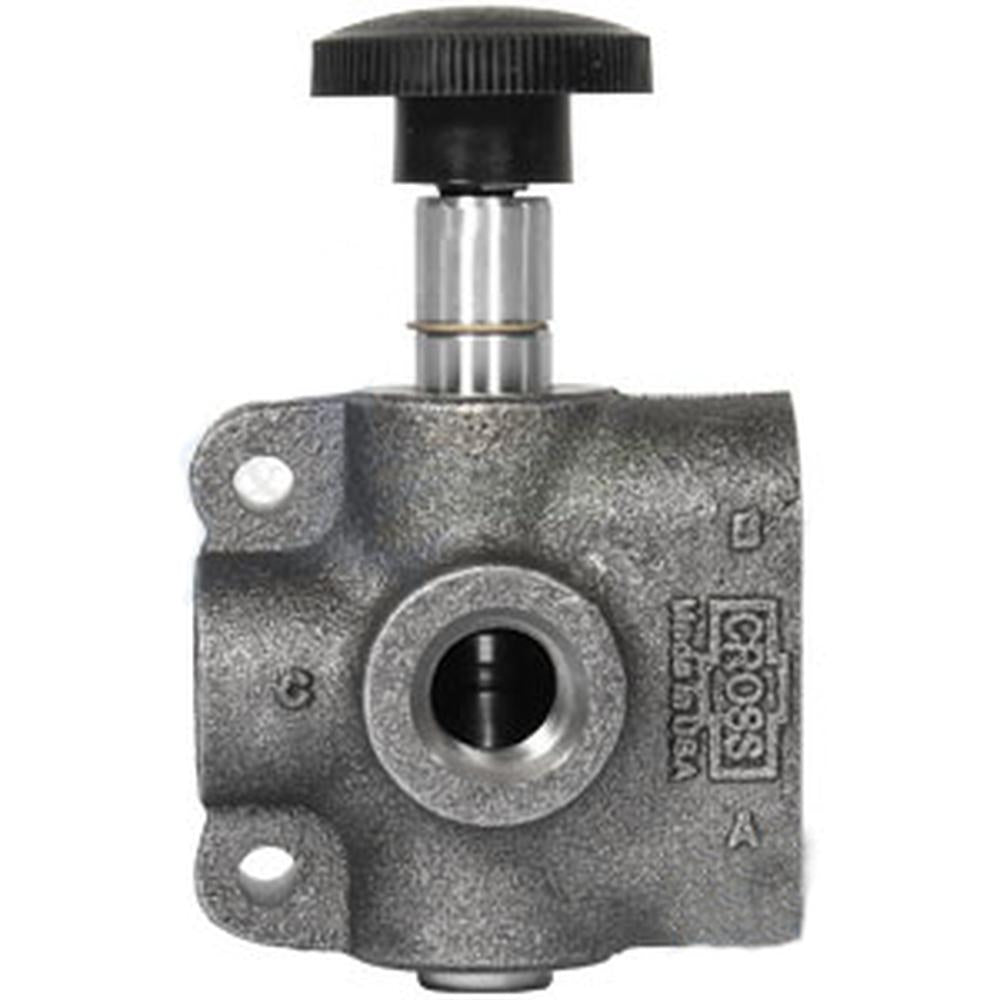

One New Aftermarket Replacement Two-Way Hydraulic Selector Valve - Cross Manufacturing SVS2

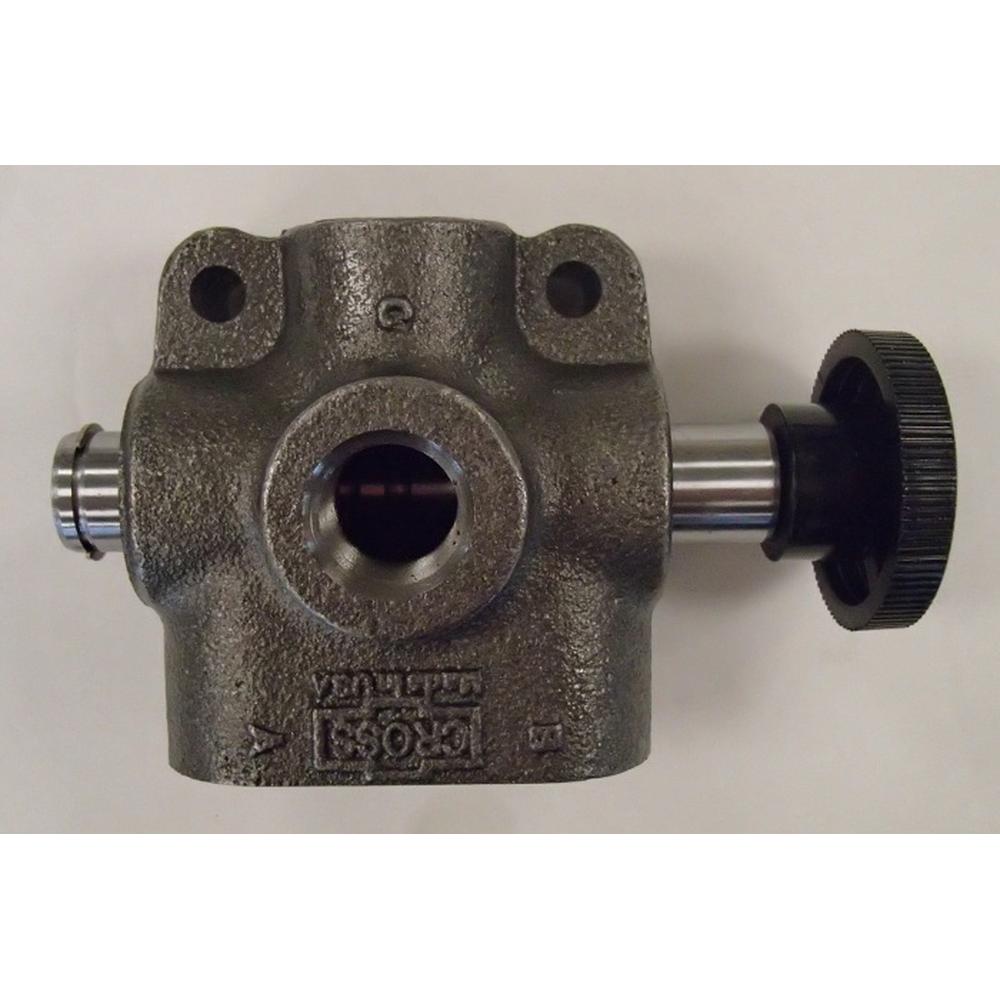

This Cross Manufacturing SVS2 single hydraulic selector valve is a 2-position, 3-port unit designed to divert pump flow between two separate hydraulic circuits. It is a manually operated, spool-type, 3-way valve featuring cast-in metering notches for smooth operation. Common applications include uni-directional cylinder and motor control, and selecting one of two circuits from a single hydraulic pump on tractors and agricultural equipment.
Specifications
- Type: Single selector valve, 3-way, 2-position
- Operating Pressure: 2,500 psi (172 bar)
- Maximum Shock/Surge Pressure: 3,500 psi (242 bar)
- Flow Capacity: 20 GPM (76 ltr/min) maximum
- Work Ports: 1/2" NPT female
- Actuator: Knob (standard); field conversion kits available for clevis, handle, spring return, or 2-position detent
- Spool: Hard chrome plated
- Body: Cast iron, one-piece monoblock construction
- Mounting: 2-bolt, any position
- Cross Stock Number: 128140
- Cross Model Number: VS2BKLF2
Compatible Equipment
This is a universal-fit hydraulic selector valve compatible with a wide range of agricultural tractors, construction equipment, and any hydraulic system requiring flow selection between two circuits at up to 2,500 psi and 20 GPM. Verify port size and pressure requirements before ordering.
Replaces Part Number(s):
SVS2
Aftermarket Interchange Numbers
Cross Manufacturing 128140, Cross VS2BKLF2
New aftermarket replacement part - not remanufactured, not used.
