Straw Chopper Actuator Fits John Deere 9770 STS 9860 STS 9870 STS AXE23606
Straw Chopper Actuator Fits John Deere 9770 STS 9860 STS 9870 STS AXE23606
Regular price
$818.00 CAD
Regular price
Sale price
$818.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
One New Aftermarket Replacement Straw Chopper Actuator Fits John Deere STS and S Series Combines

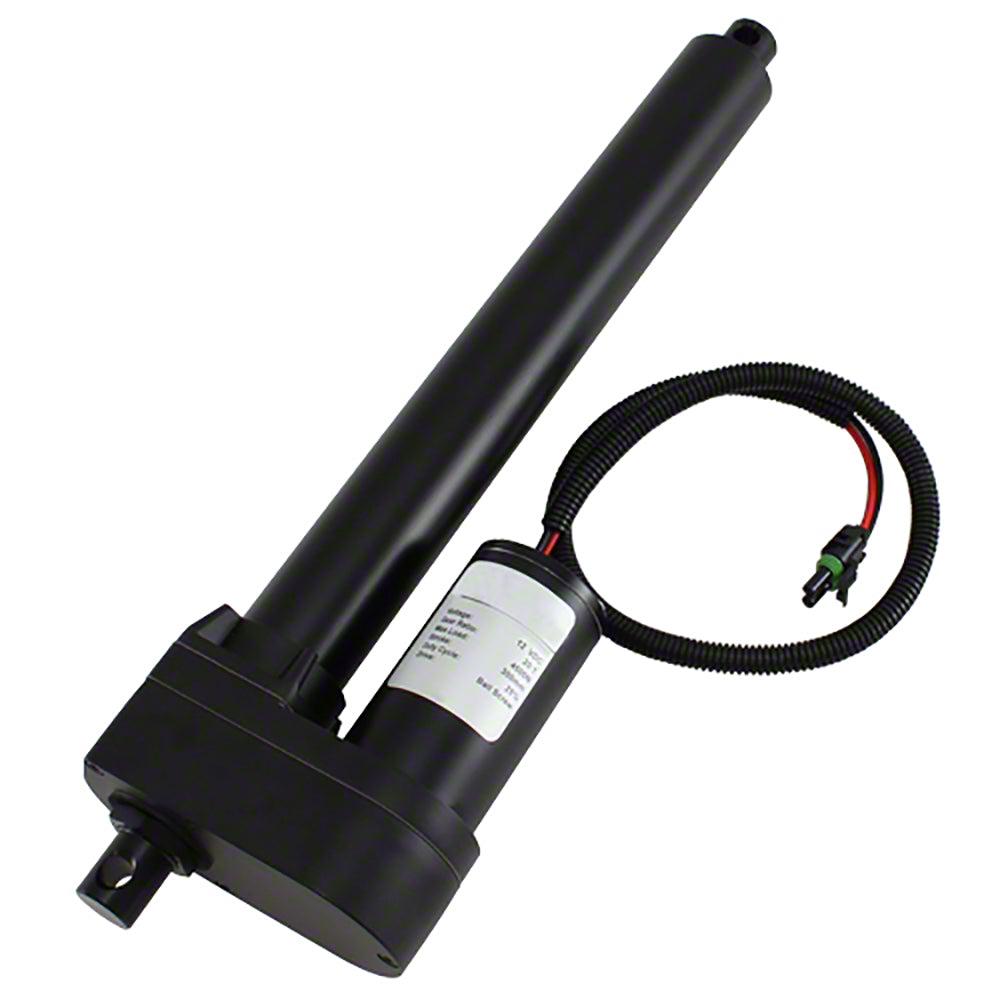

This 12VDC linear actuator controls the straw chopper tailboard on Fits John Deere STS and S550 combines, allowing the operator to raise and lower the tailboard to direct crop residue discharge. It is a direct-fit replacement for the straw chopper system on the models listed below.
Specifications
- Voltage: 12VDC
- Gear Ratio: 20:1
- Stroke: 12.00 in
- Retracted Length: 19.921 in
- Pin Hole Diameter: 1/2 in
Compatible Models
Fits John Deere STS and S Series Combines: 9560 STS, 9570 STS, 9650 STS, 9660 STS, 9670 STS, 9750 STS, 9760 STS, 9770 STS, 9860 STS, 9870 STS, S550
Replaces Part Number(s):
AXE23606, AH209992, AH149880, GF121043
New aftermarket replacement part - not remanufactured, not used.
