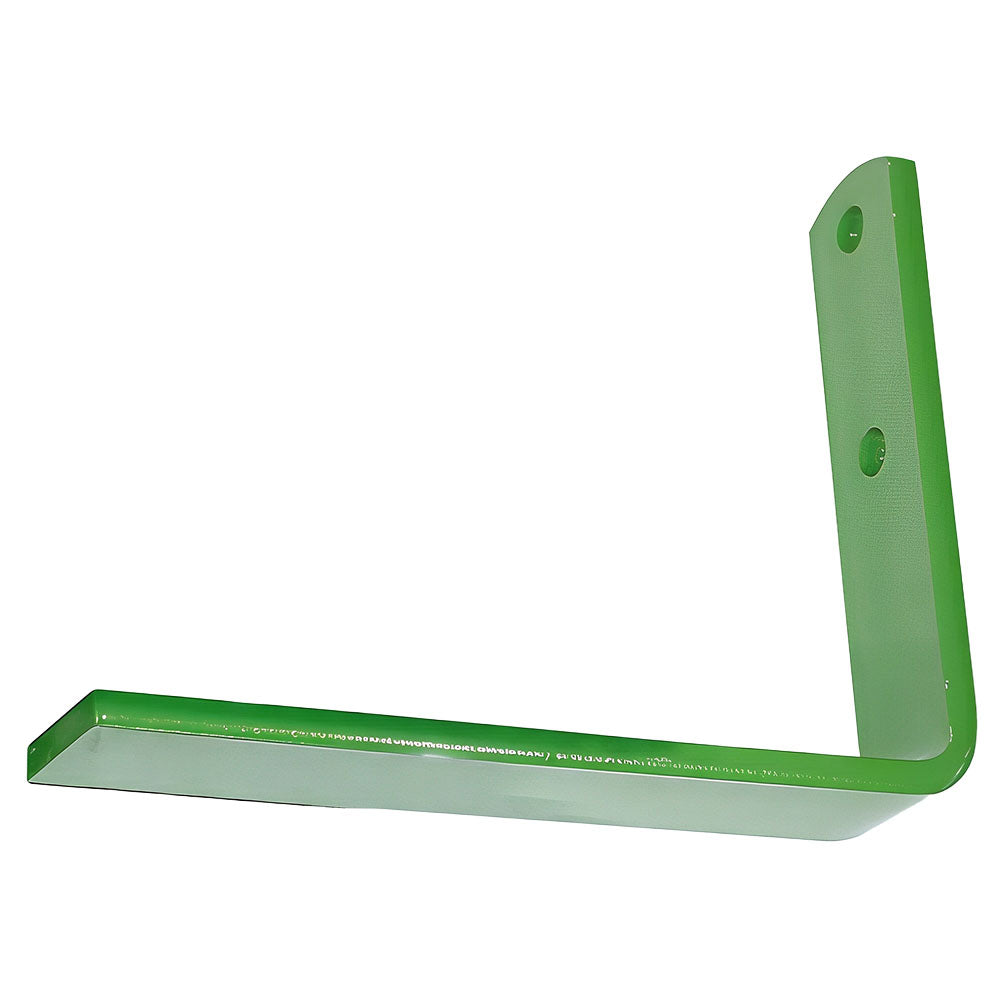

Step Bracket Fits John Deere A-730 Row Crop Tractors

Step Bracket Fits John Deere A-730 Row Crop Tractors

$161.00 CAD
$161.00 CAD
Sale Sold out
Shipping calculated at checkout.

One New Aftermarket Replacement Step and Bracket


Fits John Deere Models:
2010, 2240, 2440, 2510, 2630, 2640, 2840, 3020, 4010,
4020, 520, 530, 620, 630, 720, 730, 8020, 830


Specifications:
Dimensions:
Long Side: 12'' Long
Short Side: 9-15/16''
Width: 2-1/2''
Thickness: 7/16''
Long Side Bolt Pattern: 4'' C to C
Short Side Bolt Pattern: 3-1/2'' C to C


Replaces Part Number(s)A5234R

Models This Part Fits:

8450, 4450, 3235C, GH, 4455, 1020, 2440, 2030, 4320, 60, 1830, 4520, 401C, 2350, 2355N, 3120, 2750, 4620, 3020, 2555, 2010, 520, 3365, 5010, 8650, 4255, 2630, 2150, 2040, 2640, 3225C, 2255, 4010, 4240, 530, 2355, 3245C, GM, 620, 1445, 2550, 630, AW, 4430, 300B, 720, 1520, 6030, 2240, 2120, 4000, 4020, BN, 2520, 110, 1565, 5020, 2510, 4230, 4250, 50, A, 700, 1120, 820, 2755, 2155, G, 1435, 2020, 830, 4055, 920, 4050, 4440, B, 70, 8850, 3010, 1545, 1530, H, 1420, 730, 4040, BW, 2130, 2840, 302A

Additional Information:

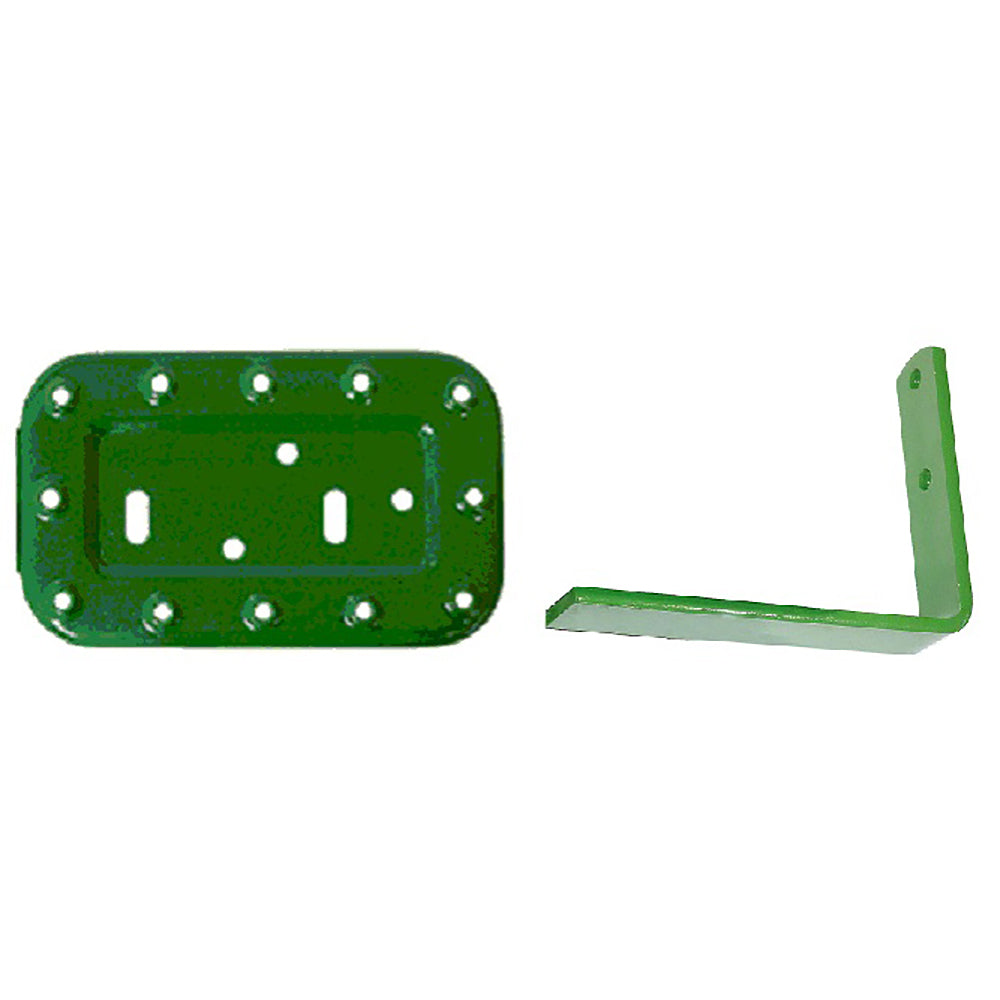

Kit Includes: (1) Step Only Step dimensions: 10" x 6" Steel Thickness = 1/8" (.0125") Replaces Part Numbers: A5233R, AA6092R, R2098S, A5233R (1) Step Bracket Long Side: 12'' Long Short Side: 9-15/16'' Width: 2-1/2'' Thickness: 7/16'' Long Side Bolt Pattern: 4'' C to C Short Side Bolt Pattern: 3-1/2'' C to C Replaces part Numbers: A5234R, T25703

Reference Numbers:

A5233R, AA6092R, R2098S, A5233R, F3195R
