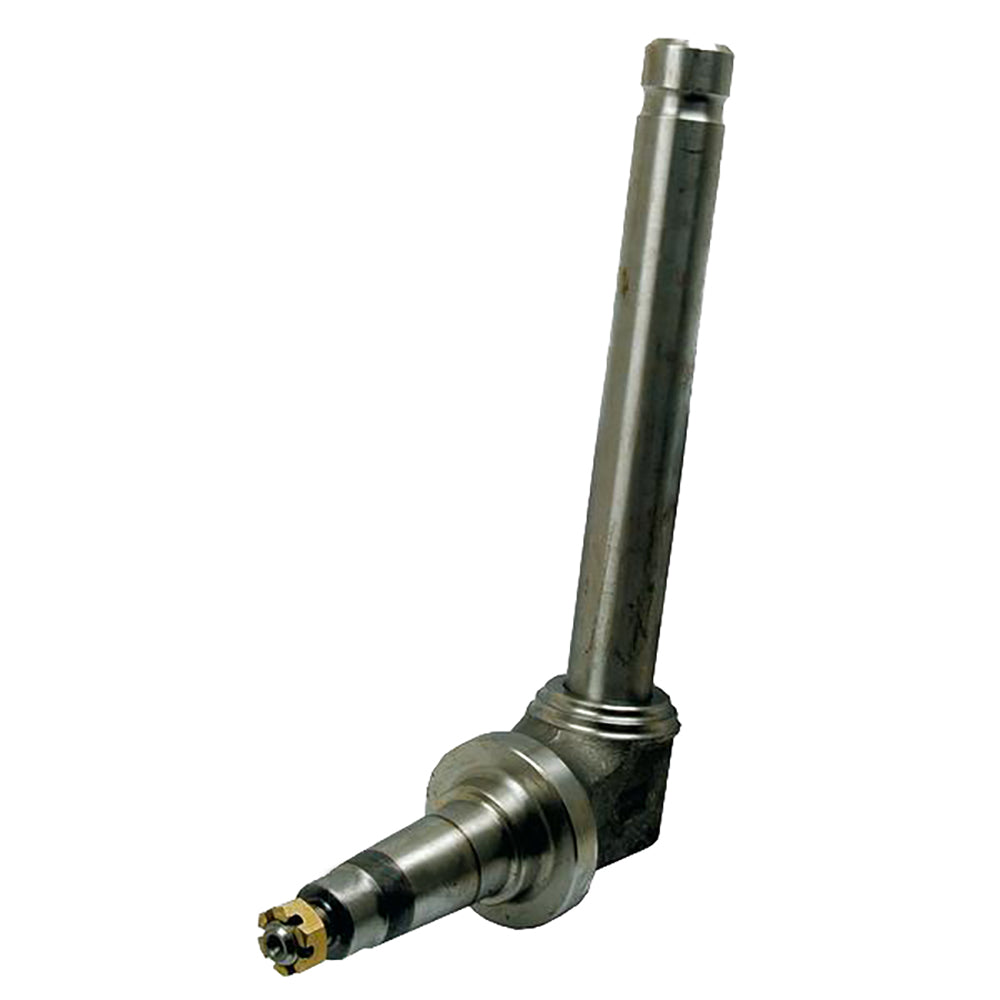

Spindle Right Hand/Left Hand Fits Case IH 595 Fits International 574 454 674

Name: Spindle Right Hand/Left Hand Fits Case IH 595 Fits International 574 454 674
SKU: AGER1366169-DUP
Price: 247.0 USD
Availability: InStock

Spindle Right Hand/Left Hand Fits Case IH 595 Fits International 574 454 674

$247.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

Left Hand Spindle

Spindle:Low (LH/RH) Heavy Duty
(Shaft Length - 12 1/8'' - 308mm)
Adjustable Front Axle - Straight (52-82 Tread Width)

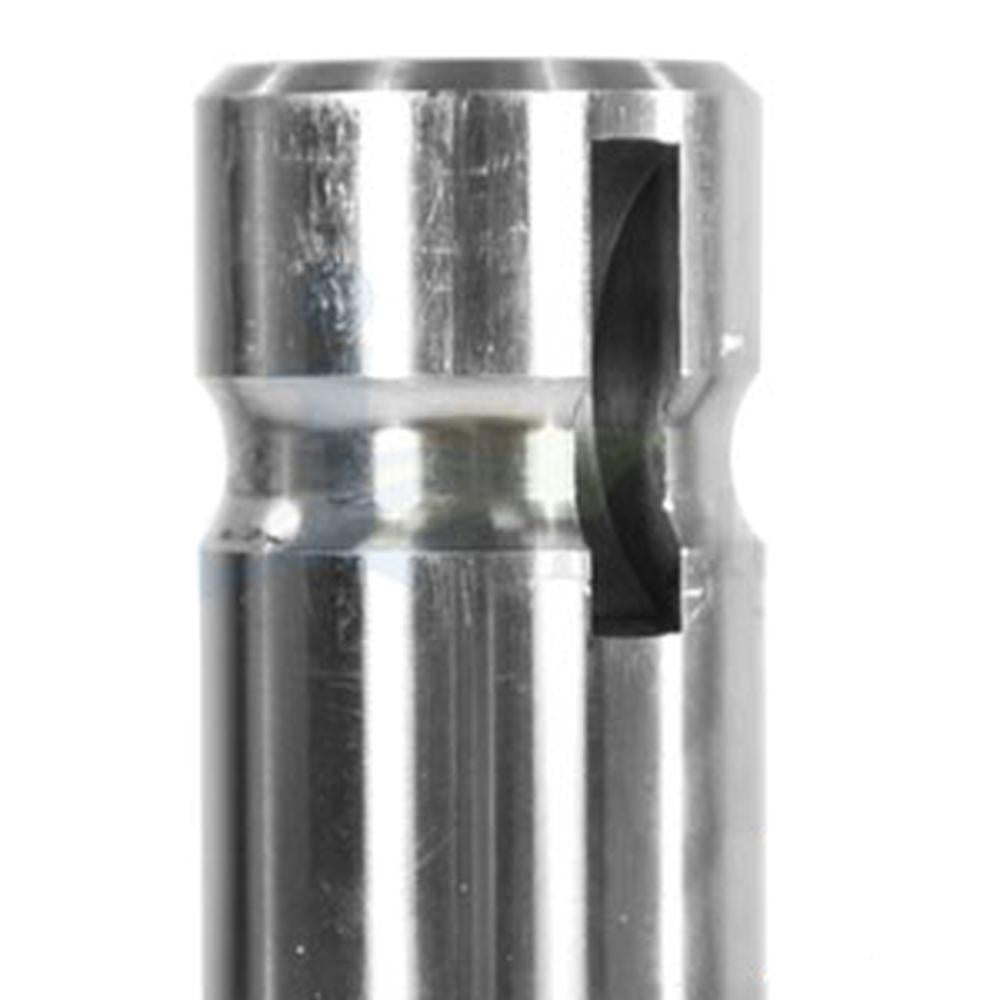

A: Spindle Shaft (Vertical Spindle)
The long vertical shaft that goes up into the axle support
Allows the wheel hub to pivot for steering
B: Spindle Diameter / Bearing Surface
The machined area where bushings or bearings ride inside the axle
Critical for smooth steering rotation
C: Steering Arm / Spindle Arm Area
The section where the steering arm is integrated or attaches
Transfers motion from the tie rod to turn the wheel
D: Tie Rod Connection (Tapered Stud / Tie Rod End Mount)

Fits Case IH, Fits International Harvester
Models: 238, 248, 258, 268, 288, 3210, 3220, 3230, 385, 395, 4210, 4220, 4230, 4240, 454, 475, 484, 485, 485XL, 495, 495XL, 574, 584, 585, 585XL, 595, 595XL, 674, 695, 695XL, 795, 895

Replaces Part Number(s)67535C91, 67535C91-A

Models This Part Fits:

3220, 674, 484, 584, CX80, 2500A, C70, C50, CX100, 4240, 4210, 248, C90, 3230, 454, 574, 385, 895, C100, CX50, 595, 995, C80, CX60, 695, C60, 585, CX90, 485, 2400A, 258, 4230, CX70

Additional Information:

Spindle:Low (LH/RH) Heavy Duty (Shaft Length - 12 1/8'' - 308mm) Adjustable Front Axle - Straight (52-82 Tread Width) A: Spindle Shaft (Vertical Spindle) The long vertical shaft that goes up into the axle support Allows the wheel hub to pivot for steering B: Spindle Diameter / Bearing Surface The machined area where bushings or bearings ride inside the axle Critical for smooth steering rotation C: Steering Arm / Spindle Arm Area The section where the steering arm is integrated or attaches Transfers motion from the tie rod to turn the wheel D: Tie Rod Connection (Tapered Stud / Tie Rod End Mount)
