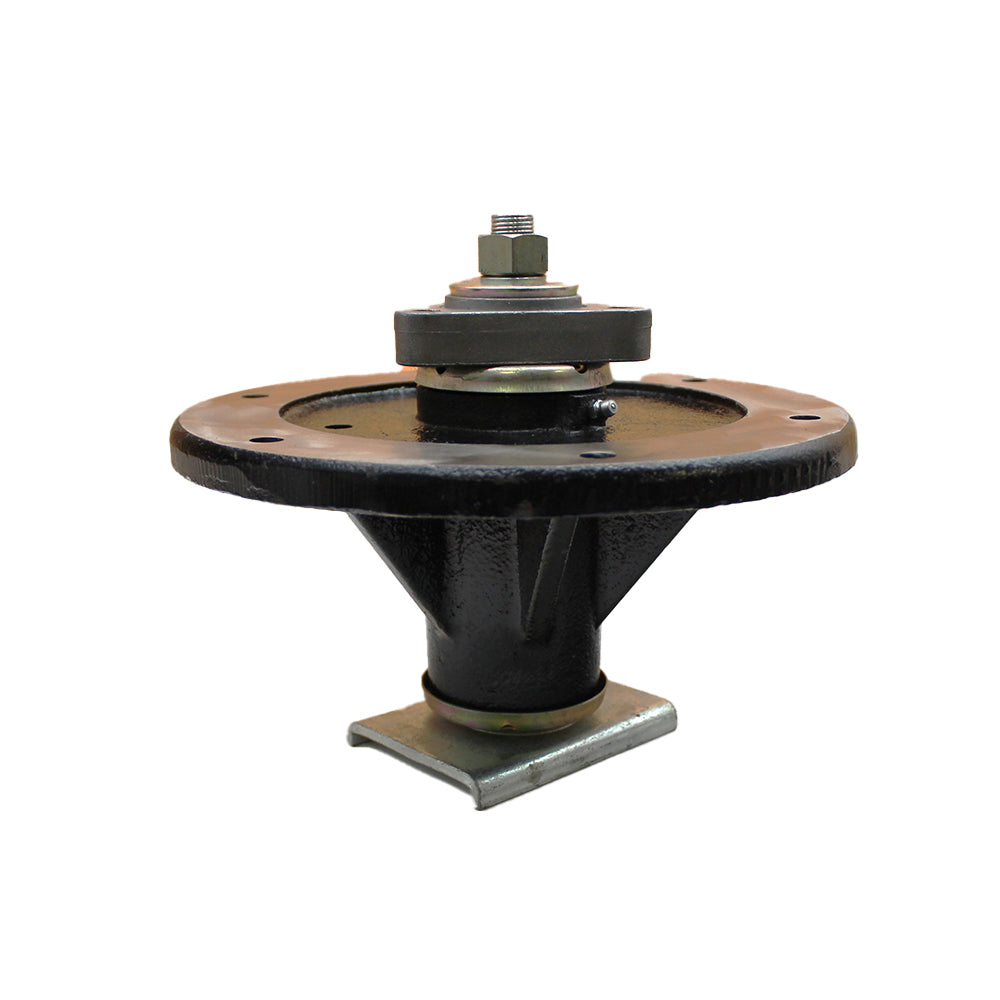

Spindle Assembly Fits Toro Z Master Z400 Z500 GrandStand 107-8504 Zero Turn

Spindle Assembly Fits Toro Z Master Z400 Z500 GrandStand 107-8504 Zero Turn

$112.00 CAD
$112.00 CAD
Sale Sold out
Shipping calculated at checkout.

One New Aftermarket Replacement Spindle Assembly Fits Toro Z Master Z400 / Z500 Series and GrandStand Zero-Turn Mowers

This aftermarket replacement spindle assembly Fits Toro Z Master Z400 and Z500 series zero-turn mowers as well as Fits Toro GrandStand mowers equipped with 48-inch, 52-inch, or 60-inch Turbo Force and 7-Gauge side discharge cutting decks. The spindle assembly mounts to the mower deck and works with the drive belt and pulleys to rotate the cutting blades. Fits Toro OEM part number 107-8504.

Specifications

  • Overall Height: 7-1/2 in.
  • Pulley O.D.: 9-3/8 in.
  • Sealed bearing housing
  • Grease zerk fitting
  • No threads in housing -- use self-tapping screws for mounting (screws not included)

Compatible Models

Fits Toro Z Master Z400 Series: Z400 (74410, 74412), Z410, Z441

Fits Toro Z Master Z400 Series - Turbo Force: Z449, Z450, Z453

Fits Toro Z Master Z500 Series: Z500 (74248, 74249, 74291, 74292)

Fits Toro Z Master Z528: Z528 (74237, 74238)

Fits Toro GrandStand: GrandStand with 48 in. Turbo Force Deck (74558, 74568, 79558), GrandStand with 52 in. Turbo Force Deck (74559, 74567TE, 74569, 79559)

Replaces Part Number(s):

107-8504, 1078504

Aftermarket Interchange Numbers

Fits Stens 285-881, J. Thomas LM0650, 8TEN 810-CSP2249N

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

74410 (Z 400), 74248 (Z 500), Z450, 74413 (Z 449), 74249 (Z 500), 74237 (Z 528), 74292 (Z 500), Z528, Z400, Z410, 74238 (Z 528), Z453, 74412 (Z 400), Z500, 74291 (Z 500), Z441, Z449

Additional Information:

OD: 9 3/8" Height: 7-12" Grease zerk No threads in housing, use self-tapping screws

Reference Numbers:

107-8504, 1078504

Product Sub Group:

Spindles
