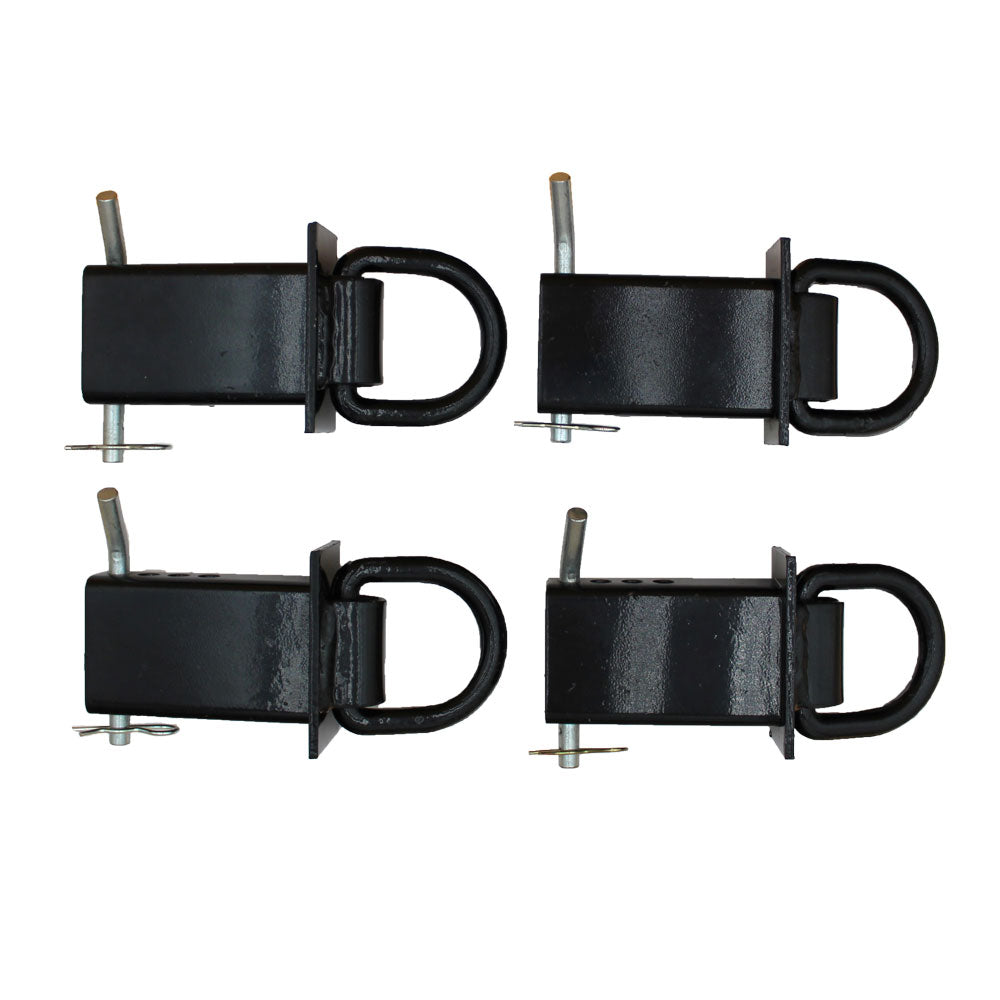

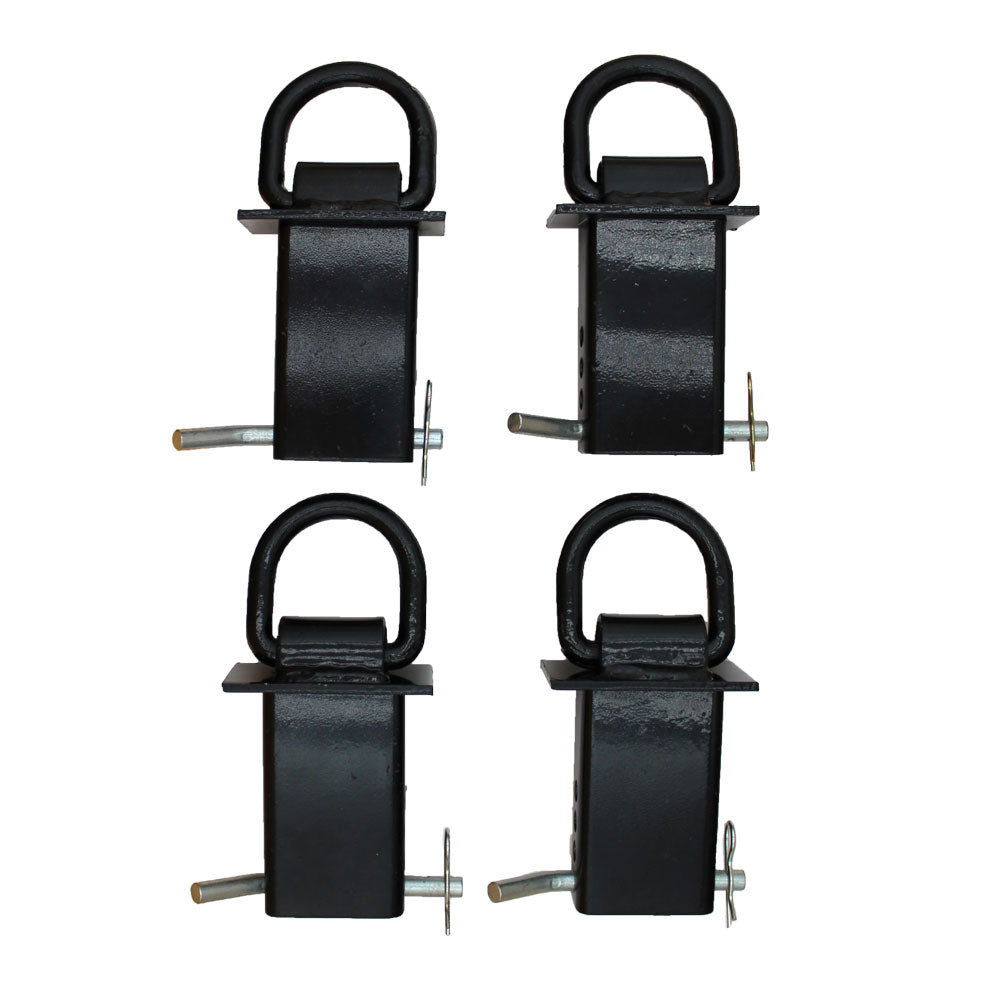

SPDRx4 Heavy Duty Adjustable Trailer Stake Pocket D Ring- 4 pack Fits Universal

Name: SPDRx4 Heavy Duty Adjustable Trailer Stake Pocket D Ring- 4 pack Fits Universal
SKU: TLK80-0008_01
Price: 106.0 USD
Availability: InStock

SPDRx4 Heavy Duty Adjustable Trailer Stake Pocket D Ring- 4 pack Fits Universal

$106.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

Aftermarket Heavy Duty Adjustable Trailer Stake Pocket D Ring- 4 pack

Tech Info:
-5/8" Forged D-Ring
-Fits 3.75" ID Stake Pockets (Standard 2 x 4 Stake Pockets)
-Working load limit: 5,400 lbs
-Capacity: 16,200 lbs
-Comes with a 1/2 inch hitch pin w/ locking cotter pin and 4 pin holes
-5.5” Tall from the bottom of the mounting plate to the bottom of the anchor.
-3-3/8” Wide.
-5” from the bottom of the mounting plate to the top of the 4th pin hole.
-4.25” from the bottom of the mounting plate to the top of the 3rd pin hole.
-3.5” from the bottom of the mounting plate to the top of the 2nd pin hole.
-2.75” from the bottom of the mounting plate to the top of the 1st pin hole.
-The bent pin is 6-3/4" long and the clip is 3" long that goes inside it

Fits Universal:
Replaces Part Number(s): SPDRx4

Additional Information:

5/8" Forged D-Ring Fits 3.75" ID Stake Pockets (Standard 2 x 4 Stake Pockets) Working load limit: 5,400 lbs Capacity: 16,200 lbs Comes with a 1/2 inch hitch pin w/ locking cotter pin and 4 pin holes 5.5” Tall from the bottom of the mounting plate to the bottom of the anchor. 3-3/8” Wide. 5” from the bottom of the mounting plate to the top of the 4th pin hole. 4.25” from the bottom of the mounting plate to the top of the 3rd pin hole. 3.5” from the bottom of the mounting plate to the top of the 2nd pin hole. 2.75” from the bottom of the mounting plate to the top of the 1st pin hole. The bent pin is 6-3/4" long and the clip is 3" long that goes inside it
