Selective Sector Plate and Pinion Gear Fits John Deere G110 L100 L105 L107 L108

$40.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

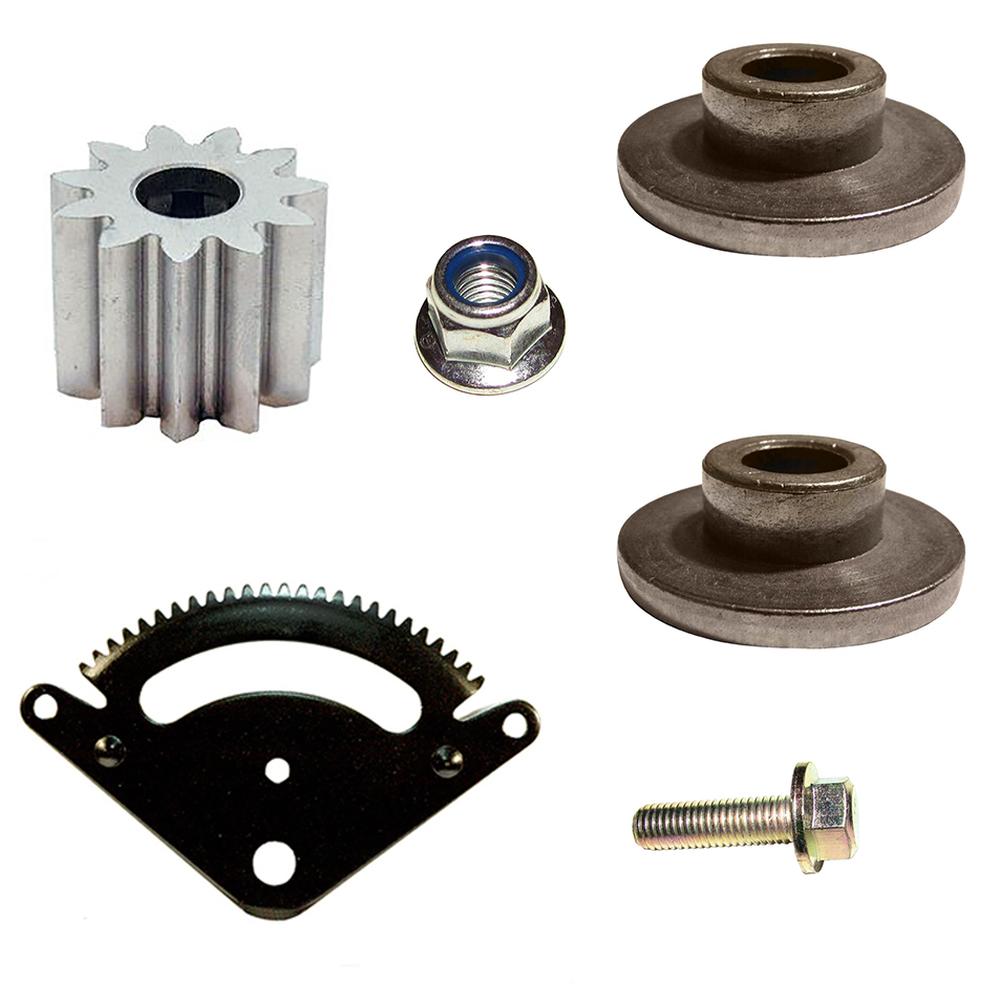

One New Aftermarket Replacement Pinion Gear & Sector Gear w/ Hardware Kit

Fits John Deere Tractor Models:
G110, L100, L105, L107, L108

The model numbers listed are for reference only. Please consult your service manual and verify your original part number(s) before ordering.

Kit Includes:

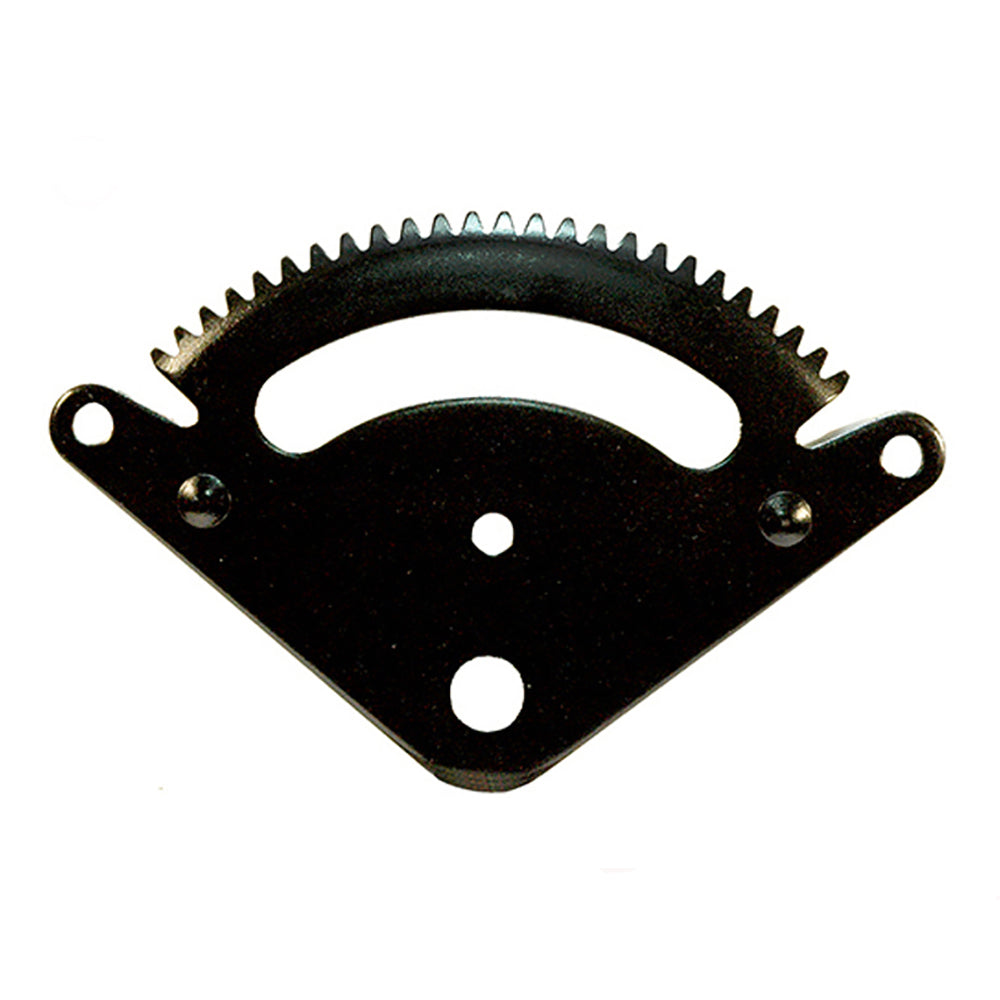

(Qty, 1) Sector Gear

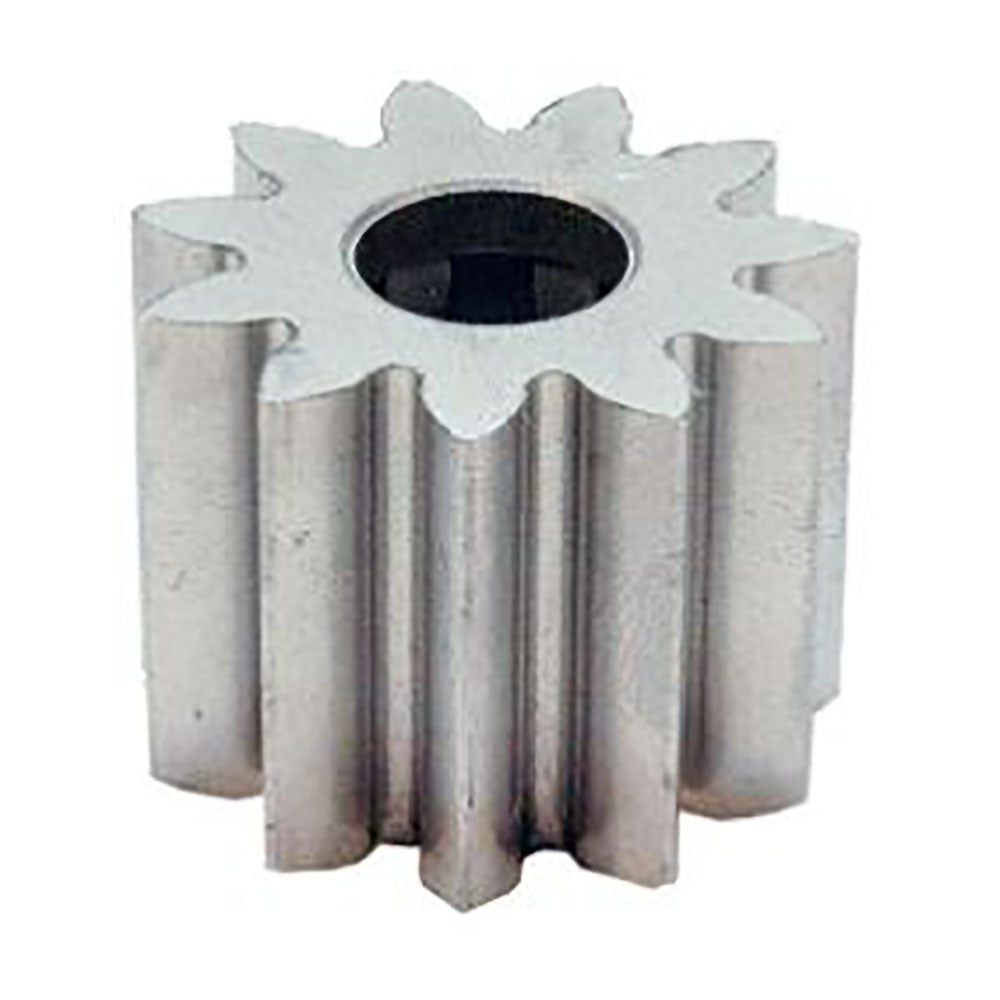

(Qty. 1) Pinion Gear

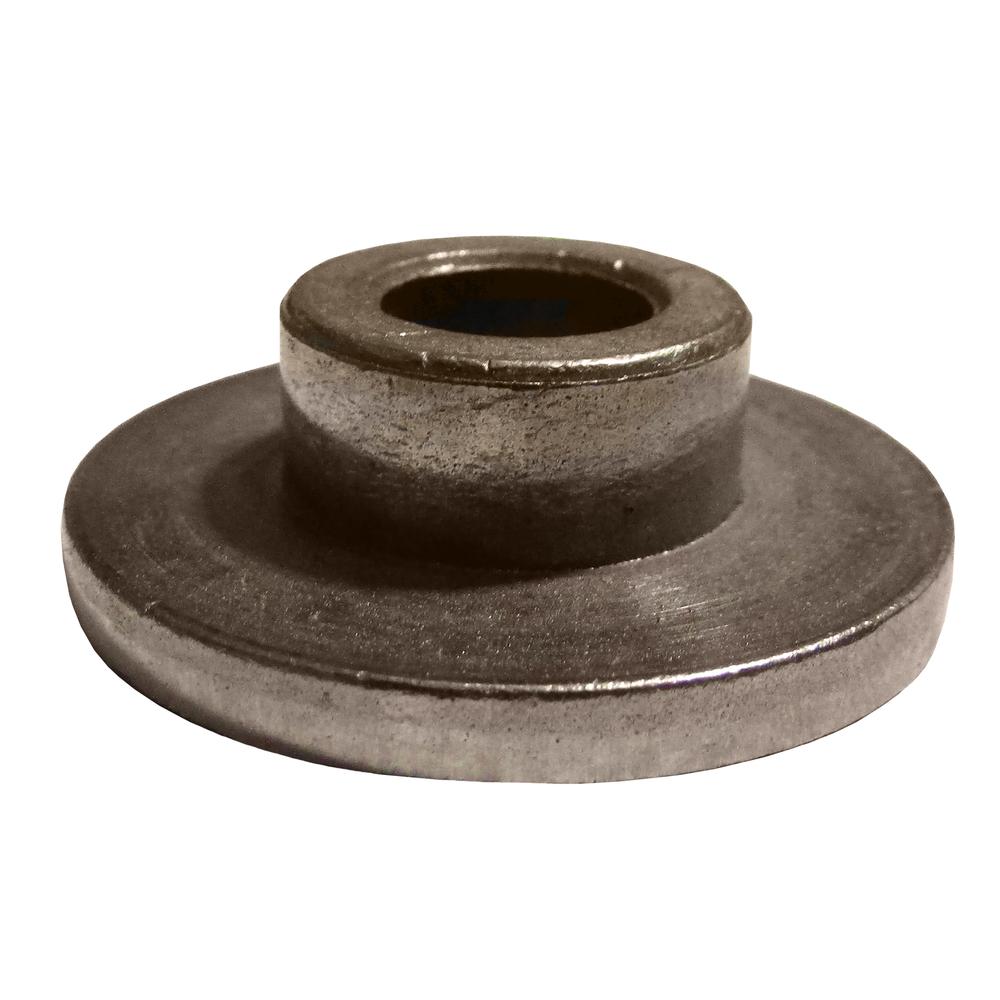

(Qty. 2) Steering Gear Bushing

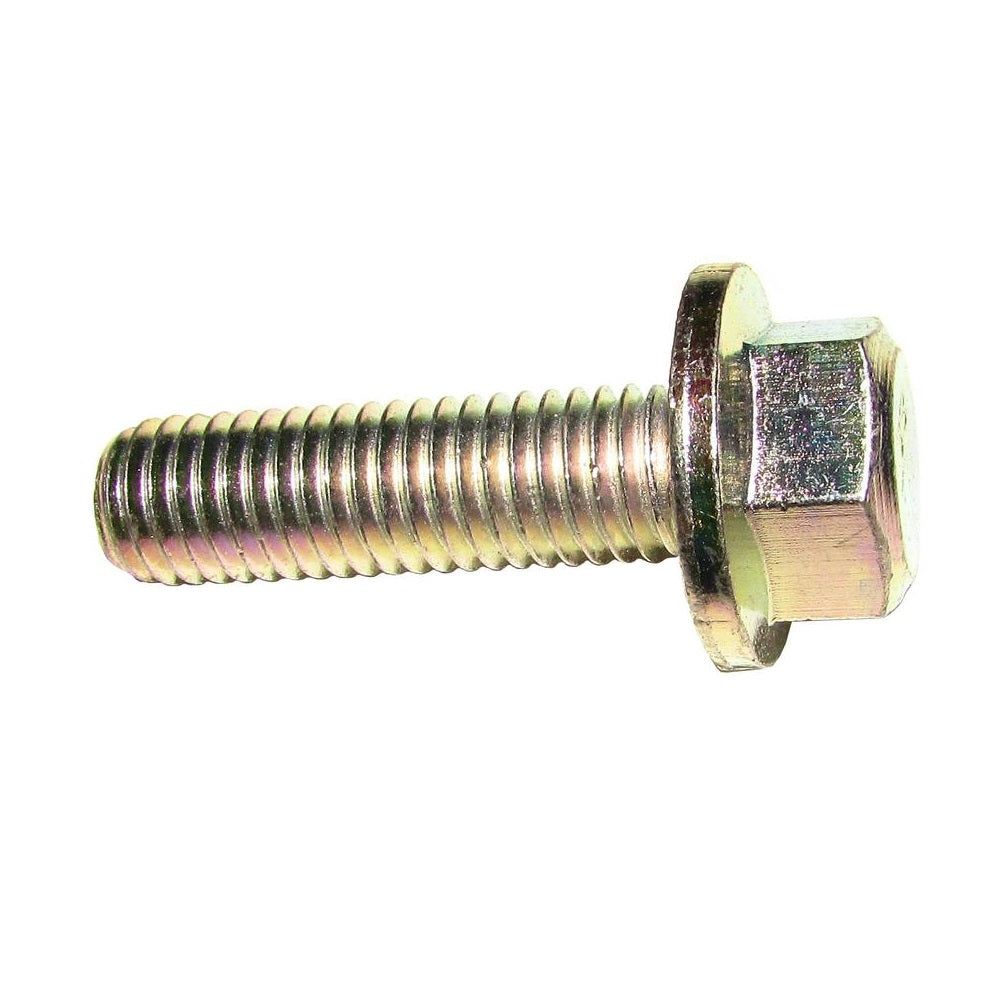

(Qty. 1) Steering Bolt

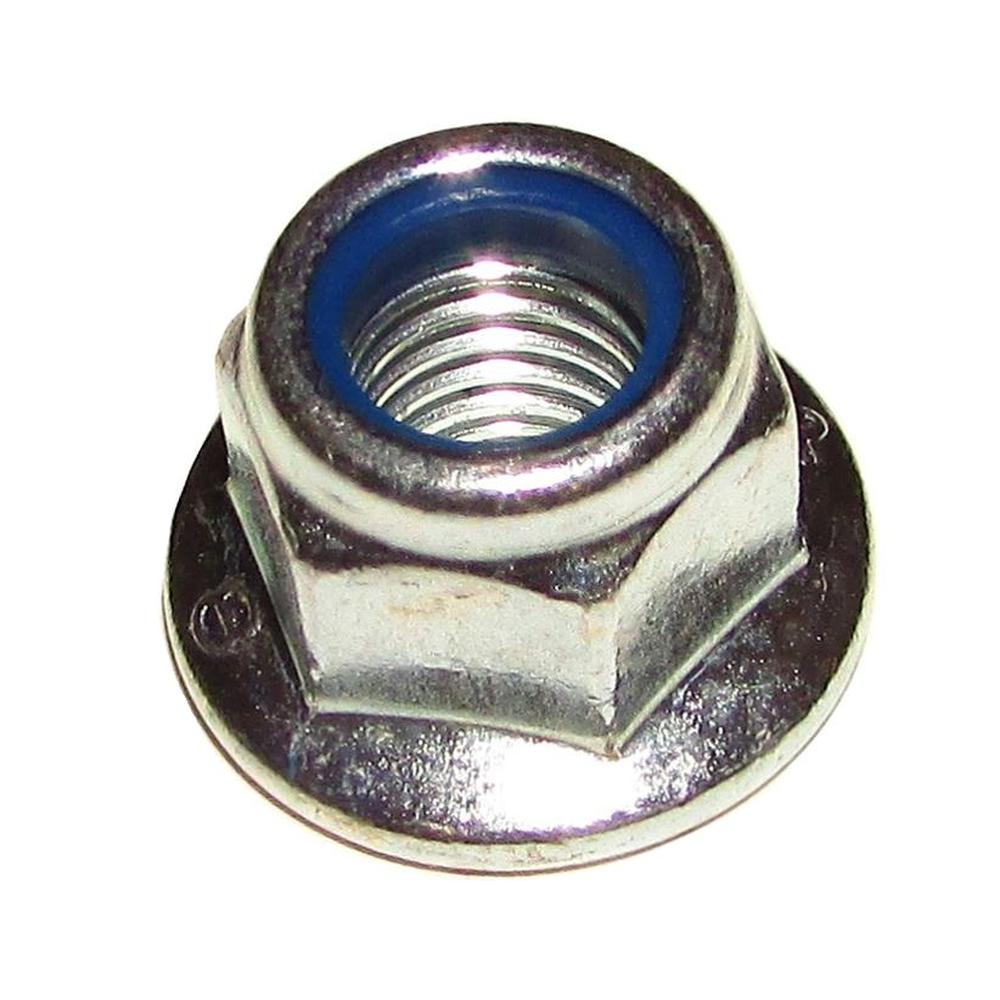

(Qty. 1) Lock Nut

Replaces Part Nu

Models This Part Fits:

14.542GS, 1642HS, G110, L100, L105, L107, L108

Additional Information:

Kit Contains: (1) Steering Sector Gear Teeth: 25 Replaces Part Number(s): GX20052BLE, GX20052 (1) Pinion Gear Height: 1" OD: 1 3/8" Replaces Part Number(s): GX20053 (2) Steering Gear Bushing Flange Thickness 0.16" Flange Outside Diameter 1.382" Inside Diameter 0.407" Length 0.45" Outside Diameter 0.710" Replaces Part Number(s): UC13360, GX20054 (1) Steering Bolt Hex Flange Bolt Thread Size: 10mm Length: 35mm Thread Pitch: 1.25mm Replaces Part Number(s): 19M7835 (1) Hexagonal Lock Nut - M10 Flange Diameter: 21.80mm Wrench Height: 5.60mm Thickness: 13.50mm Replaces Part Number(s): 14M7400
