AM103119 Seat Safety Switch 2 Terminal For John Deere 240 245 260 STX38
AM103119 Seat Safety Switch 2 Terminal For John Deere 240 245 260 STX38
Couldn't load pickup availability

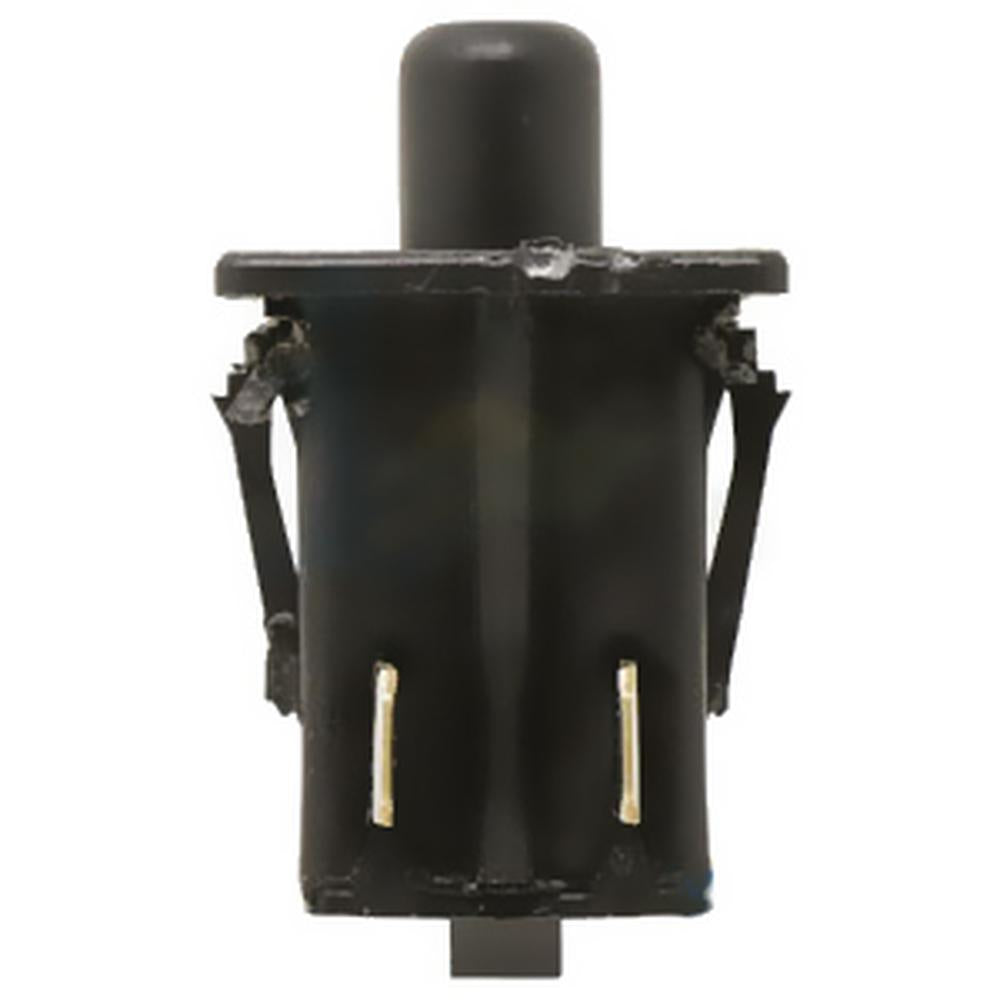

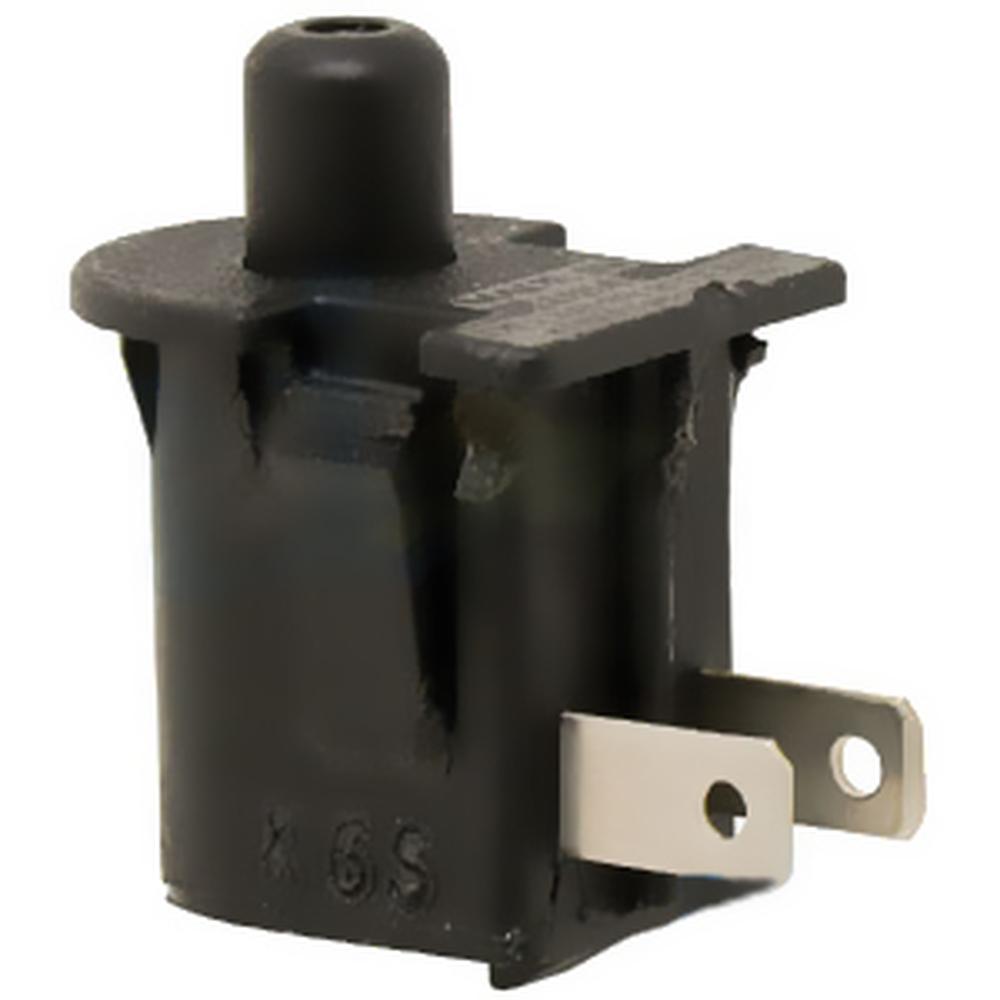

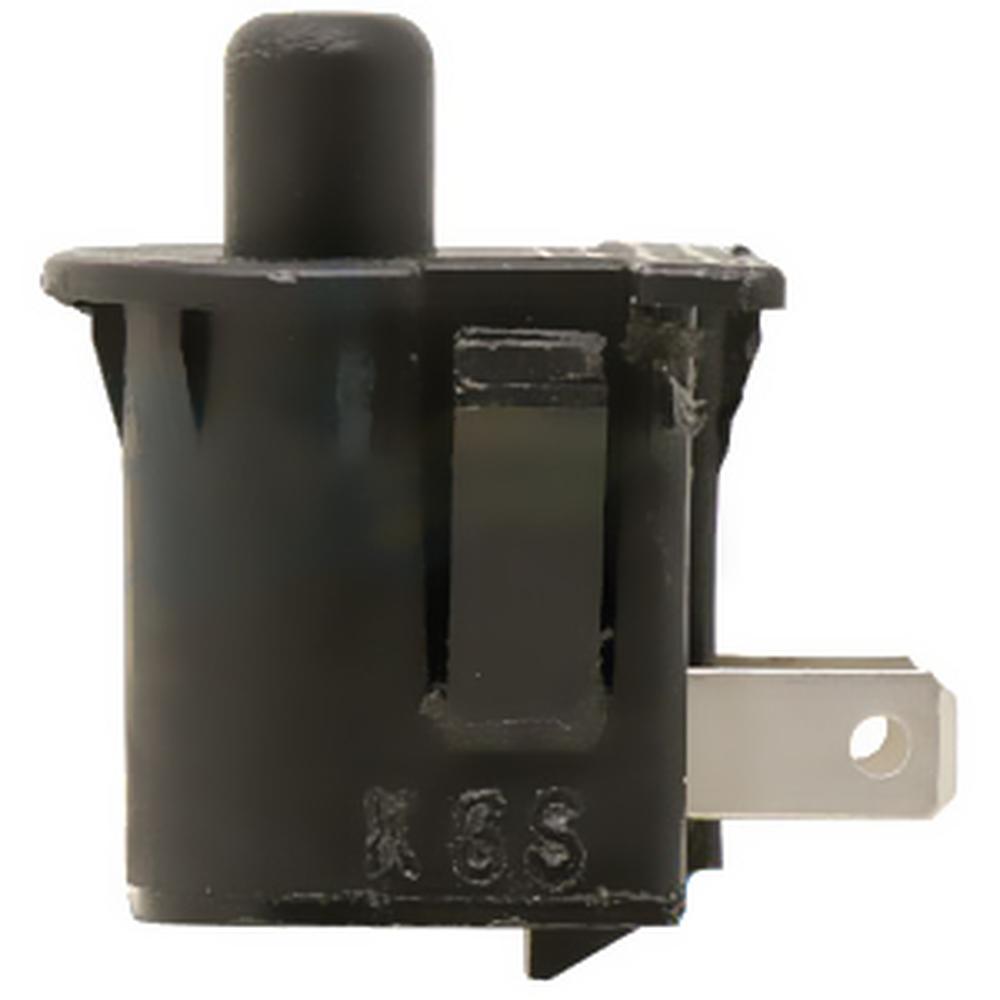

Seat safety interlock switch with two terminals, two positions and normally open contacts. The switch mounts under the operator seat and tells the machine that somebody is aboard. When it fails, the engine will usually refuse to crank, or it starts and then dies as soon as the operator shifts weight.
Specifications
- Terminals: 2
- Positions: 2
- Contact type: normally open
- Function: operator presence interlock
Replaces AM103119
Applications
For John Deere 240, 245, 260, 285, 320, STX30, STX38 and front deck mowers 510 and F525, plus Great Dane machines using AM103119 or D38001
Full cross reference
- Ariens 02754100, 03086600
- AYP 160784
- Fits Cub Cadet 725-3167, 925-3167
- Dixon 539107523
- Fits Exmark 82-2190
- Gravely 02754100
- Great Dane AM103119, D38001
- Fits Husqvarna 532160784, 532 16 07-84, 539107523, 539 10 75-23
- For John Deere AM103119
- Fits Kubota K1122-62282
- Scag 481638
- Simplicity 1704379, 1704379SM, 21704379, 21704379SM
- Snapper 1-5707, 7015707
- Fits Toro 82-2190
- Wright Mfg 52410002
A normally closed switch of similar appearance is fitted to some machines. Confirm the terminal count and the contact type on the switch you are removing before ordering.
Aftermarket replacement part. Not manufactured by, sponsored by or affiliated with any equipment maker named here. All makes, models and numbers are listed for reference only.
