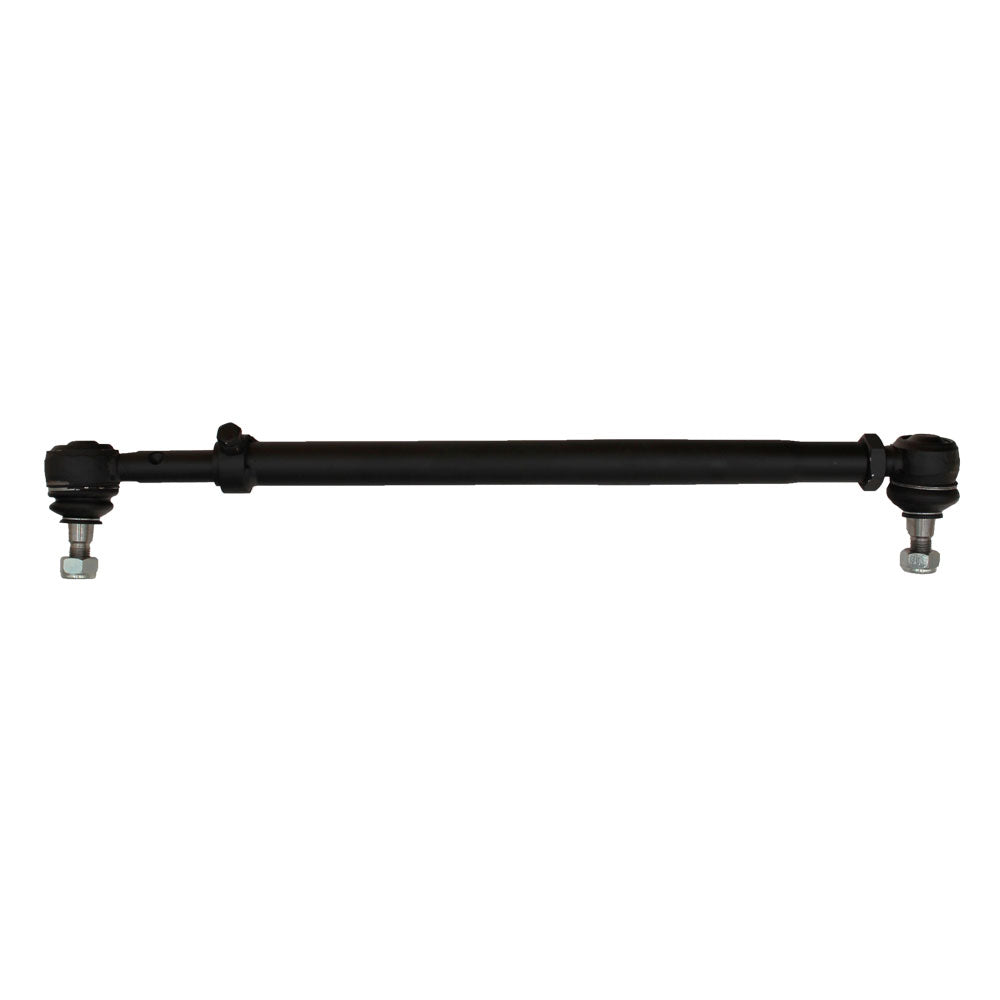

Tie Rod/Drag Link Assembly, Length: 485 - 790mm - Fits Case IH

Tie Rod/Drag Link Assembly, Length: 485 - 790mm - Fits Case IH

$408.00 CAD
$408.00 CAD
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket Replacement Tie Rod/Drag Link Assembly

Fits Case IH Models:
238, 248, 258, 268, 288, 3210, 3220, 3230, 385, 395, 4210, 4220, 4230, 4240, 454, 474, 475, 484, 485, 485XL, 495, 495XL, 574, 584, 585, 585XL, 595, 595XL, 674, 684, 685, 685XL, 695, 695XL, 784, 785, 785XL, 795, 795XL, 884, 885, 885XL, 895, 895XL, 995, 995XL, CX100, CX50, CX60, CX70, CX80, CX90, MX100C, MX80C, MX90C

Tech Info:
Inner side thread Ø A mm: 28
Length mm: 485 - 790
Outer side thread Ø B mm: M14 x 1.5
Taper C mm: 17.95 - 15.5
Taper length D mm: 22.5
Thread length E mm: 22

Replaces Part Numbers:
1538016C1, 65079C91, 3116321R93

Models This Part Fits:

238, 385, 695, 595, 785, 784, 585XL, C60, 585, 3230, CX100, 995, 474, 495XL, 475, 4210, CX50, CX80, 454, 885XL, 258, CX90, 795XL, C80, 4220, 685XL, MX100C, 595XL, MX90C, C100, 485XL, 395, 4240, 574, 885, 485, 895XL, 248, 795, CX60, 995XL, 3210, 484, 684, C90, 268, 884, 695XL, 584, 895, 685, MX80C, 674, 785XL, 495, C50, 288, 3220, CX70, 4230, C70

Additional Information:

Length: 52"-82" Thread Size: 7/8" Right Hand 2WD Machines

Reference Numbers:

1538016C1, 3116321R92, 3116321R93, 3118841R2, 3118841R91, 3118841R92, 3116321R93, 65079C91, 1538016C1
