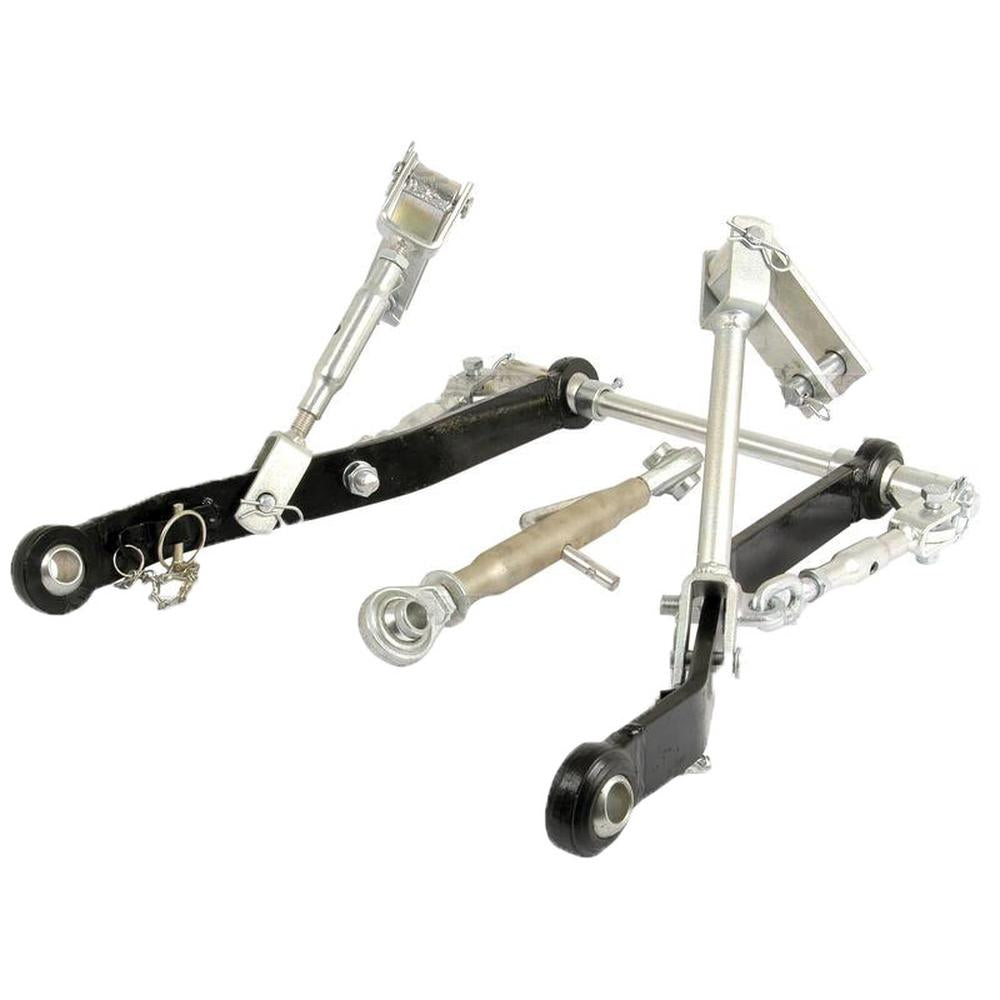

One New Aftermarket Replacement 3-Point Hitch Kit for Iseki and Bolens Compact Tractors
This Category 1 three-point hitch conversion kit allows Iseki and Bolens compact tractors equipped with a 2-point linkage to be converted to a standard 3-point hitch, enabling the use of a wide range of Category 1 implements and attachments. The kit is designed for compact Japanese-built tractors in the 14-20 HP range and includes all the components needed for installation.
Kit Includes
- (2) Lift Arms - 19-15/16" long, 5/8" thick, 2-9/16" wide, Category 1 (7/8" pin hole diameter)
- (1) Rigid Side Link - 15-3/4" center to center, 5/8" pin hole diameter
- (1) Adjustable Side Link - 14-3/4" to 18" adjustment range
- (2) Adjustable Stabilizers - 9-1/2" to 12" adjustment range
- (1) Center Top Link - 9"
- Hitch category: Category 1 (Fits CAT 1)
Compatible Models
Iseki: TX1300, TX1300F, TX1500, TX1500F, TX2140, TX2140F, TX2160, TX2160F; compatible with Iseki compact tractors 14-20 HP
Bolens (built by Iseki): G152, G154, G172, G174
Replaces Part Number(s):
S.70632, S.70632-SPX, 70632
New aftermarket replacement part - not remanufactured, not used.
