S.63233 Tie Rod End, Lh, K260250 Fits Case IH
S.63233 Tie Rod End, Lh, K260250 Fits Case IH
Regular price
$70.00 CAD
Regular price
Sale price
$70.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

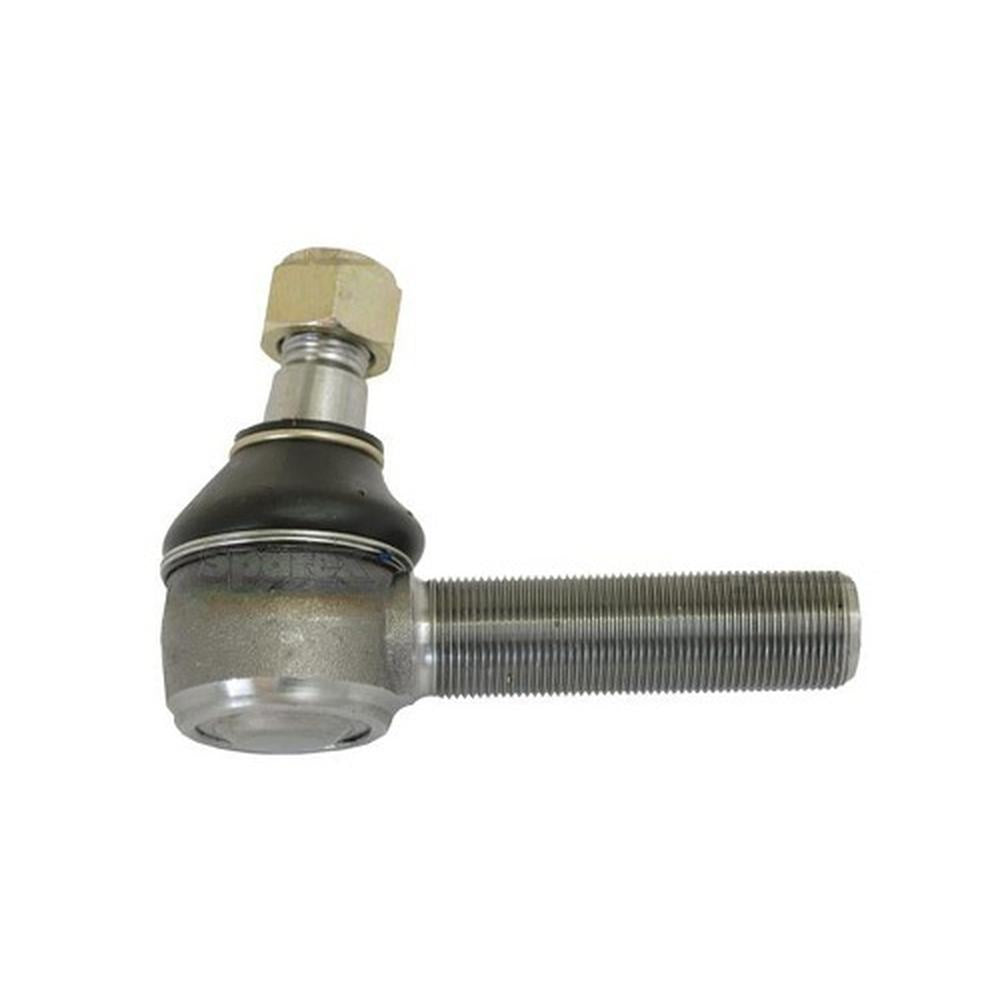

One New Aftermarket Tie Rod End, Lh, K260250
Fits Case IH Models: 1390, 1394, 1494, 1594, 1694, 480B, 480C, 480D, 480E, 580, 580 Super D, 580B, 580C, 580D, 580E, 580F, 580G, 580SE, 584D, 584E, 584FL, 585D, 585E, 586D, 586E, 586FL

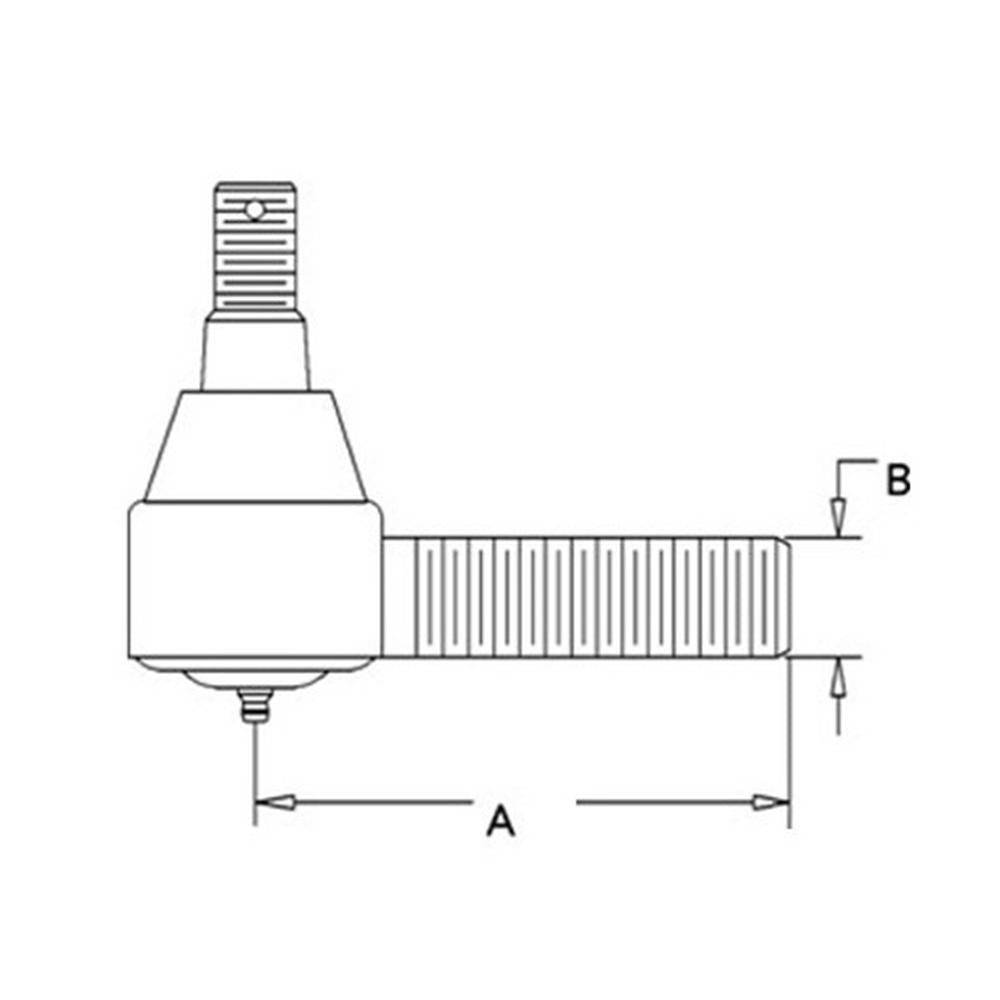

Tech Info:
-C mm: 20.5
-D mm: 110
-Inner side thread A mm: M24 x 1.5 LH
-Length mm: 105
-Outer side thread B mm: M18 x 1.5
-Taper C mm: 21.6 - 20
-Taper length D mm: 16.5
-Thread length E mm: 23.5
Replaces Part Number(s): K262887, K262981, K260250, K88482, K956936
View full details
Fits Case IH Models: 1390, 1394, 1494, 1594, 1694, 480B, 480C, 480D, 480E, 580, 580 Super D, 580B, 580C, 580D, 580E, 580F, 580G, 580SE, 584D, 584E, 584FL, 585D, 585E, 586D, 586E, 586FL
Tech Info:
-C mm: 20.5
-D mm: 110
-Inner side thread A mm: M24 x 1.5 LH
-Length mm: 105
-Outer side thread B mm: M18 x 1.5
-Taper C mm: 21.6 - 20
-Taper length D mm: 16.5
-Thread length E mm: 23.5
Replaces Part Number(s): K262887, K262981, K260250, K88482, K956936
