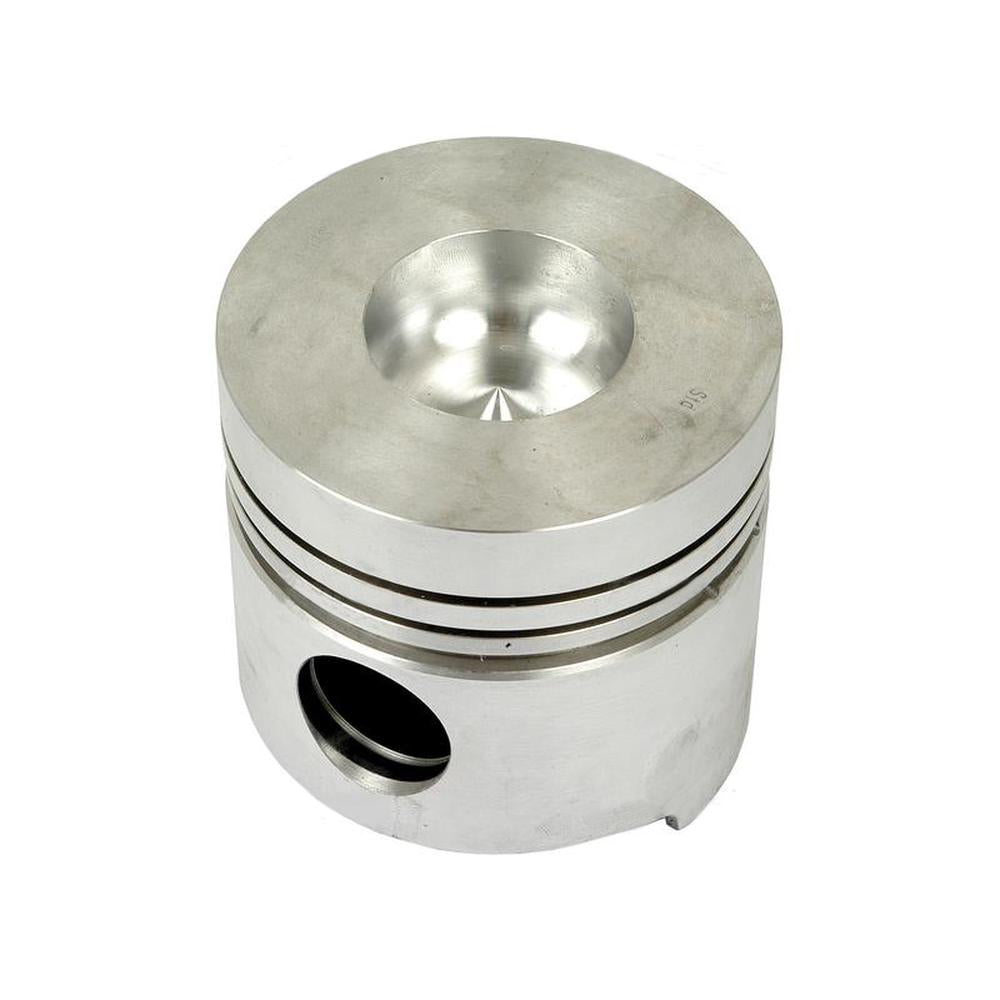

S.59186 Piston (Standard) - Fits Long Tractor

Name: S.59186 Piston (Standard) - Fits Long Tractor
SKU: S.59186-SPX
Price: 112.0 USD
Availability: InStock

S.59186 Piston (Standard) - Fits Long Tractor

$112.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Piston (Standard)

Fits Long Tractor Models:

2510, 2510DTC, 2510SD, 2510SD-DTE, 2610, 2610DTC, 2610SD, 2610SD-DTC, 310, 310C, 310DT, 510, 510DT, 610, 610C, 610DT, 610DTE

Tech Info:

- Al Fin Ring Groove: No
- Bore Ø mm: 101.96
- Bowl Depth: 24.40
- Chamber mm: 48.46
- Compression Height mm: 59.44
- Crown Type: Dish Top
- Number of Rings: 3
- Pin Ø mm: 31.93
- Piston Length mm: 101.40
- Size: Standard

Replaces Part Number: TX15107

Models This Part Fits:

510, 610DTE, 610DT, 510DT, 310C, 2610SD-DTC, 610, 2510SD, 310DT, 2610, 2610DTC, 610C, 2510SD-DTE, 2510, 2510DTC, 2610SD, 310

Additional Information:

Piston Length: 3.99” (101.40mm) Compression Height: 2.34” (59.44mm) Bore: 4.01” (101.96mm) Bowl Depth: 0.96” (24.40mm) Chamber: 1.90” (48.46mm) Pin: 1.25” (31.93mm) No. of Rings: 3
