S.57712 Piston and Ring Set Fits Case IH

S.57712 Piston and Ring Set Fits Case IH

$178.00 CAD
$178.00 CAD
Sale Sold out
Shipping calculated at checkout.

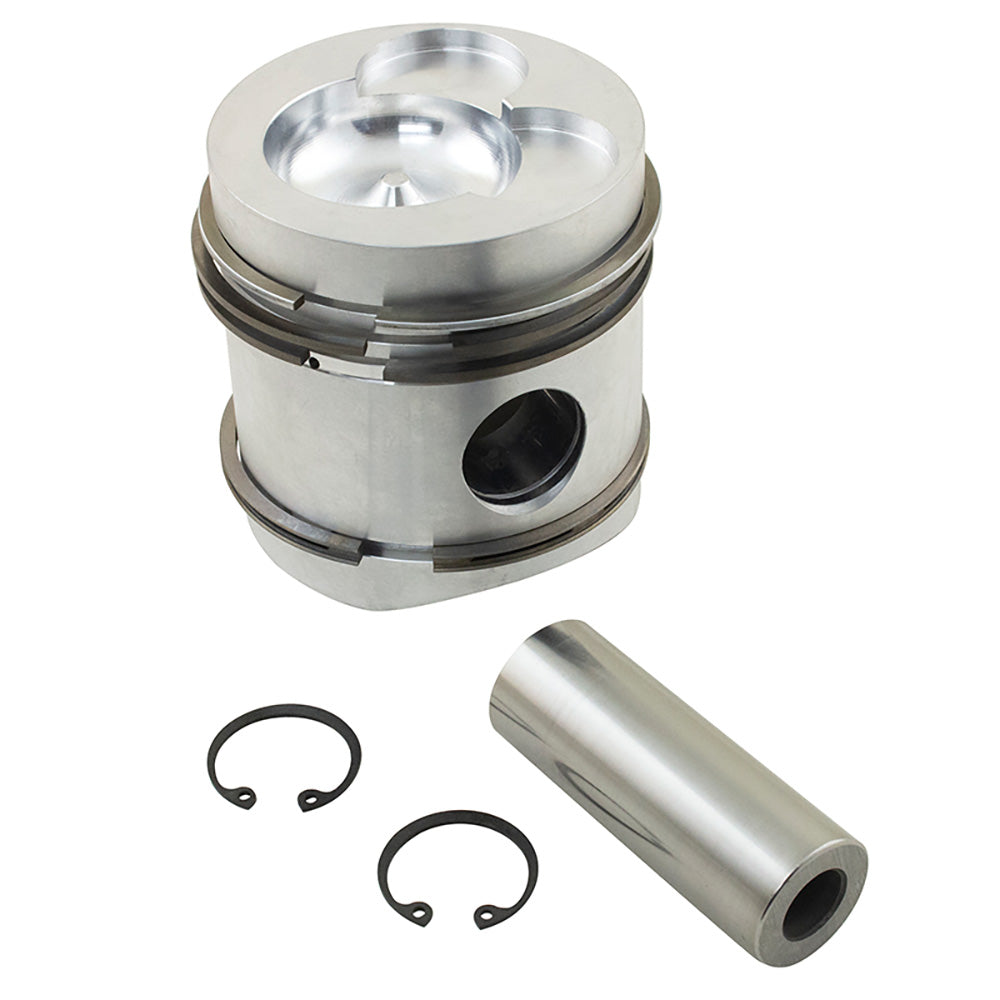

One New Aftermarket Piston and Ring Set

Fits Case IH Model: 580

Tech Info:
- Piston Length: 105.68mm
- Chamber Depth: 20.45mm
- Chamber Ø: 58.73mm
- Pin Ø: 31.72mm
- Compression Height: 60.35mm
- To Fit Bore Dia. Ø: 99.41mm
- No. of Rings: 4

Replaces Part Numbers: K949474, K914793

Models This Part Fits:

1194, AD4/55, 995, 880, 1294, 1390, 1200, DH7, 380CK, 1190, 996, 1290, 580G, 1210, 580, 780, 880B, 1212, AD3/55, 880A, 885

Additional Information:

Piston Length: 105.68 mm Chamber Depth: 20.45 mm Chamber Diameter: 58.73 mm Pin Diameter: 31.72 mm Compression Height: 60.35 mm Bore Diameter: 99.41 mm Number of Rings: 4

Reference Numbers:

K943880, K949474, K914793, K949474, K914793, K943880
