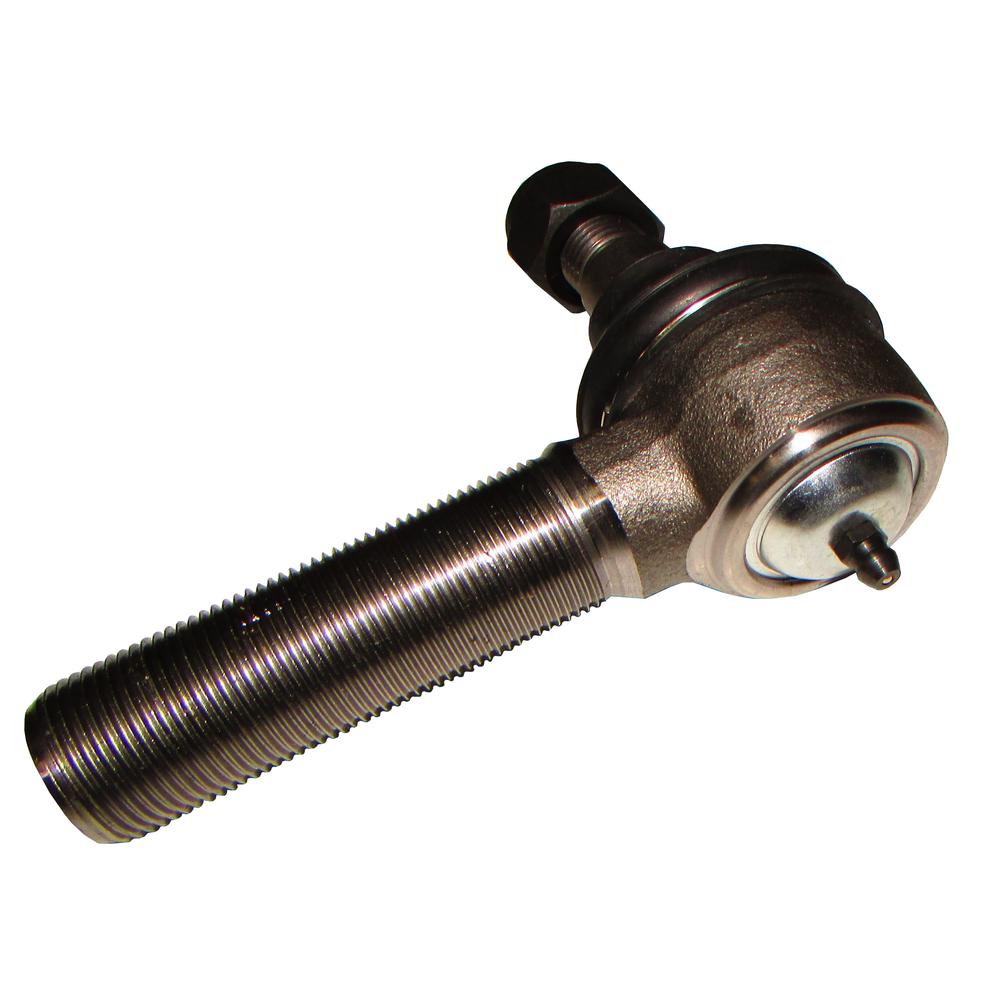

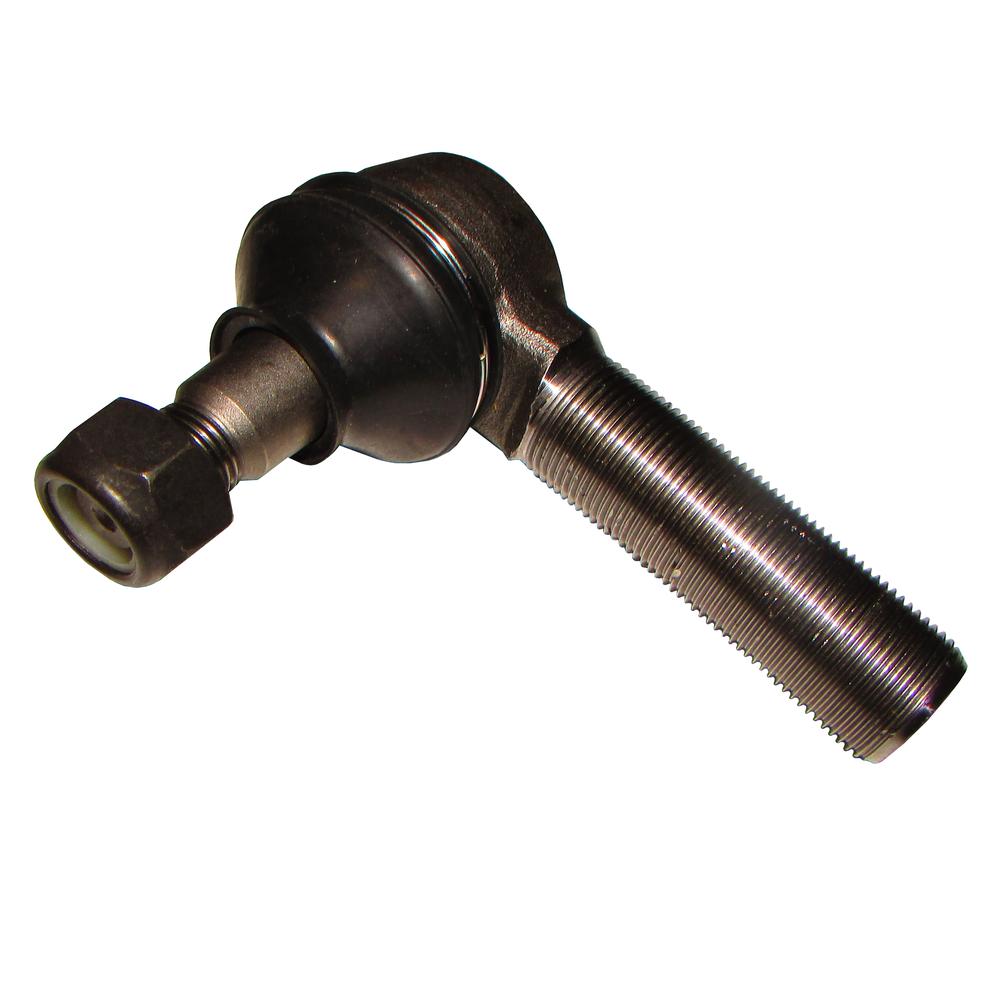

S.41708 Tie Rod, Length: 102mm Fits Massey Ferguson
S.41708 Tie Rod, Length: 102mm Fits Massey Ferguson
Regular price
$54.00 CAD
Regular price
Sale price
$54.00 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
One New Aftermarket Tie Rod, Length: 102mm
Fits Massey Ferguson Models: 1004, 1007, 1014, 1080, 1104, 1114, 1134, 165, 168, 185, 188, 20F, 2620, 2625, 264, 2640, 2645, 2680, 2685, 2720, 2725, 273, 274, 274SK, 275, 283, 284, 285 (FR), 290, 293, 294, 298, 333, 350, 3505, 3525, 353, 354, 3545, 355, 360, 3610, 363, 3630, 363LX, 364, 365, 3650, 373, 373LX, 374, 375, 375E Brazilian, 377, 383, 383LX, 384, 387, 390, 390E Brazilian, 390T, 393, 393LX, 394, 396, 397, 398, 399, 575, 590, 592, 595, 670, 675, 690, 698, 698T, 699
Tech Info:
-C mm: 20.3 - 18.2
-Inner side thread A mm: M24 x 1.5 RH
-Length mm: 102
-Outer side thread B mm: M16 x 1.5
-Taper C mm: 20.3 - 18.2
-Taper length D mm: 22.3
-Thread length E mm: 19.3
Replaces Part Number(s): 3426773M1, 3426773M2, 3426773M3, 1824403M91
View full details
Fits Massey Ferguson Models: 1004, 1007, 1014, 1080, 1104, 1114, 1134, 165, 168, 185, 188, 20F, 2620, 2625, 264, 2640, 2645, 2680, 2685, 2720, 2725, 273, 274, 274SK, 275, 283, 284, 285 (FR), 290, 293, 294, 298, 333, 350, 3505, 3525, 353, 354, 3545, 355, 360, 3610, 363, 3630, 363LX, 364, 365, 3650, 373, 373LX, 374, 375, 375E Brazilian, 377, 383, 383LX, 384, 387, 390, 390E Brazilian, 390T, 393, 393LX, 394, 396, 397, 398, 399, 575, 590, 592, 595, 670, 675, 690, 698, 698T, 699
Tech Info:
-C mm: 20.3 - 18.2
-Inner side thread A mm: M24 x 1.5 RH
-Length mm: 102
-Outer side thread B mm: M16 x 1.5
-Taper C mm: 20.3 - 18.2
-Taper length D mm: 22.3
-Thread length E mm: 19.3
Replaces Part Number(s): 3426773M1, 3426773M2, 3426773M3, 1824403M91
