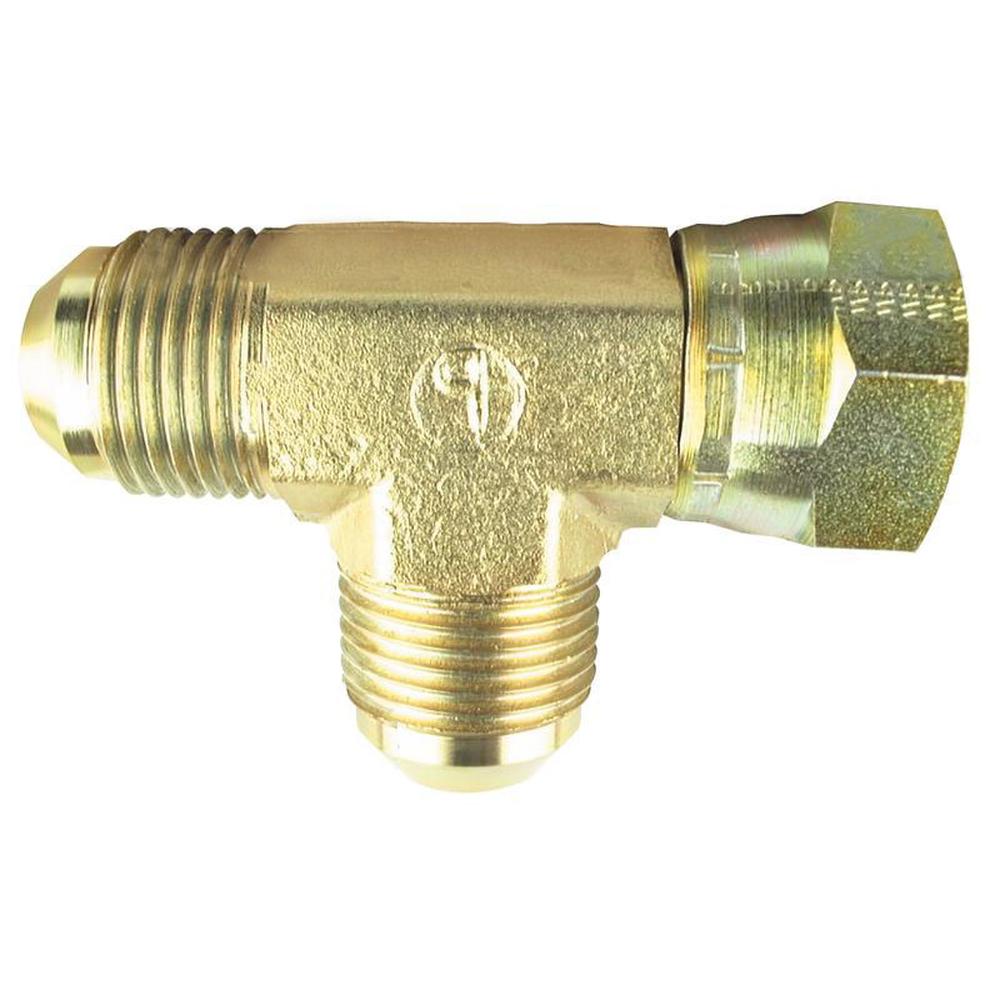

S.35094 Hydraulic Tee Adapter 7/8JIC male - 7/8JIC female - 7/8JIC male branch

Models This Part Fits:

Hydraulic Systems

Additional Information:

Across Flats (Main Body Wrench Size): 0.88" (22.22 mm) Nominal Connection Size / Thread Size (T1, T2, T3): 0.88" (22.22 mm) Overall Length (O/L REF): 3.10" (78.74 mm) Thread/Detail Length (L1): 0.74" (18.87 mm) Thread/Detail Length (L3): 0.74" (18.87 mm) Insertion Length (LL1): 1.45" (36.83 mm) Insertion Length (LL2): 1.10" (27.94 mm) Center Height (LL3 REF): 1.45" (36.83 mm) T1 Lankatyyppi: JIC Male T2 Thread Type: JIC Swivel Female T3 Thread Type: JIC Male Type: JIC Tee Male/Female/Male

Reference Numbers:

10R6MXS

Product Category:

Agriculture
