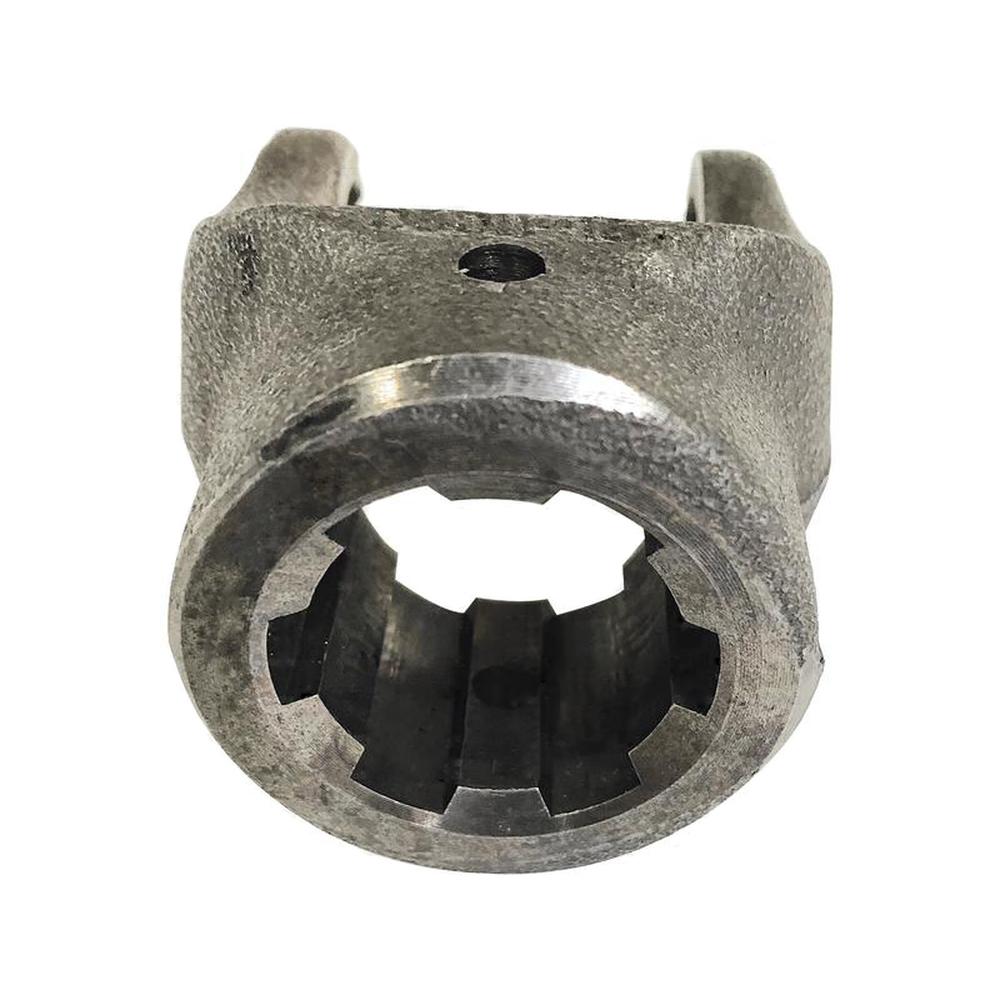

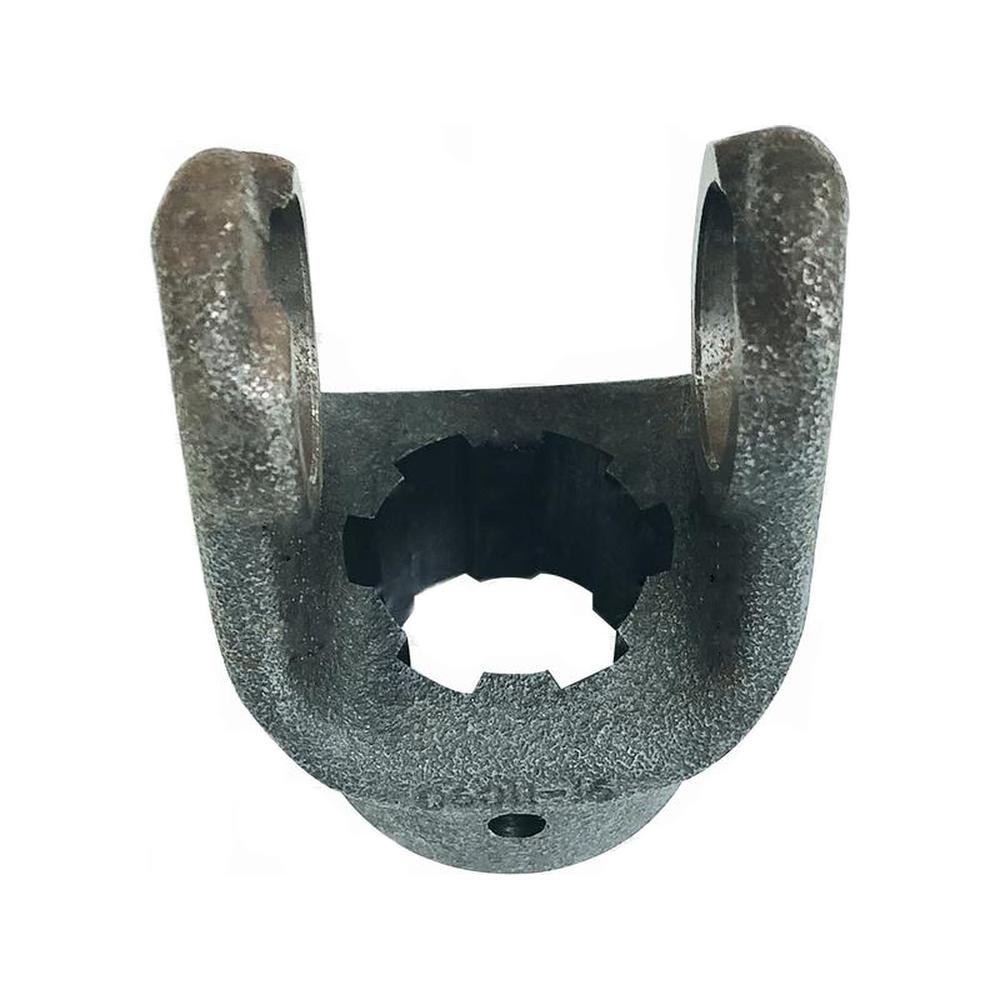

S.128453 YOKE, 1 3/8 - 6 IMPLEMENT, 6

One New Aftermarket Replacement PTO Implement Yoke - Series 6, 1-3/8" 6-Spline

This Series 6 implement end PTO yoke provides the final connection between the PTO driveshaft and the implement gearbox. Featuring a 1-3/8" bore with 6 splines, it is the standard 540 RPM configuration used across a wide range of agricultural equipment including rotary cutters, finish mowers, augers, tillers, spreaders, and other PTO-driven implements. The implement yoke mates with the Series 6 universal joint (31/32" x 2-9/32" cross dimensions) and is secured via a 1/4" shear pin.

Specifications

• PTO Series: 6 Series
• Bore: 1-3/8"
• Spline Count: 6
• Pin Diameter: 1/4"
• Universal Joint Dimensions: 31/32" x 2-9/32"
• End Type: Implement End Yoke

Compatible Applications

Universal Fitment: This is a universal-fit driveline component compatible with any PTO-driven implement using a Series 6 driveshaft with a 1-3/8" 6-spline connection. Common applications include rotary cutters, finish mowers, post hole diggers, augers, spreaders, small tillers, and brush cutters from manufacturers including John Deere, Case IH, New Holland, Massey Ferguson, Kubota, AGCO, Ford, and others.

Replaces Part Number(s):

S.128453, S.128453-SPX

New aftermarket replacement part - not remanufactured, not used.
