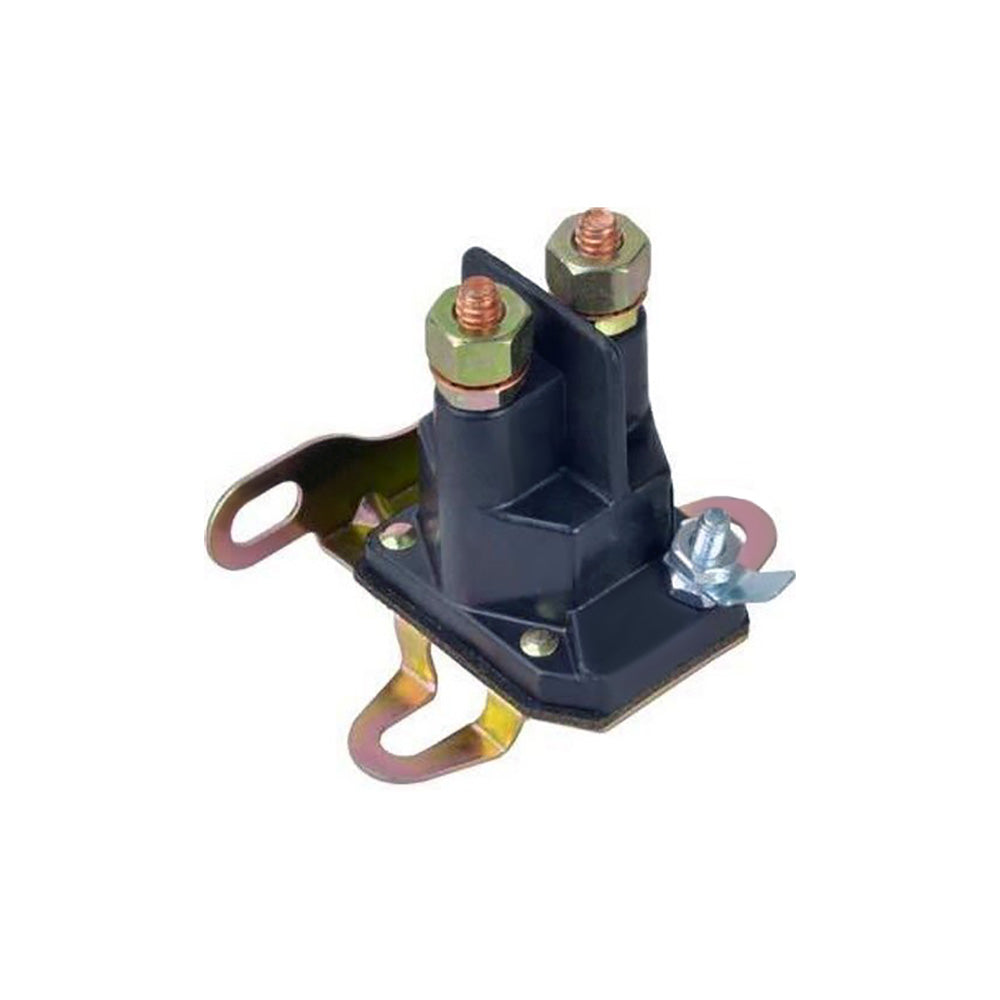

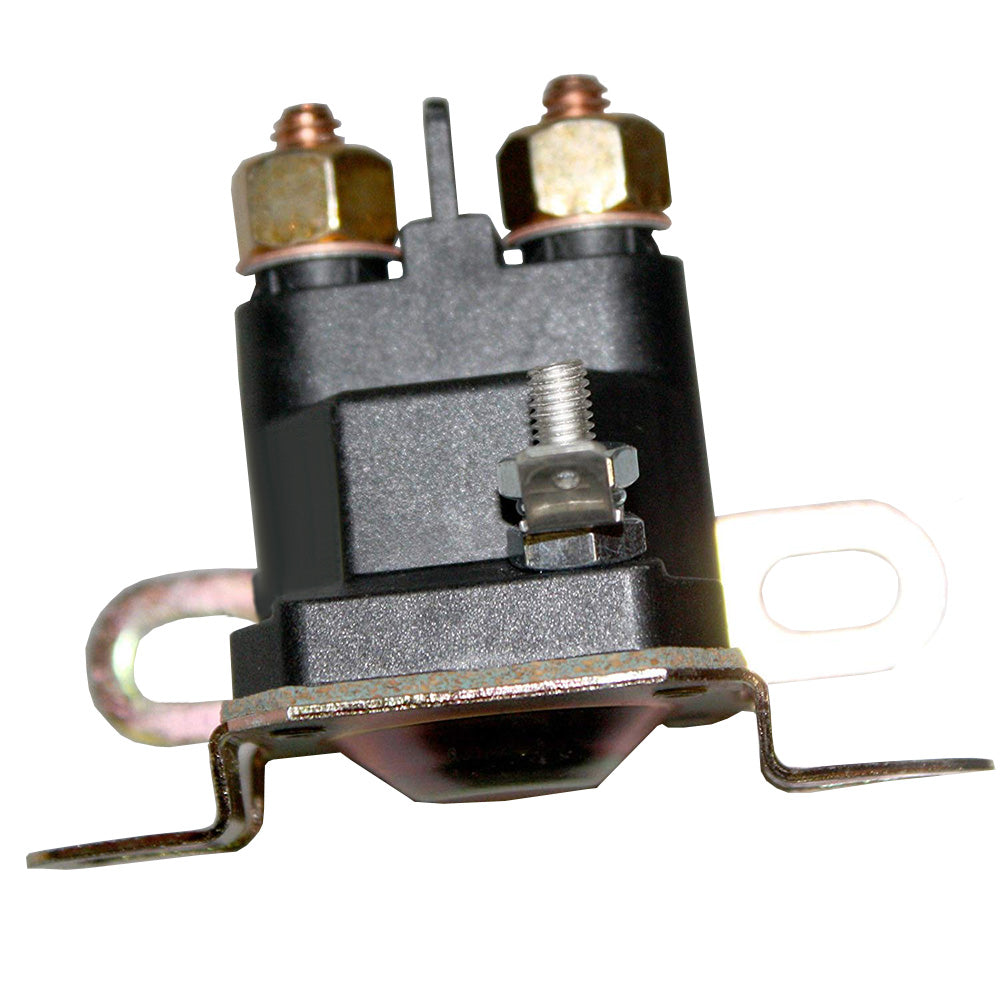

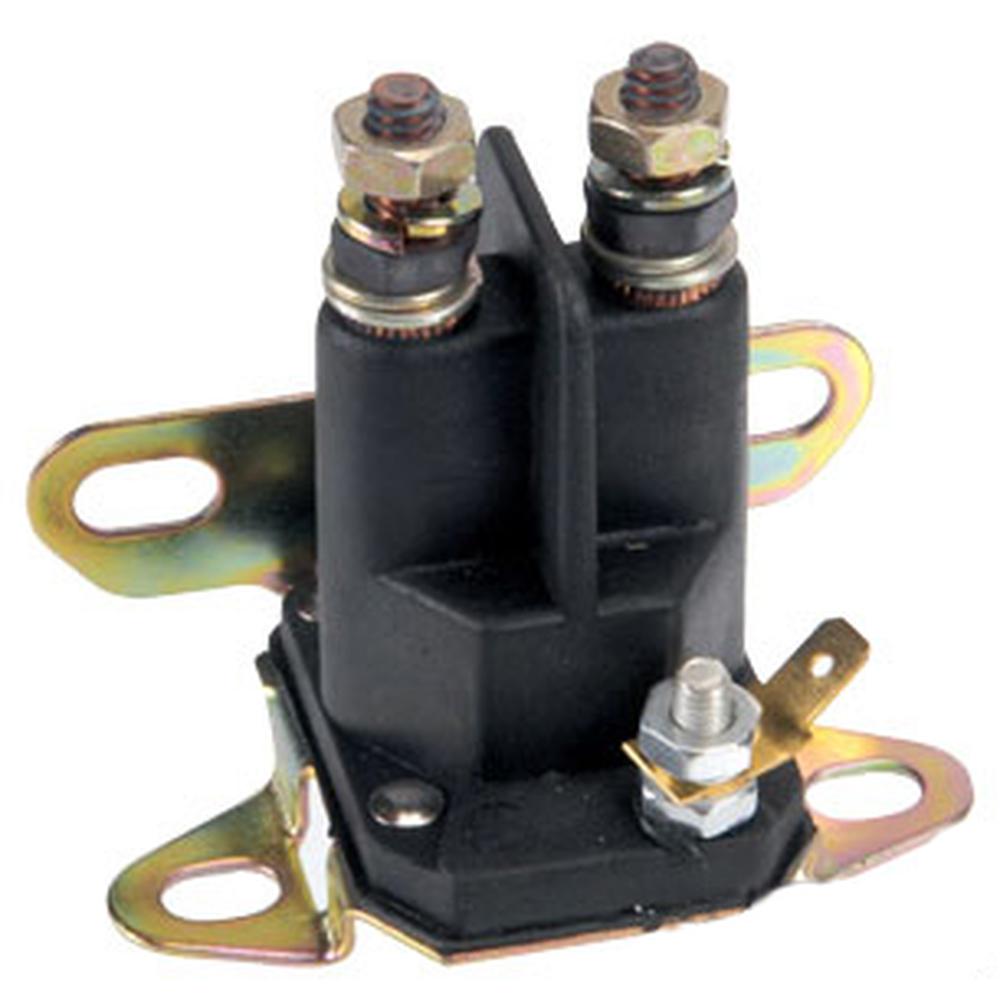

Rotary 12V INT Solenoid Starter Simplicity: 1671994

Rotary 12V INT Solenoid Starter Simplicity: 1671994

$25.00 CAD
$25.00 CAD
Sale Sold out
Shipping calculated at checkout.

One New Aftermarket Replacement Starter Solenoid for Simplicity, Ariens, Snapper, MTD, and More

This 12V aftermarket replacement starter solenoid serves as the electromagnetic switch that connects battery current to the starter motor when the ignition is turned. It is a single-pole, chassis-ground solenoid compatible with a wide range of Simplicity, Ariens, Snapper, Husqvarna, Toro, Troy-Bilt, MTD, Murray, AYP, Bad Boy, Bolens, Wright, and Hustler riding mowers, lawn tractors, zero-turn mowers, and commercial walk-behind mowers powered by Briggs & Stratton engines.

Specifications

  • Voltage: 12V
  • Single Pole Chassis Ground
  • Terminal Posts: 1/4" and 5/16" (accommodates both)
  • Mounting: Side and Flat Mounting Brackets included
  • Includes Adapter for Spade Connector
  • Duty Cycle: Intermittent
  • Case Material: Plastic
  • Contact Material: Copper

Compatible Models

Simplicity: Riding mowers and lawn tractors using OEM solenoid 1671994

Ariens: Riding mowers and zero-turn mowers

Snapper: Riding mowers and zero-turn mowers

Husqvarna (AYP): Riding mowers and lawn tractors

MTD / Troy-Bilt / Bolens: Riding mowers, lawn tractors, and lawn equipment

Murray: Riding mowers and lawn tractors

Toro: Riding mowers and zero-turn mowers

Bad Boy: Zero-turn mowers

Wright: IZ4821T, IZ6125T, LZ5227TXP, LZ6127T -- 48", 52", and 61" Stander models

Briggs & Stratton: Small gasoline engines (various)

Replaces Part Number(s):

Simplicity: 1671994 | Ariens: 03057700, 035770, 03577000, 03583200, 3057700, 35770, 35832, AR03577000, AR03583200 | AYP / Husqvarna: 110832X, 111674, 532109946, 532110832, 532146154, HU532110832 | Bad Boy: 108-5349-00 | Bolens / Troy-Bilt: 1751569 | Briggs & Stratton: 691656, 745000, 745000MA, 745001, 790951, 807829 | MTD: 725-0270, 725-0530, 725-0771, 725-0771P, 725-1426, 725-1426A, 925-0771, 925-1426, 925-1426A | Murray: 21261, 24285, 424285, 52323, 53716, 924285 | Snapper: 18817, 1-8817, 7018817, 7075671, 7075671YP, 7075691YP, 75671 | Toro: 111674, 112-0309 | Wright: 53490009 | Westwood: 1530 | Stens: 5409, 5409D, 5409H, 5409K, 5409WEB | Other: 030817, 7701100MA, 1717048

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

13AY609H063, lawn tractors and some snow blowers, lawn tractors, 48", ZT, ZT Elite, ZT Avenger and others, and some snow blowers, commercial mowers, and 61" deck models, 32", lawn equipment for precision work, Garden Tractors, riding mowers lawn equipment for precision work, yard and garden, riding mowers and several zero-turn mowers, Lawn Tractors, Riding Mowers, 13AV609H063, riding mowers and lawn tractors, 36", zero-turns and commercial walk-behinds, Zero-Turn, mowers for cutting grass, as well as several industrial loaders, 13AG609G063, 42", zero-turn mowers, garden tractors and zero-turn mowers, 13AJ609H063, and 13CD609G063, 52", lawn tractors and walk behind mowers

Additional Information:

Single Pole Chassis Ground 1/4" and 5/16" Post Side and Flat Mounting Brackets Adapter for Spade Connector 12V

Reference Numbers:

1671994, 030817, 1530, 5409, 5409D, 5409H, 5409K, 5409WEB, 691656, 745000, 745000MA, 745001, 790951, 807829, IZ4821T, IZ6125T, LZ5227TXP, LZ6127T, 1717048, 1751569, 725-1426A, 7701100MA, 925-1426A, 21261, 24285, 424285, 52323, 53716, 745000MA, 7701100MA, 924285, 108-5349-00, 1751569, 7701100MA, 18817, 1-8817, 7018817, 7075671, 7075671YP, 7075691YP, 75671, 53490009, 1717048, 1751569, 725-0270, 725-0530, 725-0771, 725-0771P, 725-1426, 725-1426A, 7701100MA, 925-0771, 925-1426, 925-1426A, 110832X, 111674, 03057700, 035770, 03577000, 035832, 03583200, 3057700, 35770, 35832, 53504600, AR03577000, AR03583200, 111674, 112-0309, 506558601, 532109946, 532110832, 532146154, HU532110832

Product Category:

Lawn & Garden
