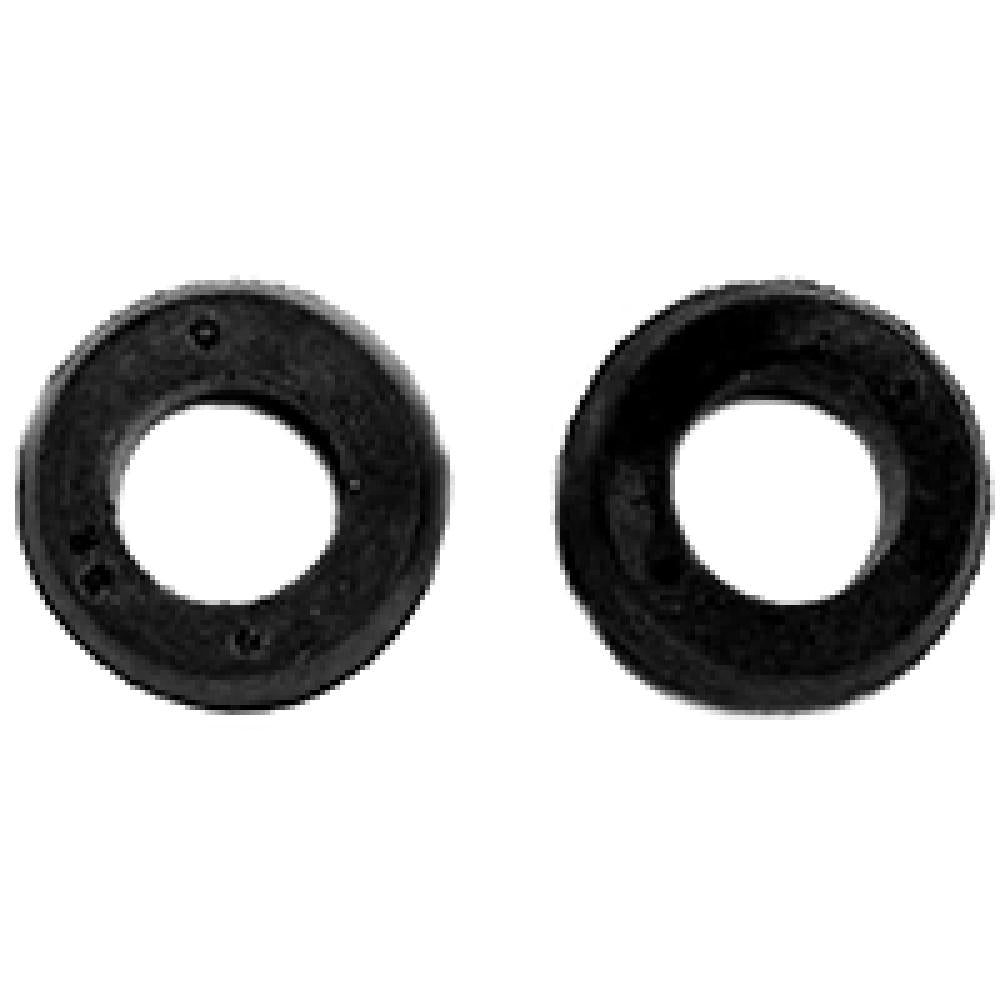

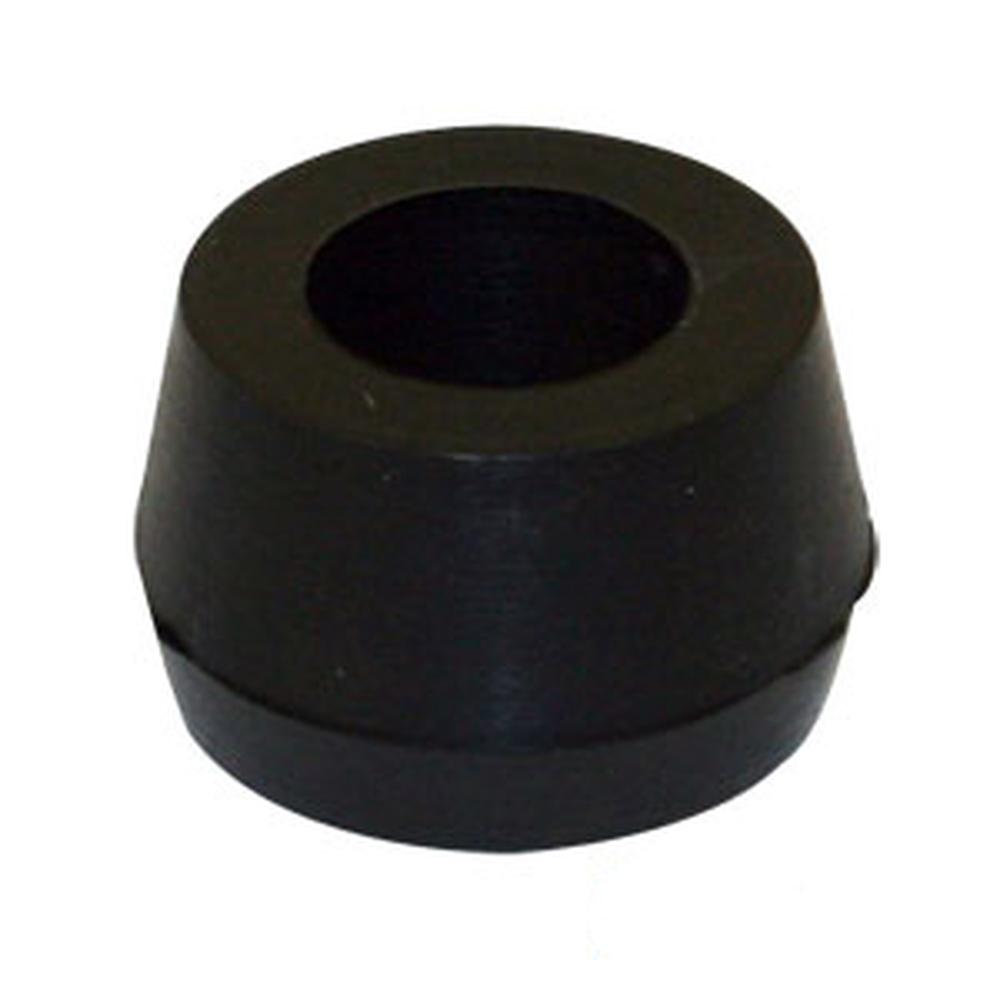

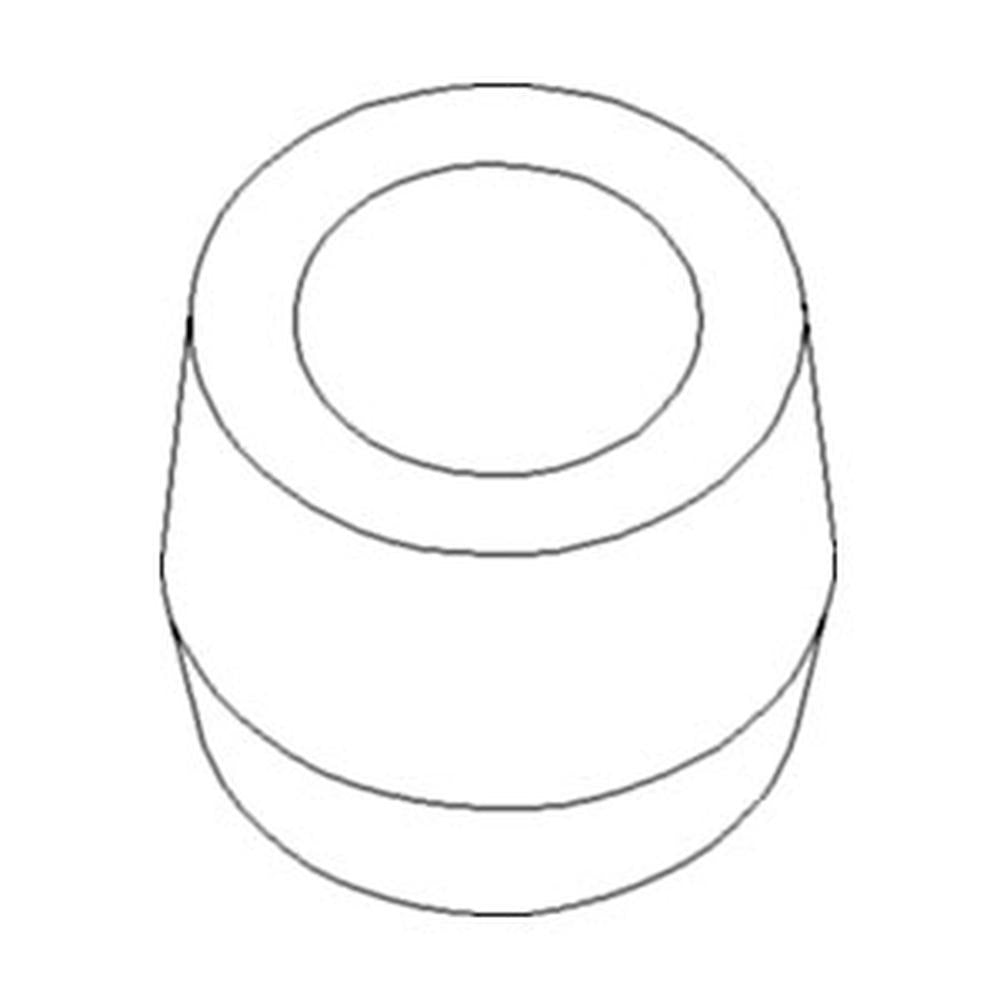

Reproduction Rubber Seat Shock Bushing Only Fits International 250416R1

Reproduction Rubber Seat Shock Bushing Only Fits International 250416R1

$16.00 CAD
$16.00 CAD
Sale Sold out
Shipping calculated at checkout.
(1) One New Aftermarket Replacement Seat Shock Bushings

Fits Allis Chalmers: Many Models.
Fits Case: Many Models.
Fits Cockshutt: 550 (with optional Monroe seat), 560, 570.
Fits Ford: 1939-1954 with Optional Monroe Seat: 9N, 2N, 8N, Jubilee, NAA.
Fits International: Many Models.
Fits John Deere: Many Models.
Fits Massey Harris: Mustang (23), 22, 30, 33, 44, 333, 444, 555.
Fits Minneapolis Moline when Equipped with an Optional Monroe Easy Ride Seat: BF, BG, BIG, General.
Fits Oliver: 60, 70, 80, 90

Tech Info:
This bushing is for the horizontal bolt hole.
It measures 1.223" OD at the largest point.
The hole ID is .597" ID.
The length measures .724" overall.---2 to 4 used per shock

Also Available In Other Multiples

Replaces Part Number(s): 222488, 70222488, T19118, 230288, 72696R1, F3296R

Models This Part Fits:

230, 4440, D17, H, B, CA, 460, Super HV, 302, R, DI, 7520, 3135, 620, D15, HV, Super H, 300B, 2350, 3130, Mustang (23), 7010, 1030, SC, A, 6700, 4250, D10, D21, 30, DC-3, 4010, 630, Super MV, SO, 2020, 720, 9N, 4650, 570, 220, 1020, 830 2 cylinder, D, 7060, 4320, 6100, 440, 450, 4255, 4450, DC, 185, D19, Challenger, F30, 70, CC, 4430, 90, 301, BIG, 2135, 5010, 200, 190, G, 7580, SC-3, 4020, 560, 670, 300, 170, 4240, 4620, 2640, DC-4, 350, 7030, MV, WD45, SI, D12, 3010, 2550, 8N, 4455, Super M, Super MDV, L, 7000, 33, SC-4, DV, DO, Super C, 310, 4850, F20, 3020, Jubilee, 730, 2750, U, 530, 2130, 4840, MD, 4520, 770, WF, 4055, 830, 2510, 210, C, 600, 555, 1520, 7020, WC, 820 2 cylinder, 2520, LA, 44, 2030, 2140, MDV, DH, 4640, 4230, 7050, 175, S, WD, 190XT, General, MTA, 6500, 4050, 2280, 7085, 7080, 2950, 6600, 180, 2N, M, 401, 3140, 2440, 880, 780, 4030, 2630, 8430, 400, 2035, 22, 4000, 2940, DCS, 6030, RC, 7045, 660, 444, D14, 3040, NAA, CI, Super MD, BG, 60, 8630, BF, 4630, 410, 7040, 333, 690, 650, 4040, 50, 5020, 80, 520, 550, 800

Additional Information:

Outer Diameter: 1.223" Inner Diameter: 0.597" Length: 0.724" overall 2 to 4 used per shock This bushing is for the horizontal bolt hole Steel pivot bushing sold separately ABC4270

Reference Numbers:

250416R1, 72696R1, 222488, 70222488, Fits Monroe Easy Ride Seat, T19118, R26832, F3296R, 250416R1, 72696R1GV, 760674M1, 230288
