Replacement Water Temperature Gauge will Fits John Deere 3020 4020 4320 AR48640
Replacement Water Temperature Gauge will Fits John Deere 3020 4020 4320 AR48640
Couldn't load pickup availability

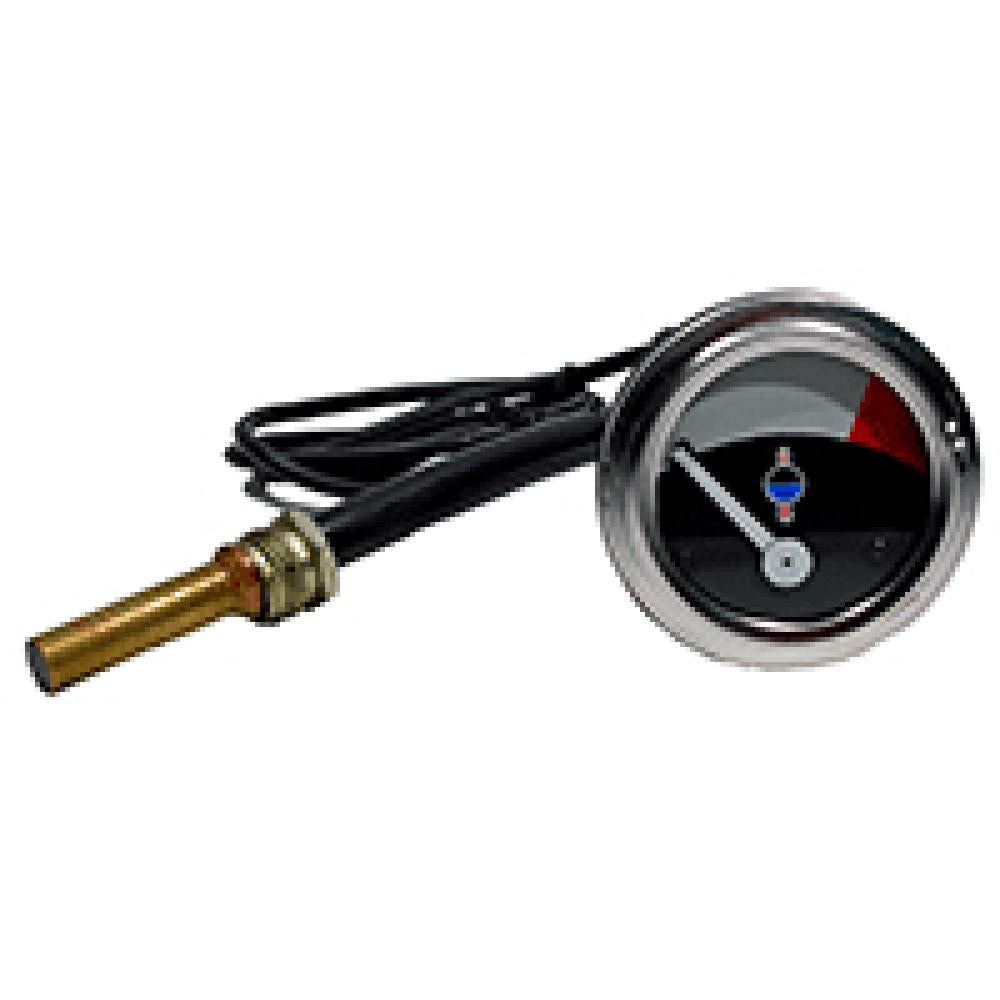

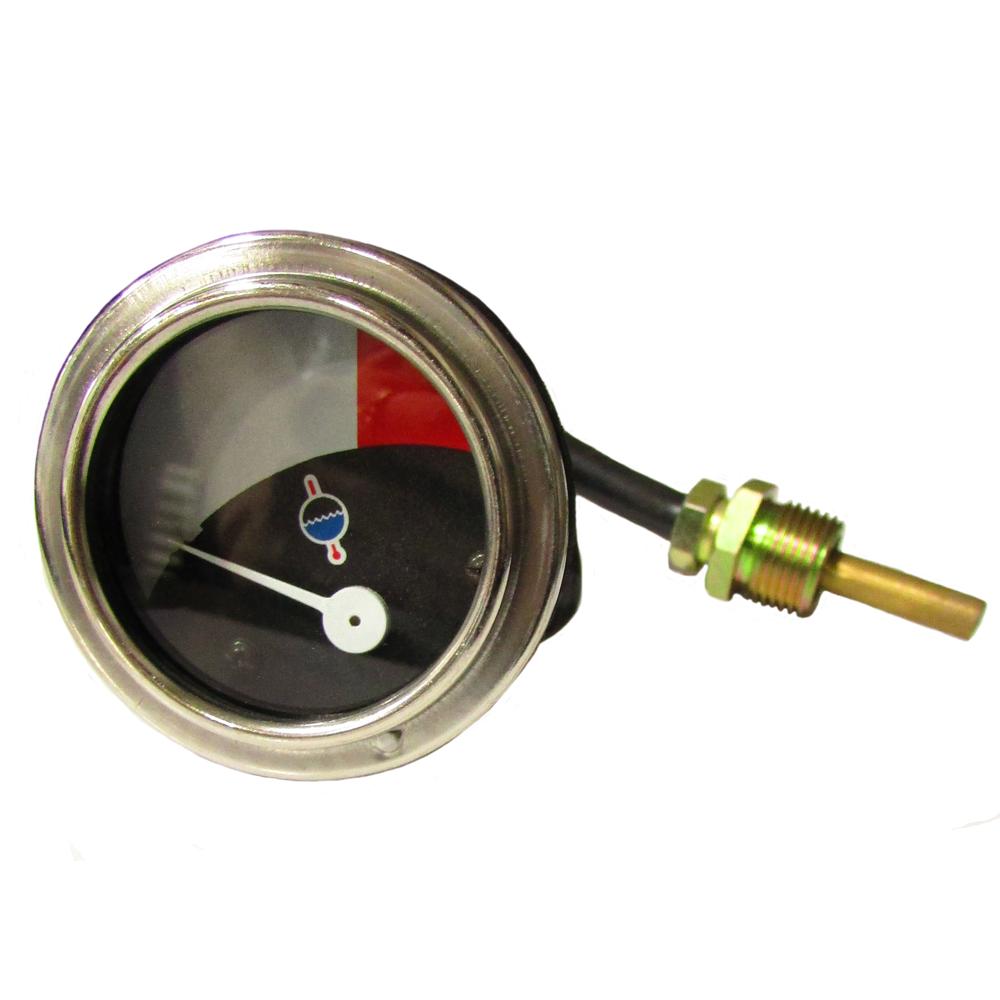

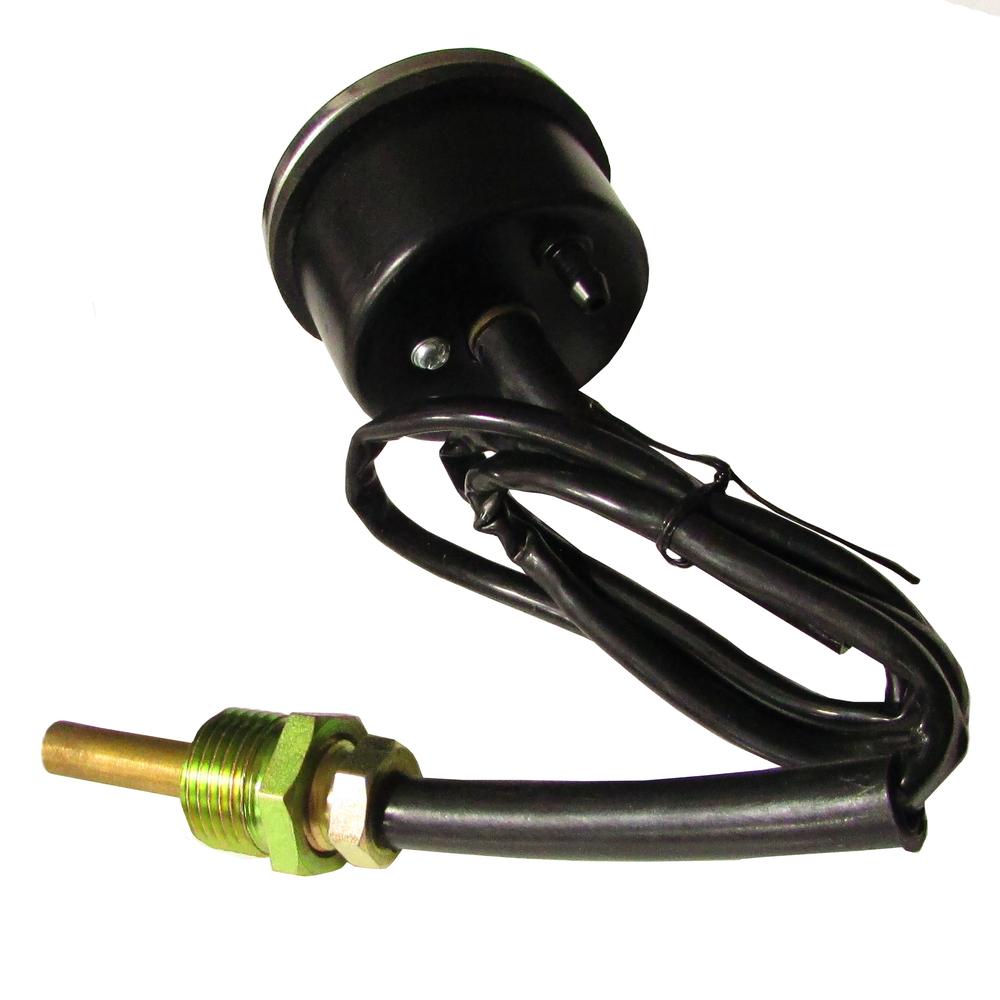

One New Aftermarket Replacement Water Temperature Gauge for John Deere Tractors and Combines
This aftermarket replacement water temperature gauge mounts on the instrument panel and allows the operator to monitor engine coolant temperature, providing an early warning if the engine is at risk of overheating. The gauge uses a 26-inch capillary lead with a 5/8-18 UNF end fitting and a 1/2" NPT pipe bushing, and includes a provision for fiber optic lighting. Replaces John Deere OEM part numbers AR48640 and AR45435.
Specifications
- Lead Length: 26 inches
- End Fitting: 5/8-18 UNF with 1/2" NPT Pipe Bushing
- Temperature Range: 100 degrees F (minimum) to 247 degrees F (maximum)
- Body Height: 1.037"
- Housing Outside Diameter: 2.045"
- Bezel Outside Diameter: 2.324"
- Includes provision for fiber optic lighting
- No studs or clamp on rear of gauge
Compatible Models
John Deere Tractors: 2520, 3020 (Engine S/N 123000 and up), 4000, 4020 (Engine S/N 201000 and up), 4320, 4520, 4620, 7020
John Deere Combines: 3300, 4400, 4420, 6600, 6602, 7700
John Deere Industrial/Construction: 500A, 500B, 500C, 510
Replaces Part Number(s):
AR48640, AR45435
Aftermarket Interchange Numbers
JDS785, R4911
New aftermarket replacement part - not remanufactured, not used.
