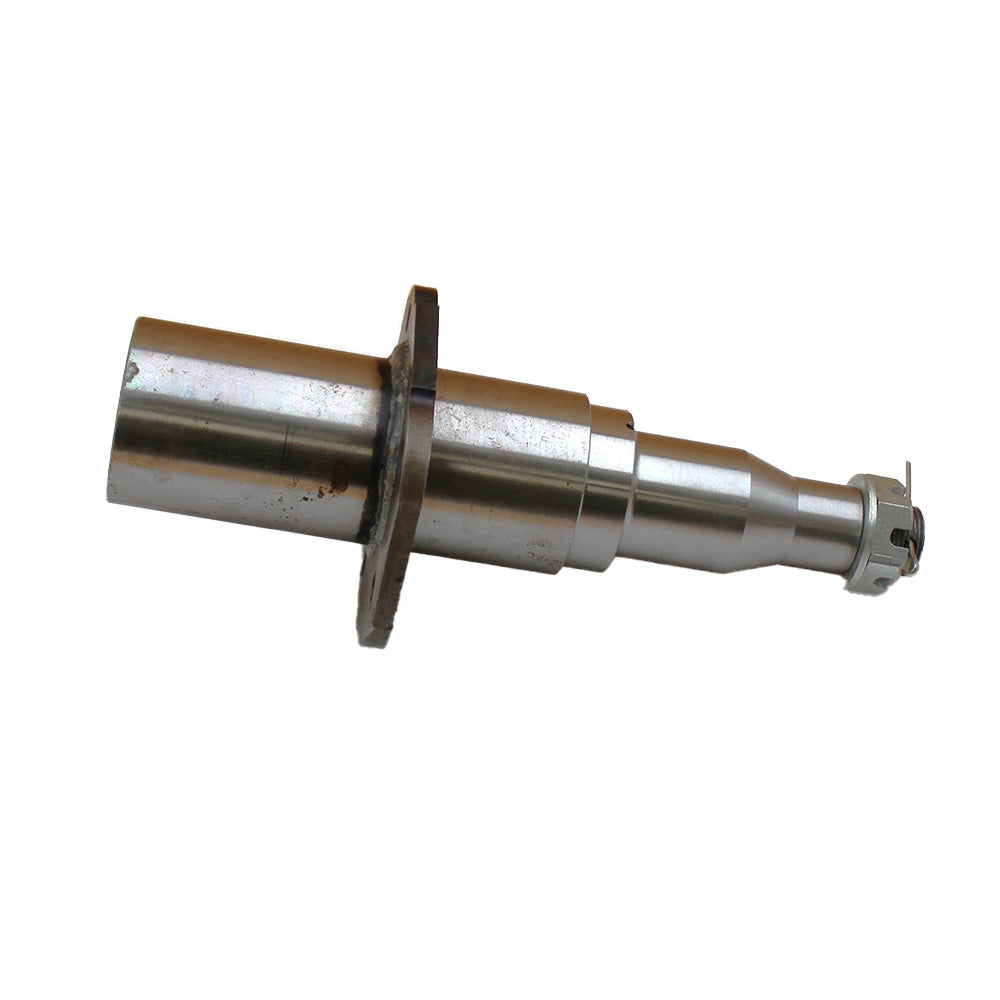

Trailer Axle Spindle 2-1/2 in Dia for 3 in OD Tube 6000 and 7000 lb

Additional Information:

EZ Lube style (includes grease fitting to grease bearings, right on the end of the spindle 11 inches Long 4 1/2 inches wide (Bracket) 2 1/2 inch on the bottom Top is 7/8 inch 7 1/2 inches long above bracket 3 1/2 inches below bracket Weld end part is 2 1/2"" Diameter Shaft This spindle has standard 1" Threads. Uses 14125A (1.25") outer bearing Uses 25580 (1.75") inner bearing Uses 10-36 (2.25") grease seal ***Used on #42 #6000 #7000 Axles***

Reference Numbers:

25042FZ
