Replacement Spindle Fits Toro 74330-74399 & 74820 / Fits Toro Z5000 TimeCutter

Name: Replacement Spindle Fits Toro 74330-74399 & 74820 / Fits Toro Z5000 TimeCutter
SKU: FRS20-0030_16
Price: 108.0 USD
Availability: InStock

Replacement Spindle Fits Toro 74330-74399 & 74820 / Fits Toro Z5000 TimeCutter

$108.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

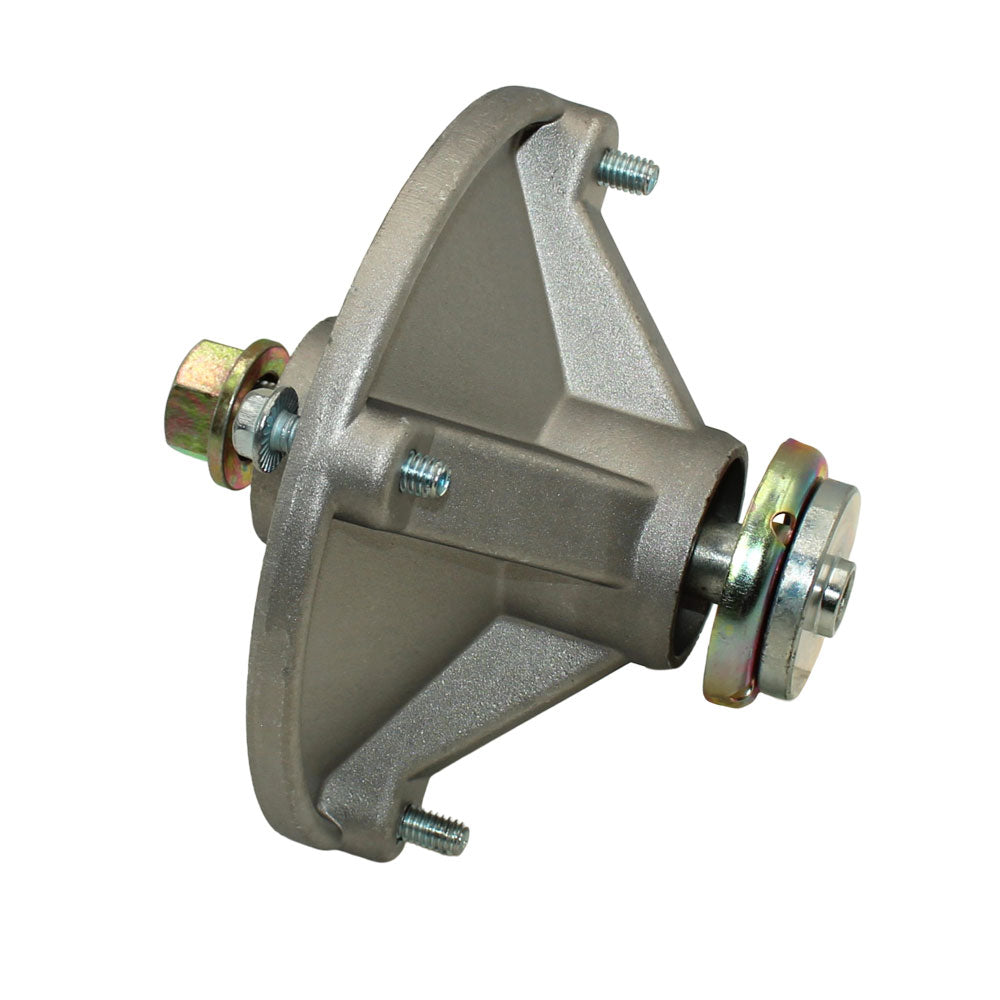

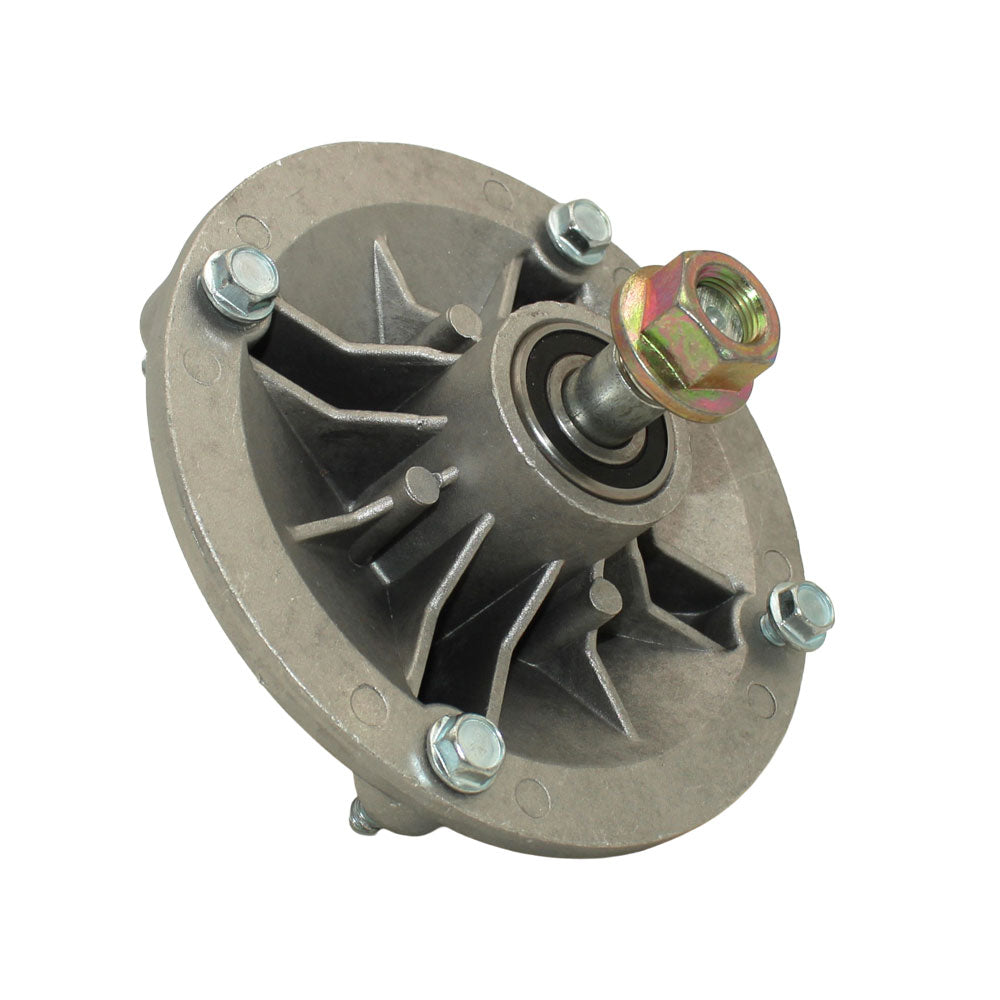

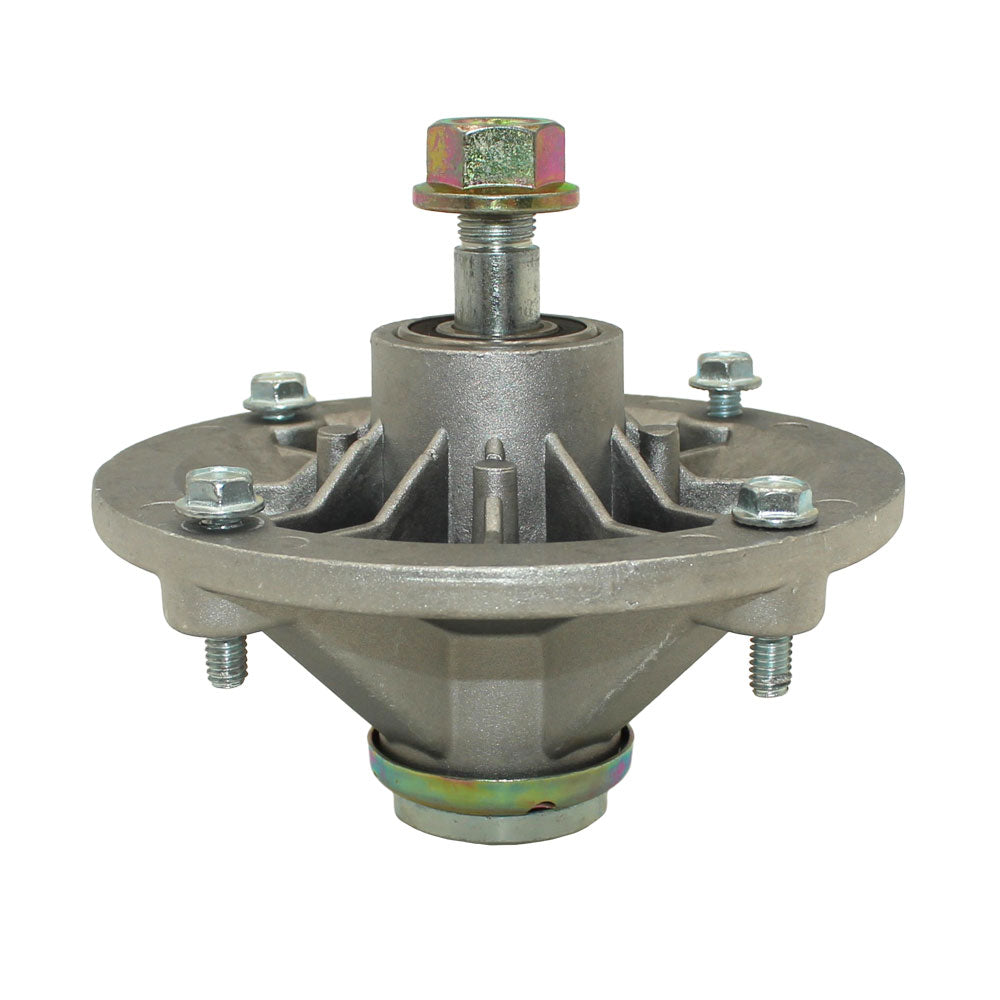

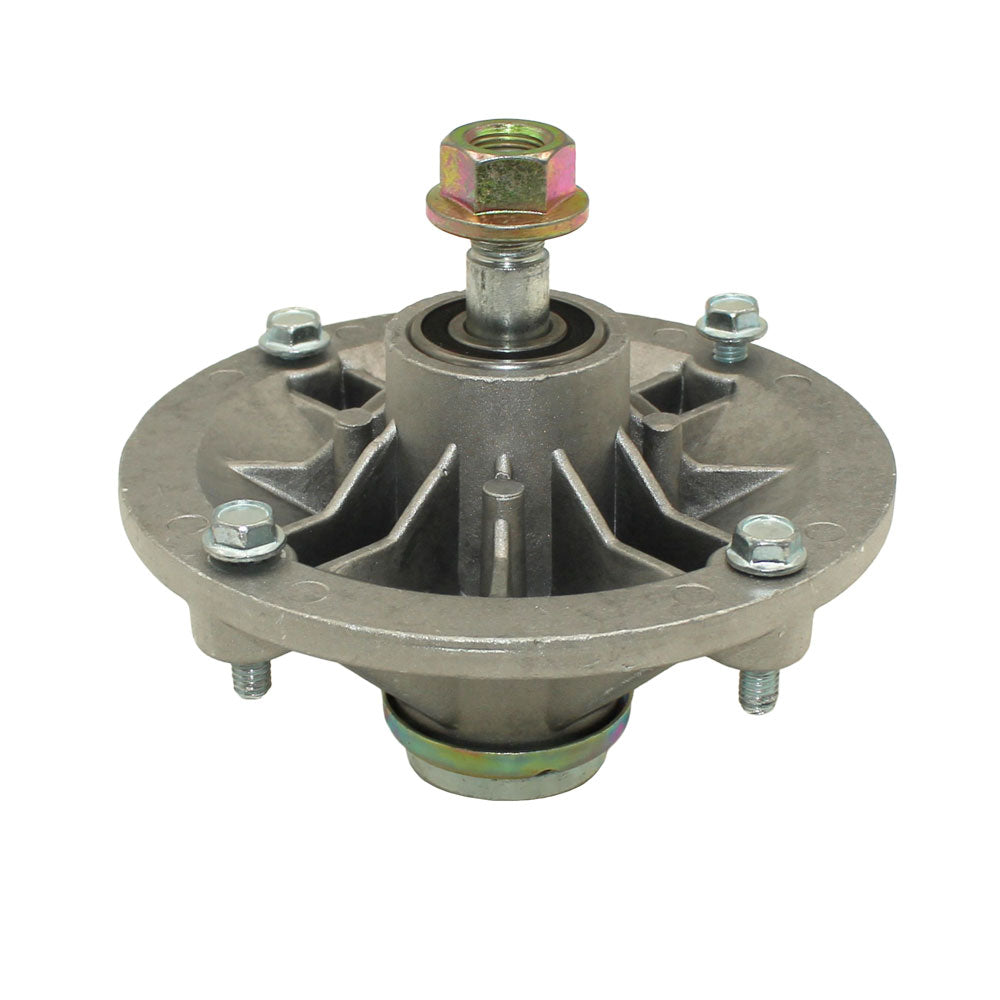

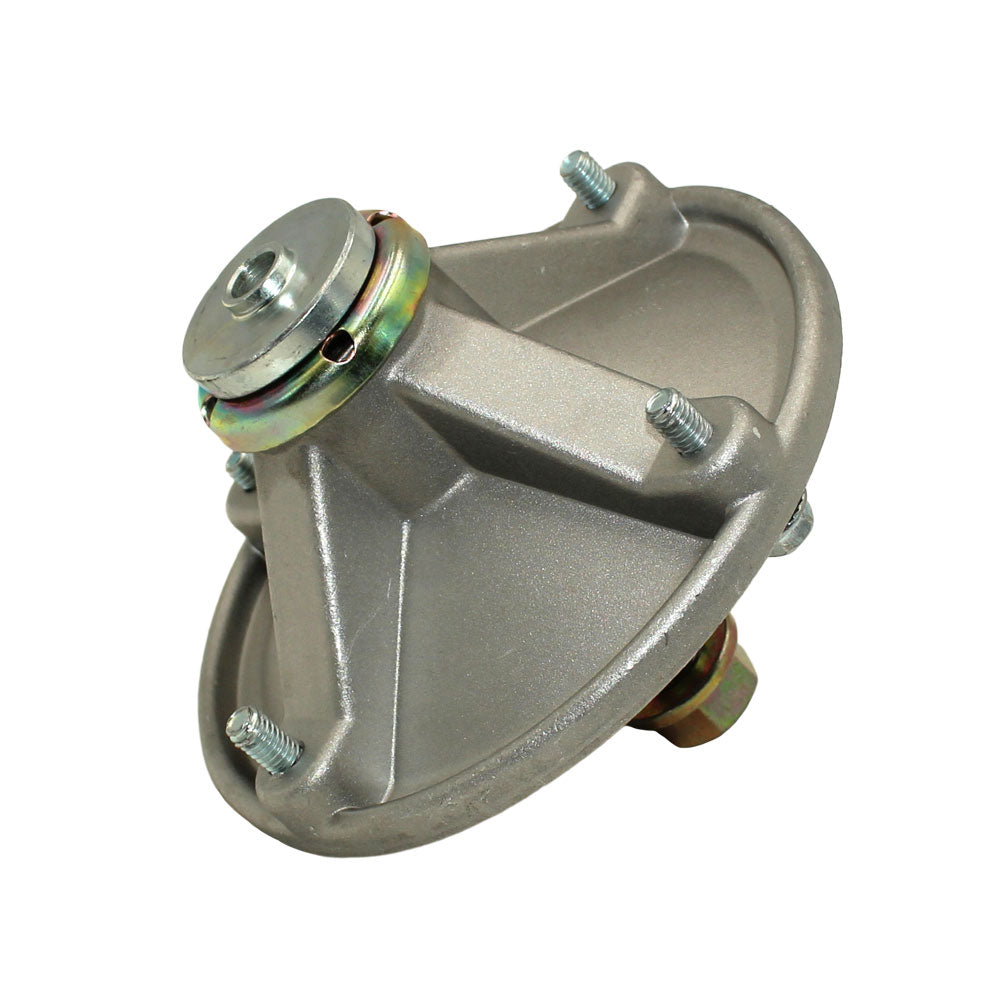

One New Aftermarket Replacement Spindle Assembly for Toro TimeCutter Zero-Turn Mowers

This blade spindle housing assembly with short shaft replaces worn or damaged spindle assemblies on Toro TimeCutter and Titan zero-turn riding mowers with 42" and 50" mower decks. The assembly installs into the deck and supports the blade shaft, keeping blades running true for a clean, consistent cut.

Specifications

Bearing ID: 1-1/2"
Housing OD: 6-1/4"
Housing Height: 3-5/8"
Short shaft configuration

Assembly Contains

(1) 88-4510 Spindle Housing
(1) 117-1192 Short Shaft
(2) 100-1048 Bearings
(1) 62-3661 Spacer
(1) 80-4380 Spacer
(1) 80-4360 Shield

Compatible Models

Toro TimeCutter (42" Deck): Z4200, Z4202, Z4220, Z4235, Z5020, RZT420H, 74325, 74330, 74350, 74351, 74330-74399, 74820

Toro TimeCutter (50" Deck): Z5000 (2007-2009), Z5020, Z5030, Z5035, Z5040, Z5060

Toro Titan: ZX5000

Toro Riding Mower Series: 14-38Z, 16-42Z, 17-42Z, 18-44Z, XL380-H, 12-38XL to 17-38HXL, 74301

Replaces Part Number(s):

110-6866, 117-1192

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

18-44Z, 17-42Z, 74301, 74351, XL380-H, 74330, 14-38Z, 16-42Z, 74325, 12-38XL to 17-38HXL, 74350

Additional Information:

1-1/2" ID x 6-1/4" OD x 3-5/8" HT Spindle Housing Assembly with Short Shaft. This Assembly Consists of the Following: (1) 88-4510 Spindle Housing (1) 117-1192 Short Shaft (2) 100-1048 Bearings (1) 62-3661 Spacer (1) 80-4380 Spacer (1) 80-4360 Shield
