One New Aftermarket Replacement Electric PTO Clutch Fits John Deere Lawn and Garden Tractors

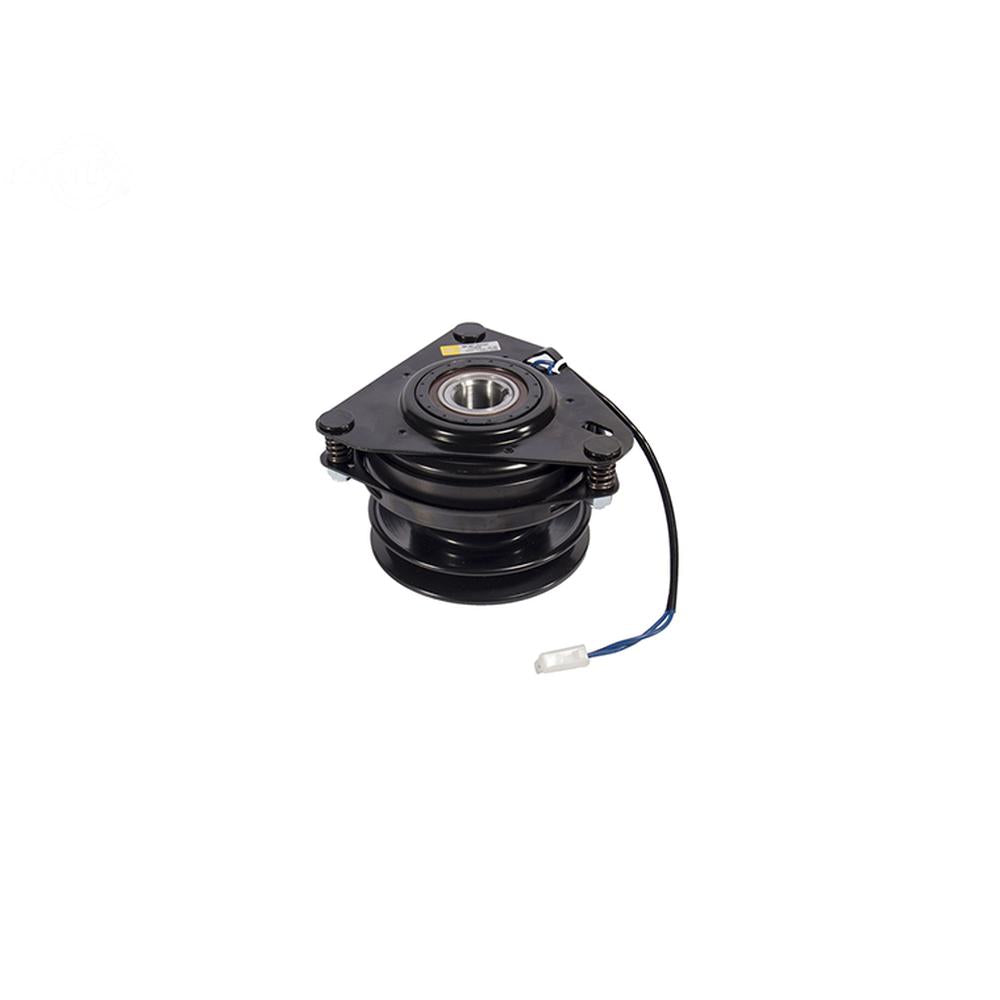

This electromagnetic electric PTO (Power Take-Off) clutch mounts on the engine crankshaft and engages the mower deck blades and attachments. It is a direct aftermarket replacement Fits John Deere part number AM131779 (which supersedes AM126102) and the original Ogura MA-GT-JD23BF clutch used in production. Compatible with both A and B section belts.
Specifications
- Crankshaft Inside Diameter: 1-1/8 in. (1.125 in.)
- Pulley Outside Diameter: approx. 5-5/16 in.
- Rotation: Counter-Clockwise (CCW)
- Belt Width: 1/2 in. or 5/8 in. (A or B belt)
- Torque: approx. 105-120 ft-lbs
Compatible Models
IMPORTANT - Serial Number Restrictions Apply: This clutch does NOT fit all serial numbers on all models. Verify your serial number before ordering.
Fits John Deere Lawn and Garden Tractors:
- 325 - all serial numbers
- 335 - all serial numbers
- 345 - serial no. 070001 and higher
- GX335 - serial no. 120000 and lower
- GX345 - serial no. 120000 and lower
- GX355 (diesel) - serial no. 0-120000
Replaces Part Number(s):
AM131779, AM126102 (superseded by AM131779)
Aftermarket Interchange Numbers
Ogura MA-GT-JD23BF, Ogura MAGTJD23BF, Ogura MA-GT-JD23, Warner 5215-11, Warner 5215-29, Warner 5215-44, Fits Stens 255-831X, Xtreme X0411, 8TEN 810-CPT2300O, CLC80-0124
New aftermarket replacement part - not remanufactured, not used.
