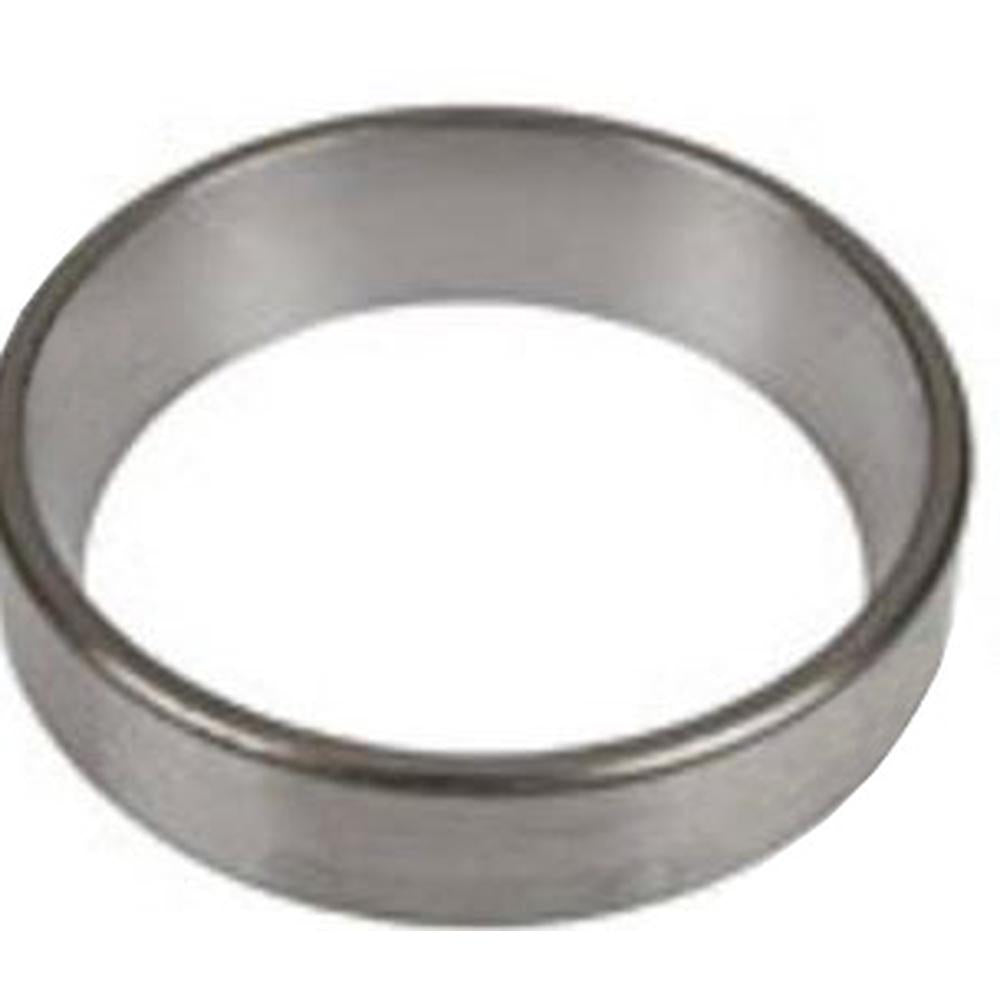

KMC02-051-016 Cup Bearing for Universal Products
KMC02-051-016 Cup Bearing for Universal Products
Couldn't load pickup availability
One New Aftermarket Replacement Tapered Roller Bearing Cup for KMC Agricultural Implements
This tapered roller bearing cup (outer ring/race) is a direct aftermarket replacement for KMC part number 02-051-016, cross-referencing to the widely used Timken L44610 cup. Tapered roller bearing cups work with a matching tapered cone (inner ring) to handle both radial and axial loads in agricultural implement wheel hubs, axles, and spindle assemblies. The L44610 cup is one of the most common inch-series bearing races found across KMC disc harrows, peanut equipment, and a broad range of farm equipment hubs and tail wheel assemblies.
Specifications
- Bearing Type: Tapered Roller Bearing Cup (Outer Race)
- Cup Outer Diameter: 1.9800 in (50.292 mm)
- Cup Width: 0.4200 in (10.668 mm)
- Bore (Inner Diameter of mating cone L44643/L44649): 1.000 in - 1.0625 in
- Series: L44600 Inch Series
- Material: Chrome Steel
- Pairs with cone: L44643 or L44649
Compatible Equipment
KMC / Kelly: Disc harrows, peanut diggers, peanut inverters, cultivators, strip-till coulters, and other KMC/Kelly agricultural implements using the L44610 cup bearing.
General Agricultural Use: Widely used in wheel hub, tail wheel hub, and spindle assemblies across a broad range of farm equipment and implements from multiple manufacturers.
Replaces Part Number(s):
KMC02-051-016, L44610-TIM, 02-051-016, L44610
Aftermarket Interchange Numbers
L44610-TIM, SMA 913-L44610, KMC02051016
New aftermarket replacement part - not remanufactured, not used.
