RE507852 PISTON RING STD Fits John Deere 4.239 6.359 106.5mm (RE66820)

Name: RE507852 PISTON RING STD Fits John Deere 4.239 6.359 106.5mm (RE66820)
SKU: RE48818
Price: 45.0 USD
Availability: InStock

RE507852 PISTON RING STD Fits John Deere 4.239 6.359 106.5mm (RE66820)

$45.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

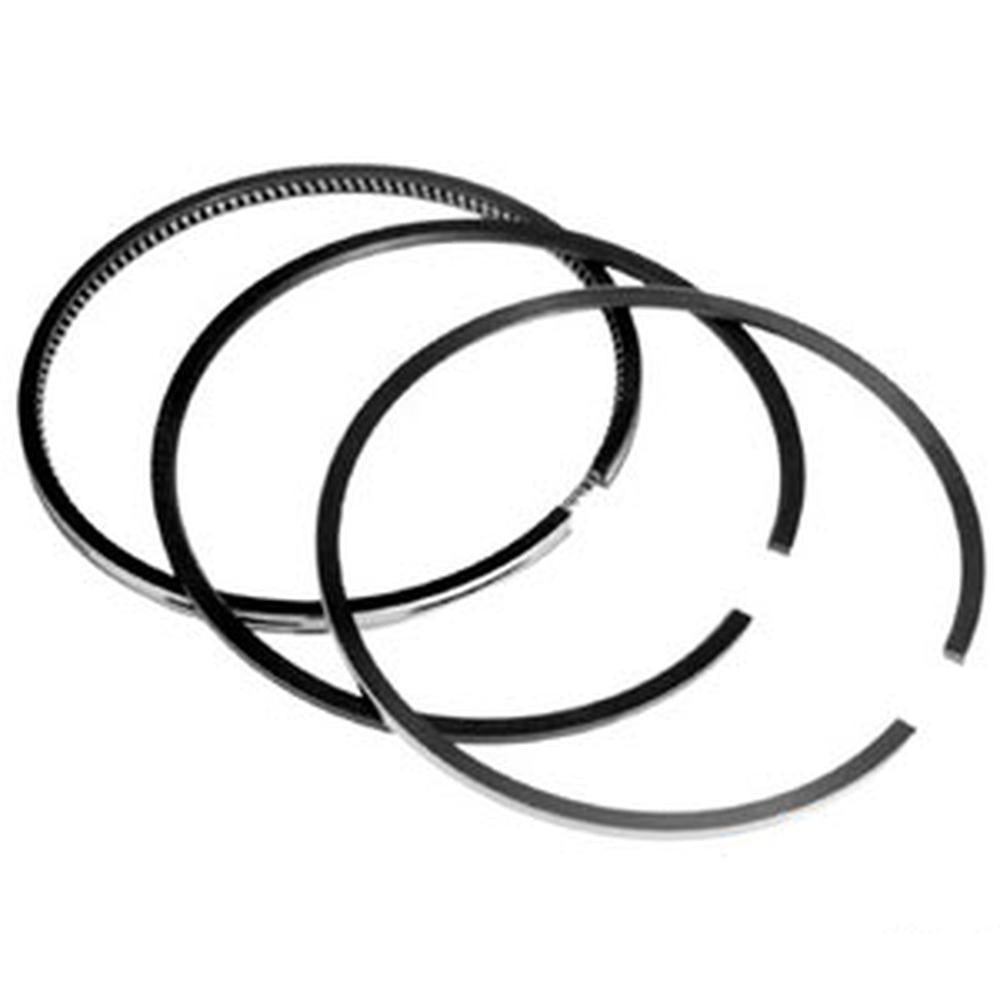

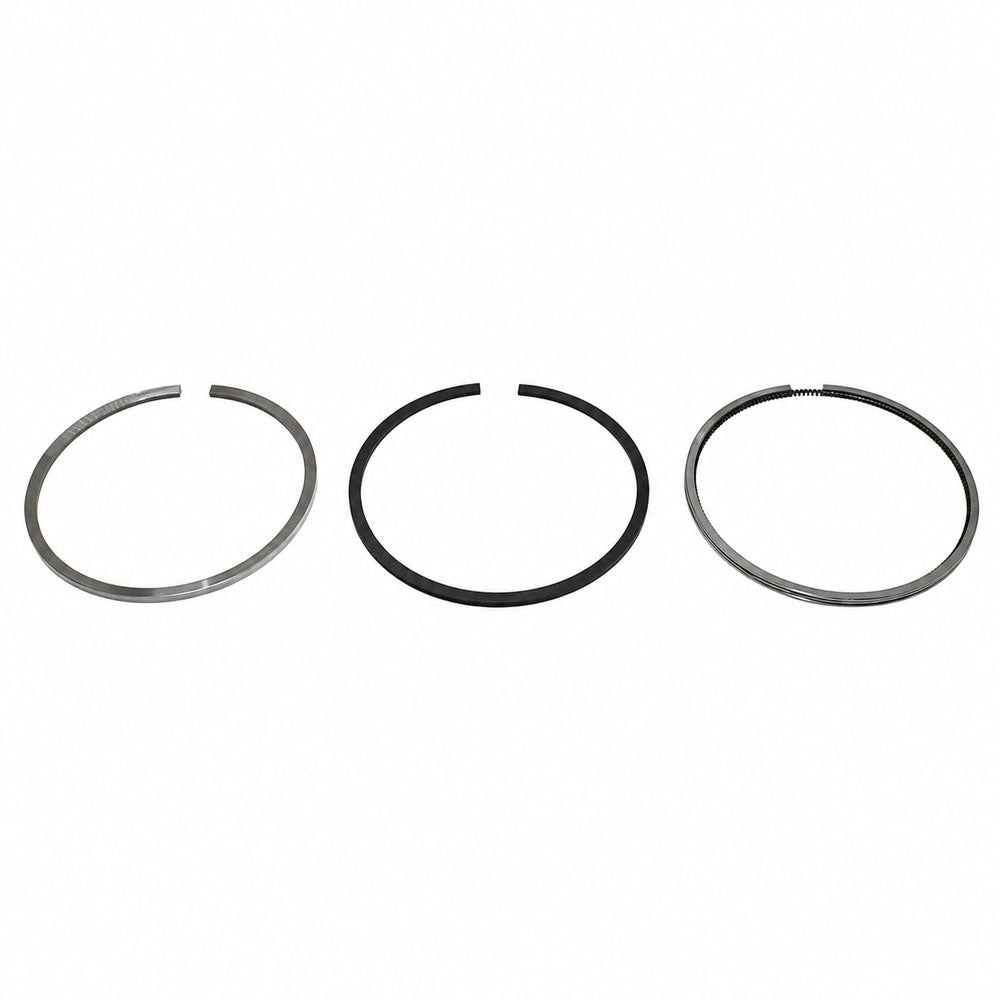

One New Aftermarket Replacement Piston Ring Set (STD) Fits John Deere 4.239 and 6.359 Series Engines

This standard-bore piston ring set fits one piston in Fits John Deere 4.239 and 6.359 series diesel engines, including the 4045 and 6068 PowerTech engine families. Each set contains 3 rings per cylinder and is designed to restore compression, reduce blow-by, and return engine performance to like-new specifications. Compatible with a wide range of Fits John Deere tractors, combines, excavators, backhoe loaders, dozers, wheel loaders, skid steer loaders, motor graders, forklifts, sprayers, and forestry equipment.

Specifications

Piston Bore Diameter: 106.5mm (STD - Standard)
Number of Rings: 3 (rings for 1 piston)
Ring Set Width Dimensions: 2.97mm x 2.36mm x 3.45mm
Top Ring: Chrome Plated Keystone (CK1) - 0.117 in.
2nd Ring: Parallel Faced Internally Bevelled Bottom (P5) - 0.093 in.
3rd Ring (Oil Control): Chrome Plated Bevelled Edge with Helical Coil Spring (CBEH) - 0.136 in.
Compatible Engine Series: Fits John Deere 3029, 3179, 4039, 4045 (4.239D / 4.239T), 6059, 6068 (6.359D / 6.359T), 6359, 6414, 6466

Compatible Models

Fits John Deere Tractors: 940, 1030, 1040, 1052, 1075, 1100, 1130, 1140, 1165, 1170, 1175, 1350, 1410D, 1450, 1470, 1490D, 1510E, 1550, 1630, 1750, 1840, 1850, 1854, 2040, 2130, 2140, 2150, 2155, 2240, 2250, 2254, 2350, 2355, 2360, 2450, 2535, 2550, 2554, 2555, 2630, 2640, 2650, 2730, 2735, 2750, 2755, 2850, 2855, 2855N, 2940, 2950, 2955, 3010, 3020, 3050, 3140, 3150, 3155, 3200, 3255, 3330, 3350, 3400, 3410, 3430, 3540, 3550, 3640, 3830, 4000, 4010, 4020, 4040S, 4050, 4420, 4425, 4435, 4435 HYDRO, 4530, 4630, 4710, 4730, 4800, 4830, 4840, 4880, 4900, 4990, 4995, 5065M, 5075M, 5080R, 5080RN, 5083E, 5083EN, 5085M, 5090R, 5090RN, 5093E, 5093EN, 5095M, 5095MH, 5100R, 5100RN, 5101E, 5101EN, 5105M, 5105ML, 5200, 5300, 5315, 5400N, 5410N, 5415, 5415H, 5425, 5425N, 5500, 5510, 5510N, 5520, 5520N, 5525, 5525N, 5603, 5605, 5615, 5625, 5705, 5715, 5715HC, 5725, 5820, 6000 HI-CYCLE, 6010, 6020, 6100, 6100D, 6110, 6110D, 6110L, 6115D, 6120, 6120L, 6125D, 6125J, 6130, 6130D, 6130J, 6140D, 6145J, 6165J, 6180J, 6185J, 6200, 6205, 6205J, 6210, 6210L, 6215, 6220, 6220L, 6225, 6230, 6310, 6310L, 6310S, 6310W, 6320, 6320L, 6325, 6330, 6400, 6403, 6405, 6410, 6410L, 6410S, 6410W, 6415, 6420, 6420L, 6420S, 6425, 6430, 6500, 6510L, 6510S, 6515, 6520, 6520L, 6525, 6530, 6534, 6600, 6602, 6603, 6605, 6610, 6615, 6620, 6630, 6700, 6715, 6810, 6820, 6830, 6900, 6910, 6910S, 6920, 6920S, 6930, 7130, 7200, 7205J, 7210, 7220, 7230, 7320, 7330, 7405, 7410, 7420, 7425, 7440, 7445, 7450, 7455, 7460, 7505, 7510, 7515, 7520, 7525, 7610, 7700, 7715, 7720, 7810, 7815, 7820, 8875, 9400, 9410, 9450, 9540WTS, 9550, 9550SH, 9560, 9560SH, 9560WTS, 9570STS, 9900, 9910, 9920, 9930, 9935

Fits John Deere Combines/Harvesters: 55, 65, 99, 750, 755, 755A, 755B, 755BMIL, 840, 940, 1155, SE6120, SE6220, SE6320, SE6420, SE6520, SE6620, SE6920, TC44H, TC54H, TC62H, TC444H, TC544H, TC624H

Fits John Deere Construction (Backhoe Loaders): 210C, 210G, 210GLC, 210K EP, 210LJ, 290D, 300D, 310D, 310G, 310J, 310SG, 315C, 315D, 315SG, 315SJ, 330B, 344E, 344G, 344H, 344J, 410C, 410D, 450E, 450G, 450H, 450J, 455E, 455G, 510D, 524K, 524K-II, 540G, 540G-II, 540G-III, 540H, 544B, 544C, 544D, 544E, 544EH, 544G, 544H, 544HCL, 544HLL, 544J, 544K, 544K-II, 548G, 548GIII, 548H, 550A, 550B, 550G, 550H, 550J, 555A, 555G, 570B, 590D, 595D, 605C, 610B, 610C, 624E, 624EH, 624G, 624H, 624HLL, 624KR, 643, 643D, 643G, 643H, 643J, 648D, 648G, 648G-II, 648G-III, 648H, 648HTJ, 648L, 650G, 650H, 650J, 653, 653E, 653G, 655A, 655B, 670, 670A, 670B, 670C, 670C II, 670CH, 670CH II, 670D, 672A, 672B, 672CH, 672CH II, 672D, 690D, 690DR, 690ELC, 698G, 700, 700H, 700J-II, 710B, 710C, 710G, 710J, 714PR, 740, 748H, 748HTJ, 750, 750C-II, 750CII, 750J-II, 755, 790, 790E, 840, 843G, 843H, 843J, 850C, 850G, 850J, 970D

Fits John Deere Excavators: 70D, 120, 120C, 120D, 130G, 160C, 160D, 160DLC, 160GLC, 160LC, 180G, 180GLC, 190E, 200CLC, 200DLC, 200G, 200LC, 200LD, 200LL, 210K EP, 230CLC, 230LC, 230LCR, 270CLC, 270LC, 335D, 337E, 360D, 360DC, 360DG, 460D, 460DC, 482C, 490E

Fits John Deere Dozers / Crawlers: 450E, 450H, 450J, 550A, 550B, 555A

Fits John Deere Other Equipment: A400, E130, E140, ML1335, R450, W210, W330, WL56, 1010D, 1030, 1040, 1052, 1070D, 1070E, 1075, 1100, 1110D, 1110E, 1140, 1165, 1170, 1175, 1175H, 1210E, 1410D, 1450, 1490D, 1510E, 1550, 1630, 1750, 1840, 1850, 1854, 2054, 2154D, 2250, 2254, 2350, 2355, 2355CS, 2355NCS, 2355NTSS, 2355TSS, 2450, 2535, 2554, 2555CS, 2555TSS, 4700, 5315

Replaces Part Number(s):

RE507852, RE507852-A, RE66820, RE48818, RE15674, DD11831

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

5705, 4530, 6410, 650H, 5715HC, 2950, 210GLC, 6500, 3550, 710J, 6715, 210K EP, 6100, 4710, 7720, 310D, 544H, 2250, 5725, 1450, 2254, 544B, 9540WTS, SE6320, 624EH, 714PR, 655A, 200DLC, 6320L, 6140D, 444K, 1070D, 6185J, 7610, 548G, 524K, 1750, 7525, 5410N, 9920, 244E, 2650, 9400, 6520, 160D, 70D, 1170, 335D, 6515, 540G-III, 2554, 643D, 1854, 7820, 840, 2240, 670, 315C, 790E, 6225, 624H, 6602, 444H, 6430, 7320, 6110L, 344G, 6810, 2450, 5105ML, 2640, 6320, 444J, 120D, 2350, D450, 5090R, 544J, 690ELC, 843J, 410C, 460D, 6410S, 4840, 2555CS, 670D, 3155, 1070E, 200LL, 4730, 9410, 672B, 6403, 544EH, 310J, 7405, 7510, 6130, 4700, 5093E, 310SG, 6130J, 7455, 5820, 6165J, 2855, 755A, 160GLC, 595D, 120, 5520, 740, 748HTJ, 110, 3020, 444E, 315SJ, 1550, 544C, 530, 970D, 6410L, SE6220, 850C, 1140, 648G-II, 315SG, 843H, 624E, 4630, 544G, 7810, 410D, 5101E, 4020, 3140, 6525, 1350, 6205, 6115D, 6420L, 550J, 5083EN, 6310S, 2855N, 653, 5315, 5415H, 548GIII, 7440, 6210L, 4000, 9930, 7520, 710B, 324H, 9550, 3400, 5415, 670CH, 1155, 9570STS, 55, 7410, 5093EN, 648L, 2054, 6534, 9560STS, 940, 310G, 180GLC, 6230, 1630, 2940, 5105M, 648H, 6620, R450, 3140C, 455E, 5605, 430B, 540H, 1052, 544HLL, 5100RN, 6615, 544D, 624HLL, 3540, 2130, 643G, 6220, 2040, SE6420, 7715, 3350, 5625, 548H, 770D, 4435, 672CH II, 2355NCS, 6820, 648HTJ, 230LC, E140, 6910, 160DLC, W210, 290D, 6930, 230LCR, 570B, 5510N, 5715, 650J, 6510, 648D, 230CLC, 693D, 672D, 700H, 700, 5525, 4050, 344E, 6100D, 610B, 6310W, 444C, 653E, 450H, 9450, 790, 444D, 5090RN, 672CH, 160LC, 2955, 5525N, 4990, 4995, 548GII, 5080RN, 2730, 1030, 650G, 555G, SE6920, 850G, 190E, 482C, 325J, 120C, 590D, 344J, 2154D, 3255, 624G, 9935, 200LD, 670A, 8875, 7210, 3410X, 330B, 6110, 540G, 750J-II, 9900, 653G, 344H, 5095M, 6020, 5065M, WL56, 7130, 5095MH, 1110E, 550G, 544E, 648G, 624KR, 270CLC, 7815, ALL MODELS, TC444H, 544K, 670C II, 6120, 640D, 6125D, 490E, 460DC, 5400N, A400, 1510E, 5510, 4040S, 755BMIL, 6120L, 360DC, 5085M, 544K-II, 3410, 6130D, 6220L, 6510S, 200LC, 6603, 7445, 1100, 450J, 270LC, TC62H, 437D, ML1335, 524K-II, 5425N, 3155TS, 640H, SE6620, 610C, 3830, 6510L, 4830, 7460, 4900, 6600, 7200, TC544H, 7220, 5080R, 5500, 6010, 2150, 7505, 210LJ, 5615, 670CH II, 6700, 750CII, 3640, 6530, 4420, 3050, 510D, 2355NTSS, 2140, 3010, 1840, 3200, 648G-III, 1490D, 2550, 550A, 7700, 755B, 2355CS, 9910, 455G, 605C, TC54H, 6415, 843G, 360DG, 7330, 6110D, 1010D, 4435 HYDRO, 643J, 7425, 7515, 6180J, 6610, 9560, 4425, 640G-III, 2750, 710C, 640G-II, 1850, 7230, 6425, 2555, 6920, 6215, TC624H, SE6520, 6605, 2555TSS, 200G, 6520L, 1165, 7185J, 690D, 670C, 2850, 643, 6830, 1175, 672A, 750C-II, 9560WTS, 5101EN, 710G, 6920S, 750, 698G, SE6120, 1130, 6145J, 6210, 444HCL, 1110D, W330, 3150, 555A, 5083E, 755, 6400, 1410D, 210C, 6325, 6910S, 6410W, 6125J, 5425, E130, 2355, 444G, 65, 4800, 5075M, 540G-II, 550H, 7205J, 4010, 315D, 450E, 7450, 3330, 6330, 450G, TC44H, 6630, 160C, 6205J, 643H, 54, 1040, 1075, 5603, 1470, 5100R, 4880, 550B, 1210E, 3430, 850J, 748H, 360D, 2155, 6000 HI-CYCLE, 2360, 2535, 544HCL, 6310L, 1175H, 2735, 99, 3155K, 5520N, 180G, 6420, 670B, 655B, 444CH, 200CLC, 700J-II, 7420, 9550SH, 6420S, 2755, 2630, 9560SH, 690DR, 130G, 6405, 337E, 640G, 6310, 210G

Additional Information:

No. of Rings = 3 (2.97 x 2.36 x 3.45) Top Ring: CK1 - Chrome Plated Keystone (0.117") 2nd Ring: P5 - Parallel Faced Internally Bevelled Bottom (0.093") 3rd Ring: CBEH - Chrome Plated Bevelled Edge with Helical Coil Spring (0.136")
