RE29878 Disc Pulley Overhaul Clutch Kit Fits John Deere 50 520 530 Repair Set

Name: RE29878 Disc Pulley Overhaul Clutch Kit Fits John Deere 50 520 530 Repair Set
SKU: RE29878-RE29790-KIT
Price: 215.0 USD
Availability: InStock

RE29878 Disc Pulley Overhaul Clutch Kit Fits John Deere 50 520 530 Repair Set

$215.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

(1) New Aftermarket Replacement Disc Pulley Clutch Kit

Fits John Deere Models: 50, 520, 530

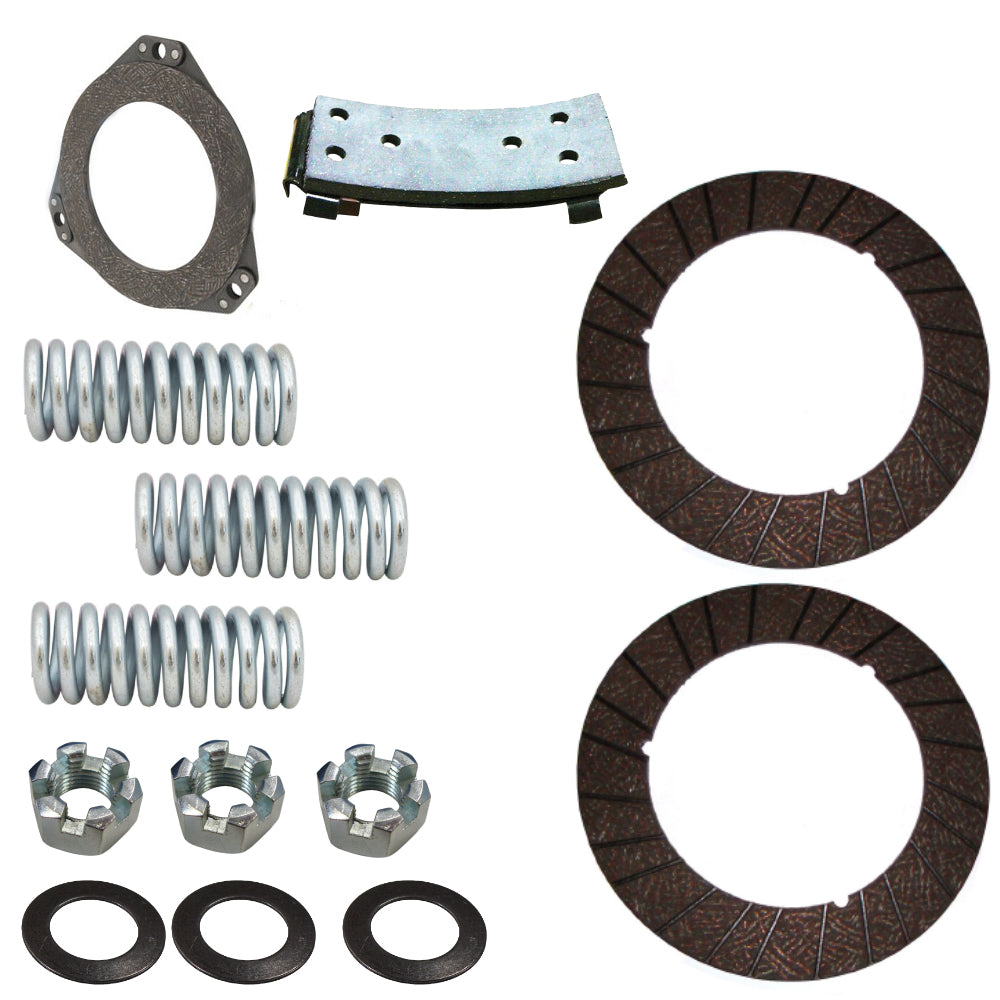

Kit Includes:

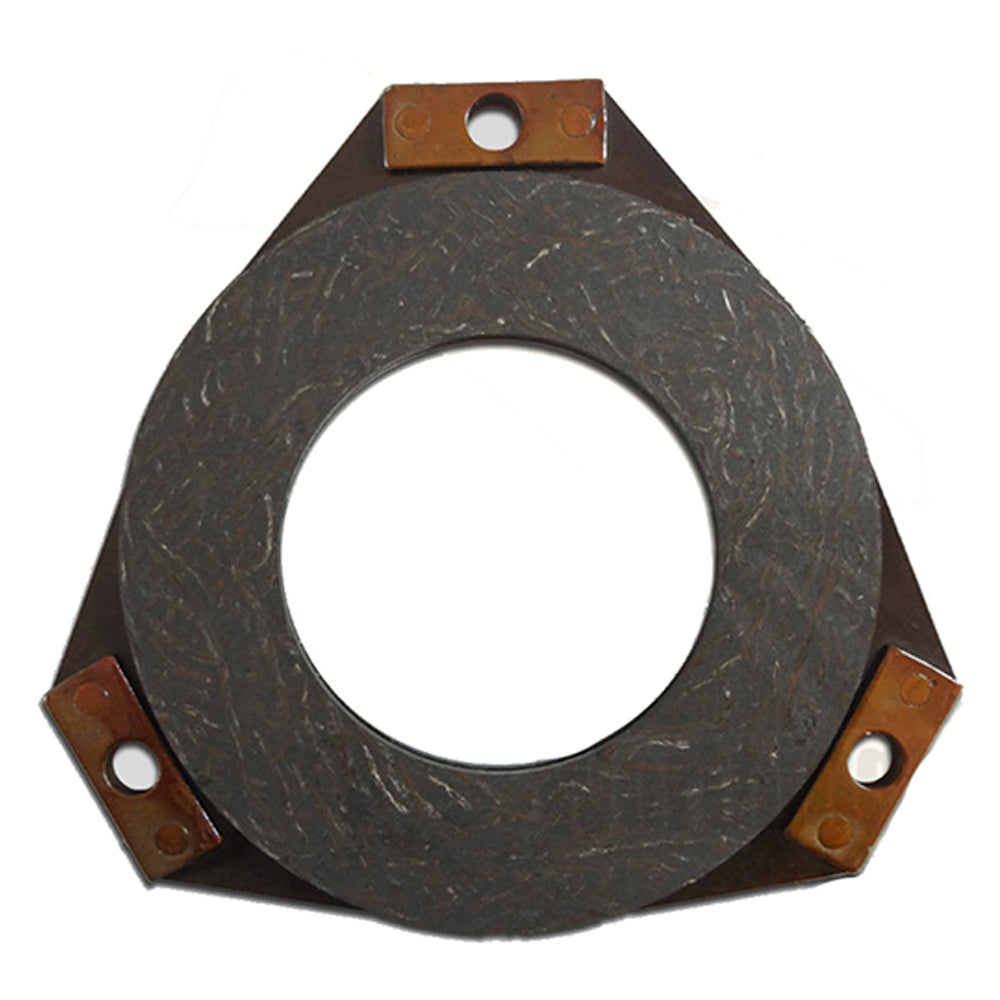

1 Pulley Clutch Discs w/Bonded Lining (RE29878)

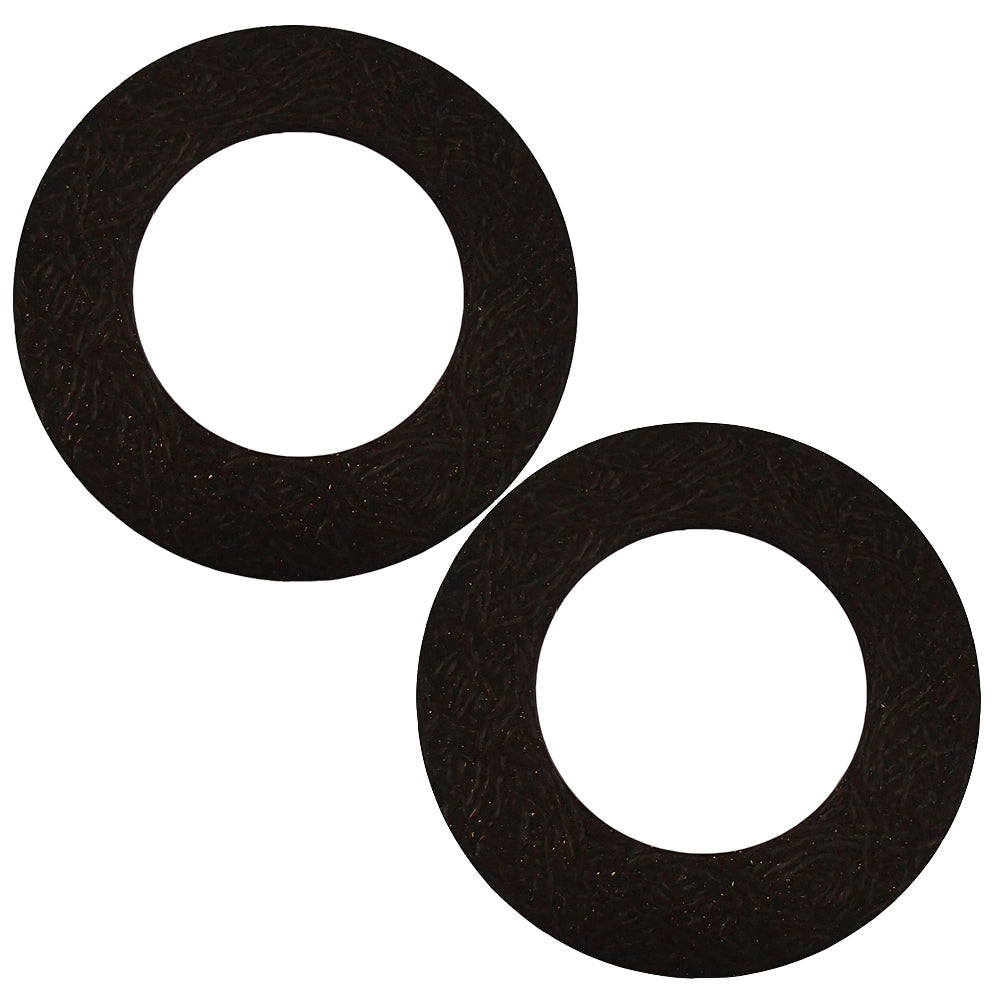

2 Floating Clutch Facing Discs (B2354R)

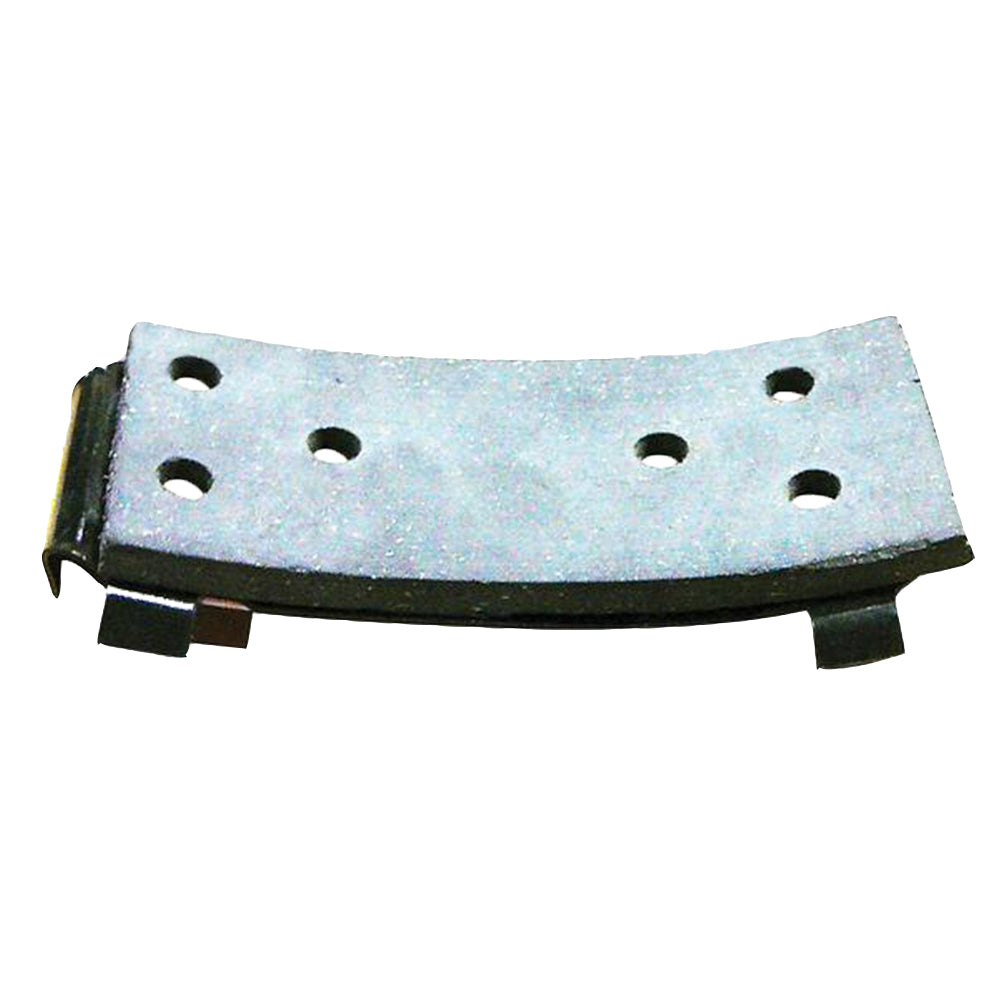

1 Belt Pulley Brake Pad Lining (RE29790)

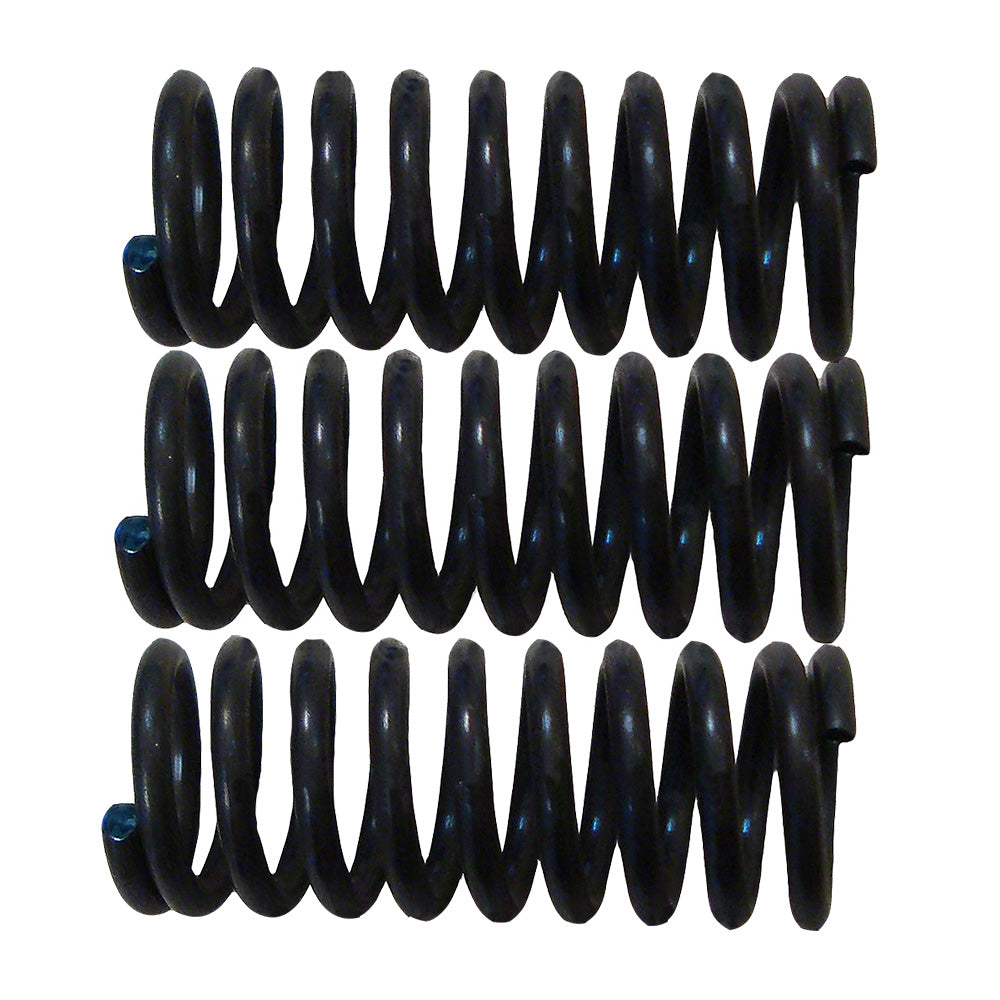

3 Clutch Disc Adjusting Springs (B161R)

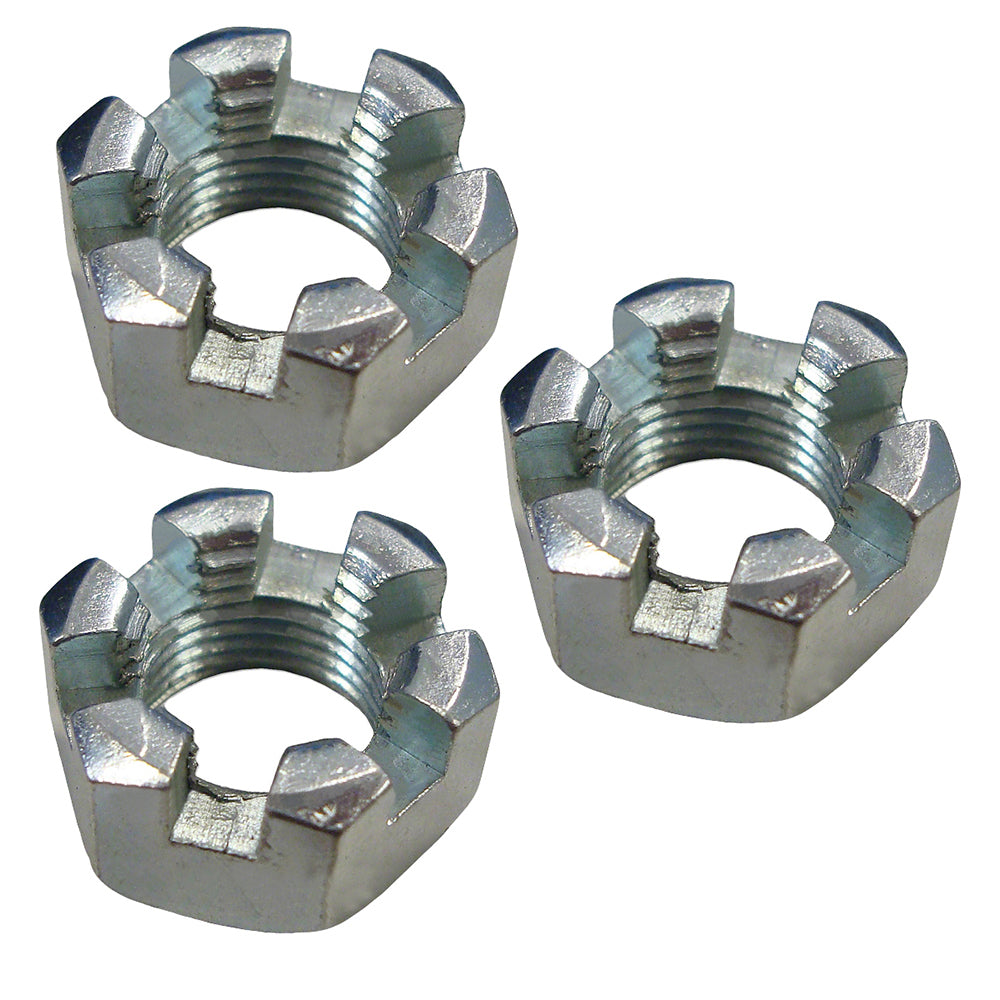

3 Clutch Adjusting Nuts (14H994)

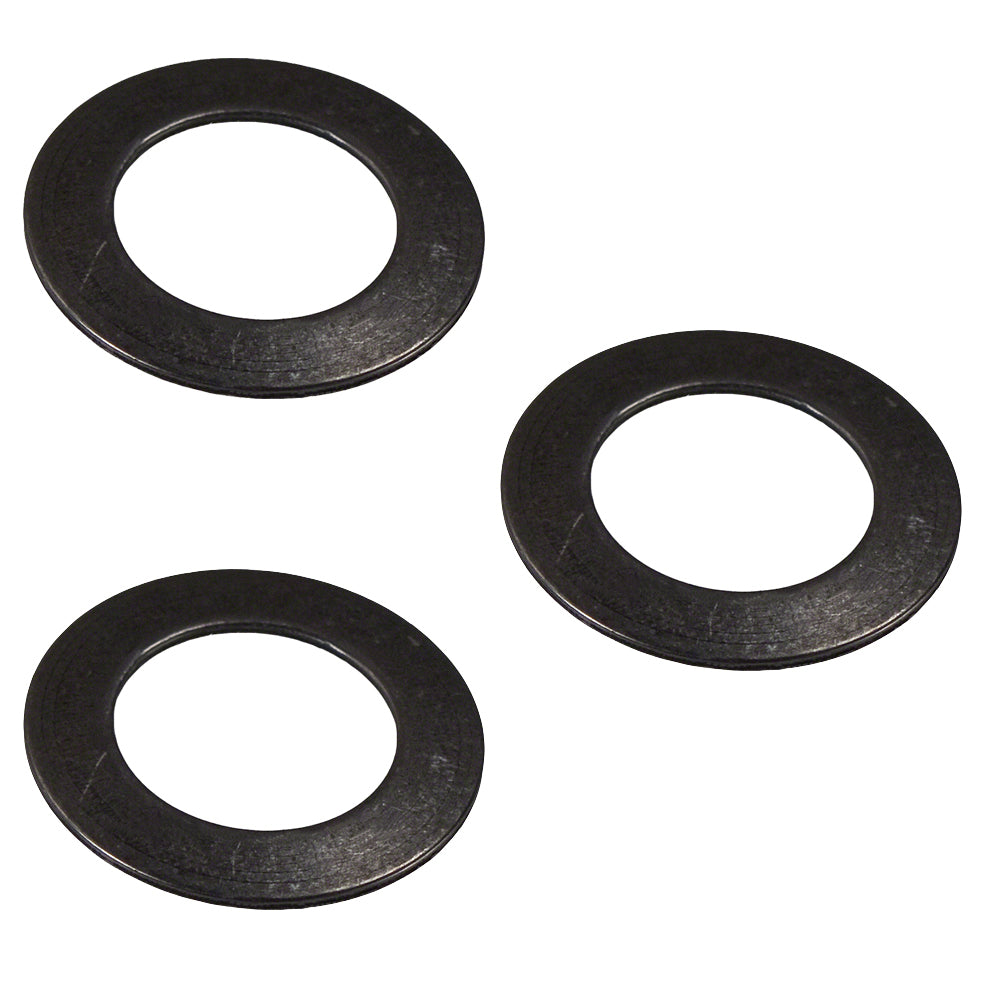

3 Clutch Pressure Plate Spring (Fits Belleville) Washer (Fits JDS1626)

Replaces Part Numbers: RE29878, B2354R, RE29790, B161R, 14H994, Fits JDS1626

Models This Part Fits:

520, 530

Additional Information:

Kit Contains: (1) Pulley Clutch Discs w/ Bonded Lining Includes Riveted Lining 0.445" Thick 1-1/2" Lining Width Replaces Part Number(s): AB3471R, B2355R, AB4828R, RE29878 (2) Floating Clutch Facing Discs 7" OD x .160 Thick Replaces Part Number(s): R90220 (1) Belt Pulley Brake Pad Lining Woven Non-Asbestos Lining with Countersunk Brass Rivets Replaces Part Number(s): AB4748R, AF4748R, RE29790 (3) Clutch Disc Adjusting Springs It Mounts to the Outer Cast Iron Adjusting Disc Replaces Part Number(s): B161R (3) Clutch Adjusting Nuts 1/2" - 20 Nf Grade 5 Zinc Slotted Hex Nut, 1/2" 3 Used Per Tractor Replaces Part Number(s): B3279R, AA4967R, A335R, 14H994 (3) Clutch Pressure Plate Spring (Belleville) Washer 0.572" Inside Diameter 0.937" Outside Diameter 0.035" Thick Spring Steel Torque Initially to 15 Ft Pounds, Then Adjust as Needed Use to Smooth Out the Hand Clutch Engagement 3 Used Per Tractor Replaces Part Number(s): AR21803R, R21647
