Swing Drawbar Reg RE20663 Fits John Deere 4430, 4320, 4230, 4040, 4020

Name: Swing Drawbar Reg RE20663 Fits John Deere 4430, 4320, 4230, 4040, 4020
SKU: RE20663
Price: 363.0 USD
Availability: InStock

Swing Drawbar Reg RE20663 Fits John Deere 4430, 4320, 4230, 4040, 4020

$363.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement Swing Drawbar Fits John Deere Tractors

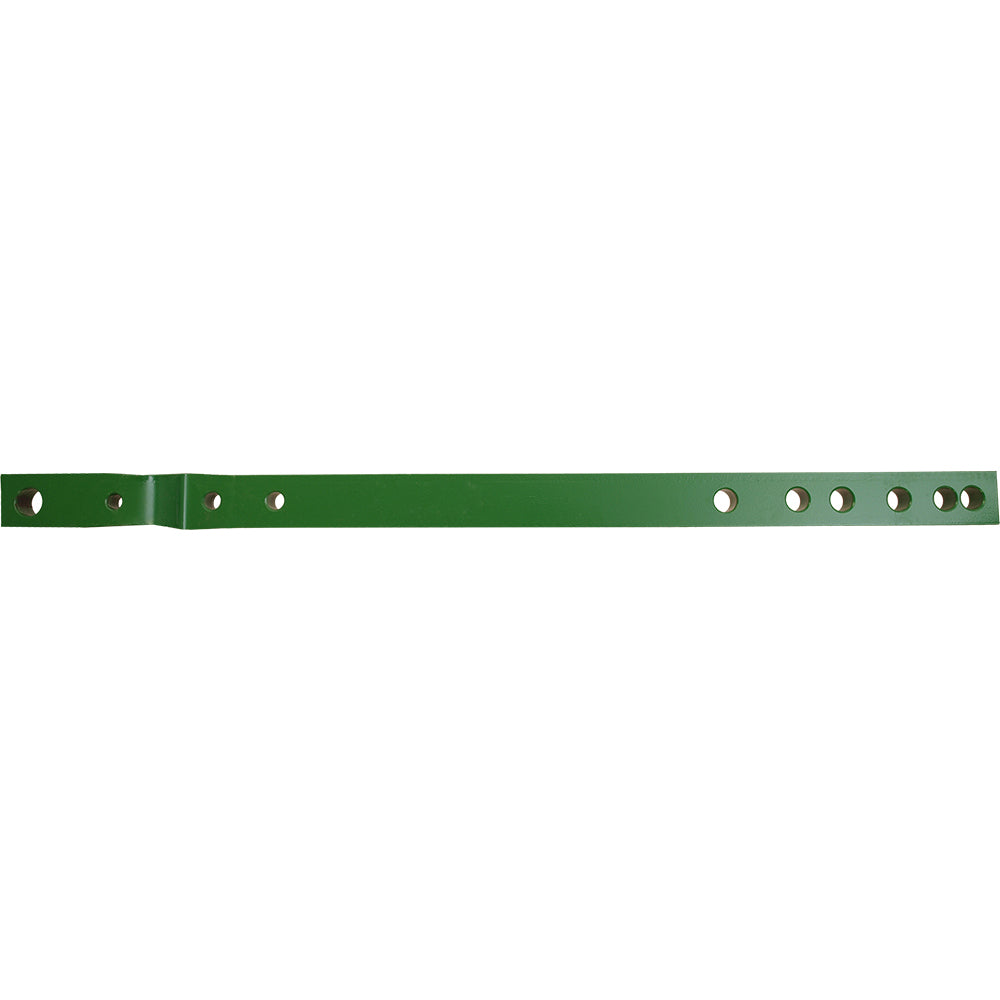

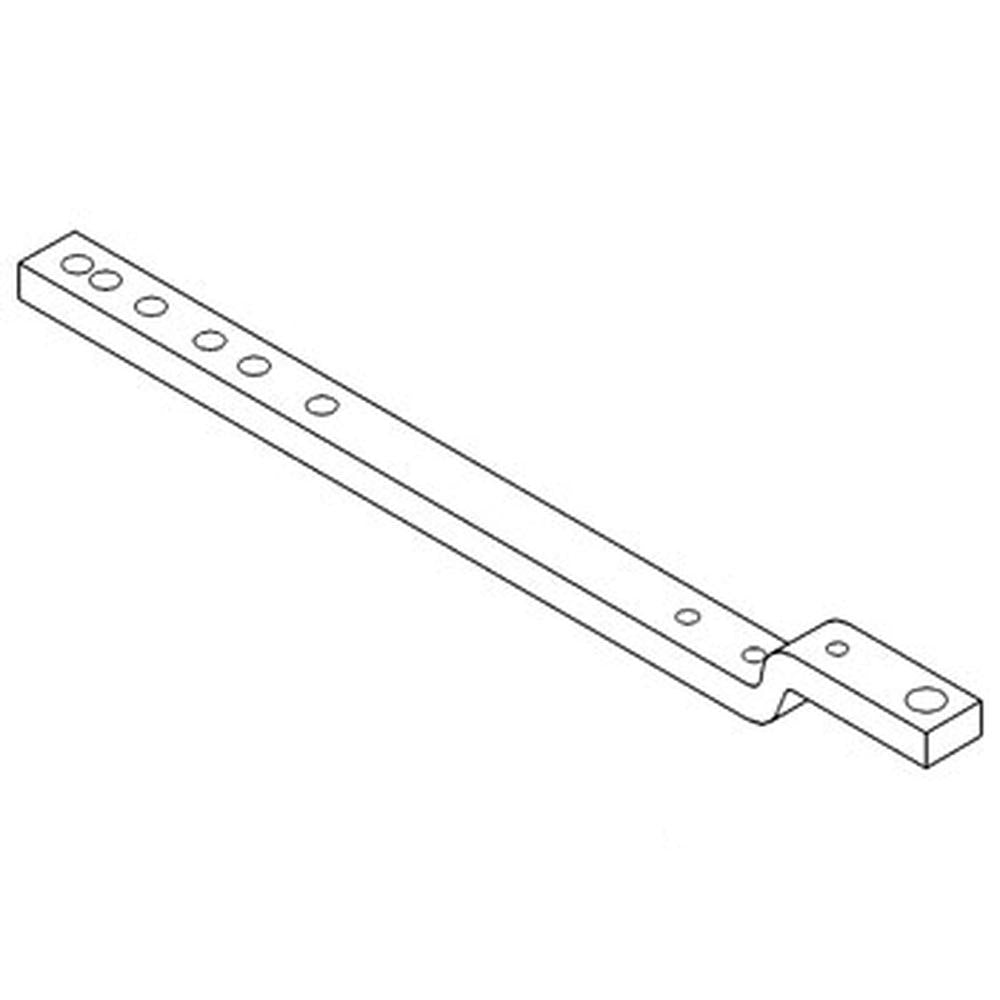

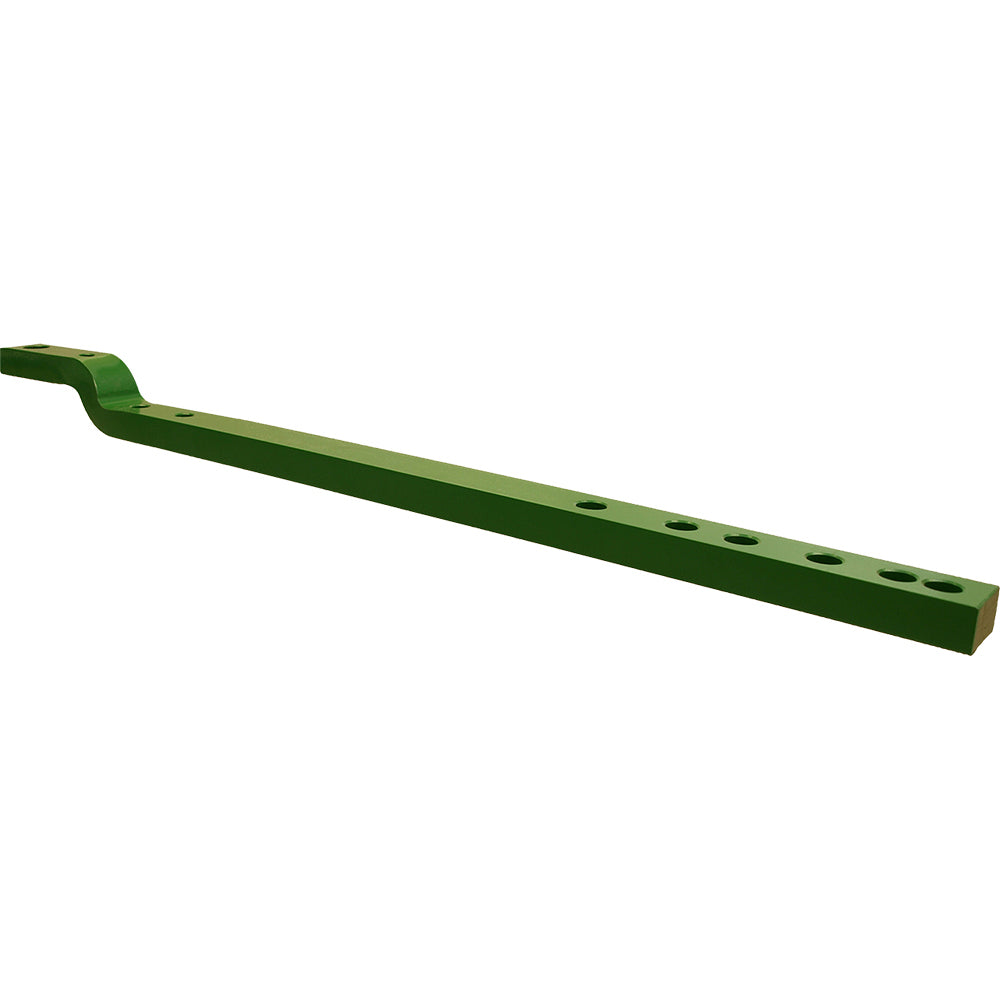

This aftermarket replacement swing drawbar (RE20663) is a curved rear hitch drawbar Fits John Deere (Fits JD) 40-series and related tractors. It mounts to the rear of the tractor and provides the standard hitch point for towed implements. The bar features six pin holes along its length for adjustable implement positioning.

Specifications

Type: Standard Duty
Length: 45.00"
Width: 2.50"
Thickness: 1.375"
Offset: 2.00"
Pin Hole Diameter: 1.015"
Pin Hole Distances from Front: 1.375", 2.625", 4.687", 7.345", 9.325", 12.590"

Compatible Models

Fits John Deere Tractors: 4000, 4020, 4030, 4040, 4040S, 4230, 4240, 4320, 4430, 4440, 4455, 600

Replaces Part Number(s):

RE20663, R34448

Aftermarket Interchange Numbers

A-RE20663, AMRE20663, AMRE20663HD, WN-RE20663, 108521, R34448A

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

4440, 4455, 4020, 4040S, 4030, 4320, 4430, 600, 4040, 4240, 4230, 4000

Additional Information:

Type: Standard Duty Width: 2.50" Length: 45.00" Thickness: 1.375" Pin Hole Diameter: 1.015" Offset: 2.00" Pin Distance: 1.375", 2.625", 4.687", 7.345", 9.325", 12.59" from Front
