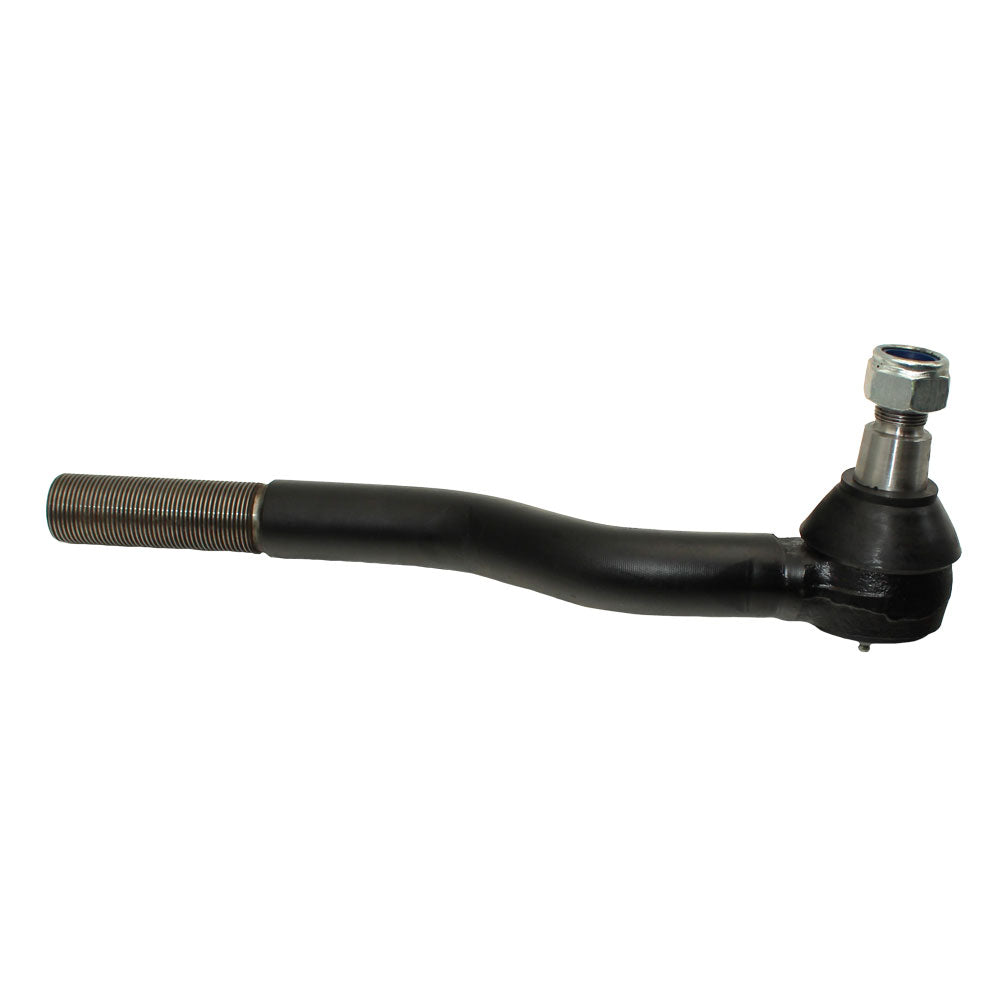

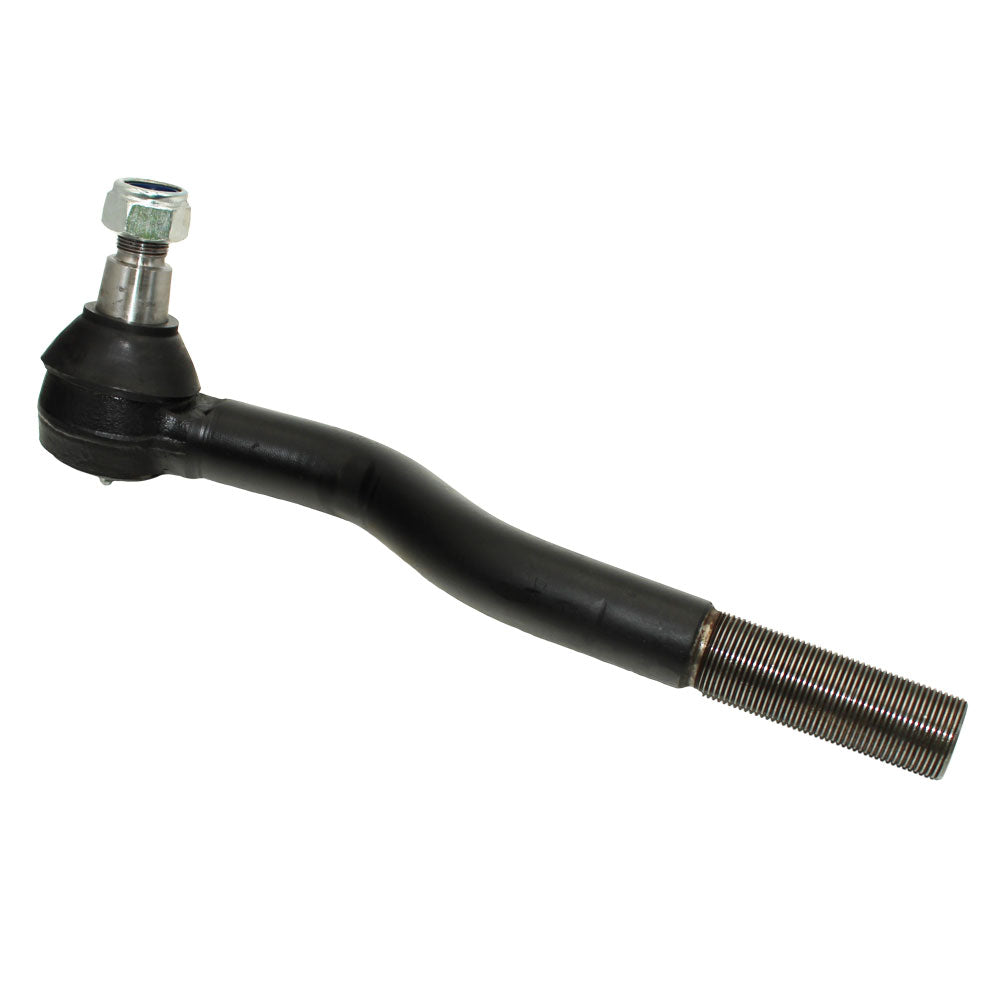

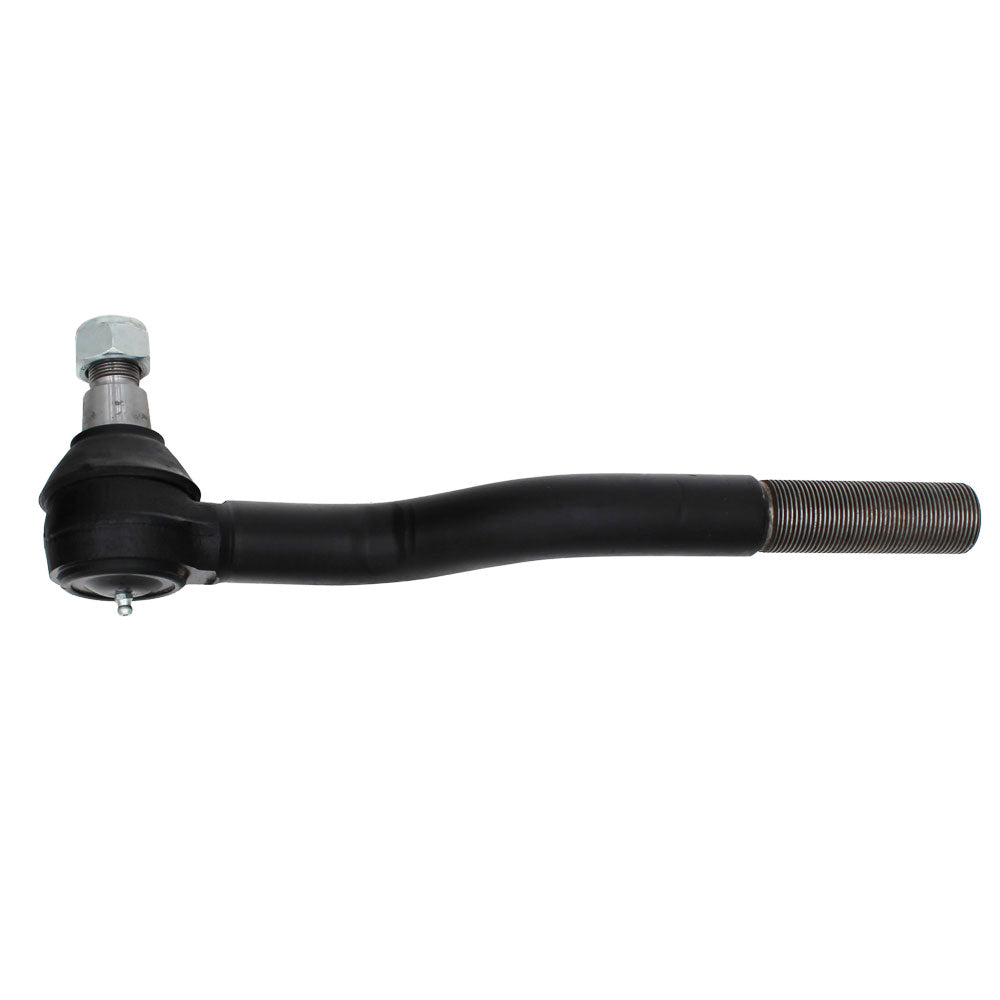

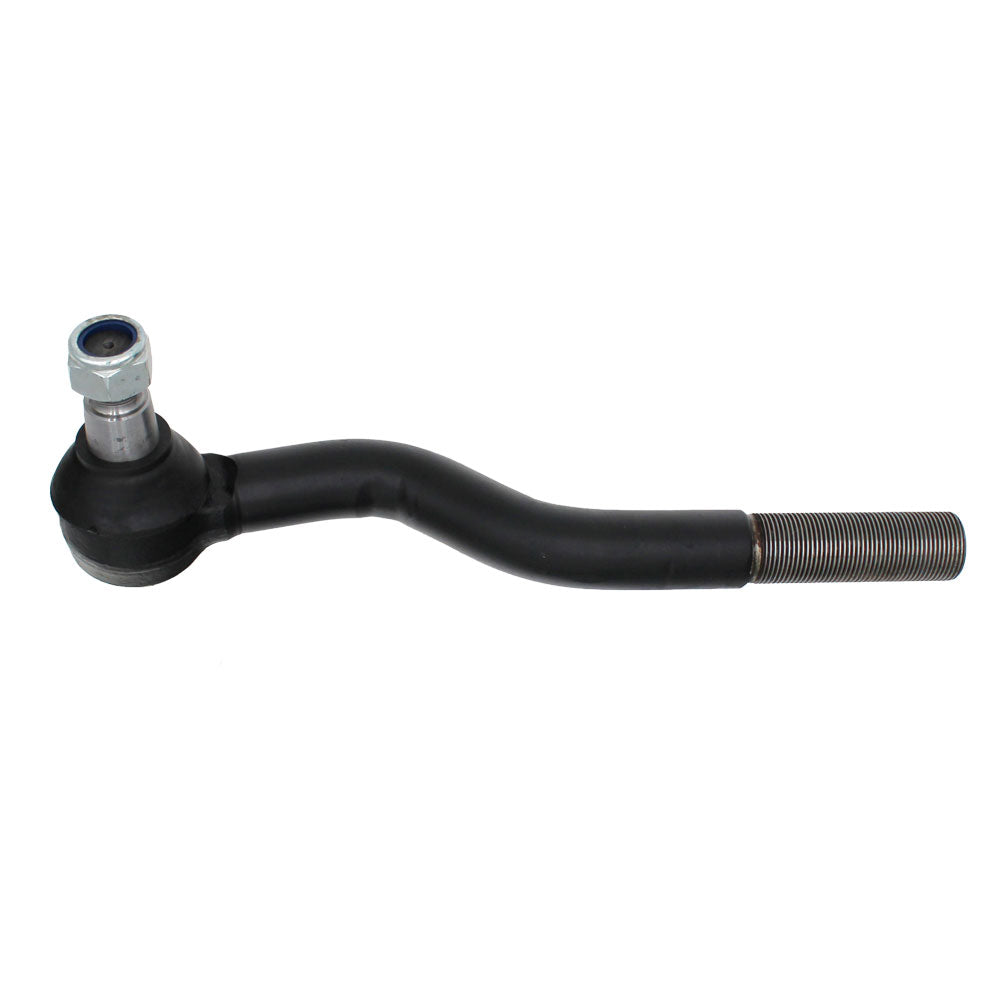

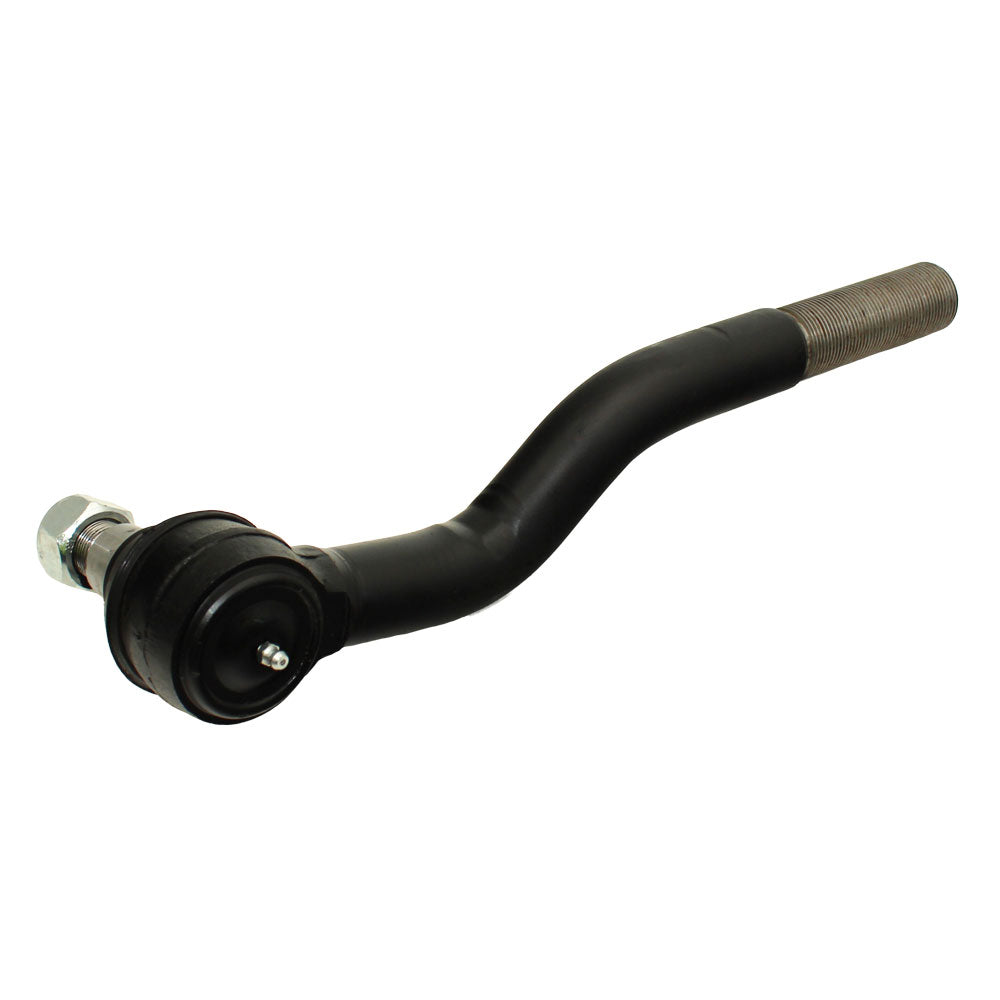

RE173541 Inner Left Hand Tie Rod Fits John Deere 8100 8110 8130 8200 8210 8220
RE173541 Inner Left Hand Tie Rod Fits John Deere 8100 8110 8130 8200 8210 8220
Couldn't load pickup availability
One New Aftermarket Replacement Left Hand Tie Rod End Fits John Deere 8000/8010/8020/8030 Series Tractors
This inner left hand (LH) tie rod end is a precision steering component for the Mechanical Front-Wheel Drive (MFWD) front axle on Fits John Deere large-frame row-crop tractors. It connects the steering drag link to the steering knuckle arm and is critical for proper front axle alignment and steering response. For MFWD-equipped tractors only -- verify drivetrain before ordering.
Specifications
- Height: 5.00 in
- Length: 15.60 in
- Outer Diameter: 2.40 in
- Threads Per Inch: 14 (Fractional)
- Rod Side Thread Diameter: 1-1/4 in (Left Hand Thread)
- Rod Outer Diameter: 36 mm
- MFWD front axle application only
Compatible Models
Fits John Deere (Fits JD) 8000 Series: 8100, 8200, 8300, 8400
Fits John Deere 8010 Series: 8110, 8210, 8310, 8410
Fits John Deere 8020 Series: 8120, 8220, 8320, 8420, 8520
Fits John Deere 8030 Series: 8130, 8230, 8330, 8430
Fits John Deere 8R Series: 8225R, 8235R, 8245R, 8250R, 8260R, 8270R, 8285R, 8295R
All fitments require Mechanical Front-Wheel Drive (MFWD). Not for 2WD configurations.
Replaces Part Number(s):
RE173541, R61402, A-RE173541, AMRE173541, HR173541, HR61402, WNRE173541, WN- RE173541
Aftermarket Interchange Numbers
Spicer / Dana 10007578
New aftermarket replacement part - not remanufactured, not used.
