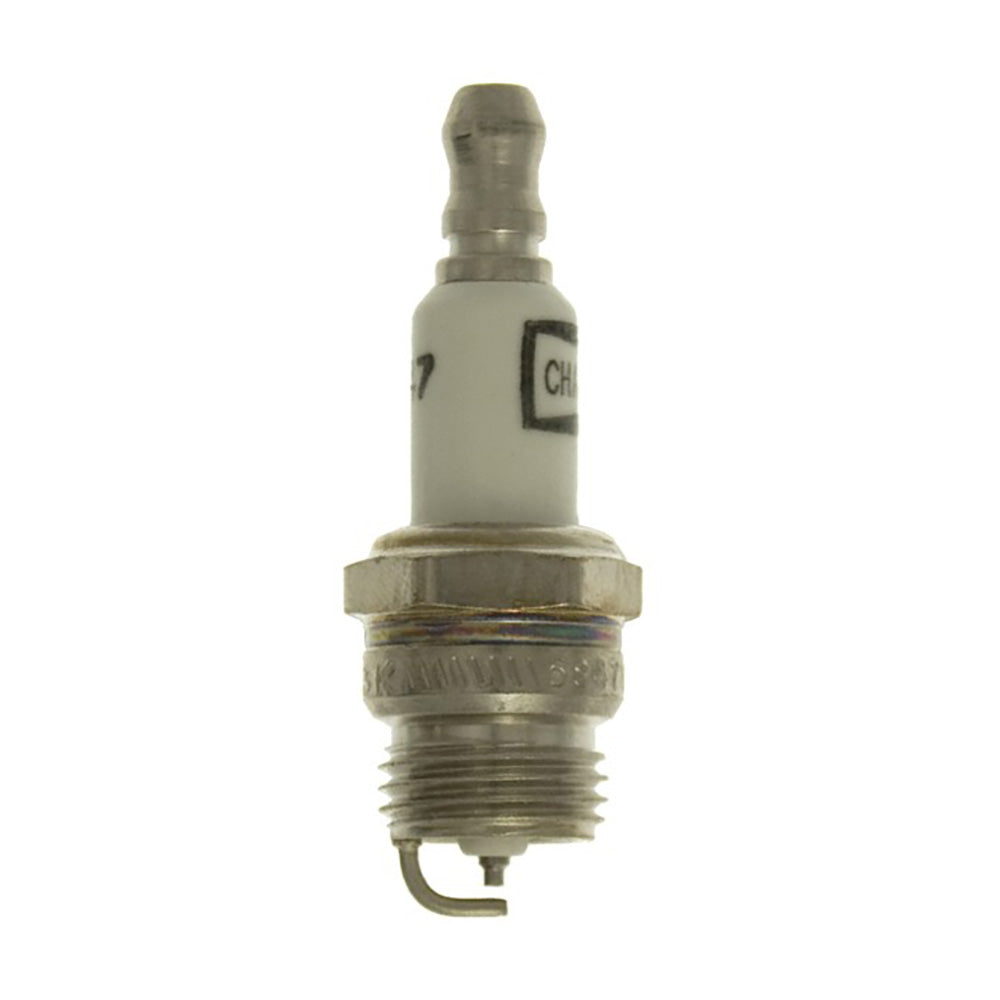

One New Aftermarket Replacement Spark Plug - Champion RDJ8J for Small Engine and Outdoor Power Equipment
This Champion RDJ8J (865) spark plug is a conventional small engine spark plug designed for 2-cycle and small 4-cycle outdoor power equipment, including lawn mowers, string trimmers, brush cutters, and related lawn and garden machinery. It features a copper core center electrode for increased conductivity and heat control, nickel alloy electrodes for durability, and a resistor design for reduced ignition interference.
Specifications
- Thread Diameter: 14mm
- Thread Pitch: 1.25mm
- Reach: 7.8mm (0.307")
- Hex Size: 5/8" (16mm)
- Seat Type: Tapered
- Electrode Gap: 0.024" (0.6mm)
- Resistor: Yes (SAC9)
- Heat Range: 8
- Center Electrode Material: Nickel
- Torque: 7-15 lb. ft. (cast iron or aluminum head)
Compatible Equipment
MTD / Troy-Bilt / Yard Machines / Bolens / Yard-Man / White Outdoor: String trimmers, brush cutters, and other 2-cycle outdoor power equipment using the Champion RDJ8J or equivalent plug. Verified compatible models include Troy-Bilt TB22EC, TB32EC, TB35EC, TB25C, TB25CB; MTD Y2560, Y2510; Bolens BL110, BL125, BL160.
Craftsman: Select 2-cycle trimmer and small engine models specifying the RDJ8J plug.
Verify your equipment's spark plug specification against the part number listed on the model sticker or in the owner's manual before ordering.
Replaces Part Number(s):
RDJ8J, 865 (Champion), 794-00046 (MTD), 753-06269 (Troy-Bilt)
Aftermarket Interchange Numbers
NGK BMR6E, NGK BPMR6F; also cross-references to MTD 794-00055, 753-06847, 753-06193
New aftermarket replacement part - not remanufactured, not used.
