RA103RRB2-IMP Bearing for Universal Products

One New Aftermarket Replacement Wide Inner Ring Ball Bearing for Agricultural Equipment

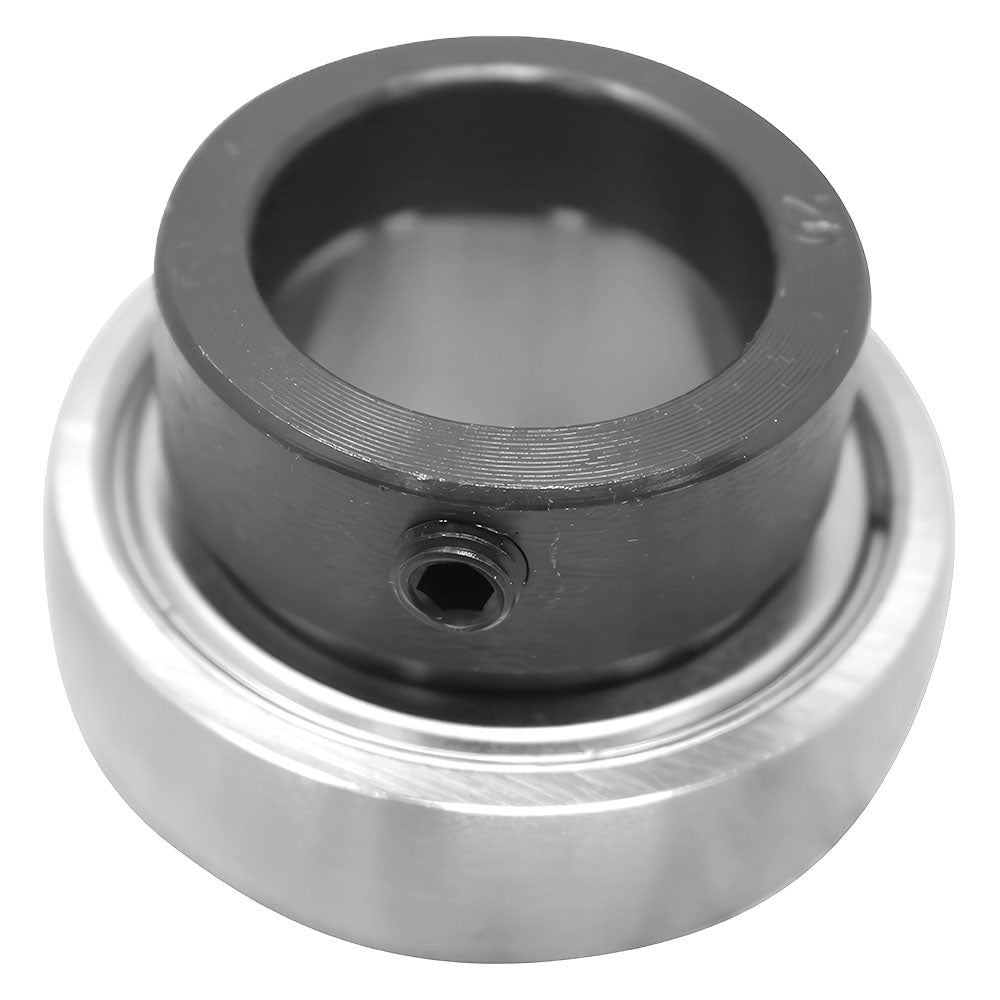

This wide inner ring insert ball bearing with eccentric locking collar is a direct aftermarket replacement for the Fafnir/Timken RA103RRB2 series. It features a double-sealed (contact) design that locks in grease and blocks out dirt, dust, and moisture -- making it well-suited for the harsh operating conditions found in balers, blowers, combines, loaders, rakes, spreaders, and other agricultural machinery. The extended inner ring and self-locking eccentric collar allow for secure shaft mounting without set screws.

Specifications

• Bore (ID): 1-1/4 in (31.75 mm)
• Outside Diameter (OD): 2.4409 in (62 mm)
• Outer Ring Width: 0.709 in (18 mm)
• Inner Ring Width: 0.938 in (23.83 mm)
• Overall Width: 1.406 in
• Bore Type: Round / Straight
• Locking Device: Eccentric Collar
• Seal Type: Double Sealed (Contact) -- Non-Relubricatable
• Cage Material: Nylon
• Duty: Medium
• Radial Dynamic Load Capacity: 4,800 lbf
• Radial Static Load Capacity: 2,280 lbf

Compatible Equipment

This bearing is used across a wide range of agricultural equipment brands and models including John Deere, Case/IH, New Holland, Ford, Allis Chalmers, Massey Ferguson, Hesston, New Idea, White Farm Equipment, Vermeer, and Hustler. Common OEM cross-references confirm fitment on balers, combines, mowers, and implements. Verify your OEM part number before ordering.

Replaces Part Number(s):

HIB10-0254, RA103RRB2, RA103RRB2-IMP

Aftermarket Interchange Numbers

JD8545, JD8596 (John Deere), 156010C91, 156011C91, 156011C92, 1270174C91, 374101A1 (Case/IH), 38766 (New Holland), 168264 (Ford), 1308984, 1133728, 339565 (Allis Chalmers), 22690X (Massey Ferguson), K2751, K2751A (New Idea), 050344 (Hesston)

New aftermarket replacement part - not remanufactured, not used.
