RA010RR-IMP Bearing for Universal Products
RA010RR-IMP Bearing for Universal Products
Couldn't load pickup availability

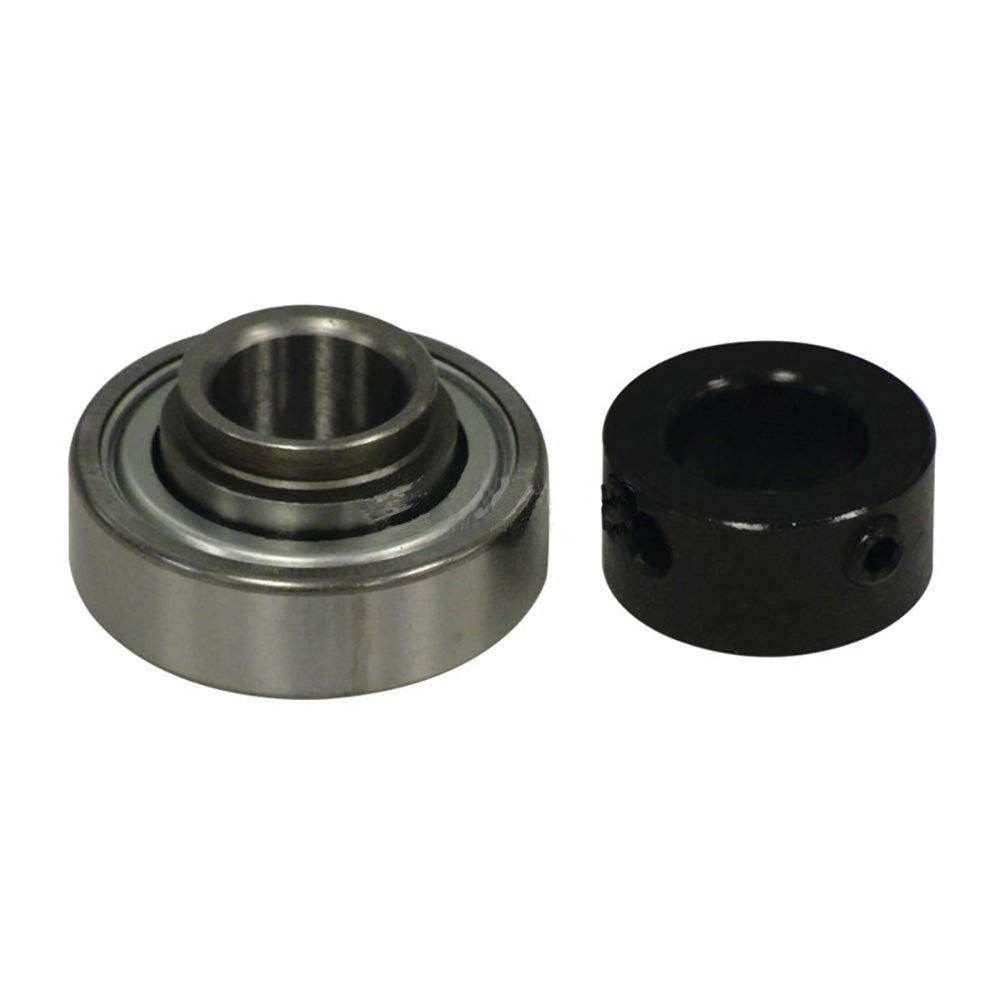

One New Aftermarket Replacement Ball Bearing Insert with Eccentric Locking Collar for Agricultural Equipment
This 5/8" bore ball bearing insert with eccentric locking collar is a widely used replacement bearing in agricultural hitch and implement applications. Featuring double rubber seals (RR), a cylindrical outer diameter, and an extended inner ring, it is factory pre-lubricated and engineered to handle medium-duty radial loads in demanding field conditions. Compatible with AGCO, Case IH, and other major agricultural equipment brands. Cross-references to the Fafnir (Timken) RA010RR and National NPC010RPC.
Specifications
- Bore Diameter: 5/8" (0.625")
- Outside Diameter: 1.5748"
- Overall Width: 0.750"
- Inner Ring Width: 19.05 mm (extended inner ring)
- Bearing Type: Ball insert bearing, eccentric locking collar
- Seals: Double rubber sealed (RR)
- Outer Diameter Type: Cylindrical O.D.
- Radial Dynamic Load Capacity: 2,360 lbf
- Radial Static Load Capacity: 1,000 lbf
- Cage Material: Nylon
- Max RPM: 6,140
- Pre-lubricated; not re-greaseable
Compatible With
AGCO: Applications using AGCO part numbers 70530806, 833447M1
Case IH: Applications using Case IH part number 668907R92
Universal Hitch and Implement Applications: 5/8" shaft hitch and drawbar bearing positions across multiple agricultural equipment brands and models
Replaces Part Number(s):
RA010RR-IMP, NPC010RPC
Aftermarket Interchange Numbers
Fafnir (Timken) RA010RR; National NPC010RPC; AGCO 70530806, 833447M1; Case IH 668907R92; HIB10-0199
New aftermarket replacement part - not remanufactured, not used.
