R3700 Seat Shock Fits Massey-Harris

Name: R3700 Seat Shock Fits Massey-Harris
SKU: R3700-RIL_3
Price: 63.0 USD
Availability: InStock

R3700 Seat Shock Fits Massey-Harris

$63.00 CAD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

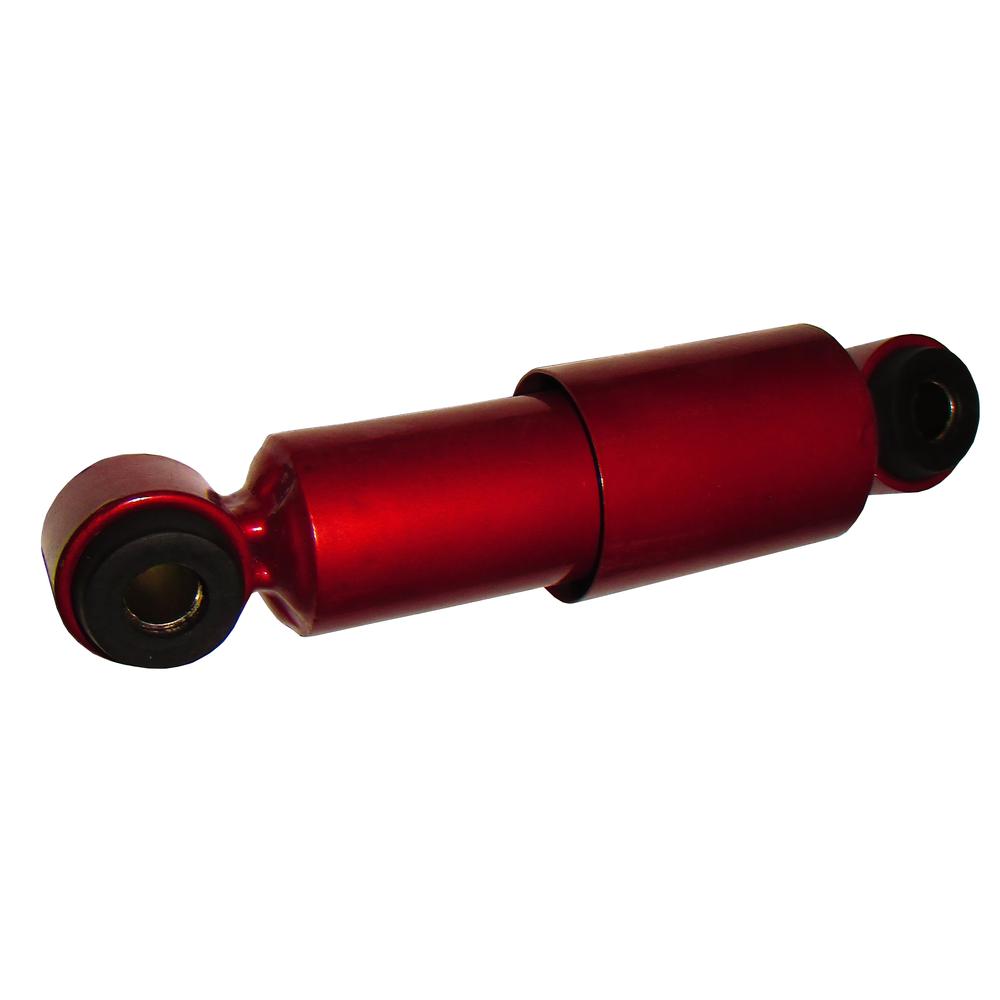

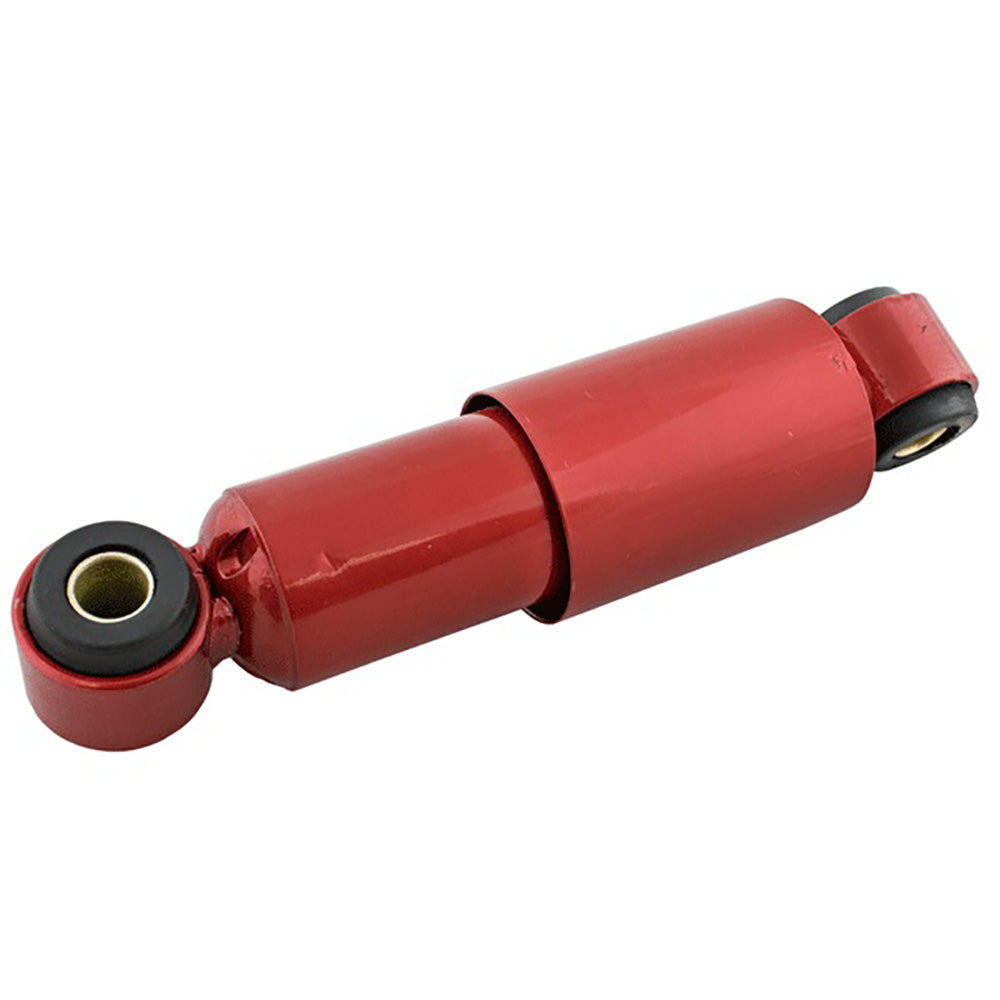

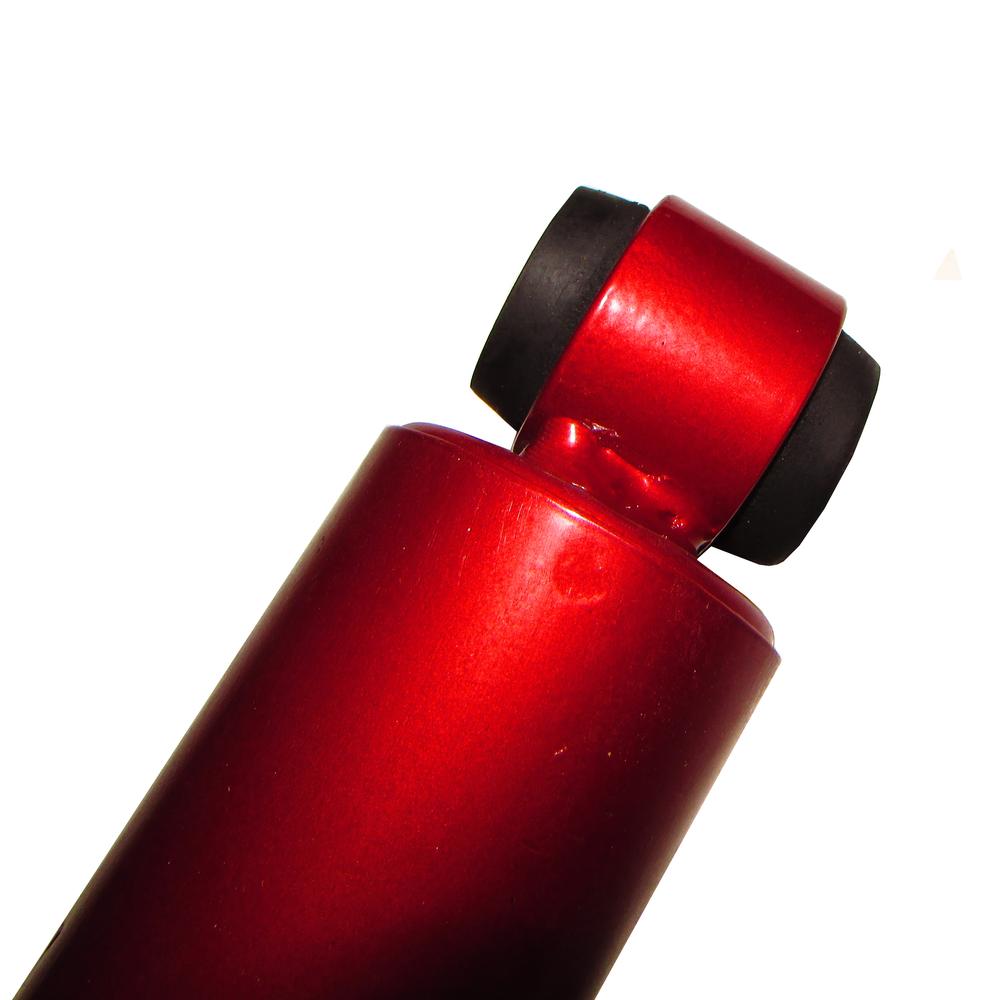

One New Aftermarket Seat Shock
Fits Massey-Harris Models: 444 (w/ Velvet Ride Seat), 555 (w/ Velvet Ride Seat), Mustang (w/ Velvet Ride Seat), 22 (w/ Velvet Ride Seat), 30 (w/ Velvet Ride Seat), 33 (w/ Velvet Ride Seat), 44 (w/ Velvet Ride Seat), 55 (w/ Velvet Ride Seat), 333 (w/ Velvet Ride Seat)

Tech Info:
-w/ Two Bolt Holes 7 1/4" When Compressed

Replaces Part Number(s): 351750R93, 70231239

Models This Part Fits:

600, B, C, 44, 450, Super H, Super MDTA, 444, 560, 400, M, Super M, U, 300, WC, 30, 33, 230, BN, 22, CA, Mustang (23), Super MTA, Super MD, W450, 22 Late, 55, Super C, 460, RC, 660, 333, 650, Super W6TA, W400, HV, WF, 200, 555, 350

Additional Information:

7-1/4" center to center compressed 9-1/8" fully extended .514" diameter mounting bolt hole .625" diameter hole with sleeve removed. Mounts at the front of the seat frame. Includes rubber bushings and metal bushings. The metal bushings may need to be removed for some applications. Primer paint finish only, intended to prohibit rust
