One (1) New R100649N 11" Single Stage Pressure Plate w/ 1-1/2" 23 Spline Fits JD

One (1) New R100649N 11" Single Stage Pressure Plate w/ 1-1/2" 23 Spline Fits JD

$388.00 CAD
$388.00 CAD
Sale Sold out
Shipping calculated at checkout.

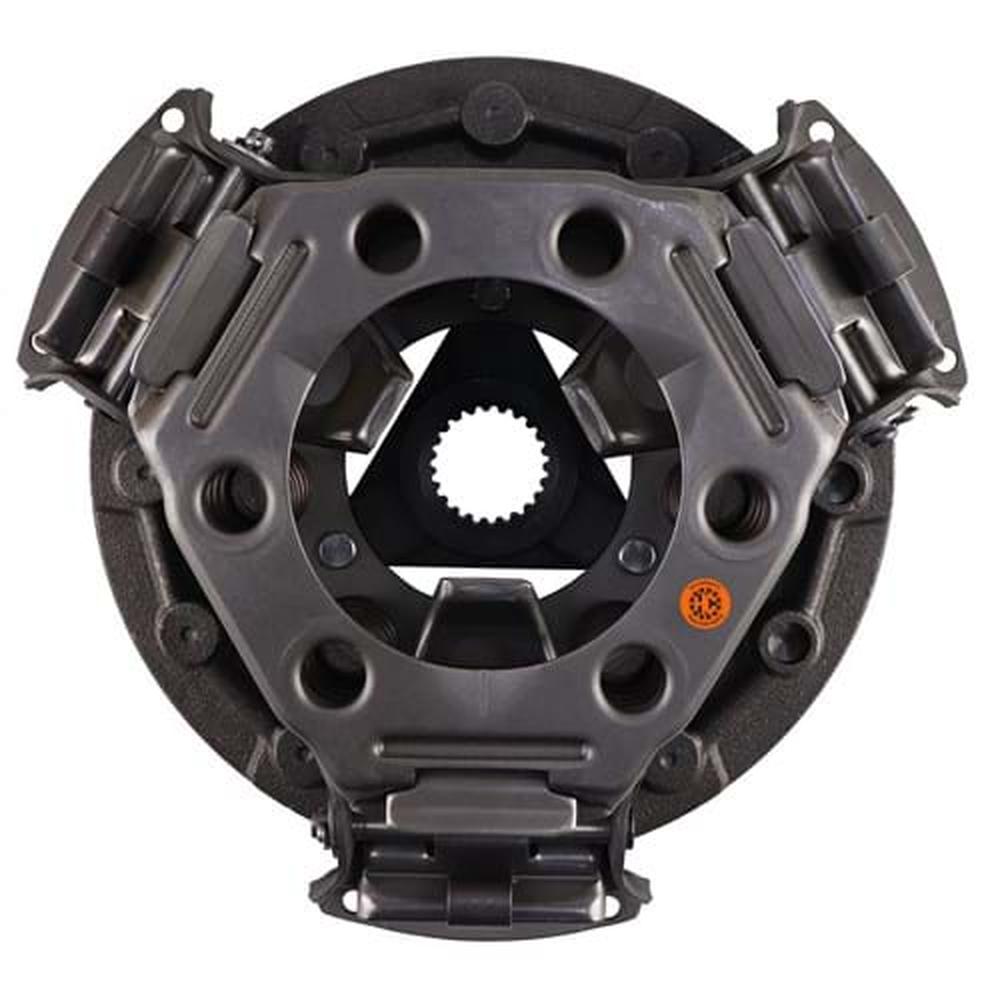

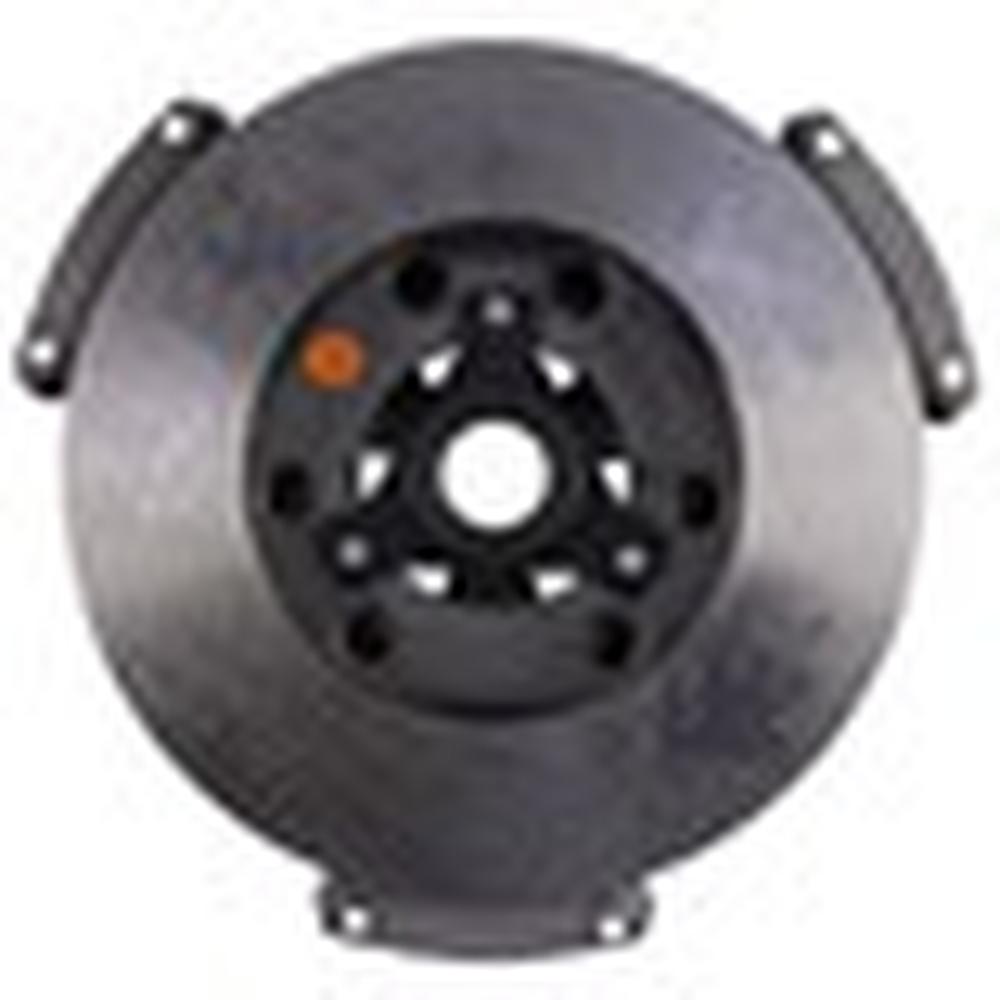

One New Aftermarket 11" Single Stage Pressure Plate, w/ 1-1/2" 23 Spline Hub - New
Fits John Deere Models: 401A, 401B, 448D (w/ Independent PTO, w/o Reverser), 1020 (USA Manufactured Tractor), 1120, 1520 (w/ Independent PTO, w/o Reverser), 2020 (Early S/N 2020 w/ Grease Zerk on Bearing Carrier, Must Use R100649N PPA, Spicer Type), 2030 (USA Manufactured Tractor), 2120, 2440 (w/ Independent PTO, w/o Reverser), 2630 (w/ Independent PTO, w/o Reverser), 2640 (w/ Independent PTO, w/o Reverser), 300, 301, 301A, 302, 400, 401, 401D

Tech Info:
-Size: 11"
-Hub Size: 1-1/2"
-Spline Count: 23
-PPA Levers: 3
-PPA Springs: 6 Coil Springs
-Flywheel Step: 0.820"
-Sold As: Each

Replaces Part Number(s): RE22610, AT30046, AR100649

Models This Part Fits:

400, 2120, 401A, 302, 401B, 1120, 1520, 1020, 401D, 2030, 448D, 401, 2640, 2020, 300, 2440, 301, 301A, 2630

Additional Information:

Size: 11" Flywheel Step: 0.820" Hub Size: 1-1/2" Spline Count: 23 PPA Levers: 3 PPA Springs: 6 Coil Springs

Reference Numbers:

AR100649, AT30046, RE22610
