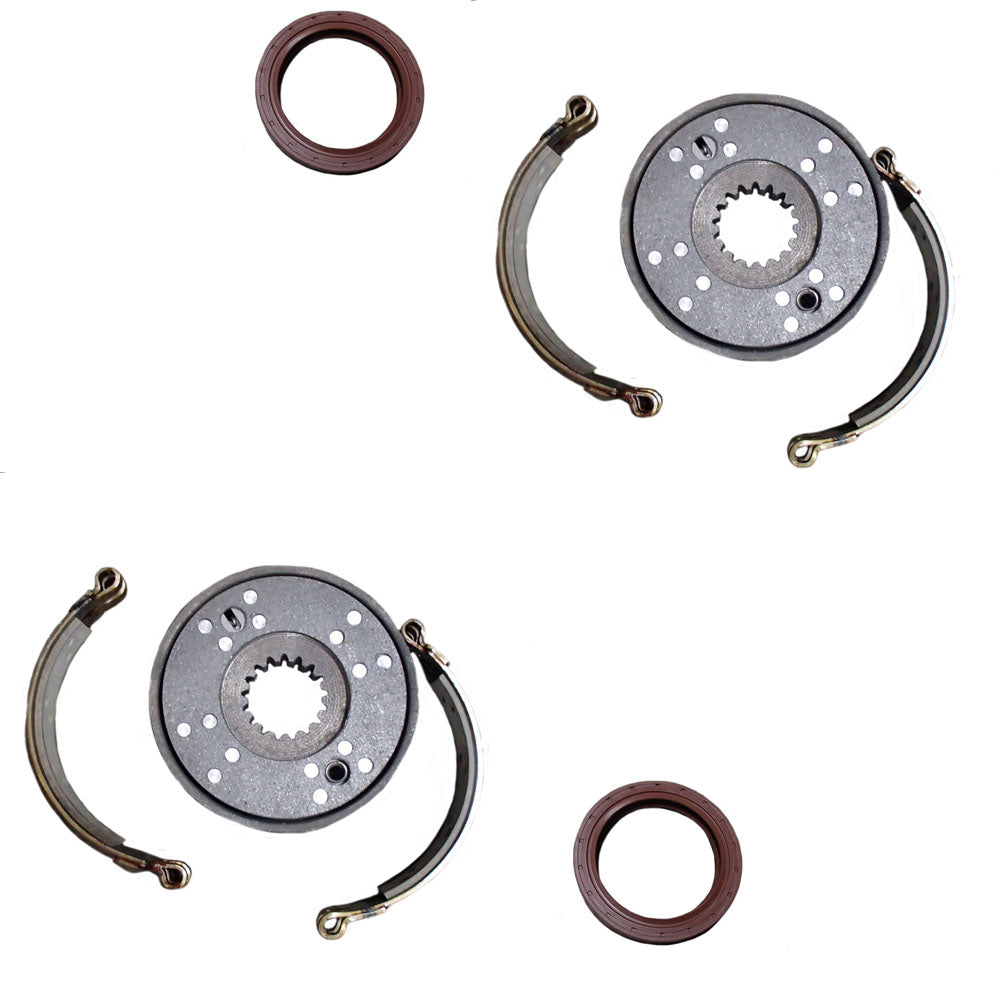

Qty 2: Brake Pack Assembly with Oil Seal Fits Case/International Harvester

Qty 2: Brake Pack Assembly with Oil Seal Fits Case/International Harvester

$590.00 CAD
$590.00 CAD
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket Qty 2: Brake Pack Assembly with Oil Seal

Tech Info:

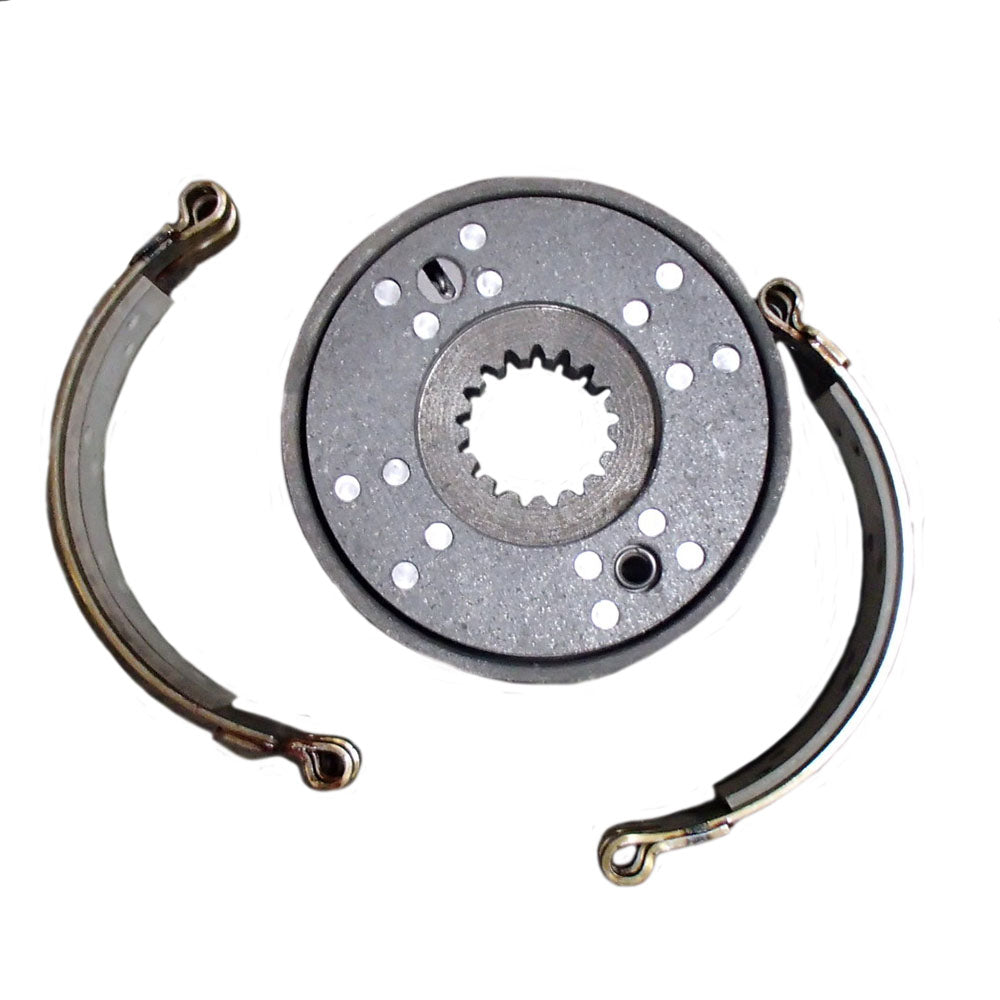

 -(1) Brake Pack Assembly
 -The overall thickness of the assembled brake pack, including new linings is 2.14 - 2.15
 -
 -Actual measurements 10-1/2" diameter,
 -2-1/2" height
 -2 used per tractor
 -
 -WILL NOT WORK ON TURBO MACHINES!.
 -
 -Replaces Part Numbers: 249022A1, 249022A2
 -

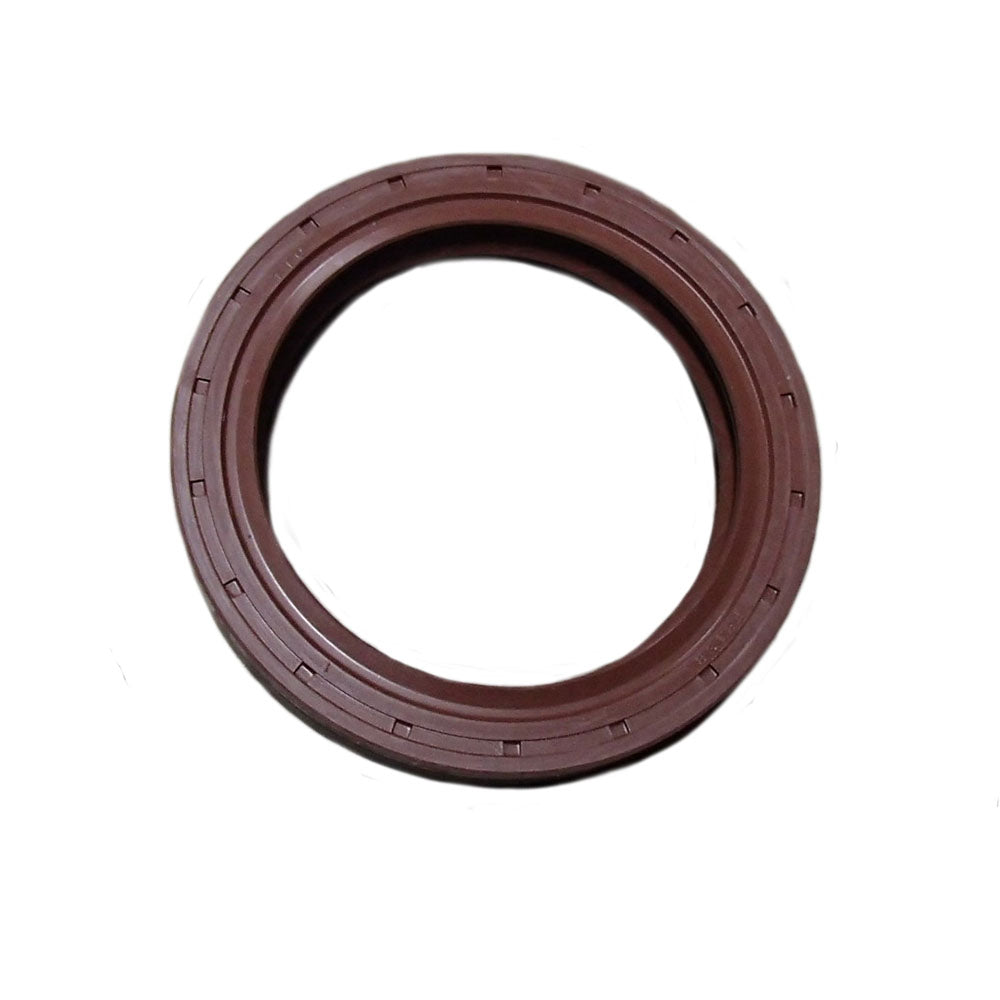

 -(1) Oil Seal
 -Tech Info:
 -53.4mm ID x 76.09mm OD x 11.94mm Thick
 -Replaces Part Number: 184072C1,295810A1,406902R91,AT21608

Made to Fits Case/International Harvester:
 Models: 430, 530, 470, 570, 480, 580, 480B, 580B, 480C, 580C, 480D 2WD, 580D 2WD, 580D NON TURBO 4WD
 Model Breaks: 580D 2WD,580D NON TURBO 4WD WILL NOT WORK ON THE TURBO 4WD MODELS
 Replaces Part Number(s): 249022A1249022A2249022A3CCTA142979A154350A157157A55474

 Replaces Part Number(s): 184072C1,295810A1,406902R91,AT21608,G10689,H362380

 Models: 430, 530, 470, 570, 480, 580, 480B, 580B, 480C, 580C, 480D 2WD, 580D 2WD, 580D NON TURBO 4WD
 Model Breaks: 580D 2WD,580D NON TURBO 4WD WILL NOT WORK ON THE TURBO 4WD MODELS
 Replaces Part Number(s): 249022A1249022A2249022A3CCTA142979A154350A157157A55474

Models This Part Fits:

430, 480C, 580D 2WD, 470, 580, 580D NON TURBO 4WD, 480B, 580B, 530, 570, 480, 480D 2WD, 580C

Additional Information:

(2) Brake Pack Assembly The overall thickness of the assembled brake pack, including new linings is 2.14 - 2.15 Actual measurements 10-1/2" diameter, 2-1/2" height 2 used per tractor WILL NOT WORK ON TURBO MACHINES!. Replaces Part Numbers: 249022A1, 249022A2 (2) Oil Seal 53.4mm ID x 76.09mm OD x 11.94mm Thick Replaces Part Number: 184072C1, 295810A1, 406902R91, AT21608

Reference Numbers:

249022A1249022A2249022A3CCTA142979A154350A157157A55474, 184072C1,295810A1,406902R91,AT21608,G10689,H362380
