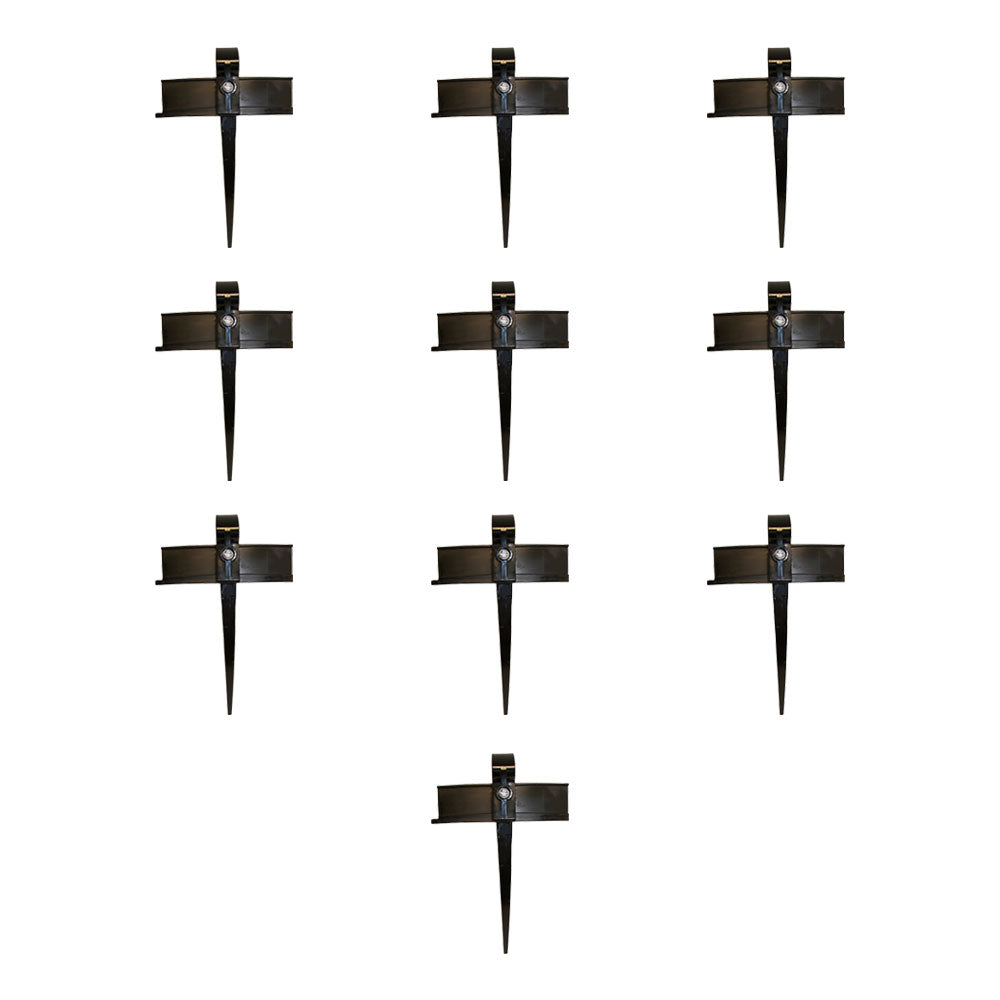

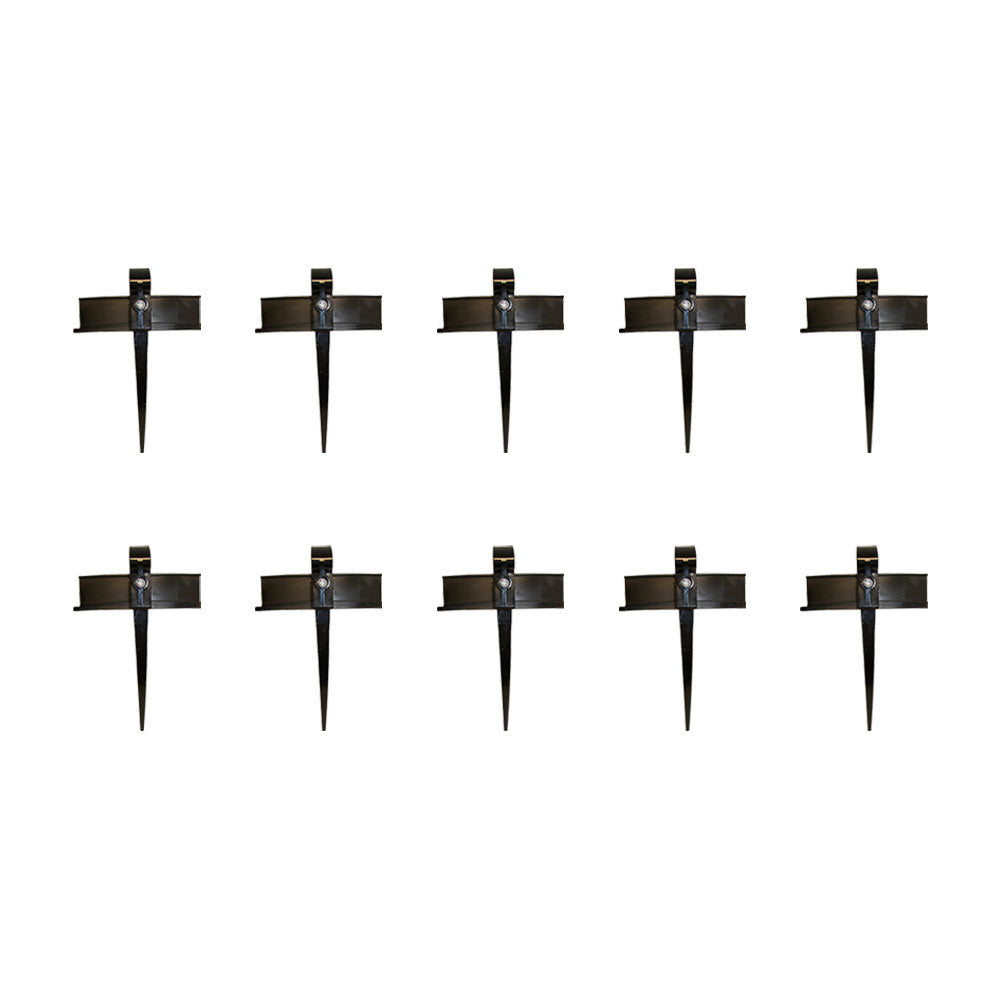

Qty 10: Grain Head Reel Teeth Fits Massey Ferguson Replaces 783597

Qty 10: Grain Head Reel Teeth Fits Massey Ferguson Replaces 783597

$102.00 CAD
$102.00 CAD
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket Qty 10: Grain Head Reel Teeth

Tech Info:
 -Overall Length: Approximately 11 inches.
 -Overall Width (Double Wing): 6 inches.
 -Reel Tube Diameter: Fits on a 1.375-inch (35 mm) reel tube.
 -Hex Hole Size: Fits into a 0.500-inch (12.5 mm) hex hole in the tube.
 -Tine Spacing: Designed for reels with 6.00-inch (152 mm) spacing between the hex holes.
 -Weight: Approximately 2.0 lbs.
 -Center, Nylon Long Double Wing Unit,
 -
 -Tines have a hex nub that fits into a hex hole in the tube.
 -Standard since 1999/2000.
 -Includes Hardware.

Made to Fits Massey Ferguson:
 Combine Models: 9850, 9800, 8000, 8200
 Model Breaks: 9850 & 9800 & 8200 Cutting Platform,8000 Grain Head
 Replaces Part Number(s): 783597

Models This Part Fits:

9850, 9800, 8200, 8000

Additional Information:

Overall Length: Approximately 11 inches. Overall Width (Double Wing): 6 inches. Reel Tube Diameter: Fits on a 1.375-inch (35 mm) reel tube. Hex Hole Size: Fits into a 0.500-inch (12.5 mm) hex hole in the tube. Tine Spacing: Designed for reels with 6.00-inch (152 mm) spacing between the hex holes. Weight: Approximately 2.0 lbs. Center, Nylon Long Double Wing Unit, Tines have a hex nub that fits into a hex hole in the tube. Standard since 1999/2000. Includes Hardware.

Reference Numbers:

783597
